View 32 Tempered Glass RGB Edition
View 32 Tempered Glass RGB Edition
SKU:CA-1J2-00M1WN-00

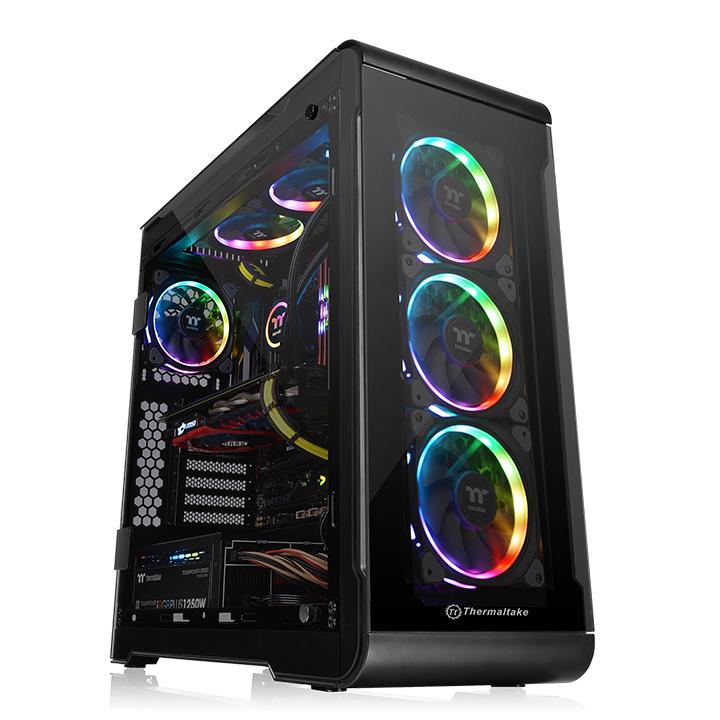

ATX mid-tower chassis with four tempered glass windows and three preinstalled 120mm Riing LED RGB fans.
-
Design
-
Specification
-
Download
-
How-to Videos

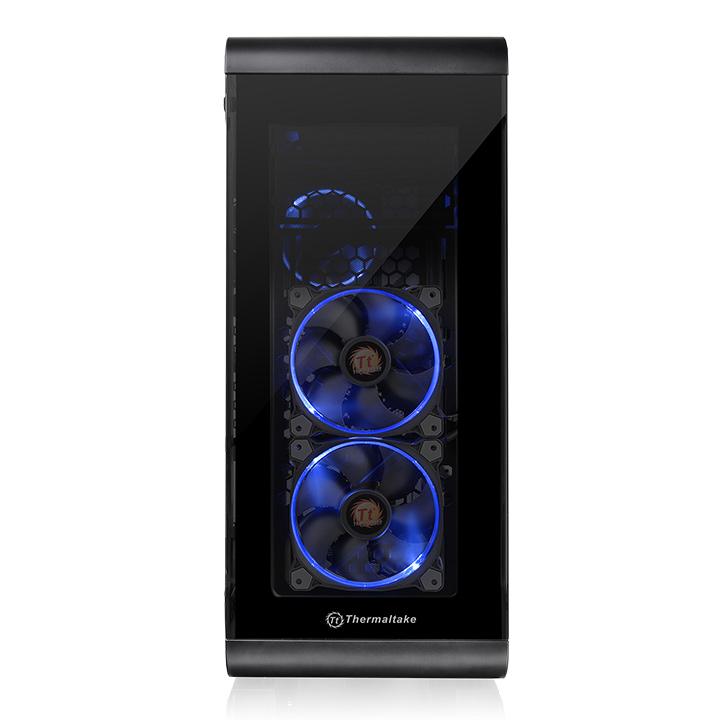

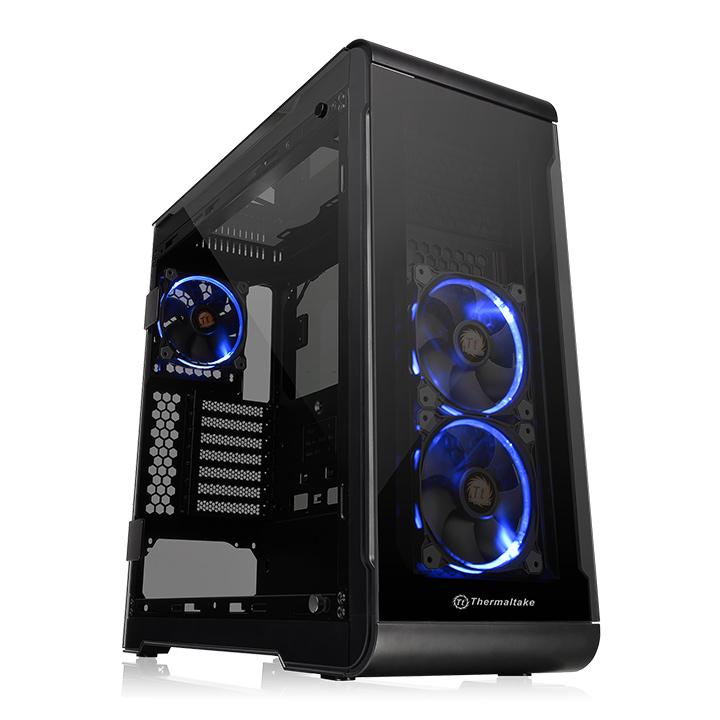

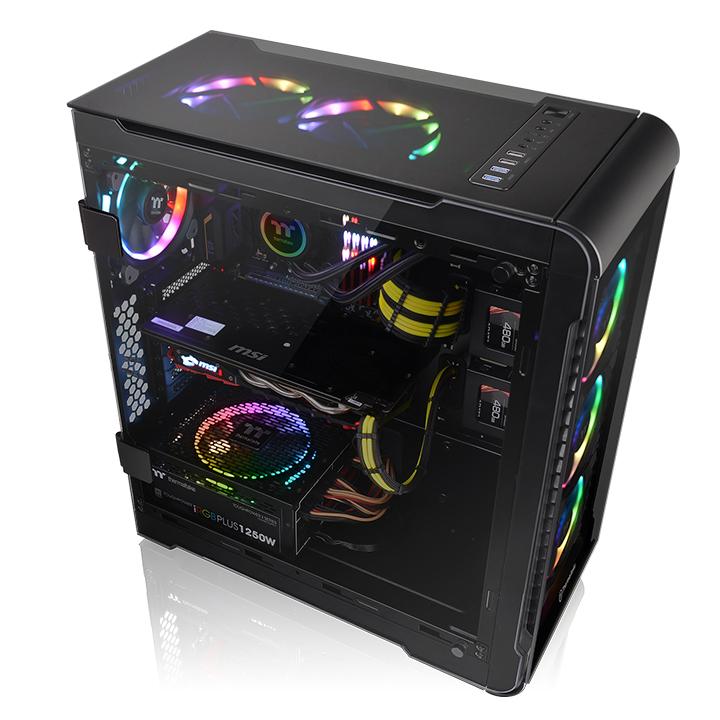

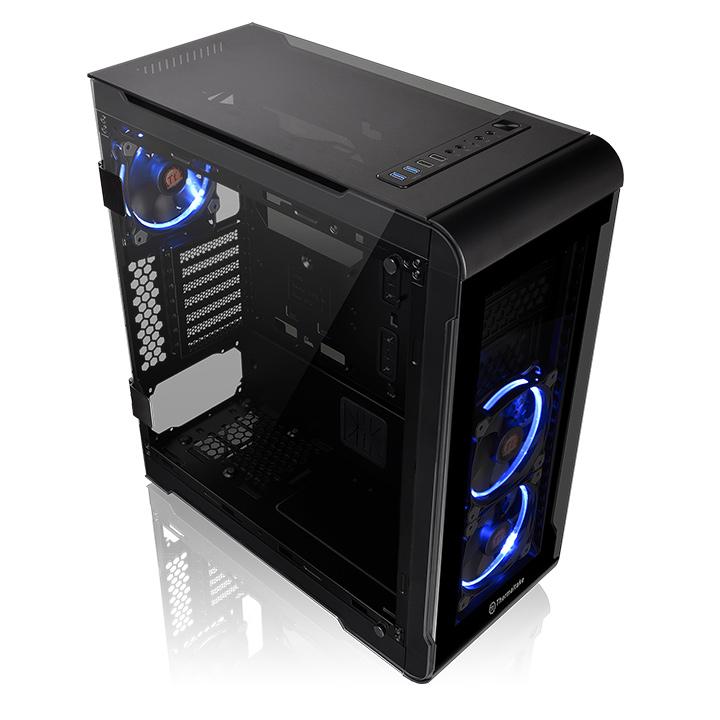

Thermaltake has merged beauty and performance into the design of View 32 Tempered Glass RGB Edition mid-tower chassis. Constructed with four premium-quality 4mm thick tempered glass windows (top, front, left and right) for a direct view of the inner system and excellent chassis security. Three built-in 120mm Riing LED RGB fans (two at the front and one at the rear side) deliver RGB illumination and optimum ventilation. Its unparalleled expandability for the latest PC hardware and liquid cooling solutions satisfies the market where users have opted for stylish PC chassis with advanced features and aesthetic appeal.
*The image is for reference only. Two 120mm Riing LED RGB front fans and one 120mm Riing LED RGB rear fan are included.
Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.

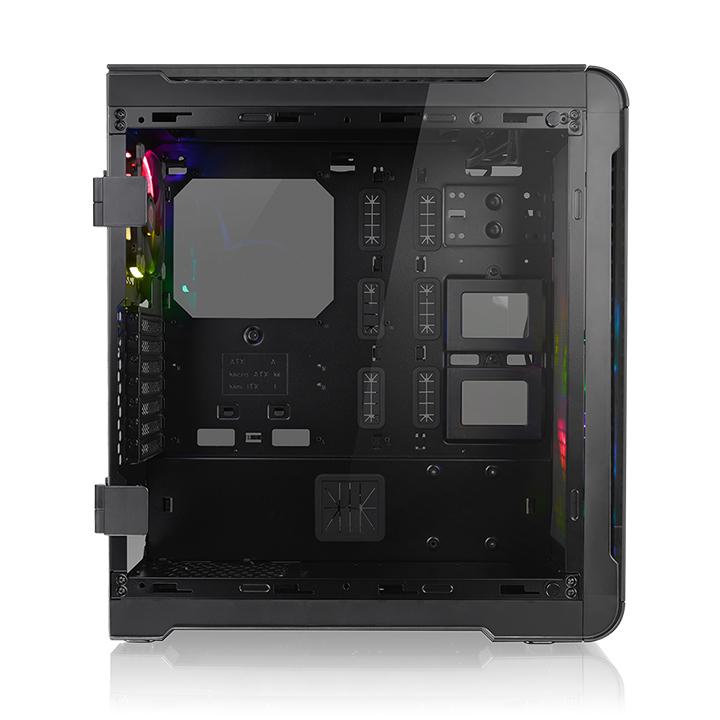

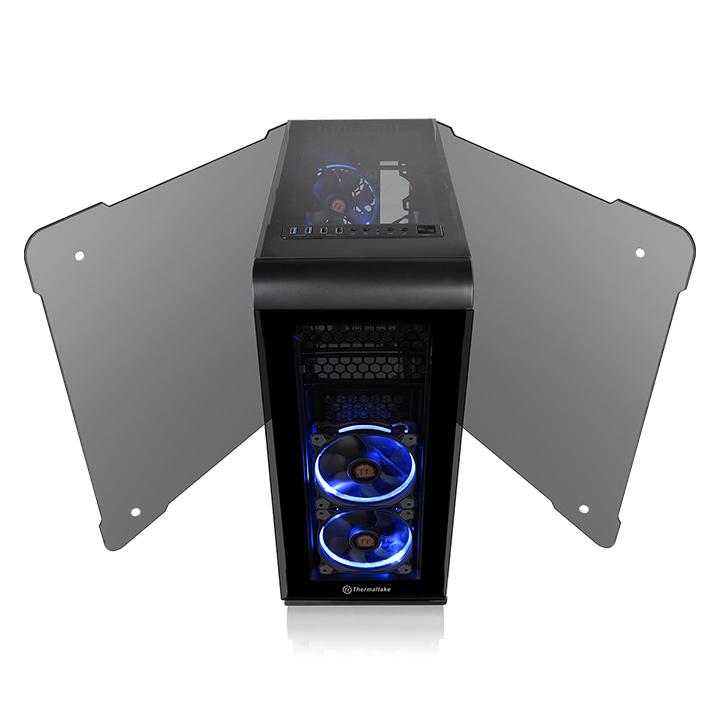

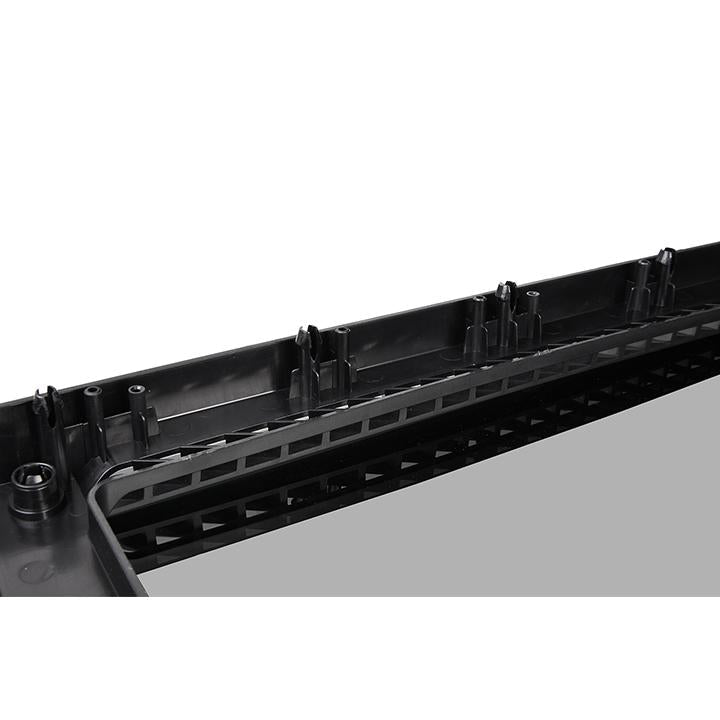

The 4 mm thick top, front, left and right premium tempered glass panels guarantee the durability of the window

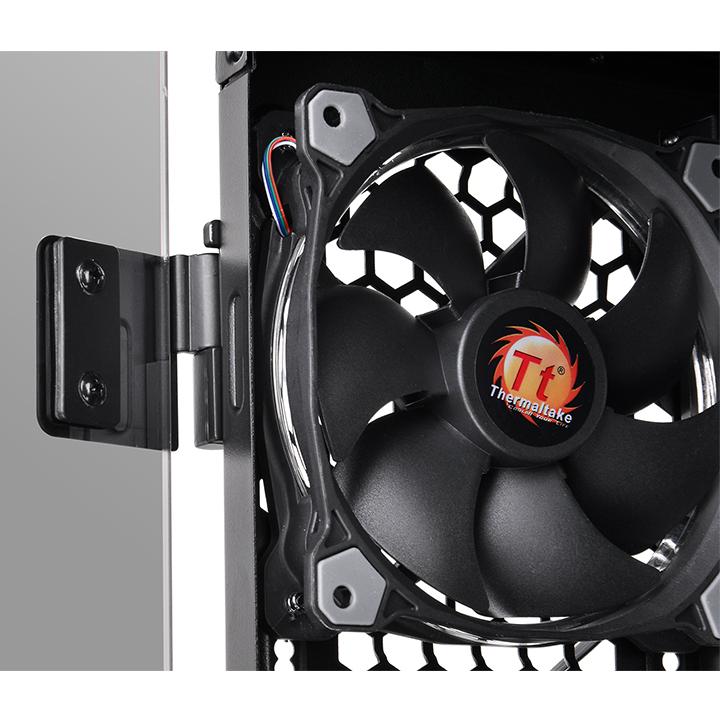

and display your build with crisp clarity. Both sides are hinged and swing-open for easy and full access
to your build.
Easy breezy one-button control on the top-front panel over 5 lighting modes of Riing 12 LED RGB fans, including RGB spectrum
and static colors (red/blue/white/green).
*Long press the button will immediately
turn the light off. Press the button again to restore it to original states.

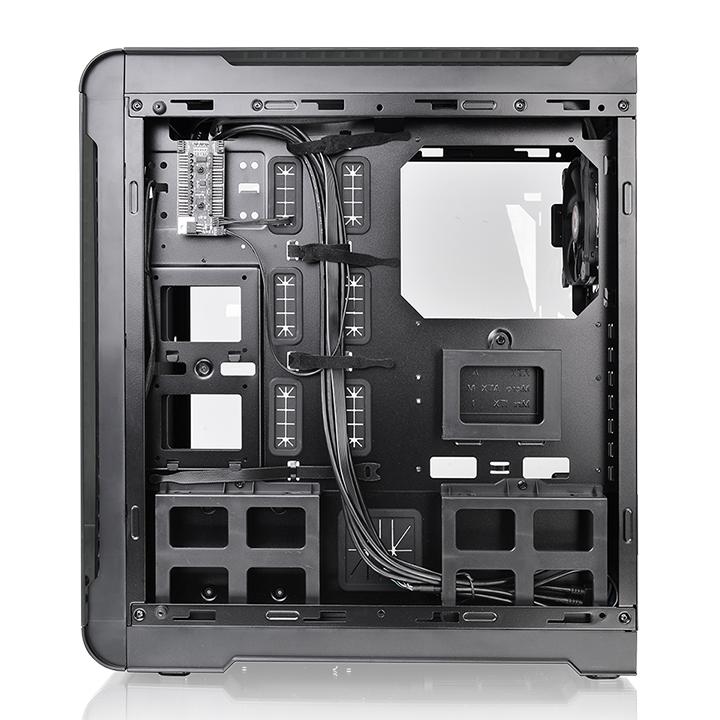

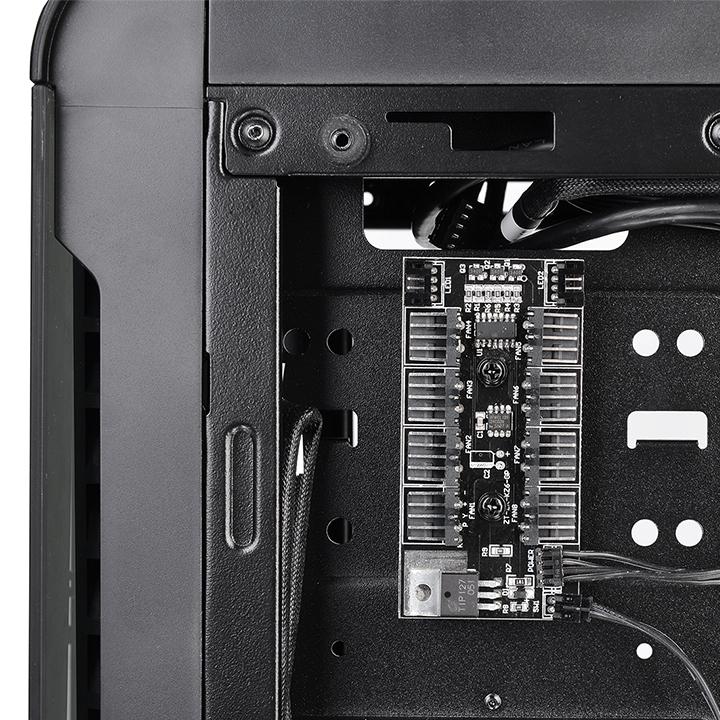

View 32 TG RGB delivers RGB LED illumination thanks to the built-in RGB Switch Board, which is exclusively designed for Thermaltake Riing 12 LED RGB Fan Series and supports up to 8 fans.
|
||||||||||

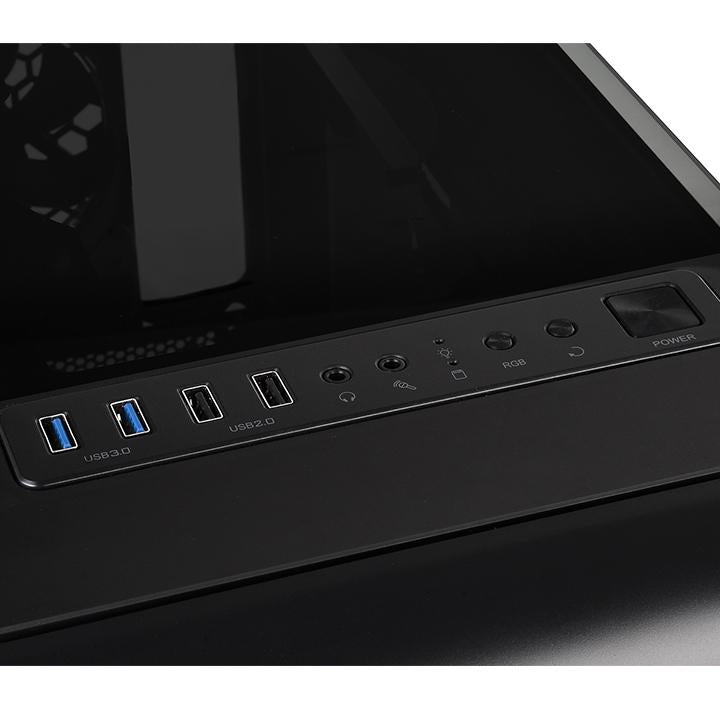

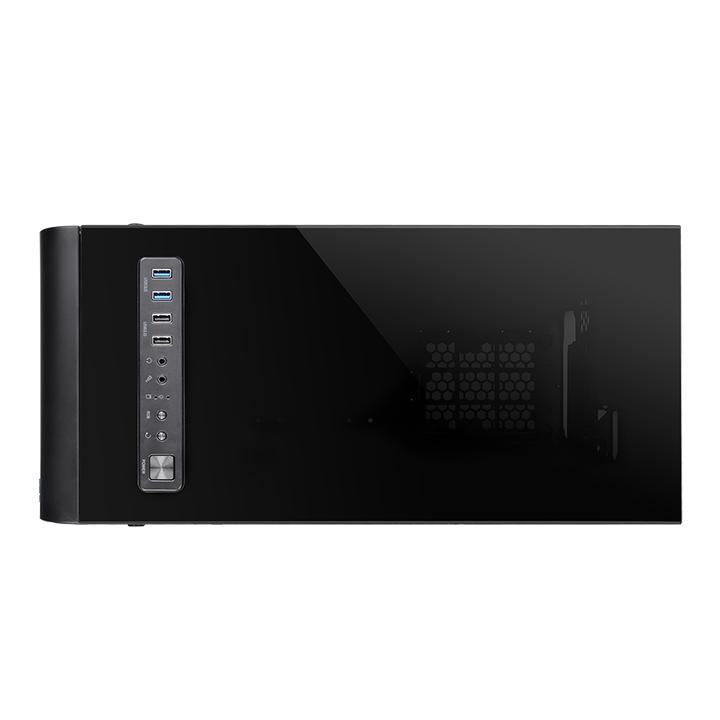

The top-front panel features two USB 3.0 data transfer ports, along with two standard USB 2.0 ports, to grand direct access when needed.

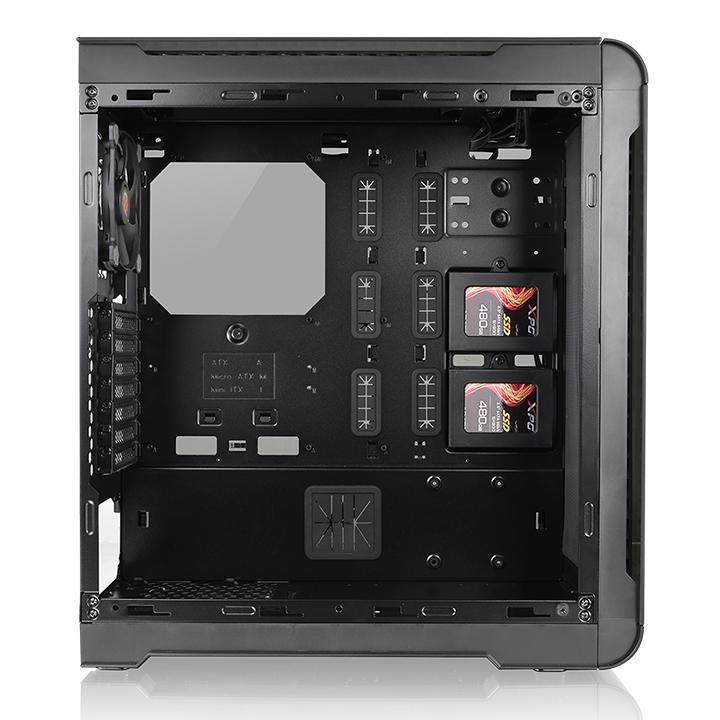

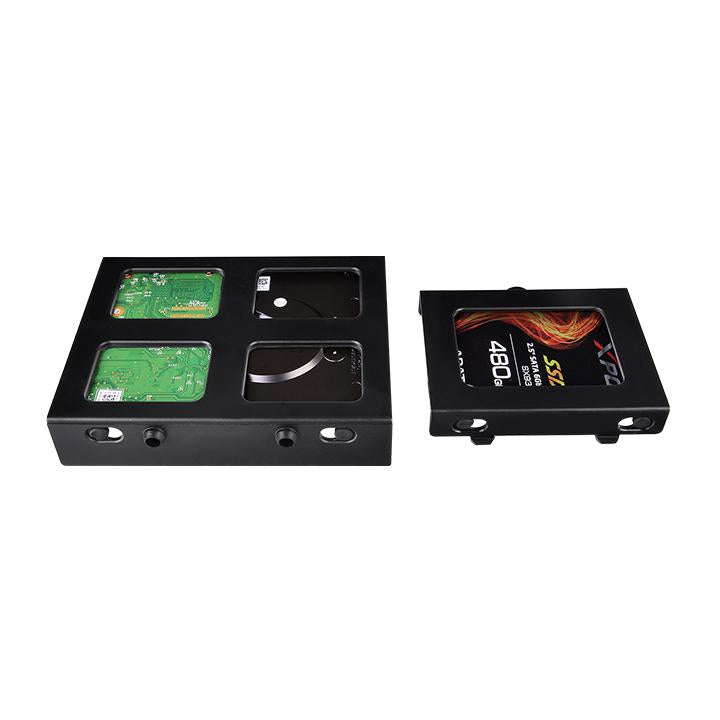

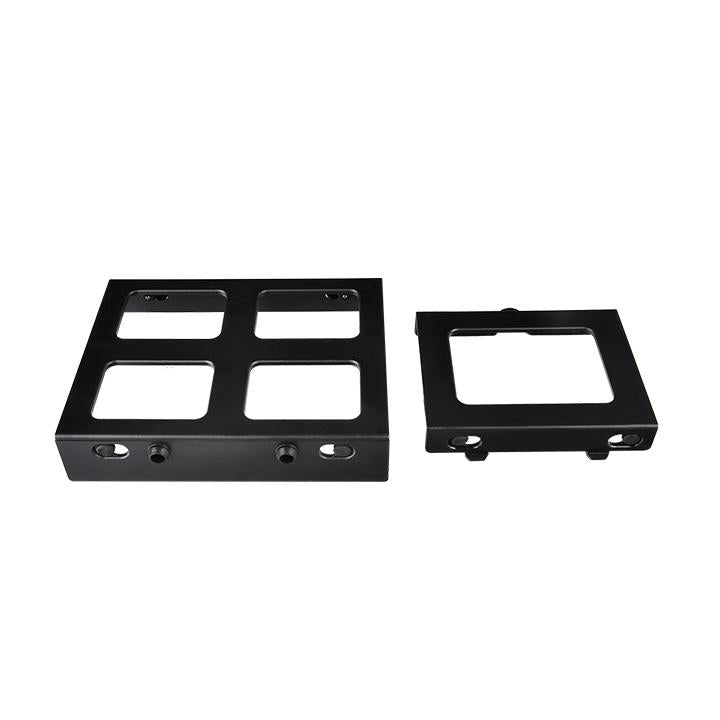

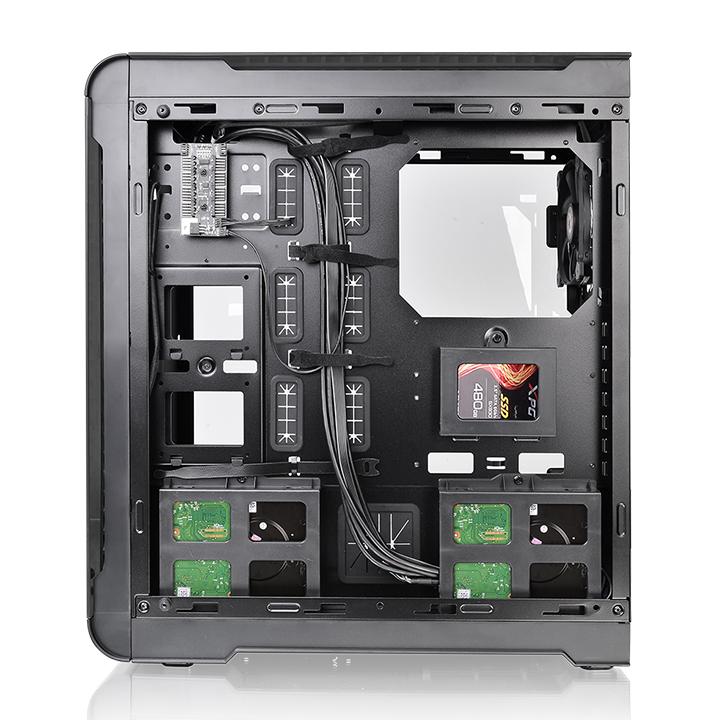

The included fully modular 3.5”/2.5” -compatible drive brackets minimize the hassles of installation /removal.
Users are able to freely interchange the hard-drives to suit their particular needs. The dual drive bay concept
of “3+2” offers a good ratio for accessories and storage devices.
3.5” or 2.5” HDD Drive Compatible

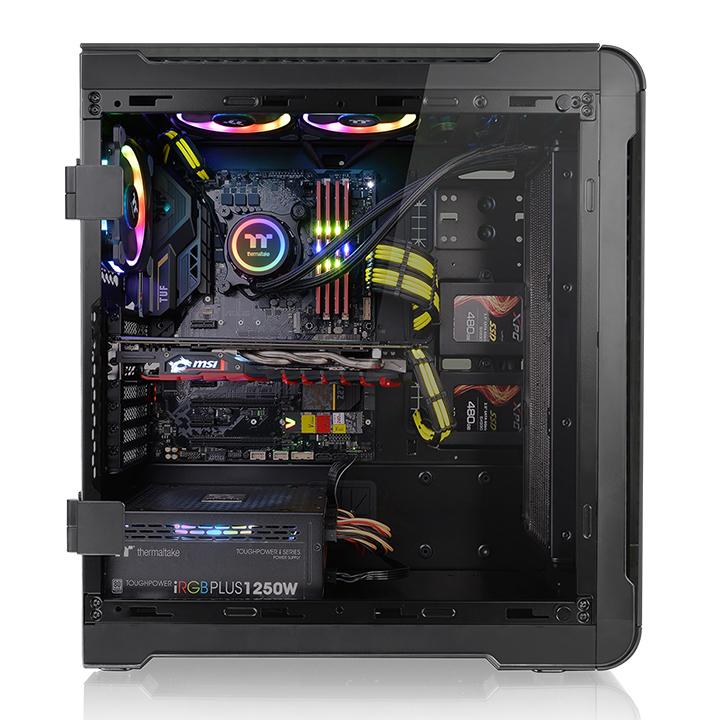

Guarantees outstanding expandability with the support for a tower CPU cooler with maximum height 160mm, a dual expansion slot VGA of up to 400mm in length without HDD rack, and a power supply with length of up to 220mm. It has the ability to accommodate multiple 3.5”/2.5” storage devices at the same time.
*The image is for reference only. Two 120mm Riing LED RGB front fans and one 120mm Riing LED RGB rear fan are included.

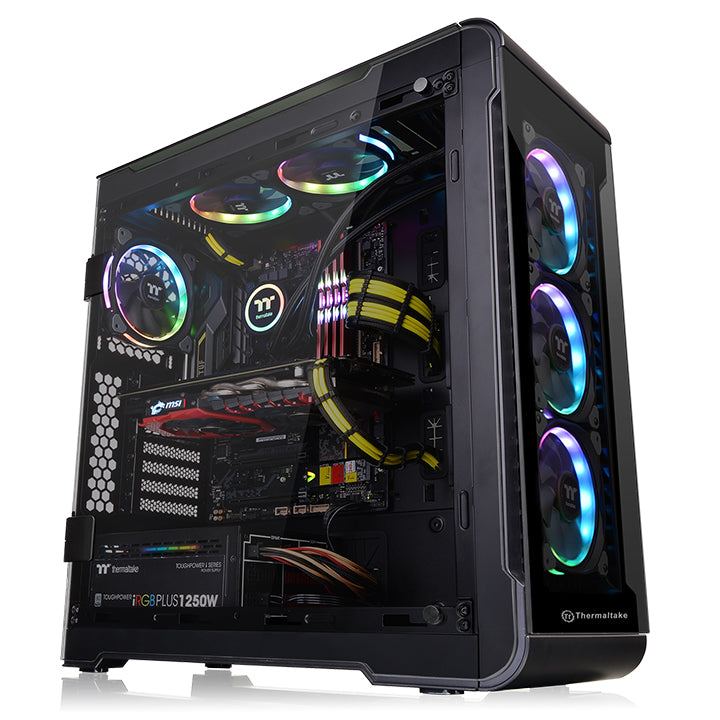

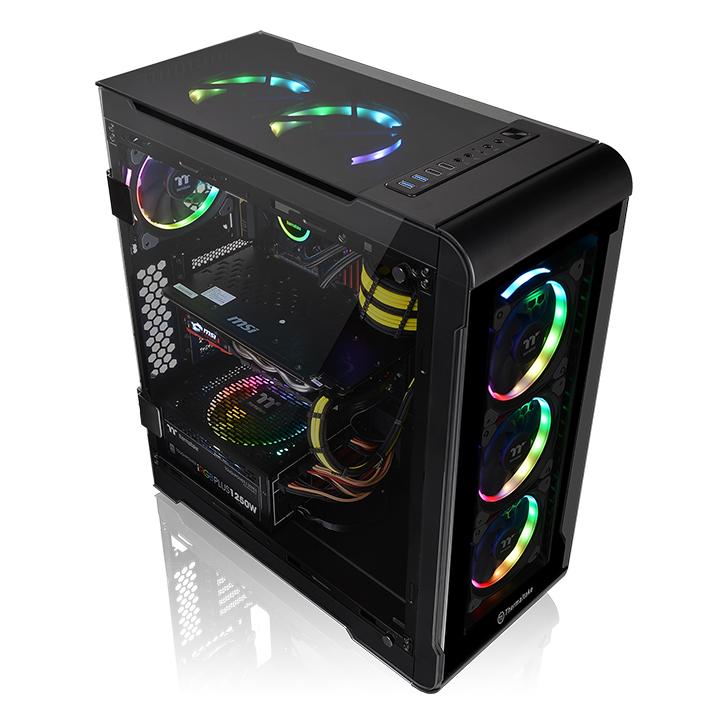

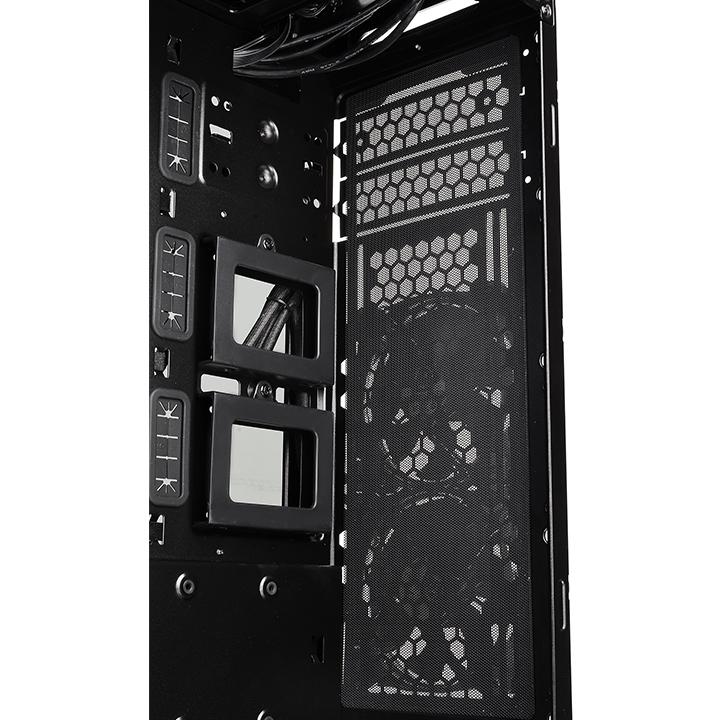

Optimized for excellent cooling capability with 2x 120mm Riing LED RGB front fans and 1x 120mm Riing LED RGB
rear fan preinstalled. The case is able to house up to trio 120mm
intake fans, up to 2x 120mm fans at the top,
and a radiator size up to 360mm at the same time to allow users to build a complete high-end system.
Thermaltake Riing 12 LED RGB – A 120mm high-static pressure fan with a patented 256 colors LED ring.
*The image is for reference only. Two 120mm Riing LED RGB front fans and one 120mm Riing LED RGB rear fan are included.
|
|||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||
|
||||||||||||||||||||
Product Specifications
| P/N | CA-1J2-00M1WN-00 |
|---|---|
| Case Type | Mid Tower |
| Weight | 8.2 kg / 18.07 lb |
| Side Panel | 4mm Tempered Glass x 4 (Left, Right, Top and Front) |
| Color | Exterior & Interior : Black |
| Material | SPCC |
| Cooling System | Rear (exhaust) : 120 x 120 x 25 mm Riing RGB fan (1400rpm, 28dBA) Front (intake) : 120 x 120 x 25 mm Riing RGB fan x 2 (1400rpm, 28dBA) |
| Expansion Slots | 7 |
| Motherboard | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| I/O Port | USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1, RGB Switch x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support | Front: 3 x 120mm Top: 2 x 120mm Rear: 1 x 120mm |
| Radiator Support | Front: 1 x 360mm Top: 1 x 240mm Rear: 1 x 120mm |
| Clearance | CPU cooler height limitation: 160mm VGA length limitation: 400mm PSU length limitation: 220mm |
