Versa J23 Tempered Glass RGB Edition
Versa J23 Tempered Glass RGB Edition
SKU:CA-1L6-00M1WN-01
ATX mid-tower chassis with one tempered glass window and four preinstalled 120mm fans.
-
Design
-
Specification
-
Download
-
How-to Videos
Introducing the new Versa J23 tempered glass chassis, designed to give first time builders a premium experience out of the
box.

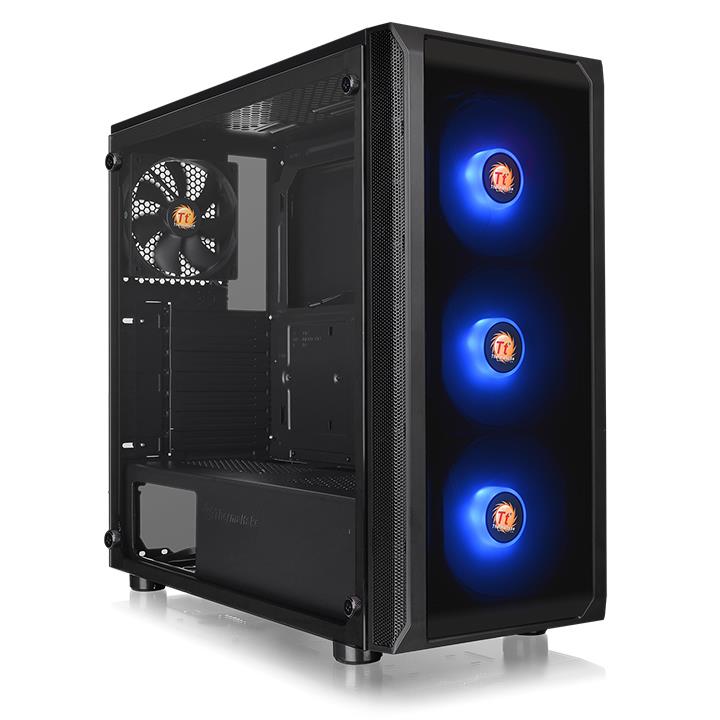

The special RGB edition of the J23 comes with 3 built-in 120mm 12V RGB front fans that are
dual-mode controllable either via the I/O port RGB button or the synchronization with enthusiasts’
favorite RGB capable motherboard brands, including Asus, Gigabyte, MSI, ASRock, and Biostar.
The J23 also features a full-width tempered glass panel on the left side, an acrylic front
panel to showcase your fans and lighting modes, as well as a handy power supply cover to
keep your system looking neat and tidy.
*The image is for reference only.
*Three 120mm 12V RGB front fans and one 120mm standard
3 Built-in 120mm 12V RGB Fans
Versa J23 TG RGB is preinstalled with three 120mm 12V RGB fans that can be controlled using a
simple interface built into the I/O panel that cycles through three different lighting modes
and a range of different color options.
Thanks to the built-in RGB switch board, Versa J23 TG RGB is able to deliver the ultimate RGB lighting customization through the I/O port RGB button or the synchronization with ASUS Aura Sync, GIGABYTE RGB Fusion and MSI Mystic Light Sync-enabled motherboards.
With a built-in power supply cover, the J23 features plenty of ventilation to keep your power supply cool while also hiding away all those cables.
Tempered Glass Window

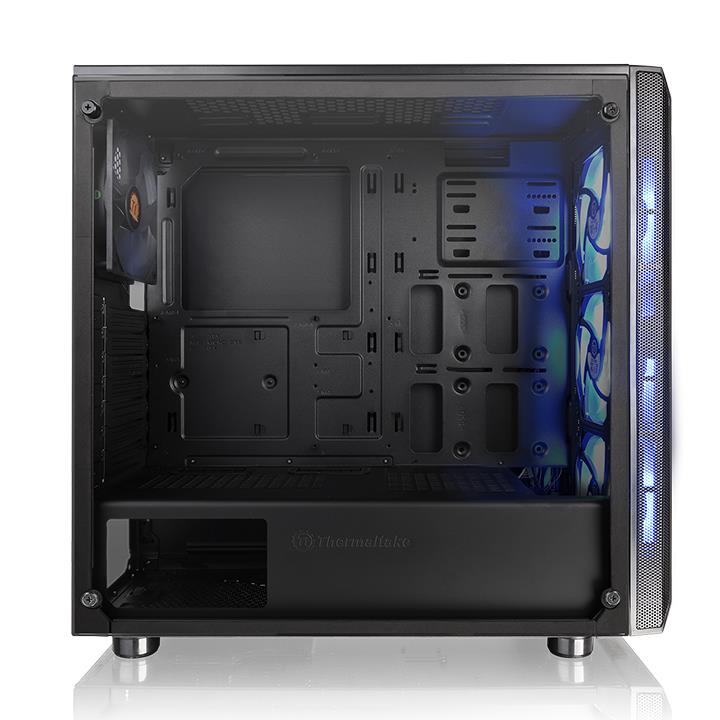

The Versa J23 comes equipped with a full sized 4mm thick tempered glass panel which is held on with thumbscrews in each corner. Our tempered glass panels are made to be durable and show less wear and tear than traditional acrylic panels – making this the best way to show off your system!
Tool-Free Installation
Forget fiddly drive bays and running out of space where you need it. The Versa J23 features totally
tool-less drive bays that are interchangeable between above and below the power supply cover,
as well as behind the motherboard tray for a total of seven expansion slots
3.5” or 2.5” HDD Drive Compatible
Don’t compromise on hardware, the J23 can fit a tower CPU cooler with maximum height 160mm, and dual expansion slots for VGA up to 310mm in length, and a power supply with length of up to 170mm.
*The image is for reference only.
*Three 120mm 12V RGB front fans and one 120mm standard rear fan are included.
The Versa J23 comes with one 120mm fan preinstalled in the rear, as well as three 120mm 12V RGB fans in the front with space for two more 140mm fans at the top. The front and top panels also feature mesh cutouts to keep airflow as high as possible, and helping hardware stay cool.
*The image is for reference only.
*Three 120mm 12V RGB front fans and one 120mm standard rear fan are included.

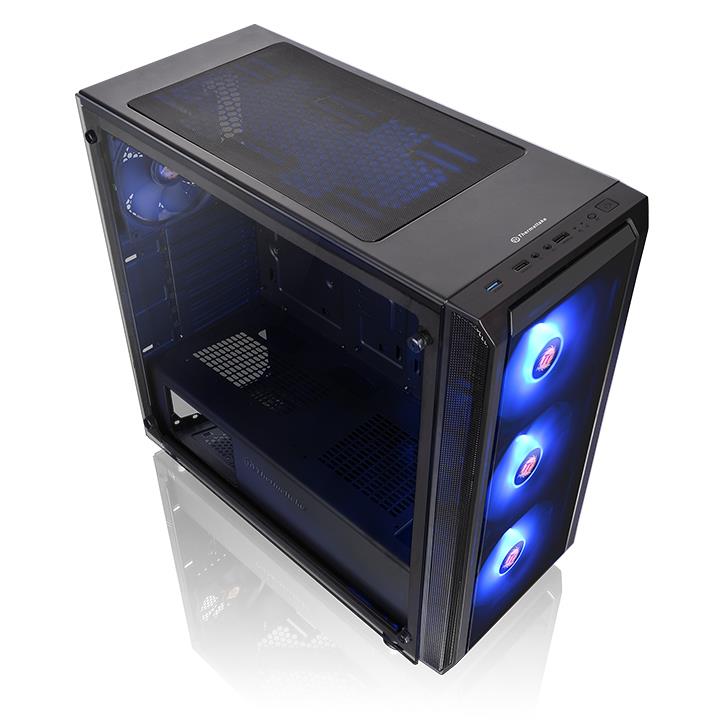

The J23 is designed to draw all the focus onto your internal system. The acrylic front panel lets light pour out from your fans, while the ventilated top and tempered glass side panels put your hardware on display.
Handy I/O Ports
The top-front panel features two USB 3.0 data ports as well as audio passthrough and RGB lighting control switch.
|
|||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||
Fan Supporting List
|
|||||||||||||||||||||||||
|
||||||||||||||||||||
Product Specifications
| P/N | CA-1L6-00M1WN-01 |
|---|---|
| Model | Versa J23 TG RGB |
| Case Type | Middle tower |
| Dimensions | 447 x 205 x 455 mm (17.6 x 8.1 x 17.91 inch) |
| Weight | 7.4 kg / 16.31 lb |
| Side Panel | 4mm Tempered Glass x1 |
| Color | Exterior & Interior : Black |
| Material | SPCC |
| Cooling System | Rear (exhaust) : 120 x 120 x 25 mm fan (1000rpm, 16dBA) Front (Intake) : 120 x 120 x25 mm RGB fan (1000rpm, 16dBA) x3 |
| Expansion Slots | 7 |
| Motherboard | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| I/O Port | USB 3.0 x 1, USB 2.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support | Front: 3 x 120mm, 2 x 140mm Top: 2 x 120mm, 2 x 140mm Rear: 1 x 120mm |
| Radiator Support | Front: 1 x 240mm, 1 x 280mm Top: 1 x 240mm Rear: 1 x 120mm |
| Clearance | CPU cooler height limitation: 160mm VGA length limitation: 310mm PSU length limitation: 170mm |
