Versa J23 Tempered Glass Edition
Versa J23 Tempered Glass Edition
SKU:CA-1L6-00M1WN-00
ATX mid-tower chassis with one tempered glass window and one preinstalled 120mm fans.
-
Design
-
Specification
-
Download
-
How-to Videos
Introducing the new Versa J23 tempered glass chassis, designed to give first time builders a premium experience out of the
box.
The J23 features a full-width tempered glass panel on the left side, an acrylic front panel
to showcase your fans and lighting modes, as well as a handy power supply cover to keep your
system looking neat and tidy.
If you’re looking for a sleek, modern way to show off your system, the J23 is the way to
go.
*The image is for reference only.
* One standard 120mm fan is included.
With a built-in power supply cover, the J23 features plenty of ventilation to keep your power supply cool while also hiding away all those cables.

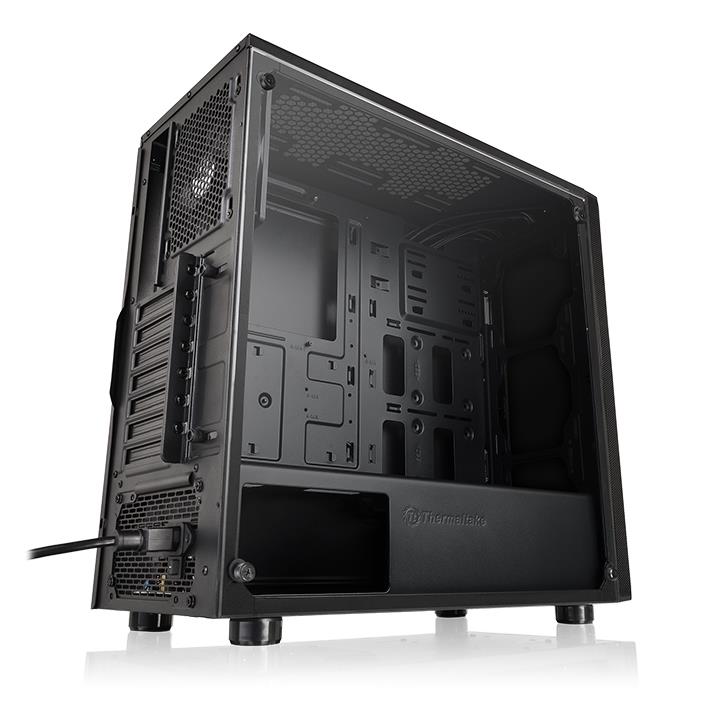

Tempered Glass Window
The Versa J23 comes equipped with a full sized 4mm thick tempered glass panel which is held on with thumbscrews in each corner. Our tempered glass panels are made to be durable and show less wear and tear than traditional acrylic panels – making this the best way to show of your system!
Tool-Free Installation
The included 3.5”/2.5” -compatible drive brackets minimize the hassles of installation /removal.
Users are able to freely interchange the hard-drives to suit their particular needs.
3.5” or 2.5” HDD Drive Compatible
Don’t compromise on hardware, the J23 can fit a tower CPU cooler with maximum height 160mm, and dual expansion slots for VGA up to 310mm in length, and a power supply with length of up to 170mm.
*The image is for reference only.
* One standard 120mm fan is included.
The Versa J23 comes with one 120mm fan preinstalled in the rear, with space for three 120mm fans in the front and two 140mm fans at the top. The front and top panels also feature mesh cutouts to keep airflow as high as possible, and helping hardware stay cool.
*The image is for reference only.
* One standard 120mm fan is included.

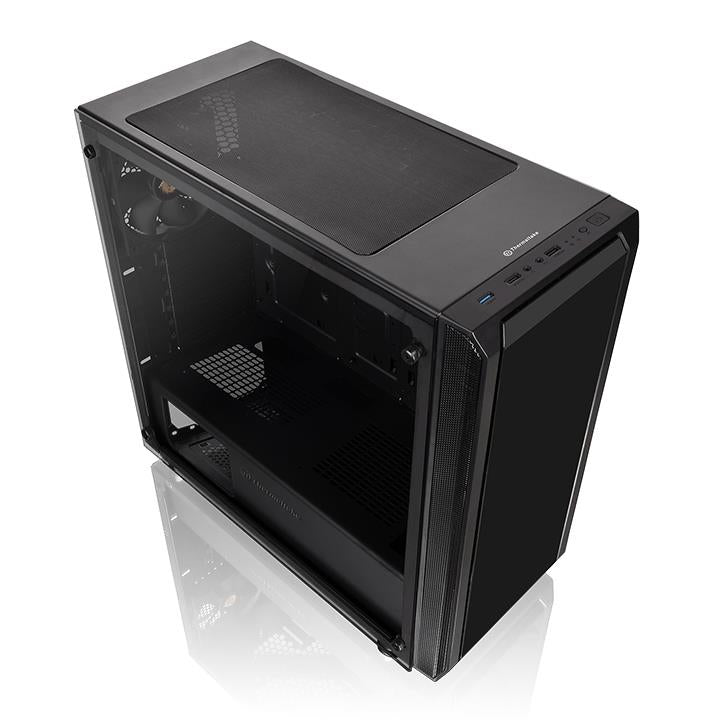

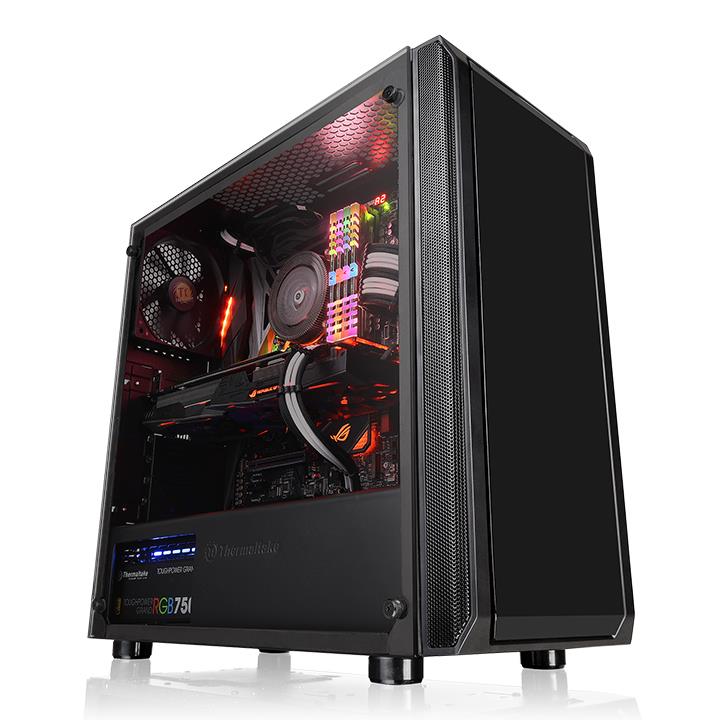

The J23 is designed to draw all the focus onto your internal system. The acrylic front panel lets light pour out from your fans, while the ventilated top and tempered glass side panels put your hardware on display.
*The image is for reference only.
*one standard 120mm fan is included.
With easy-access USB 2.0 and 3.0 ports on the front of the case, the Versa J23 is built for work as well as play.
|
|||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||
Fan Supporting List
|
|||||||||||||||||||||||||
|
||||||||||||||||||||
Product Specifications
| P/N | CA-1L6-00M1WN-00 |
|---|---|
| Model | Versa J23 TG |
| Case Type | Middle tower |
| Dimensions | 447 x 205 x 455 mm (17.6 x 8.1 x 17.91 inch) |
| Weight | 6.5 kg / 14.33 lb |
| Side Panel | 4mm Tempered Glass x1 |
| Color | Exterior & Interior : Black |
| Material | SPCC |
| Cooling System | Rear (exhaust) : 120 x 120 x 25 mm fan (1000rpm, 16dBA) |
| Expansion Slots | 7 |
| Motherboard | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| I/O Port | USB 3.0 x 1, USB 2.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support | Front: 3 x 120mm, 2 x 140mm Top: 2 x 120mm, 2 x 140mm Rear: 1 x 120mm |
| Radiator Support | Front: 1 x 240mm, 1 x 280mm Top: 1 x 240mm Rear: 1 x 120mm |
| Clearance | CPU cooler height limitation: 160mm VGA length limitation: 310mm PSU length limitation: 170mm |
