Versa H27 Tempered Glass Edition
Versa H27 Tempered Glass Edition
SKU:CA-1J6-00M1WN-00

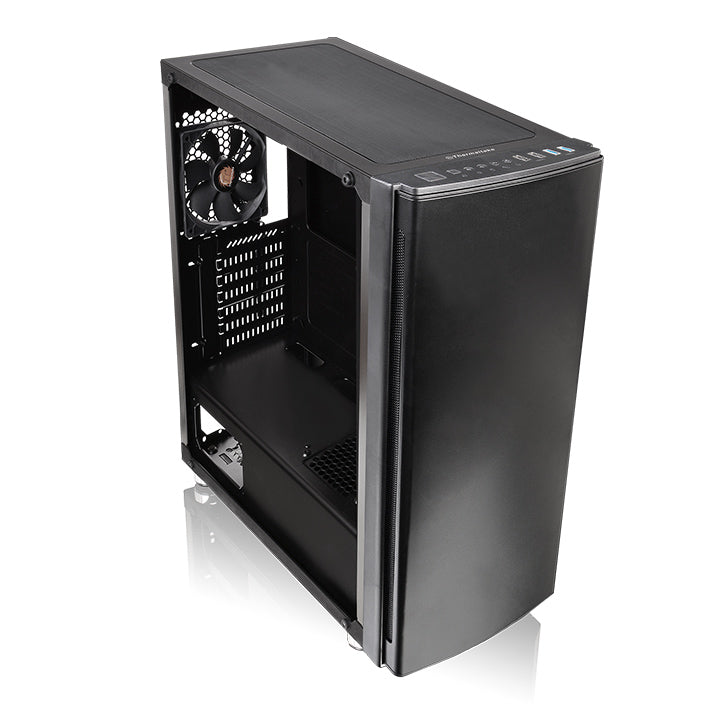

ATX mid-tower chassis with one tempered glass window and one preinstalled 120mm fan.
-
Design
-
Specification
-
Download
-
How-to Videos
Designed for entry-level PC builders and gamers, Thermaltake Versa H27 Tempered Glass Edition Mid-Tower Chassis features a durable 4mm thick tempered glass window, excellent expandability with easy cable management design, AIO liquid cooling compatible and ample ventilation options. Supporting the latest PC hardware and all high-end GPU solutions, the Versa H27 TG is a good choice for those who opt for a budget-friendly PC case with manageable frame size and advanced features.
*The image is for reference only; a standard 120mm fan is included.

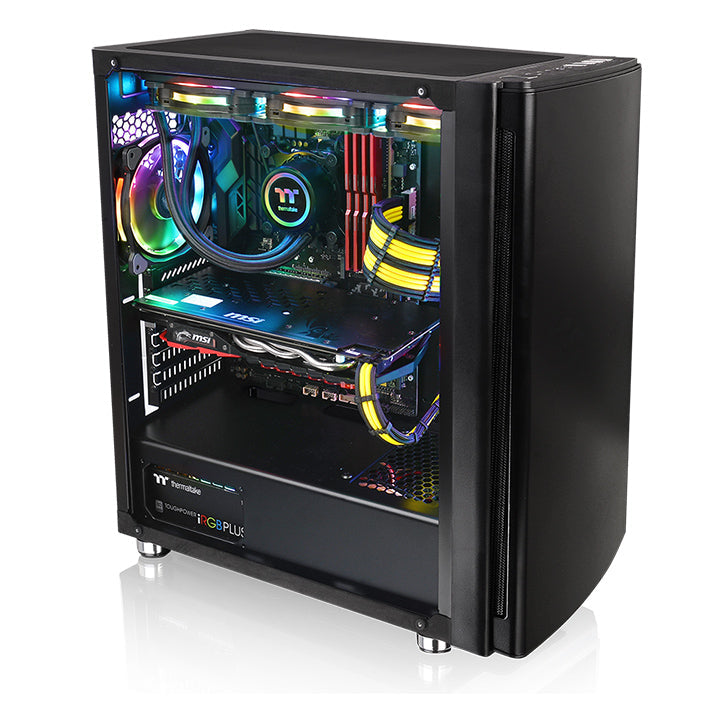

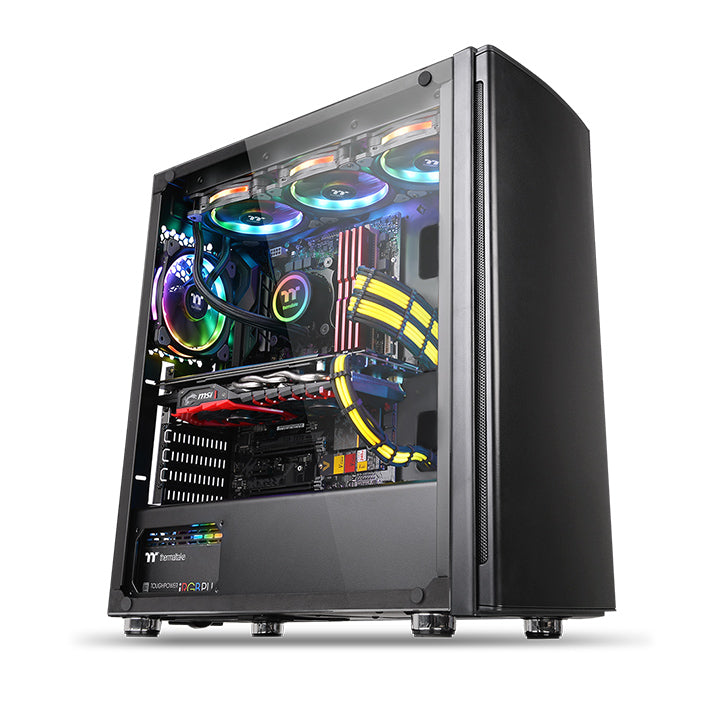

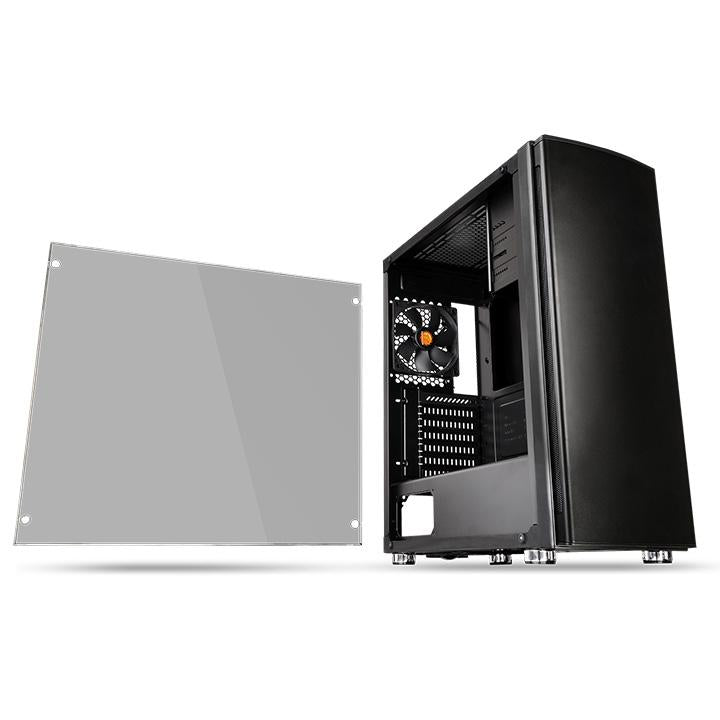

The 4mm thick left tempered glass panel guarantees the durability of the window and display your build with crisp clarity.

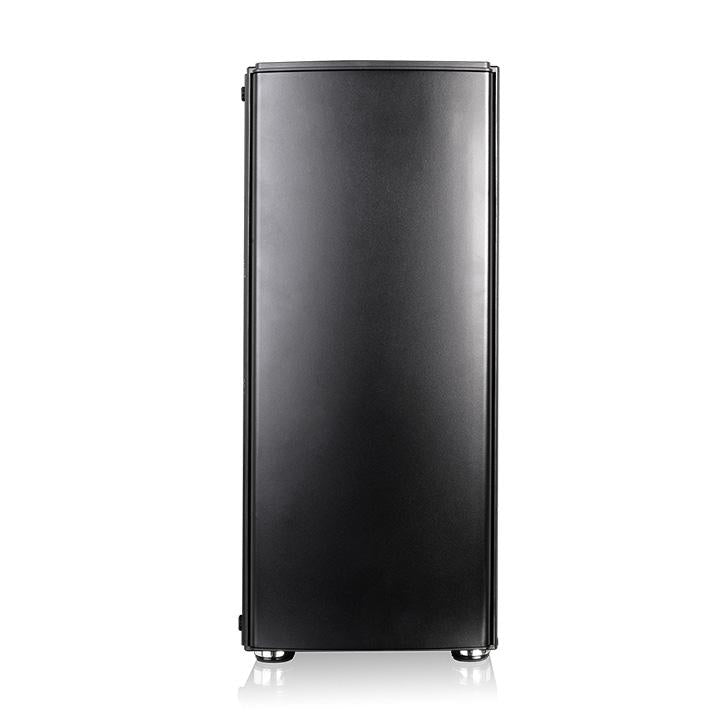

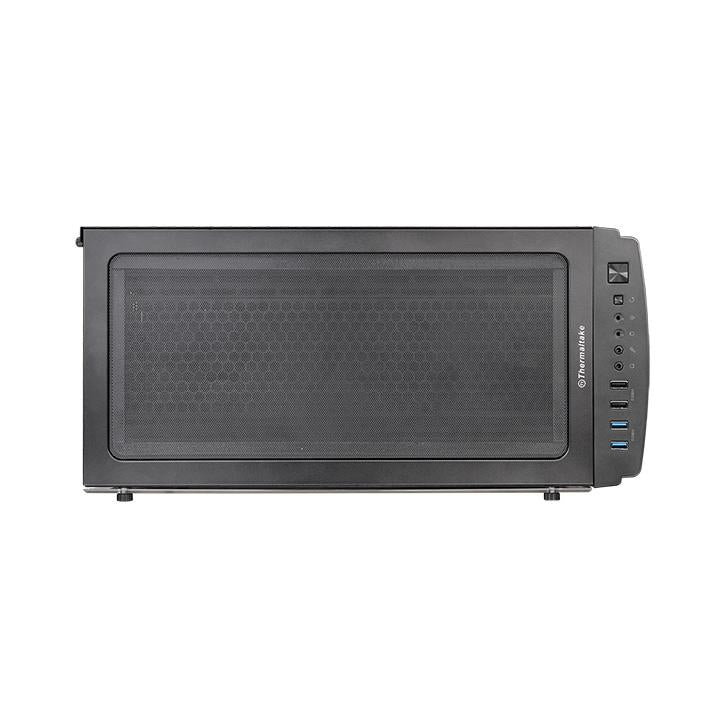

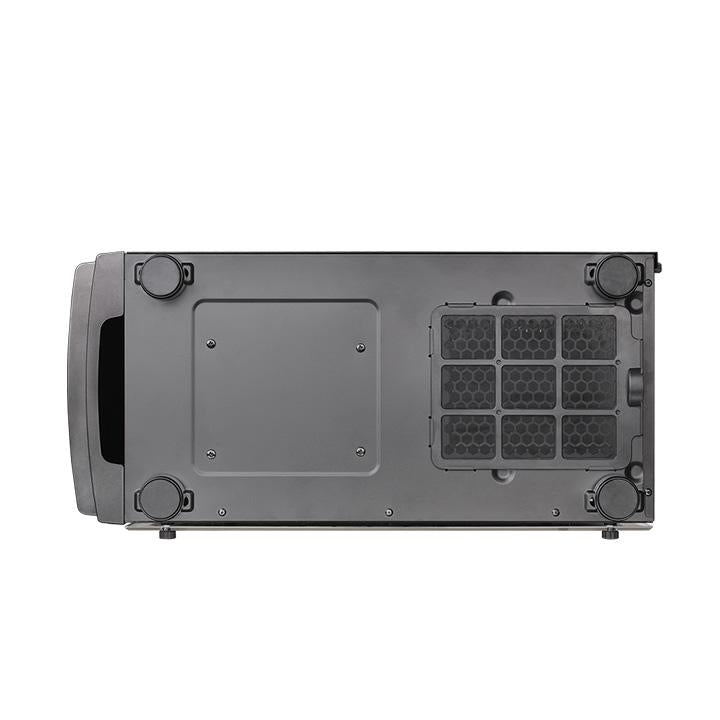

The enlarged glass window with full metal front panel allows users to display all component of the build, offering a direct view of inner system. The perforated top panel plus the heighted foot-stands at the bottom provide efficient airflow for the system.
The front panel is designed two USB 3.0 data transfer ports along with two standard USB 2.0 ports and a HD microphone and headset jacks, to grand direct access when needed.

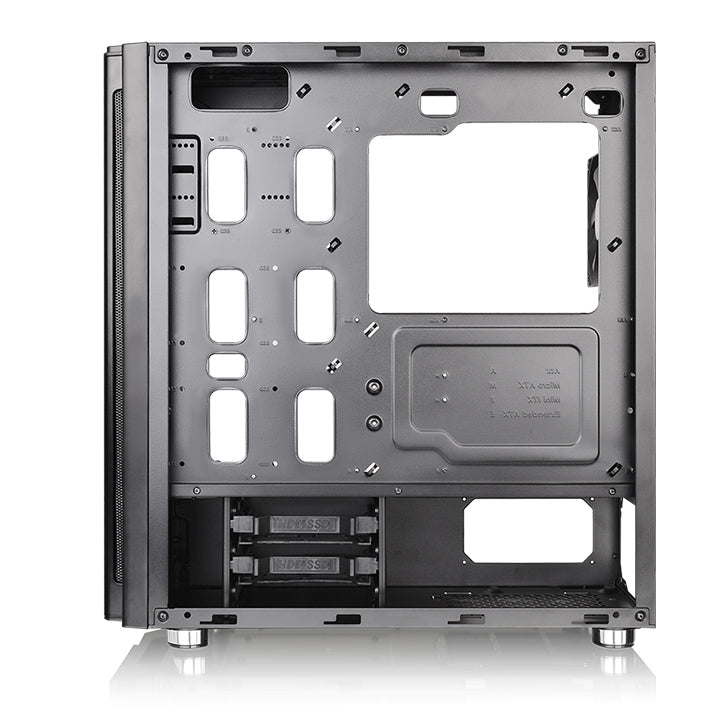

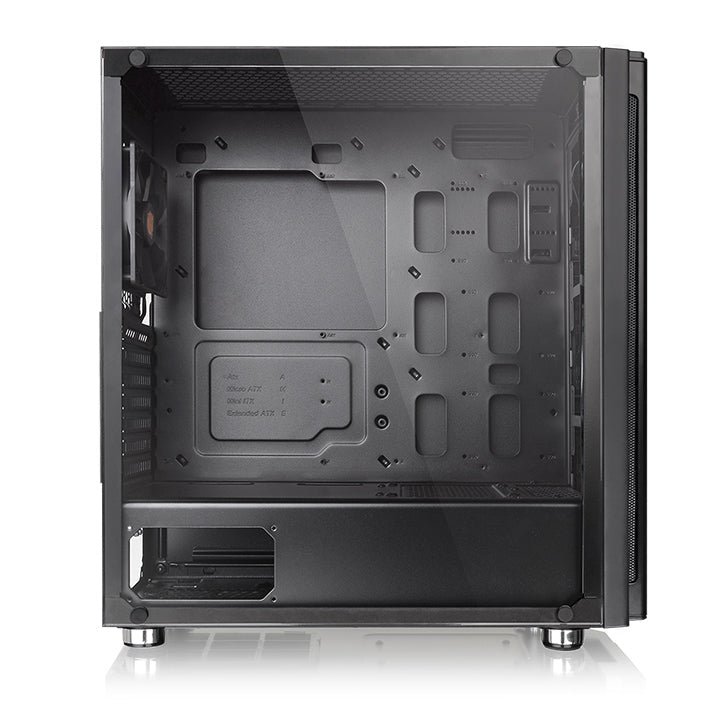

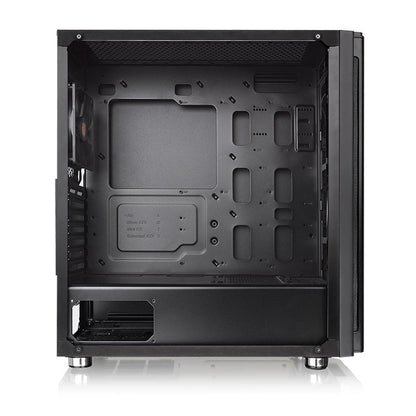

Wiring tangled problem no longer exists with the cable routing gap, hiding cables behind motherboard tray to ensure smoothness for building the system as well as better airflow. Plus, the pre-mounted PSU cover allows the entire bottom area of the case to be used to reorganize unused cables.

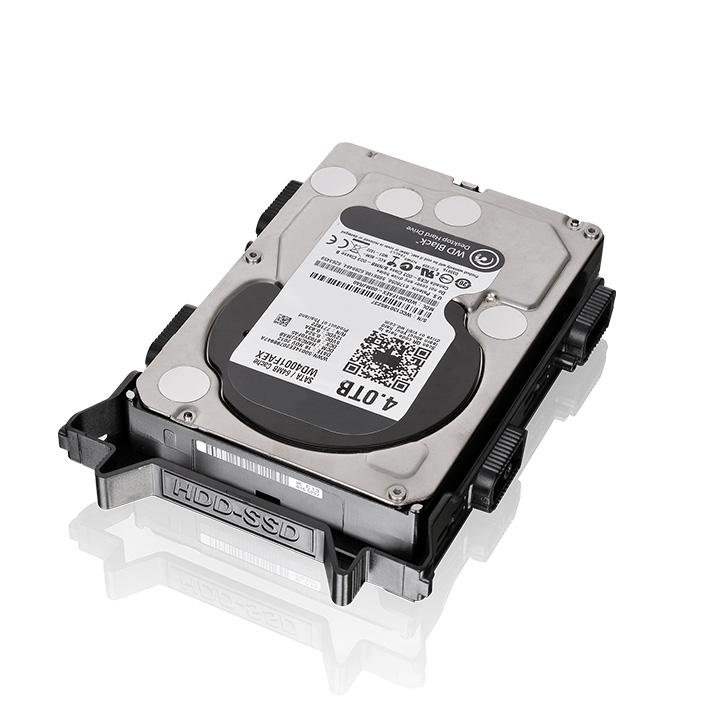

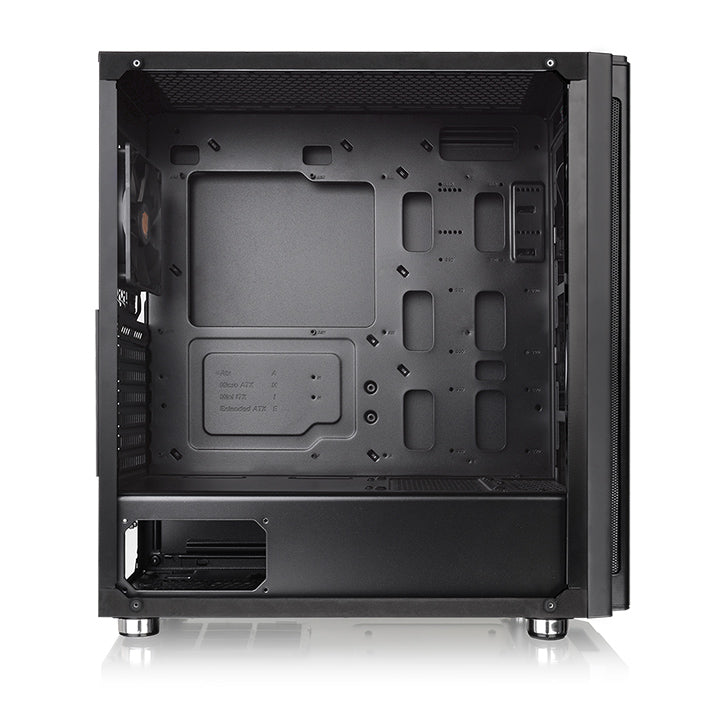

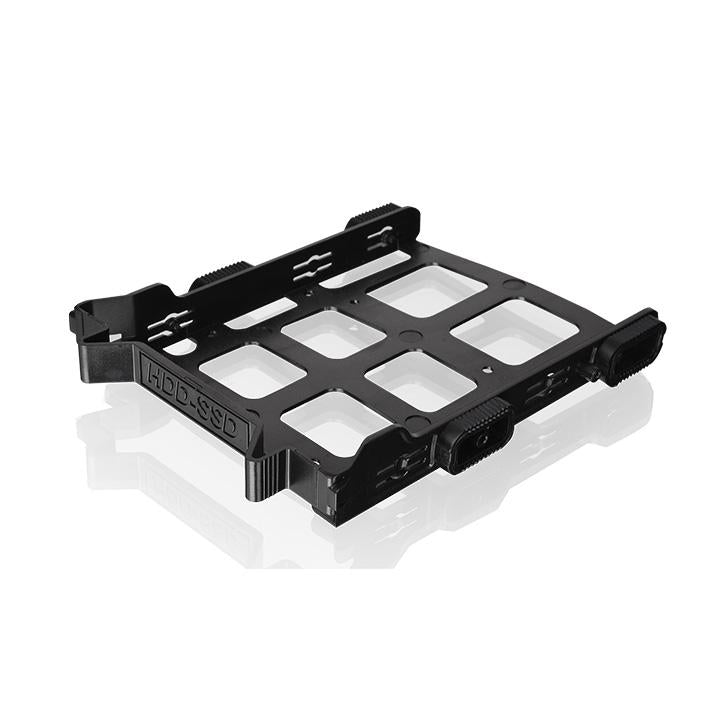

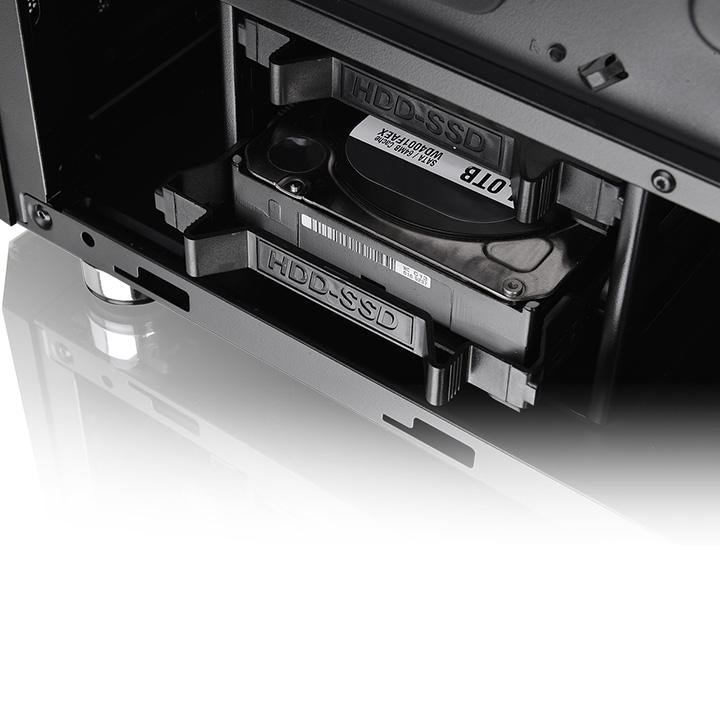

The Versa H27 TG supports motherboards up to ATX, a tower CPU cooler with maximum height 160mm, and a dual expansion slot VGA of up to 310mm in length without front fan. The hidden drive bays can house up to five 2.5” or three 2.5” & two 3.5” storage devices at same time.

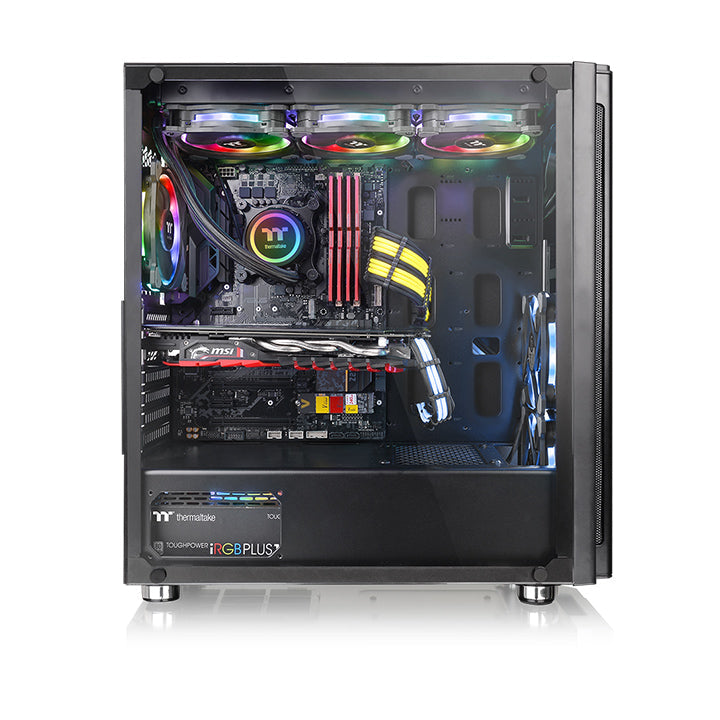

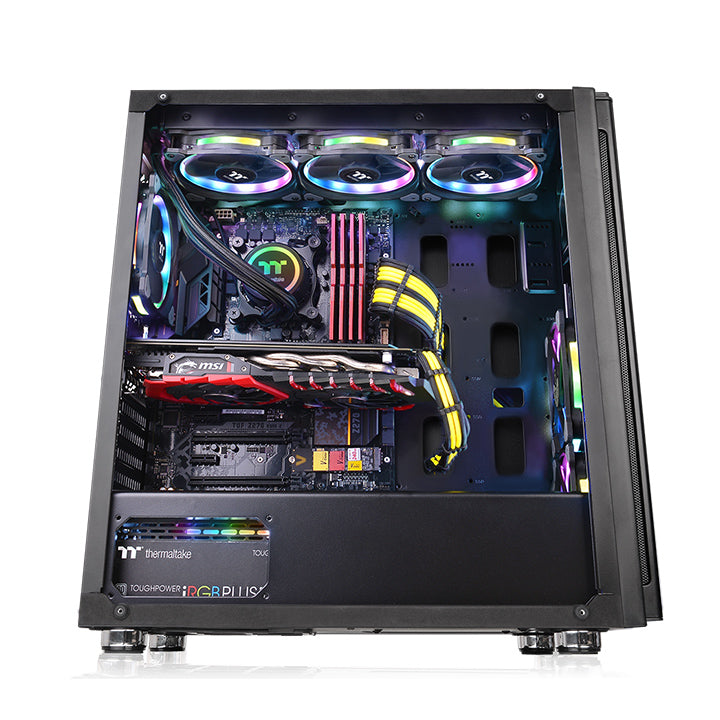

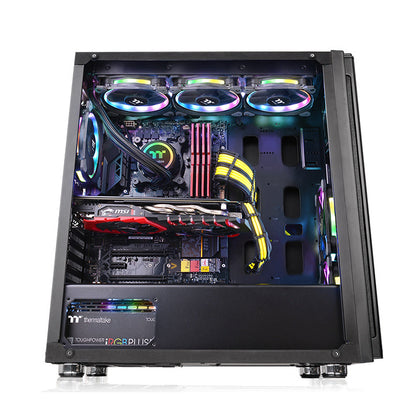

Supporting all types of AIO liquid cooling solutions, the Versa H27 TG has the capability to accommodate up to a 360mm radiator at the front or the top and a 120mm radiator at the rear.
*Radiator configurations and compatibility may vary depending on radiator size and thickness.

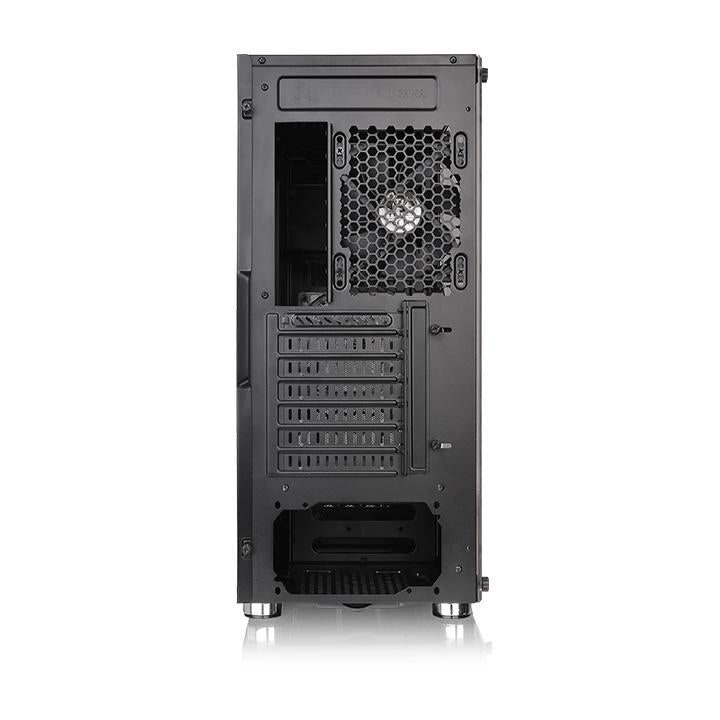

Standard equipped with a 120mm rear fan along with optional three 120mm intake fans as well as three 120mm or two 140mm exhaust fans provides efficient airflow for the system.
|
||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||
|
||||||||||||||||||||
|
||||||||||||||||||||
Product Specifications
| P/N | CA-1J6-00M1WN-00 |
|---|---|
| Case Type | Middle tower |
| Dimensions | 493 x 219 x 469 mm (19.4 x 8.6 x 18.5 inch) |
| Weight | 7.1 kg / 15.6 lb |
| Side Panel | 4mm Tempered Glass x 1 |
| Color | Exterior & Interior : Black |
| Material | SPCC |
| Cooling System | Rear (exhaust) : 120 x 120 x 25 mm fan (1000rpm, 16dBA) |
| Expansion Slots | 7 |
| Motherboard | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| I/O Port | USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support | Front: 3 x 120mm Top: 3 x 120mm, 2 x 140mm Rear: 1 x 120mm |
| Radiator Support | Front: 1 x 360mm Top: 1 x 360mm, 1 x 280mm Rear: 1 x 120mm |
| Clearance | CPU cooler height limitation: 160mm VGA length limitation: 310mm PSU length limitation: 220mm |
