V200 Tempered Glass ARGB Mid-Tower Chassis
V200 Tempered Glass ARGB Mid-Tower Chassis
SKU:CA-3K8-50M1WA-01
V200 TG Mid-Tower case comes with one tempered glass panel, three 120mm 5V ARGB front fans and one 120mm standard rear fan preinstalled and supports motherboards up to ATX.
-
Design
-
Specification
-
Download
-
How-to Videos

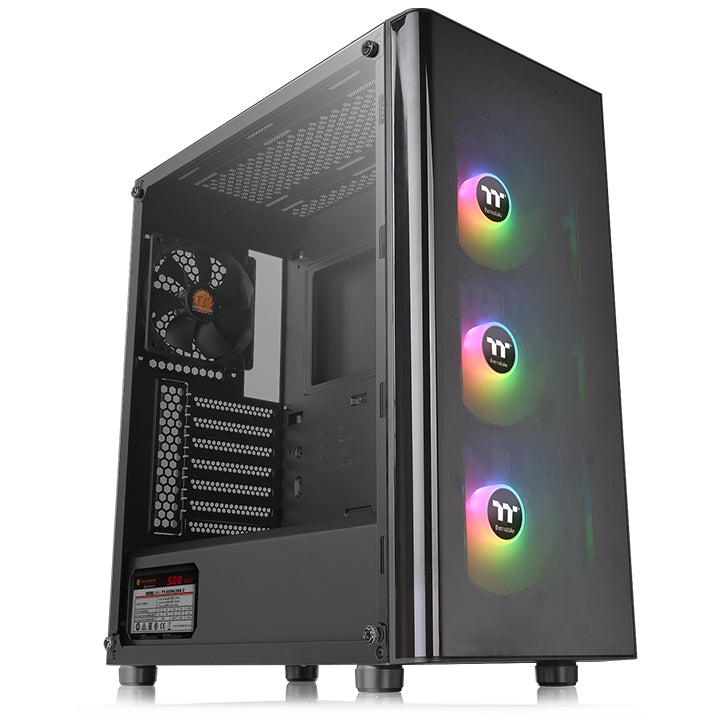

The V200 Tempered Glass ARGB Mid-Tower Chassis is a perfect upgrade for someone looking to give their rig a facelift. It features three preinstalled 120mm 5V ARGB fron fans and one 120mm standard rear fan, one 500W power supply, a durable tempered glass window, clear acrylic front window and a handy PSU cover. The V200 TG ARGB is one of our simple and sleek designed cases which is built for high-end hardware and custom system designs.
- The image is for reference only.
- Preinstalled three 120mm ARGB front fans and one 120mm standard rear fan.
Preinstalled with one 500W power supply makes your jounry to the complete build easier.
Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.

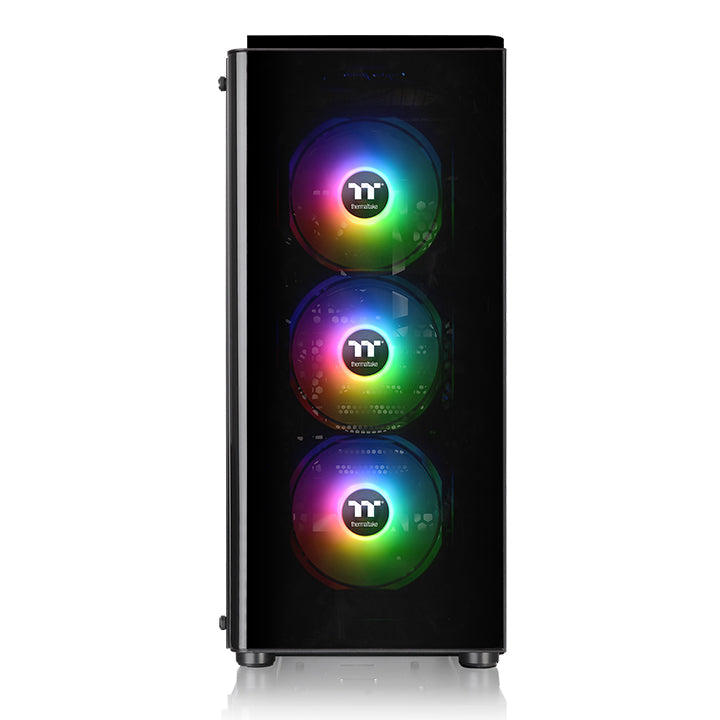

The V200 TG ARGB is preinstalled with three 120mm 5V ARGB fans at the front that can be controlled using a simple interface built into the I/O panel that cycles through three different lighting modes and a range of different color options.
The V200 TG ARGB comes with a full length power supply cover that provides plenty of space to implement cable management, while keeping airflow clear for your hard drives and PSU.

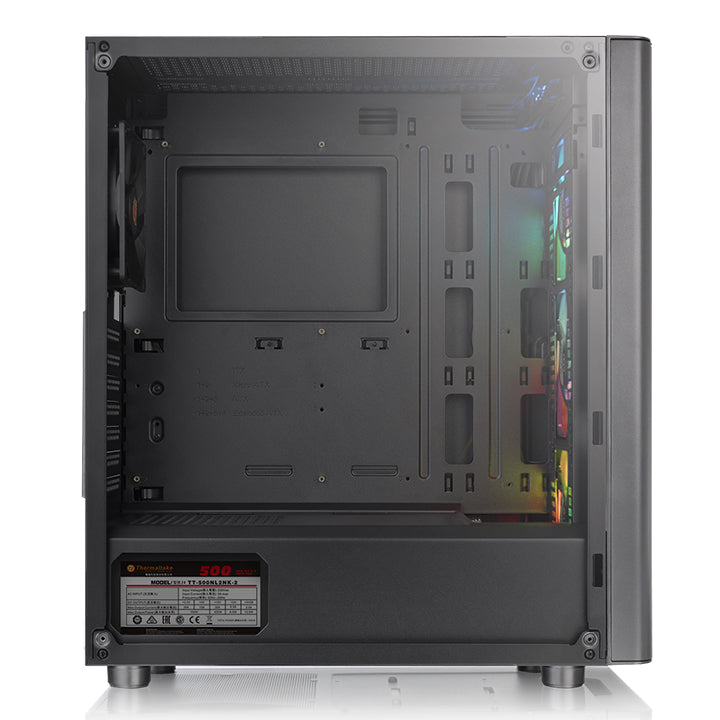

The 4mm tempered glass window on the side of the V200 TG ARGB is built to be more durable, scratch resistant, and transparent for an advanced view of your hardware.
A handy magnetic fan filter on the top simply attaches for easy dust filtration and particulate protection. At the base of the chassis, additional fan filters provide excellent protection against both dirt and dust.
- 120mm
- 140mm
- 120mm
- 140mm
- 240mm
- 280mm
- 360mm
One 3.0 USB and two 2.0 USB ports and one ARGB switch button on the top-front panel to grant direct access when needed.
| 120mm | 240mm | 360mm | 140mm | 280mm | 420mm | |
|---|---|---|---|---|---|---|
| Front | ● | ● | ● | ● | ● | - |
| Top | ● | ● | - | - | - | - |
| Rear | ● | - | - | - | - | - |
(Water 3.0 and Floe series)
| Performer | Pro | 120 Series | 240 Series | 140 Series | 280 Series | |
|---|---|---|---|---|---|---|
| Front | ● | ● | ● | ● | ● | ● |
| Top | ● | ● | ● | ● | - | - |
| Rear | ● | ● | ● | - | - | - |
| 120mm | 140mm | 200mm | |
|---|---|---|---|
| Front | 3 | 2 | - |
| Top | 2 | 2 | - |
| Rear | 1 | - | - |
| 120mm | 140mm | 200mm | |
|---|---|---|---|
| PURE FAN Series | ● | ● | - |
| Riing FAN Series | ● | ● | - |
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.
-
-
Aura Addressable Header
ASUS -
Digital Pin Header
GIGABYTE -
JRAINBOW Header
MSI -
Addressable RGB LED Header
ASRock
| Category | Caution |
| Chassis, ARGB Fan, ARGB AIO |
|
| RGB Memory, VGA Waterblock, Distro Plate |
|
Product Specifications
| P/N | CA-3K8-50M1WA-01 |
|---|---|
| Model | V200 TG RGB ─────────────── (2020 Version) V200 TG RGB |
| Case Type | Middle tower |
| Dimensions | 446 x 204 x 439 mm (17.6 x 8.3 x 17.3 inch) ─────────────── (2020 Version) 447 x 217 x 432 mm (17.6 x 8.54 x 17 inch) |
| Weight | 7.1 kg / 15.65 lb ─────────────── (2020 Version) 6.44 kg / 14.20 lb |
| Side Panel | 4mm Tempered Glass x 1 |
| Color | Exterior & Interior : Black |
| Material | SPCC |
| Cooling System | Rear (exhaust): 120 x 120 x 25 mm fan (Fixed 1000rpm, 16dBA) Front (intake): 120 x 120 x 25 mm RGB fan (Fixed 1000rpm, 16dBA) x3 |
| Expansion Slots | 7 |
| Motherboard | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| I/O Port | USB 3.0 x 1, USB 2.0 x 2, HD Audio x 1, R Button x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support | Front: 3 x 120mm, 2 x 140mm Top: 2 x 120mm, 2 x 140mm Rear: 1 x 120mm |
| Radiator Support | Front: 1 x 240mm, 1 x 280mm Rear: 1 x 120mm ─────────────── (2020 Version) Front: 1 x 360mm, 1 x 280mm Top : 1 x 240mm, Rear: 1 x 120mm |
| Clearance | CPU cooler height limitation: 160mm VGA length limitation: 380mm PSU length limitation: 170mm ─────────────── (2020 Version) CPU cooler height limitation: 160mm VGA length limitation: 320mm PSU length limitation: 160mm (With HDD Rack) 200mm (Without HDD Rack) |
