V200 TG + 500W
V200 TG + 500W
SKU:CA-3K8-50M1WU-01
V200 TG Mid-Tower case comes with one tempered glass panel on the left, one preinstalled 120mm standard fan at the rear and supports motherboards up to ATX.
-
Design
-
Specification
-
Download
-
How-to Videos
The V200 Tempered Glass Mid-Tower Chassis is a perfect upgrade for someone looking to give their rig a facelift. It features one preinstalled 120mm standard fan at the rear, a durable tempered glass window, clear acrylic front window and a handy PSU cover. The V200 TG is one of our simple and sleek designed cases which is built for high-end hardware and custom system designs.
- The image is for reference only.
Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.
The V200 TG comes with a full length power supply cover that provides plenty of space to implement cable management, while keeping airflow clear for your hard drives and PSU.
Smart SPD-0500P – 500W 80 PLUS® Standard Certified APFC PSU is included in this case. Smart 500W saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance.

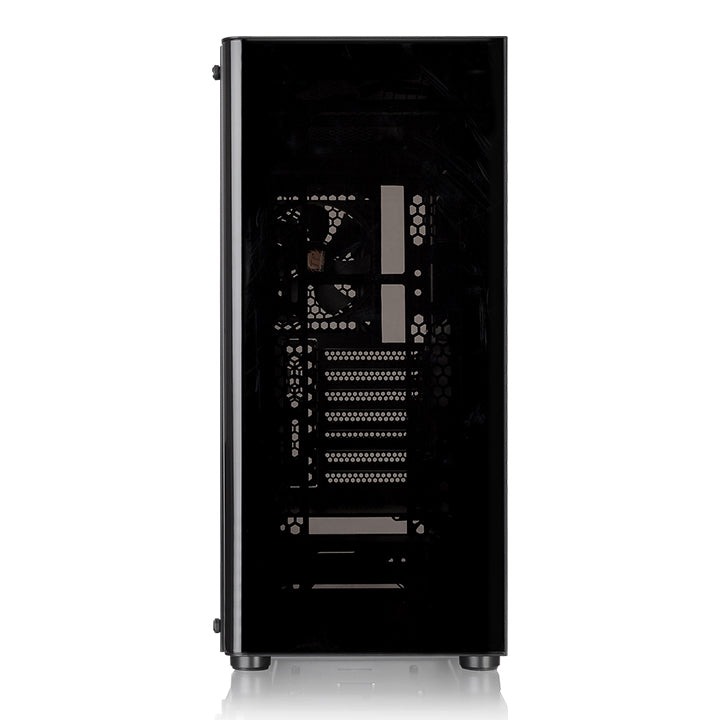

The 4mm tempered glass window on the side of the V200TG is built to be more durable, scratch resistant, and transparent for an advanced view of your hardware.
A handy magnetic fan filter on the top simply attaches for easy dust filtration and particulate protection. At the base of the chassis, additional fan filters provide excellent protection against both dirt and dust.
- 120mm
- 140mm
- 120mm
- 140mm
- 240mm
- 280mm
- 360mm
One 3.0 USB and two 2.0 USB ports on the top-front panel to grant direct access when needed.
| 120mm | 240mm | 360mm | 140mm | 280mm | 420mm | |
|---|---|---|---|---|---|---|
| Front | ● | ● | ● | ● | ● | - |
| Top | ● | ● | - | - | - | - |
| Rear | ● | - | - | - | - | - |
(Water 3.0 and Floe series)
| Performer | Pro | 120 Series | 240 Series | 140 Series | 280 Series | |
|---|---|---|---|---|---|---|
| Front | ● | ● | ● | ● | ● | ● |
| Top | ● | ● | ● | ● | - | - |
| Rear | ● | ● | ● | - | - | - |
| 120mm | 140mm | 200mm | |
|---|---|---|---|
| Front | 3 | 2 | - |
| Top | 2 | 2 | - |
| Rear | 1 | - | - |
| 120mm | 140mm | 200mm | |
|---|---|---|---|
| PURE FAN Series | ● | ● | - |
| Riing FAN Series | ● | ● | - |
Product Specifications
| P/N | CA-3K8-50M1WU-01 |
|---|---|
| Case Type | Middle tower |
| Dimensions | 410 x 190 x 470 mm (16.1 x 7.5 x 18.5 inch) |
| Weight | 5.5 kg / 12.12 lb |
| Side Panel | 4mm Tempered Glass x 1 |
| Color | Exterior & Interior : Black |
| Material | SPCC |
| Cooling System | Rear (exhaust) : 120 x 120 x 25 mm fan (1000rpm, 16dBA) |
| Expansion Slots | 7 |
| Motherboard | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| I/O Port | USB 3.0 x 1, USB 2.0 x 2, HD Audio x 1 |
| PSU | Smart 500W |
| Fan Support | Front: 3 x 120mm, 2 x 140mm Top: 2 x 120mm, 2 x 140mm Rear: 1 x 120mm |
| Radiator Support | Front: 1 x 240mm, 1 x 280mm Rear: 1 x 120mm |
| Clearance | CPU cooler height limitation: 160mm VGA length limitation: 380mm PSU length limitation: 170mm |
