V150 Tempered Glass ARGB Micro Chassis
V150 Tempered Glass ARGB Micro Chassis
SKU:CA-1R1-00S1WN-01
The V150 TG ARGB is a micro chassis that comes with three preinstalled 120mm ARGB fans, a power supply cover, and can support up to a standard Micro ATX Motherboard
-
Design
-
Specification
-
Download
-
How-to Videos
The V150 Tempered Glass ARGB Micro Chassis is a new member of the Thermaltake V Series chassis. It is designed to be a compact size and fits a standard Micro ATX motherboard. The V150 TG ARGB is an upgraded version of the V150 TG which comes with three preinstalled 120mm ARGB fans. It is targeted for users who just started pc building and is looking for a basic enclosure to start their journey. The V150 TG ARGB is also compelling to users who love to showcase interior components and its full RGB glory. Hardware expansion and ventilation of the case are all taken into consideration during the innovation process. It can accommodate two 140mm fans at the front and one 140mm fan on the top, and a full-length PSU cover for overall exceptional performance which is ideal for both gamers and enthusiasts.
- The image is for reference only.
The V150 TG ARGB comes with three preinstalled 120mm 5V ARGB fans, two at the front and one in the rear, respectively, which can be controlled by using a simple interface built into the top I/O panel that cycles through 7 different lighting modes and a range of different color options or by using your motherboard software. Furthermore, the fans feature 9 addressable LEDs, hydraulic bearings, and 16.8 million-color illumination to guarantee high airflow and awesome lighting modes.

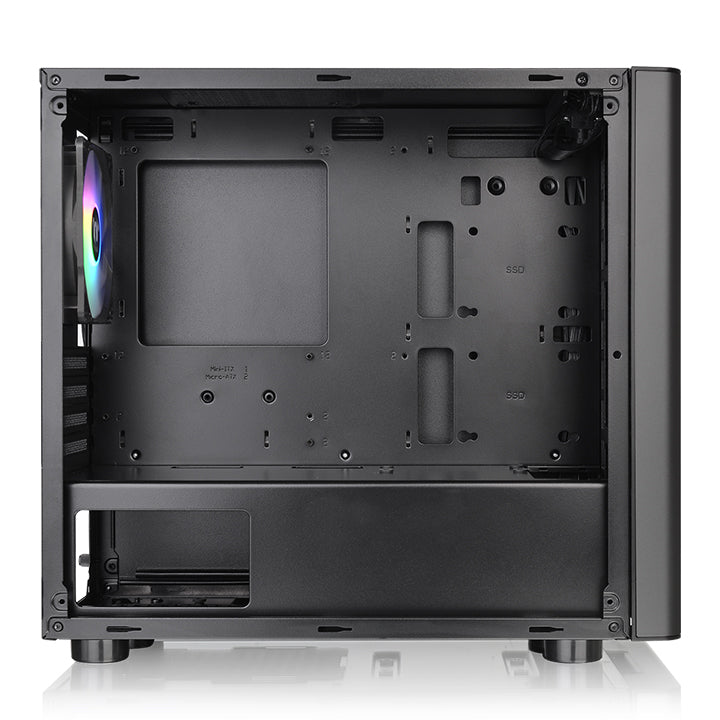

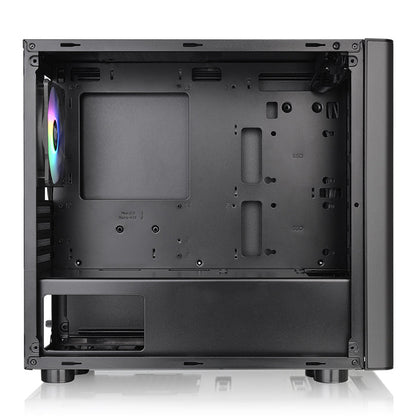

The V150 TG ARGB comes with a full length power supply cover providing plenty of space to tuck away cables, while keeping airflow clear for your hard drives and PSU.

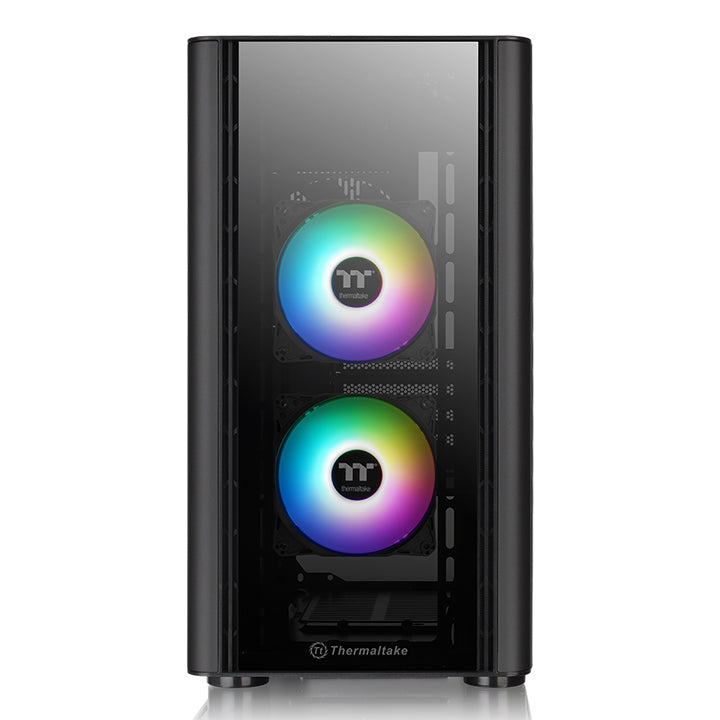

The V150 TG ARGB comes with two 4mm tempered glass panels at the front and on the left, thicker and more scratch resistant when compared to standard acrylic. On top of that, the enlarged window design enables you to display and admire all your components in their full RGB glory.
A handy magnetic fan filter on the top simply attaches for easy dust filtration and particulate protection. At the base of the chassis, additional fan filters provide excellent protection against both dirt and dust.

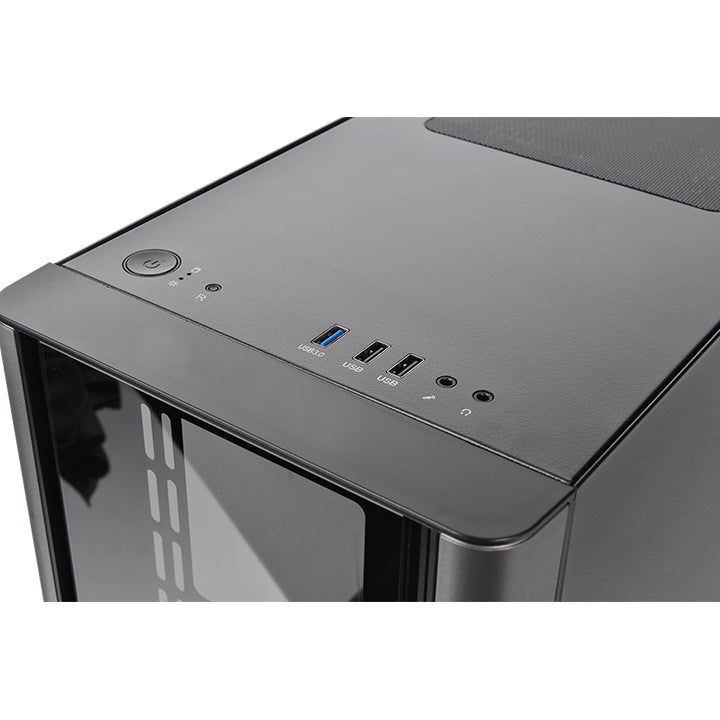

One 3.0 USB, two 2.0 USB, HD Audio to grant direct access when needed.
| 120mm | 240mm | 360mm | 140mm | 280mm | |
|---|---|---|---|---|---|
| Front | ● | ● | - | ● | ● |
| Top | - | - | - | - | - |
| Rear | ● | - | - | - | - |
(Water 3.0 and Floe series)
| 120 Series | 240 Series | 360 Series | 140 Series | 280 Series | |
|---|---|---|---|---|---|
| Front | ● | ● | - | - | ● |
| Top | - | - | - | - | - |
| Rear | ● | - | - | - | - |
| 120mm | 140mm | 200mm | |
|---|---|---|---|
| Front | 2 | 2 | - |
| Top | 1 | 1 | - |
| Rear | 1 | - | - |
| 120mm | 140mm | 200mm | |
|---|---|---|---|
| PURE FAN Series | ● | ● | - |
| Riing FAN Series | ● | ● | - |
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.
-
-
Aura Addressable Header
ASUS -
Digital Pin Header
GIGABYTE -
JRAINBOW Header
MSI -
Addressable RGB LED Header
ASRock
| Category | Caution |
| Chassis, ARGB Fan, ARGB AIO |
|
| RGB Memory, VGA Waterblock, Distro Plate |
|
Product Specifications
| P/N | CA-1R1-00S1WN-01 |
|---|---|
| Model | V150 TG ARGB |
| Case Type | Micro Case |
| Dimensions | 398 x 208 x 440 mm (15.67 x 8.19 x 17.32 inch) |
| Weight | 5.45 kg / 12 lbs |
| Side Panel | 4mm Tempered Glass x 2 (Left & Front) |
| Color | Exterior & Interior : Black |
| Material | SPCC |
| Cooling System | Front (intake) : 2 x 120 x 120 x 25mm Addressable RGB fan (1000rpm, 27.2 dBA) Rear (exhaust) : 1 x 120 x 120 x 25 mm Addressable RGB fan (1000rpm, 27.2 dBA) |
| Expansion Slots | 4 |
| Motherboard | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX) |
| I/O Port | 1 x USB 3.0, 2 x USB 2.0, 1 x HD Audio, |
| PSU | Standard PS2 PSU (optional) |
| Fan Support | Front: 2 x 120mm or 1 x 120mm 2 x 140mm or 1 x 140mm Top: 1 x 120mm, 1 x 140mm, Rear: 1 x 120mm |
| Radiator Support | Front: 1 x 240mm or 1 x 120mm 1 x 280mm or 1 x 140mm Rear: 1 x 120mm |
| Clearance | CPU cooler height limitation: 155mm VGA length limitation: 350mm(Without Front Fan) PSU length limitation: 220mm |
