Urban T21
Urban T21
SKU:CA-1A4-00M1WN-00
The unique individual defined by details- Urban T21 mid-tower chassis
-
Design
-
Specification
-
Download
-
How-to Videos
Thermaltake Urban T21 mid-tower chassis

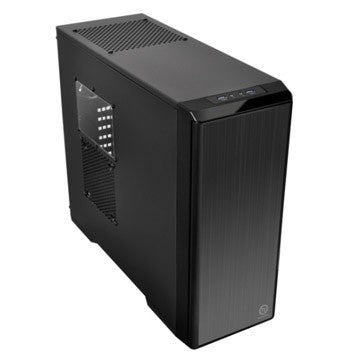

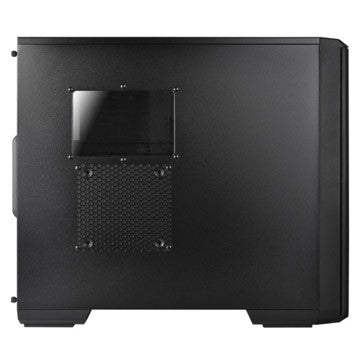

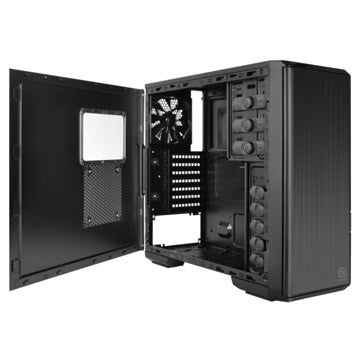

The unique individual defined by details- Urban T21, has a simple and sleek metal brushed front door in the front to mask the 3 ODD and 6 HDD drive bays, above the door front-top I/O ports including 2 of SuperSpeed USB 3.0 to grant ease and quickness in the need of data transfers, a side window opening panel to take an instant glance of the interior, heightened foot-stand and 2 preinstalled 120mm fans to optimize interior airflow, pre-mounting holes to support motherboards up to standard ATX and CPU cooler installation.

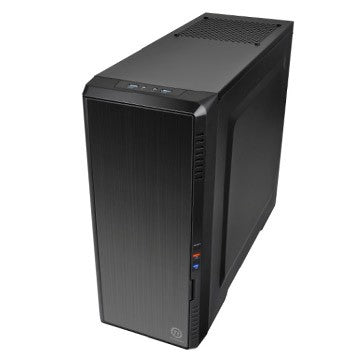

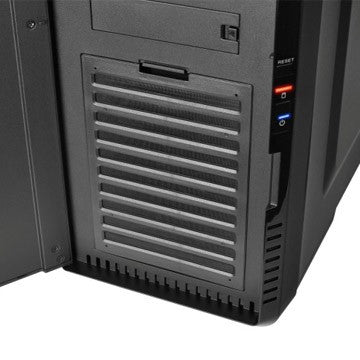

Simple Design

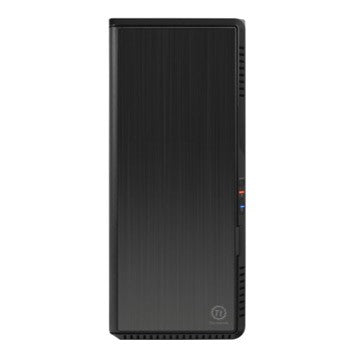

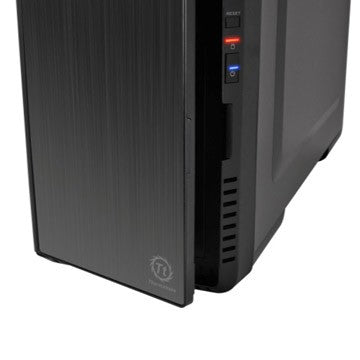

Using metal brushed front door panel to mask the extrusive drive devices, not only unify the appearance, but also provide a simple yet elegant aesthetic.

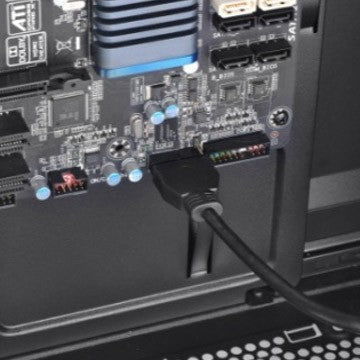

Handy I/O ports

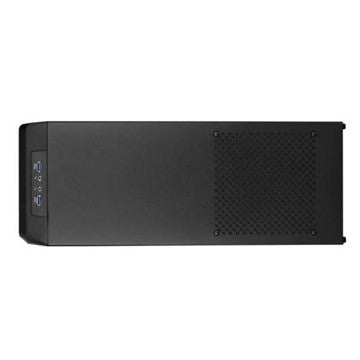

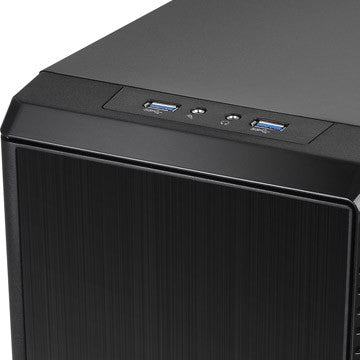

The Front-top panel has implemented two of latest data transfer SuperSpeed USB 3.0 ports, a HD microphone and headset jacks, to grand direct access when needed.

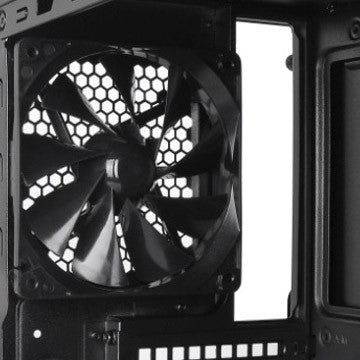

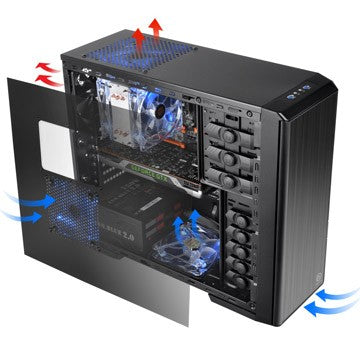

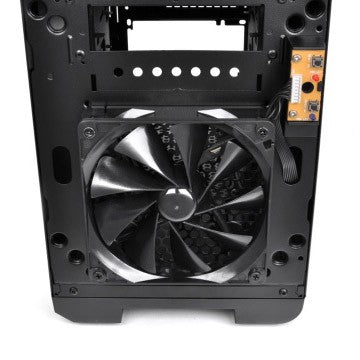

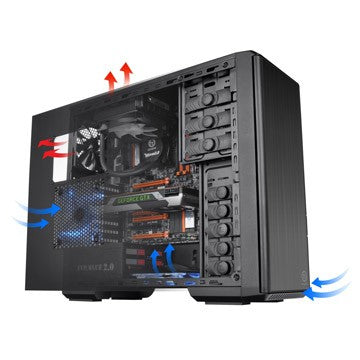

Ventilation Optimize

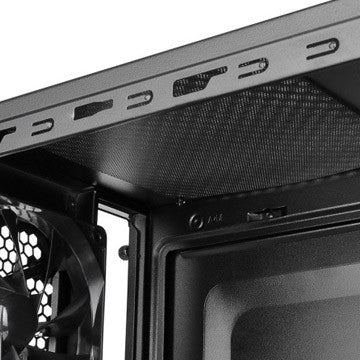

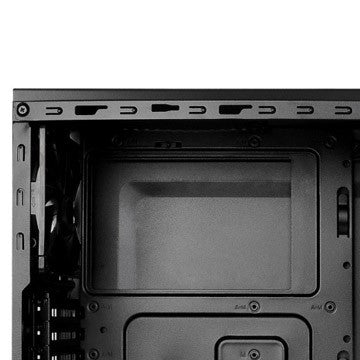

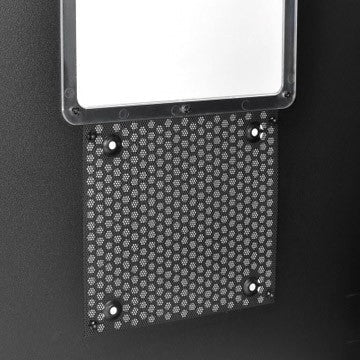

Preinstalled two 120mm fans to optimize system ventilation, plus pre-mounted holes for more ventilation options.

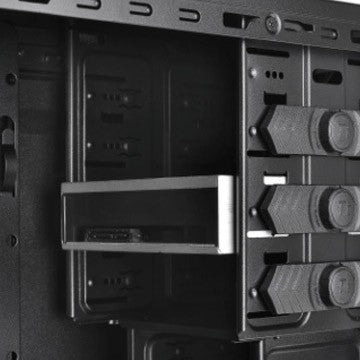

Tool-free Innovation

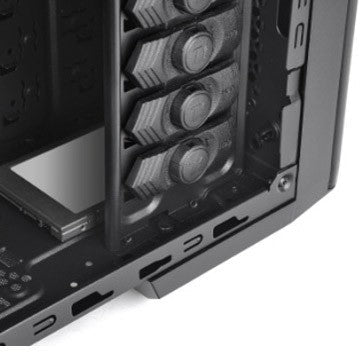

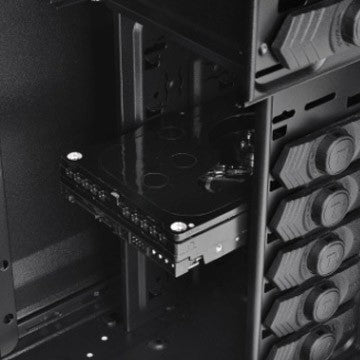

Innovative 5.25” & 3.5” tool-free drive bay design minumized the hassels of installing ODD and HDD devices.
Convenient Support

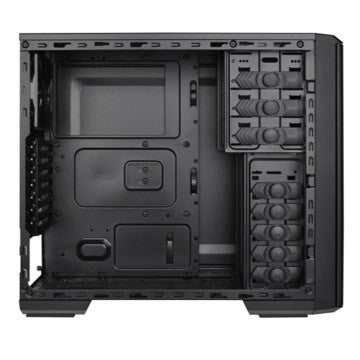

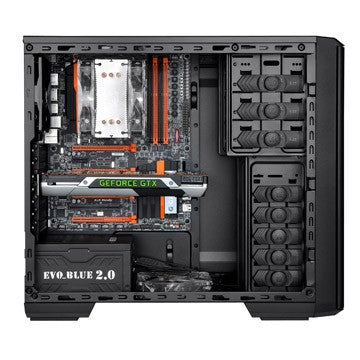

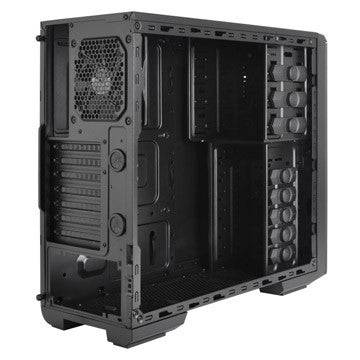

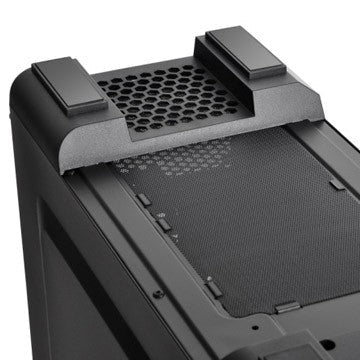

Pre-mounting holes to support motherboards up to standard ATX and CPU cooler installation, extra long graphic cards also supported.
Product Specifications
| P/N | CA-1A4-00M1WN-00 |
|---|---|
| Model | CA-1A4-00M1WN-00 |
| Series | Others |
| Case Type | Mid Tower |
| Dimensions | 438 x 190 x 497 mm (17.2 x 7.5 x 19.6 inch) |
| Side Panel | Transparent Window |
| Color | Exterior & Interior : Black |
| Material | SECC |
| Cooling System | Front (intake) : 120 x 120 x 25 mm Turbo fan (1000rpm,16dBA) Rear (exhaust) : 120 x 120 x 25 mm Turbo fan (1000rpm,16dBA) Top (exhaust) :(optional) 120 x 120 x 25 mm Side (intake) : (optional) 120 x 120 x 25 mm Bottom (intake) : (optional) 120 x 120 x 25 mm |
| Drive Bays | - Accessible : 3 x 5.25’’, 1 x 3.5’’ - Hidden : 5 x 3.5’’ , 2.5’’ x 1 |
| Expansion Slots | 7 |
| Motherboard | 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| LCS Upgradable | Supports 1/2”、3/8”、1/4” water tube |
| I/O Port | USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support | 120 mm |
| Radiator Support | Top：1 x 120mm |
| Other | CPU cooler height limitation: 155mm VGA length limitation: 320mm |
