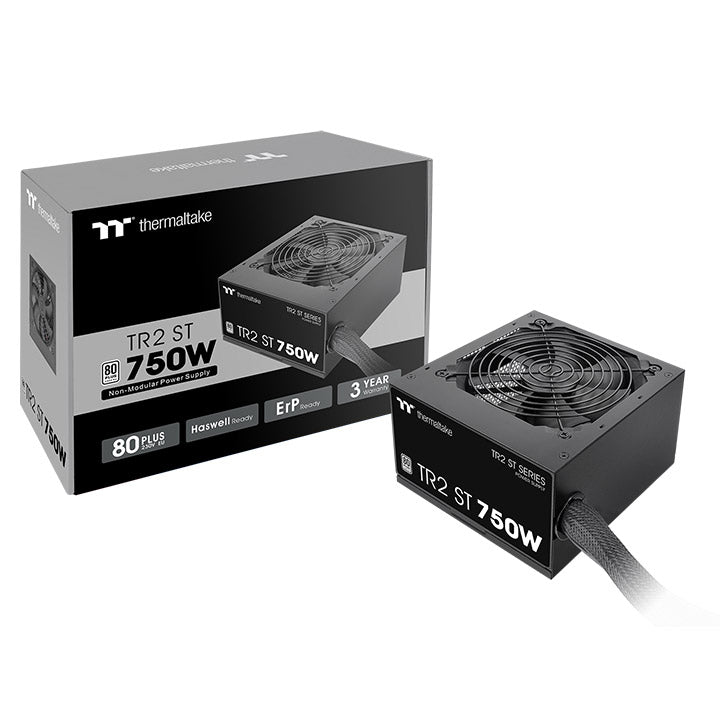

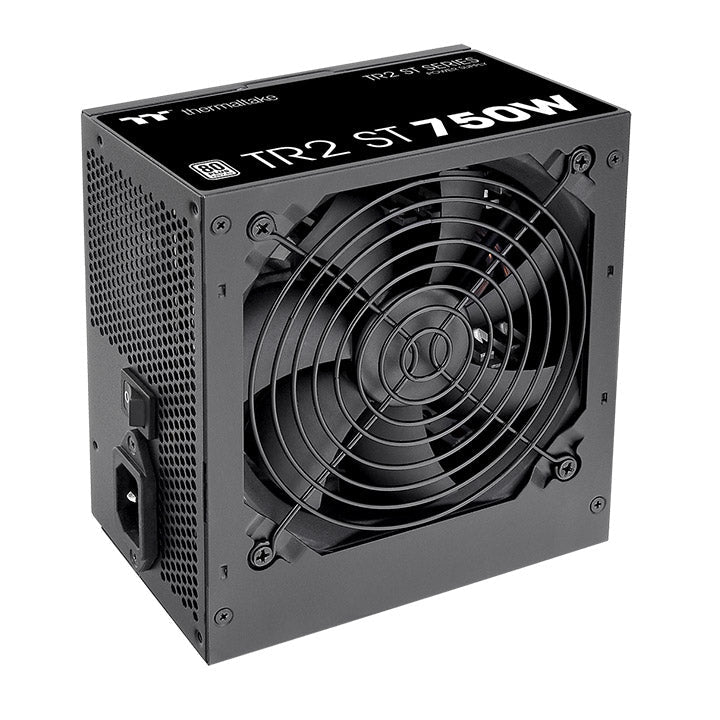

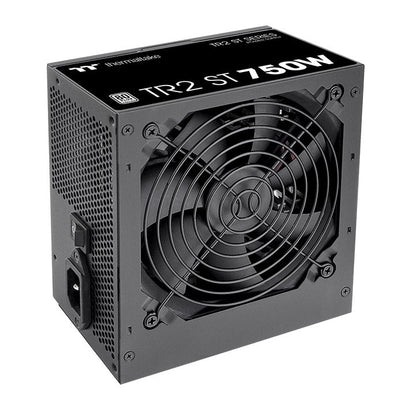

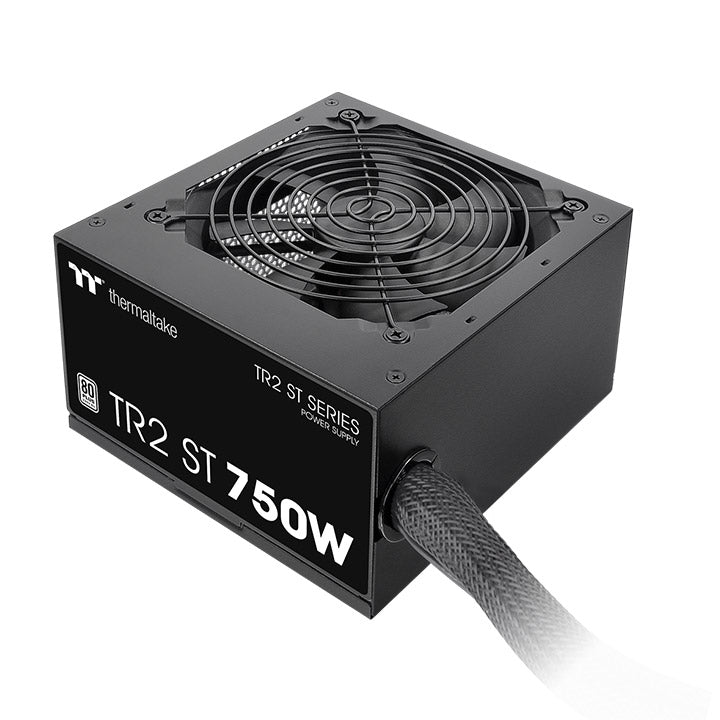

TR2 ST 750W
TR2 ST 750W
SKU:PS-TRS-0750NNSAWE-T
80 PLUS® 230V Standard Certified APFC non-modular PSU.
-
Design
-
Specification
-
Download
-
How-to Videos
TR2 ST 750W
Incorporating various high-quality components, the TR2 ST Series, saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded fluid bearing fan delivers excellent airflow at an exceptionally low noise level. Additionally, the single +12V rail design enables non-stop usage with stable and reliable performance.

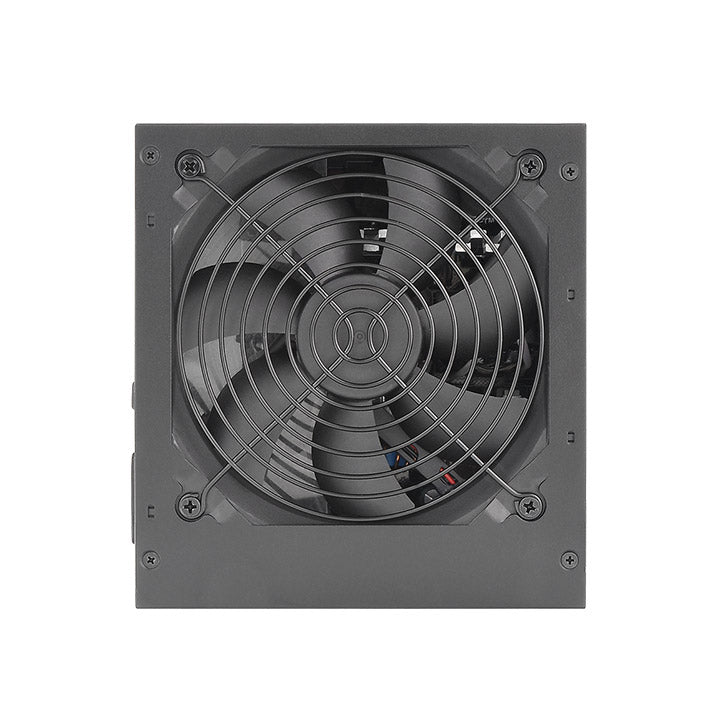

Ultra Quiet 120mm Fan
TR2 ST Series adopts 120mm fluid bearing fan to guarantee cool performance and silent operation.
80 PLUS 230V Standard Certified
TR2 ST Series saves energy through its high energy efficiency of up to 86% and is 80 PLUS® 230V Standard certified.
Multiple Connectors

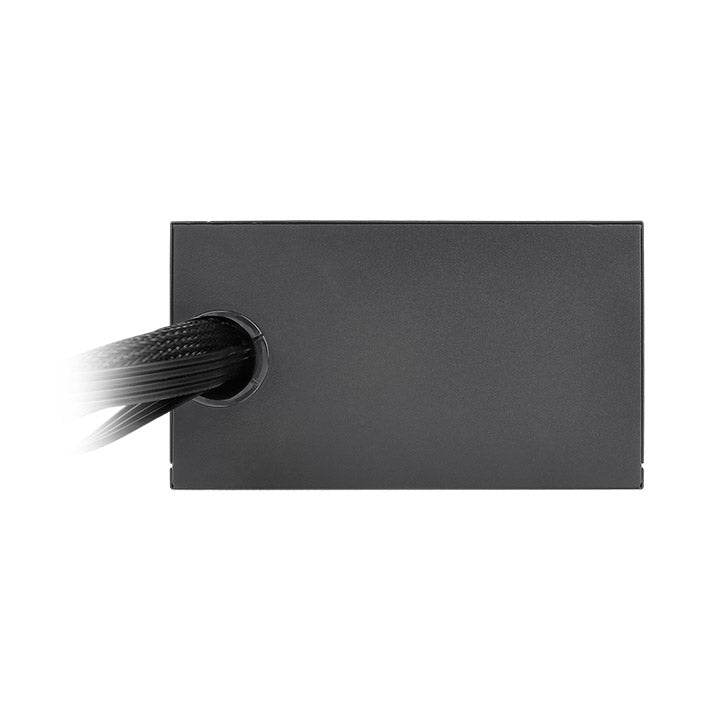

The cables used for TR2 ST Series are black and low-profile, users are able to properly route the cables in optimal location to prevent airflow blockage.
| Connector Type | Connector Quantity | Cable Quantity | Cable Length | |
|---|---|---|---|---|
| Main Power (24Pin) | X 1 |  | X 1 | 450mm |
| ATX 12V (4+4Pin) | X 2 |  | X 1 | 550mm+150mm |
| PCIe (6+2Pin) | X 2 |  | X 1 | 450mm+150mm |
| SATA (5Pin) | X 6 |  | X 2 | 450mm+150mm +150mm+150mm |
| Peripheral (4Pin) | X 4 |  | X 1 | 450mm+150mm +150mm+150mm |
| FDD Adapter | X 1 |  | X 1 | 150mm |
High-Quality Components
High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.
High amperage Single +12V Rail & DC to DC Design
TR2 ST Series is equipped with powerful +12V rails, superior performance under all types of system loading. The use of DC to DC circuit design provides very stable operation and enhanced voltage regulation.
| AC INPUT | Input Voltage: 200-240V～ | ||||
| DC OUTPUT | +3.3V | +5V | +12V | -12V | +5VSB |
| Max Output Current | 18A | 18A | 62.5A | 0.3A | 3A |
| Max Output Power | 110W | 750W | 3.6W | 15W | |
| Total Power | 750W | ||||
Product Specifications
| P/N | PS-TRS-0750NNSAWE-T |
|---|---|
| Dimensions | 150mm(W)x86mm(H)x140mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-250 msec |
| Hold Up Time | > 17msec within 80% load |
| Input Current | 8A |
| Input Frequency Range | 50Hz/60Hz |
| Input Voltage | 200 - 240V~ |
| Operating Temperture | +5°C to +30°C |
| Operating Humidity | 20% to 85%, non-condensing |
| Storage Temperture | -40°C to +55°C |
| Storage Humidity | 10% to 95%, non-condensing |
| Cooling System | 12cm FDB Fan |
| Efficiency | Meet 80 PLUS® 230V EU |
| MTBF | 100,000 hrs minimum |
| Safety Approval | CE/LVD/CB/TUV |
| PCI-E 6+2PIN | 2 |
| Protection | OVP/OPP/SCP |
