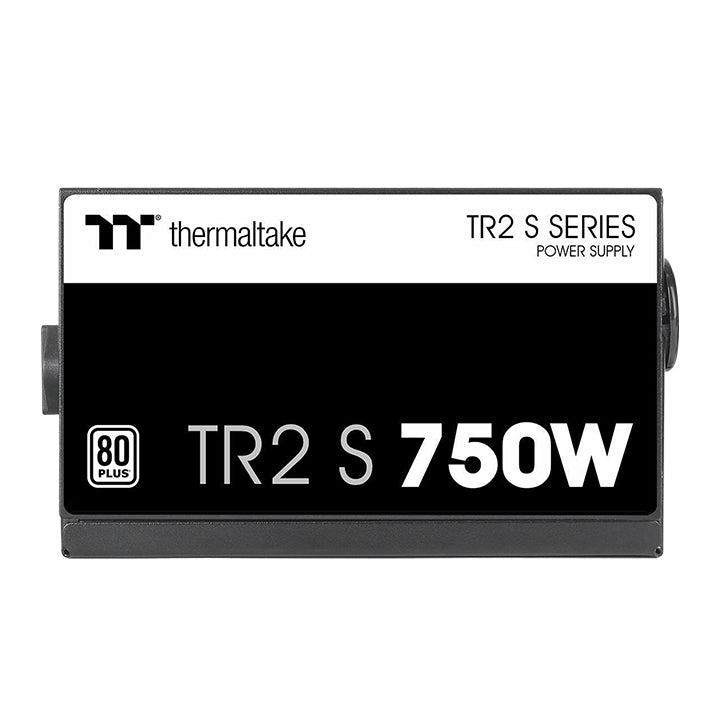

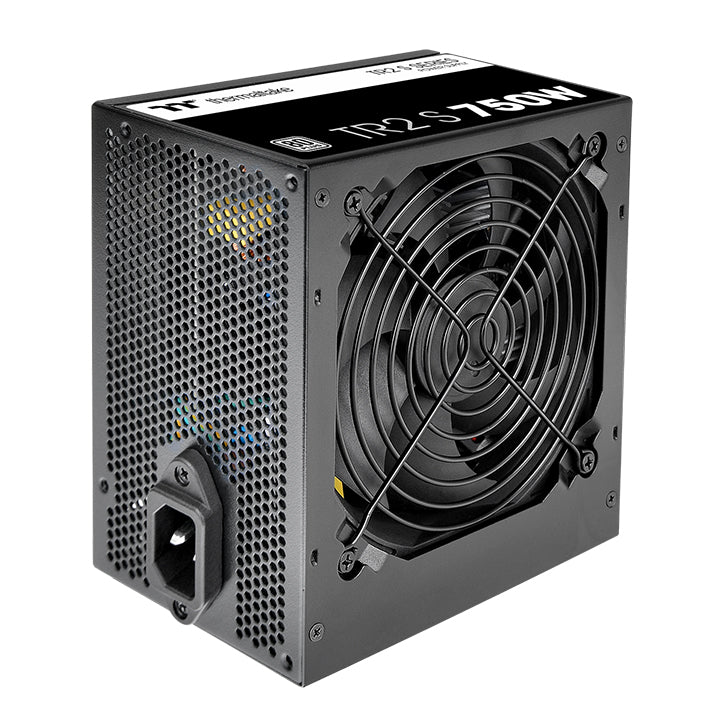

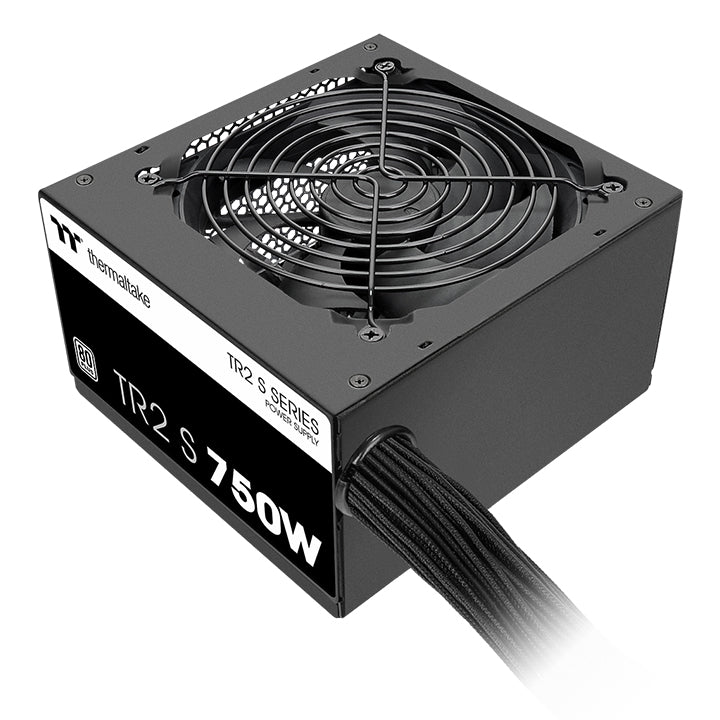

TR2 S 750W

TR2 S 750W

PS-TRS-0750NNFAW*-1

Reliable TR2 S 750W PSU featuring 80 PLUS® certified efficiency, an ultra-quiet 120mm cooling fan, a high-amperage single +12V rail, and a native 12V-2X6 connector.


View full details
TR2 S 550W

TR2 S 750W

The TR2 S Series is 80 PLUS® certified, delivering reliable efficiency under real-world load conditions. An intelligent 120mm cooling fan provides excellent airflow with quiet operation. With a high-amperage single +12V rail and a native 12V-2X6 connector, the TR2 S 750W delivers stable and dependable power for everyday PC builds.

Long-Term Durability with Premium Components

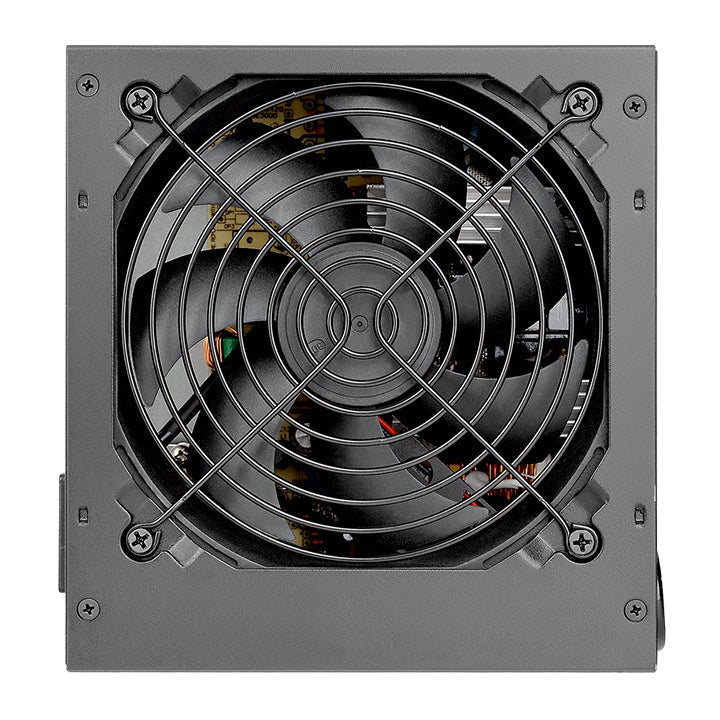

Ultra-Quiet 120mm Fan

Equipped with an intelligent 120mm cooling fan with RPM control, the TR2 S Series delivers excellent airflow and quiet operation.

Next-Gen Ready Power

80 PLUS® Certified

The TR2 S Series is 80 PLUS® certified, delivering reliable efficiency under real-world load conditions.

80 PLUS Platinum Certified

Multiple Connector Options

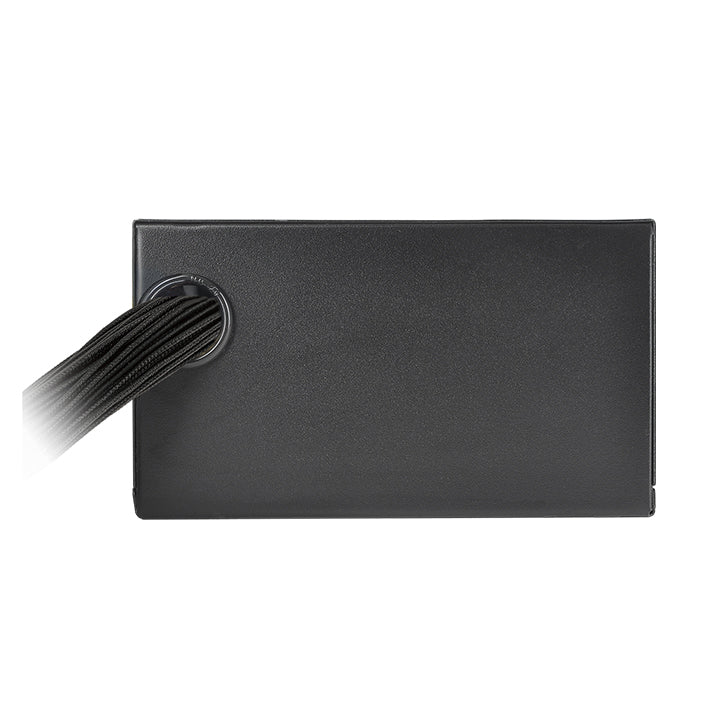

The TR2 S Series features low-profile etched black cables that simplify cable management, reduce clutter, and improve airflow inside the chassis.

Space-Saving Etched Cable Design
Connector Type Connector Quantity Cable Quantity Cable Length
Main Power
(24Pin) 		X 1 Main Power (20+4Pin) cable illustration X 1 550mm
ATX 12V
(4+4Pin) 		X 2 ATX 12V (4+4/8Pin) cable illustration X 1 600mm
+150mm
PCIe
(6+2Pin) 		X 2 PCIe (6+2Pin) cable illustration X 1 450mm
+150mm
SATA
(4Pin) 		X 4 SATA cable illustration X 2 450mm
+150mm
+150mm
Peripheral
(4Pin) 		X 2
```

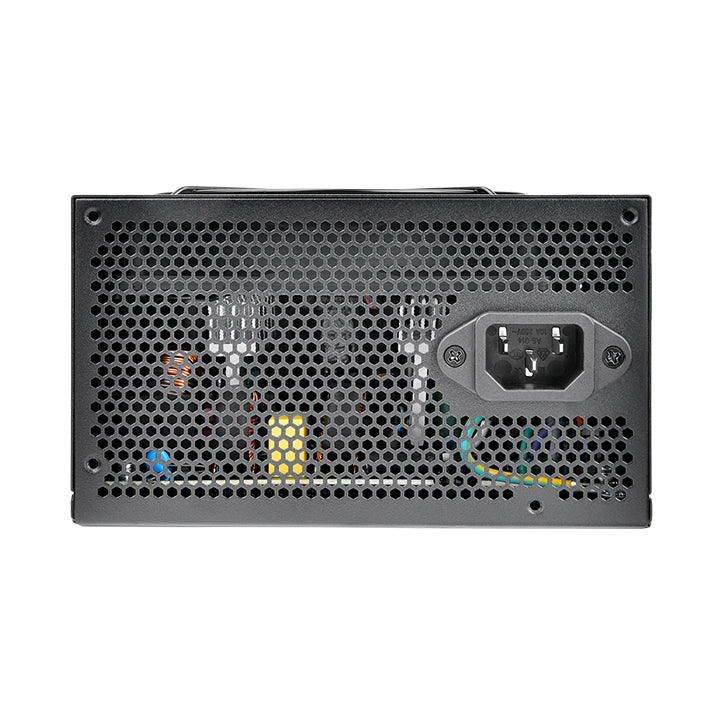

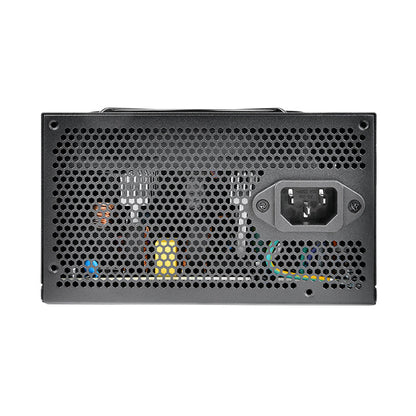

AC INPUT

Input Voltage: 100-240V~
Input Current: 10A Max.
Frequency: 50Hz - 60Hz

DC OUTPUT +3.3V +5V +12V -12V +5VSB
Max Output Current 24A 18A 58A 0.5A 2.5A
Max Output Power 120W 696W 6.0W 12.5W
Total Power 750W

High-Amperage Single +12V Rail

TR2 S Series features a powerful single +12V rail design, delivering consistent performance under various system loads.

Built-in Industrial Grade Protection

To protect your system, TR2 S Series includes essential industrial-grade protections, such as OVP (Over Voltage Protection), UVP (Under Voltage Protection), OPP (Over Power Protection), and SCP (Short Circuit Protection).

  • OVP

    Over Voltage Protection

  • UVP

    Under Voltage Protection

  • OPP

    Over Power Protection

  • SCP

    Short Circuit Protection

Product Specifications

P/N PS-TRS-0750NNFAW*-1
Model TRS-0750AH2NXW
Form Factor ATX
Max Output Capacity 750W
Color Black
Dimensions 150mm(W)x86mm(H)x140mm(D)
PFC (Power Factor Correction) Active PFC
Power Good Signal 100-500 msec
Hold Up Time T5 > 16msec at 50% load
T6 > 1msec at 75% load
Input Current 10A Max.
Input Voltage 100-240V～
Operating Temperture 0°C to + 25°C
Operating Humidity 10% to 90%,non-condensing
Storage Temperture -40°C to + 70°C
Storage Humidity 10% to 90%,non-condensing
Cooling System 12cm Hydraulic Bearing Fan
Efficiency 80 PLUS® Certified
MTBF 100,000 hrs minimum
Safety Approval FCC/ICES/CB/cTUVus
PCI-E 6+2PIN 2
Protection OVP/OPP/UVP/SCP
