TR2 S 500W

TR2 S 500W

PS-TRS-0500NPCW**-2

TR2 S Series TRS-0500P-2 – 500W 80 PLUS® Standard Certified APFC PSU


View full details

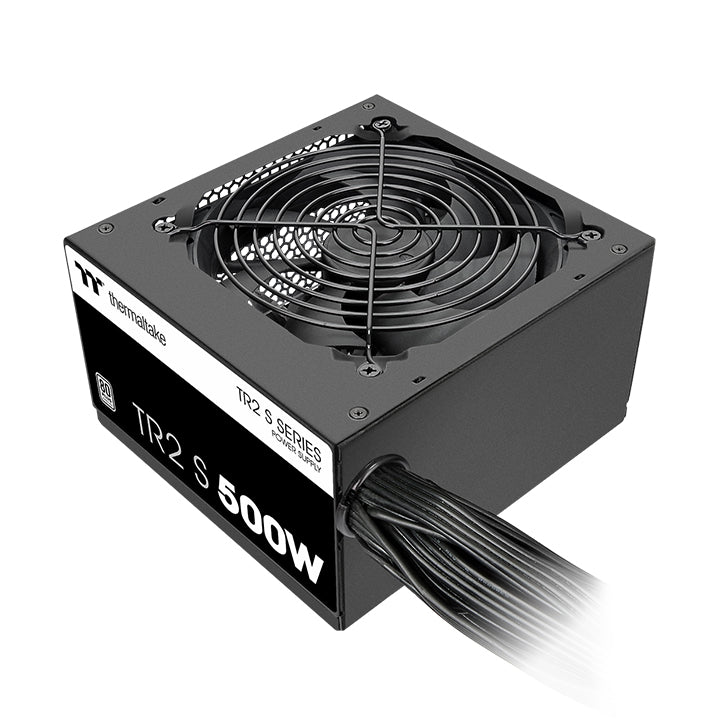

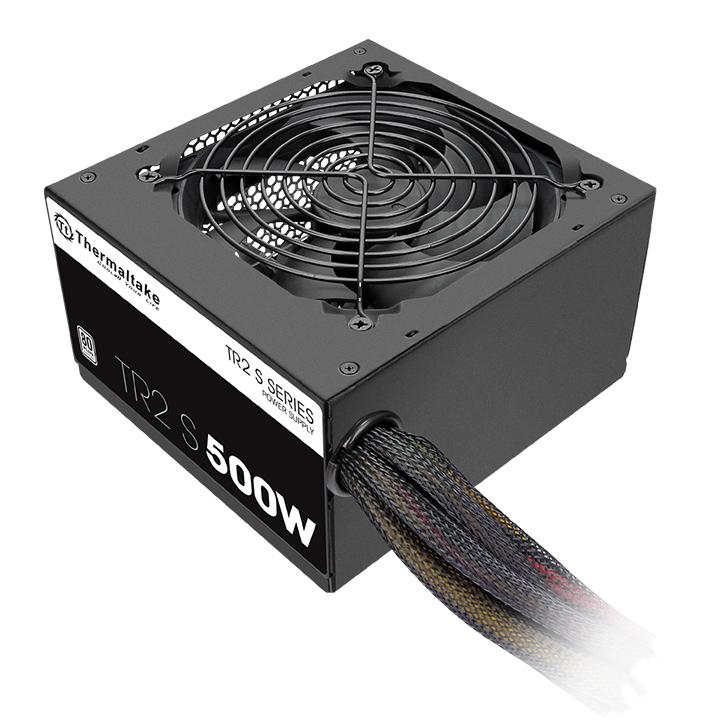

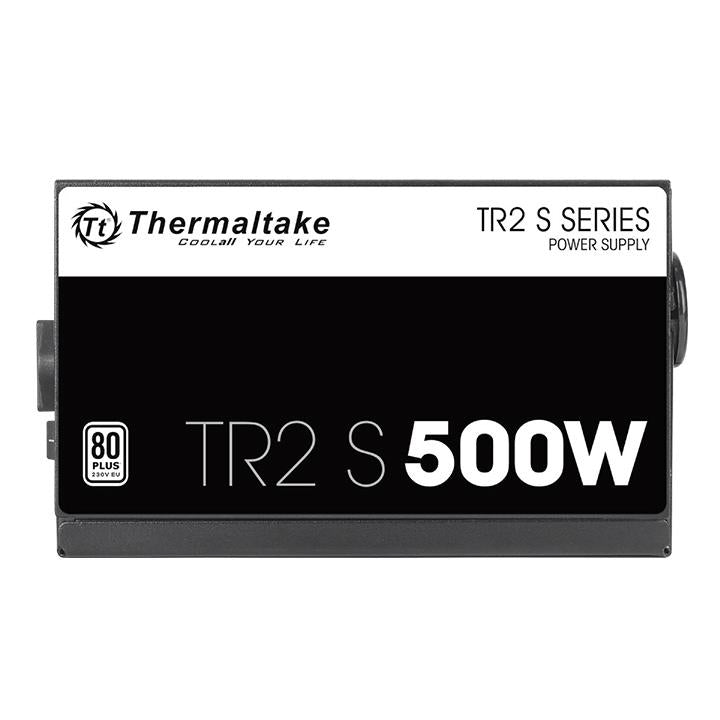

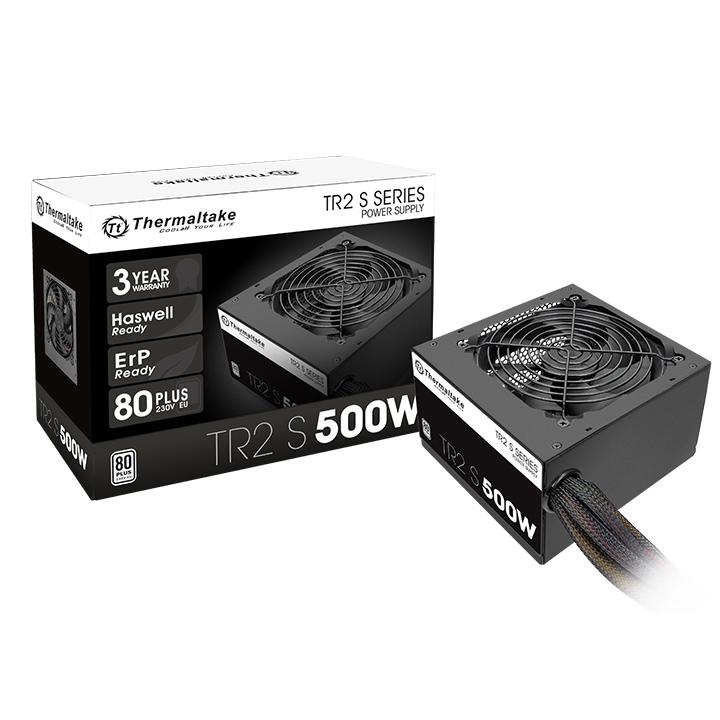

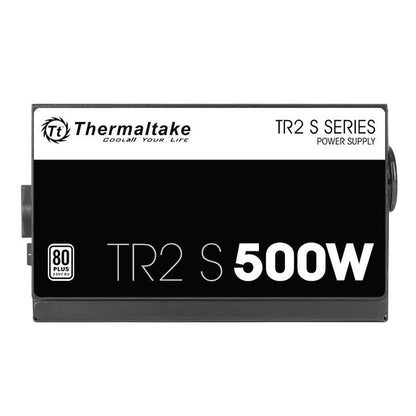

Thermaltake TR2 S 500W

Incorporating various high-quality components, the new TR2 S Series – models are rated from 500W to 700W – saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance.

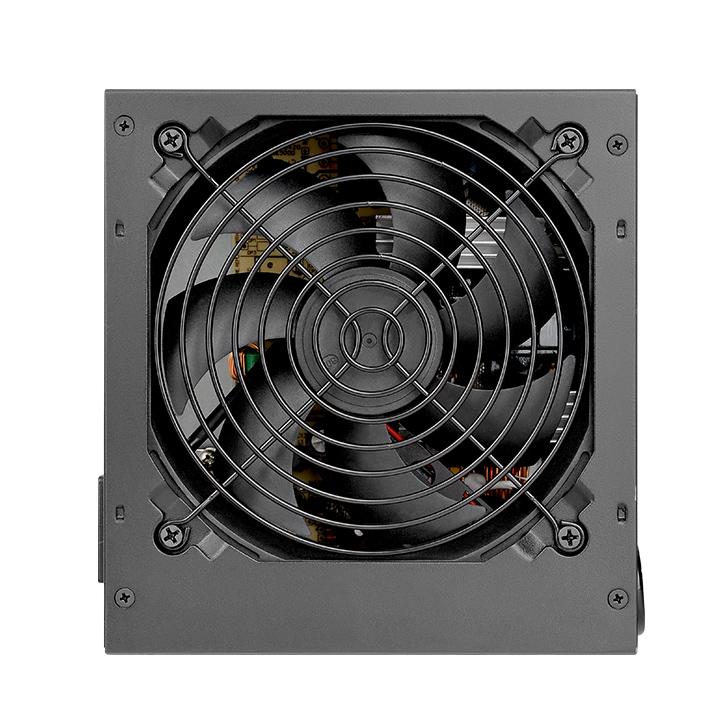

Ultra Quiet 120mm Fan

TR2 S Series adopt 120mm cooling fan delivers excellent airflow at an exceptionally low noise level.

Multiple Connectors

The cables used for TR2 S Series are all sleeved. TR2 S 500W connector’s specification as below:

80 PLUS 230V Standard Certified and Kaby Lake-Ready

TR2 S Series saves energy through its high energy efficiency of up to 86% and is 80 PLUS® 230V Standard certified. Additionally, TR2 S Series has been optimized to work with Intel’s new, Seventh-generation Kaby Lake processors to achieve maximum energy savings.

82%, 85%, 82% efficiency at 20%, 50%, 100% Loading Guaranteed

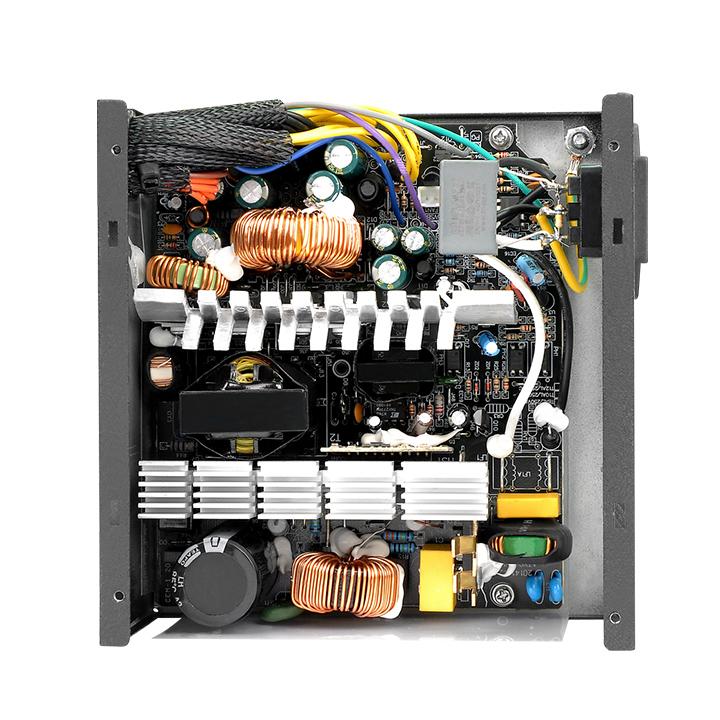

High-Quality Components

High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.

Single +12V Output

TR2 S Series is equipped with powerful +12V rails, superior performance under all types of system loading. Please see the output specification below:

AC INPUT

Input Voltage: 230V
Input Current: 8A max
Frequency: 50Hz-60Hz

DC OUTPUT+3.3V+5V+12V-12V+5Vsb
Max Output Current20A

15A

35A

0.5A

2.5A
Max Output Power

100W

420W

6.0W

12.5W

Continuous Power

500W

Product Specifications

P/N PS-TRS-0500NPCW**-2
Model TRS-500AH2NXW
Type

Intel ATX 12V 2.3
Form Factor ATX
Max Output Capacity

500W
Color

Black
Dimensions 150mm(W)x86mm(H)x140mm(D)
PFC (Power Factor Correction) Active PFC
Power Good Signal 100-150 msec
Hold Up Time > 17msec at 80% load
Input Current 8A Max.
Input Frequency Range 50Hz
Input Voltage 200-240Vac
Operating Temperture 5°C to + 40°C
Operating Humidity 20% to 85%,non-condensing
Storage Temperture -40°C to + 55°C
Storage Humidity 10% to 95%, non-condensing
Cooling System 12cm Hydraulic Bearing Fan
Efficiency 80 PLUS® 230V EU Certified
MTBF 100,000 hrs minimum
Safety Approval FCC/ICES/CB/cTUVus
PCI-E 6+2PIN 2
Protection OVP/OPP/SCP
