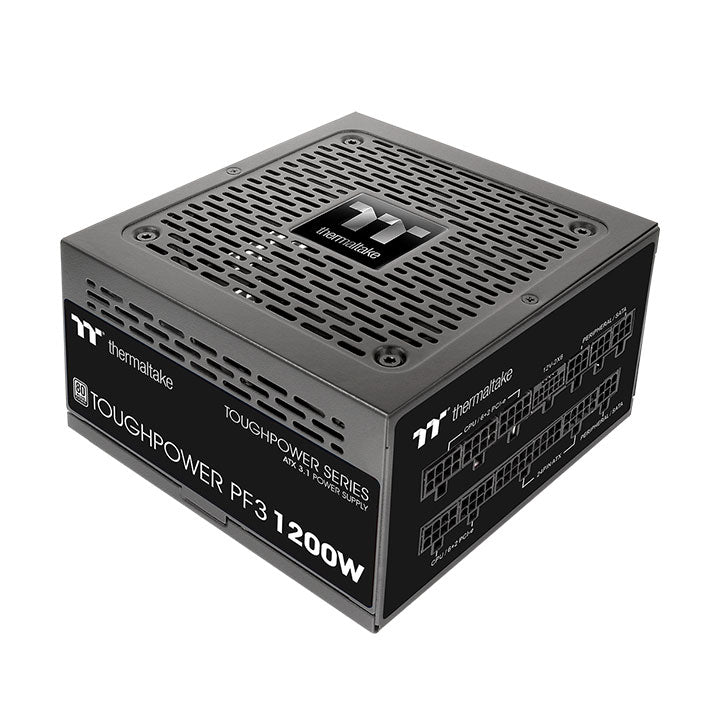

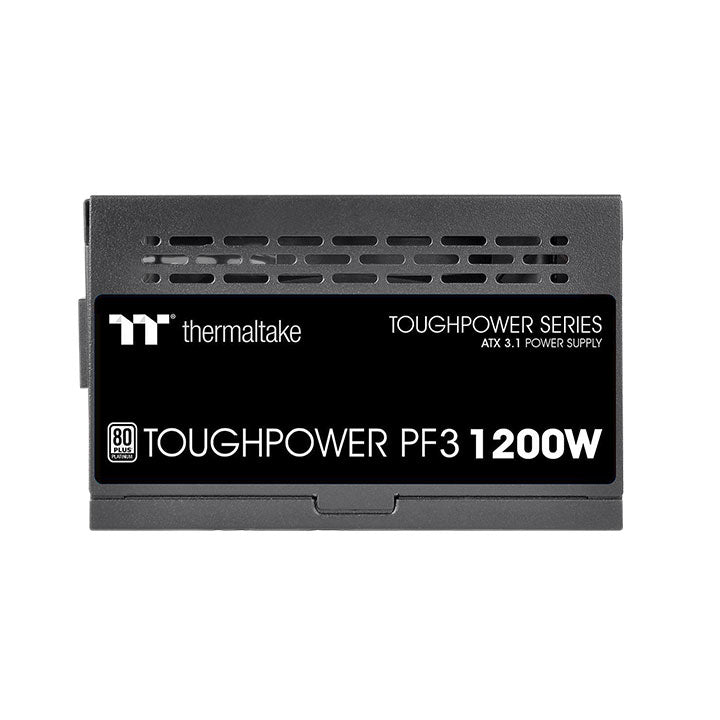

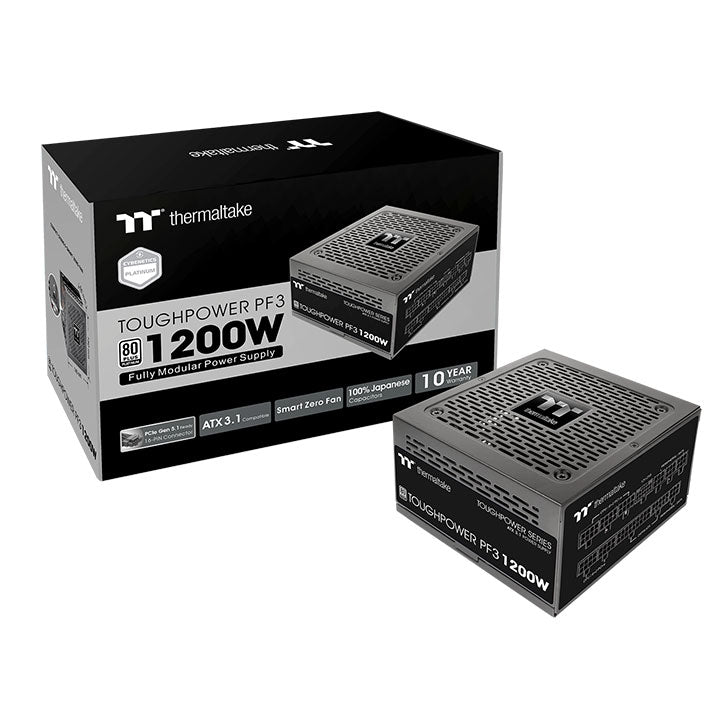

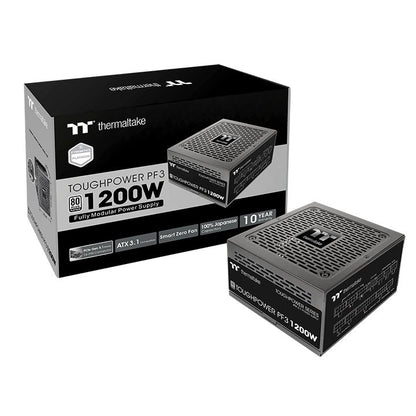

Toughpower PF3 1200W Platinum - TT Premium Edition
Toughpower PF3 1200W Platinum - TT Premium Edition
SKU:PS-TPD-1200FNFAPJ-L
Toughpower PF3 series is 80 PLUS Platinum certified and fully compatible with ATX 3.1 specifications. Designed with a native PCIe Gen 5.1 connector, it can power up next-gen technology with one new 12V-2x6 cable.
-
Design
-
Specification
-
Download
-
How-to Videos
Power Up Next Generation Hardware
To fully support next-gen hardware, Toughpower PF3 Platinum Series is designed to meet ATX 3.1 standards, including a PCIe Gen 5.1 12V-2x6 connector. The PF3 Platinum series delivers 80 PLUS Platinum efficiency, it also offers the highest stability, durability, and reliability.
Fully Compatible with ATX 3.1 Standards
Toughpower PF3 Platinum series is fully compatible with ATX 3.1 Specifications which supports up to 200% power excursion, reaches 60% efficiency at low load and complies with required power supply timing standards.
ATX 3.1
ATX 2.0
Total power excursion
Excursion
Excursion
PCIe Gen 5.1 Ready
Toughpower PF3 Platinum series comes with a PCIe 12V-2x6 connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs.
The wattage marked on the PCIe 12+4-pin cable connector represents the recommended wattage (Ref. Intel design guideline). The bundled PCIe Gen 5.1 (12+4pin) cable connector of the Toughpower SFX Platinum 1000W can deliver up to 600W for PCIe 12+4pin graphics cards.
- Note:
- Recommended wattage is an estimation of system power demand. Actual power demands may vary based on specific components, usage, and many other factors.
- Please follow the recommended power requirements from the GPU manufactures before using the PCIe 12+4pin cable.
12+4pin Connector
Made to Comply with the Latest Graphics Cards
As the power consumption of graphics cards increase, so has their demand for power. The PF3 Platinum series is designed to support NVIDIA and AMD graphics cards, and ready to supply the graphics cards according to their different ways of connections.
1 GPU Power Connector
2 GPU Power Connector
3 GPU Power Connector
12+4 pin GPU Power Connector
80 PLUS Platinum Certified
80 Plus Platinum certification means the Toughpower PF3 converts power efficiently, resulting in lower power loss and heat buildup inside the power supply.
Compact Design with 140mm Depth
The Toughower PF3 Plantinum Series is designed to be compact with size of 140mm (D) x 86mm (H) x 150mm (W) which provides ample space for cable management.
Be Smart, Stay Quiet

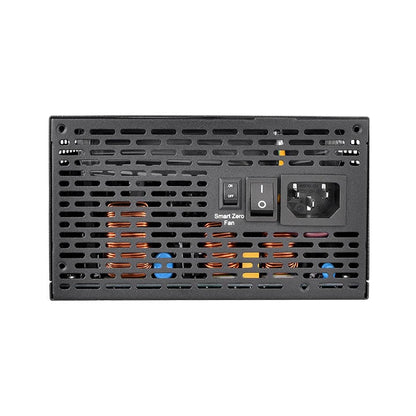

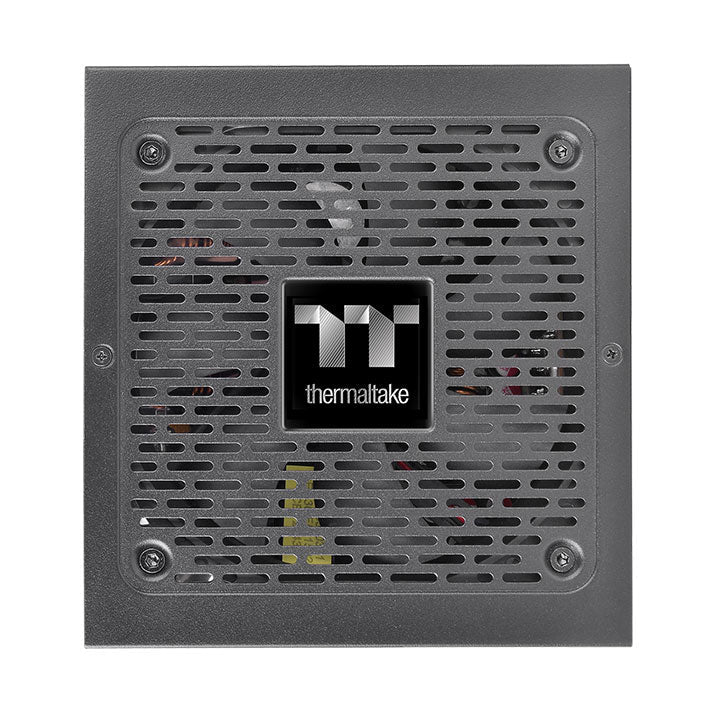

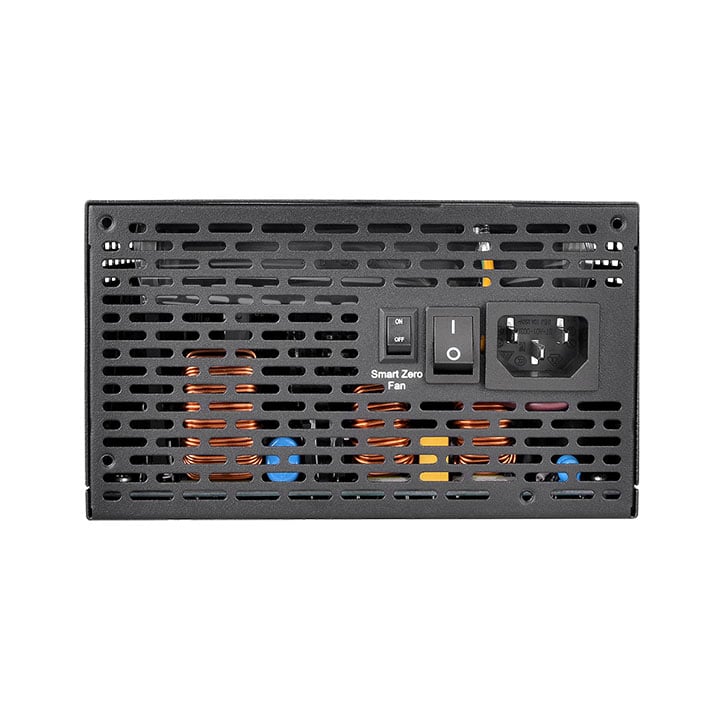

Featuring a 120mm fluid bearing fan to creates the perfect balance between silence and superior cooling. Furthermore, with the Smart Zero Fan, the fan will not spin until it reaches a certain temperature, minimizing the fan noise.
＜30mV Low Ripple Noise Design
Top-end build quality with low ripple noise. All ripples are lower than 30mV on +12V, +5V or +3.3V from 0% to 100% load to ensure a stable operation and keep your performance-critical components to function reliably for longer.
+12V Rail
Intel SpecificationPF3 series
Extremely Strict Voltage Regulation ＜±2%
The voltage regulation is more strict than Intel’s standard +5%,-7% for major rails and ±10% for -12V, is set to no more than ±2% for major rails, providing steady clean power through exceptional voltage stability.
Intel SpecificationPF3 series
17ms and up Hold Up Time
During a power interruption, your computer might shut down or reboot. We make sure that the PF3 series will deliver at least 17ms at 100% workload, without system reboot or resetting.
We make sure the PF3 series will deliver at least 17ms at 100% workload, without system reboot or resetting.
More Stable than Ever
100% high quality Japanese 105°C/221°F electrolytic capacitors provides great durability as well as offering the highest stability, while remaining reliable.
product/memory Single +12V
Rail & High-Class Technologies
Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of LLC and DC to DC circuit design provides very stable operation and enhanced voltage regulation.
| AC INPUT | Input Voltage: 100-240V～ | ||||
| DC OUTPUT | +3.3V | +5V | +12V | -12V | +5VSB |
| Max Output Current | 20A | 20A | 100.0A | 0.3A | 3A |
| Max Output Power | 130W | 1200W | 3.6W | 15W | |
| Total Power | 1200W | ||||

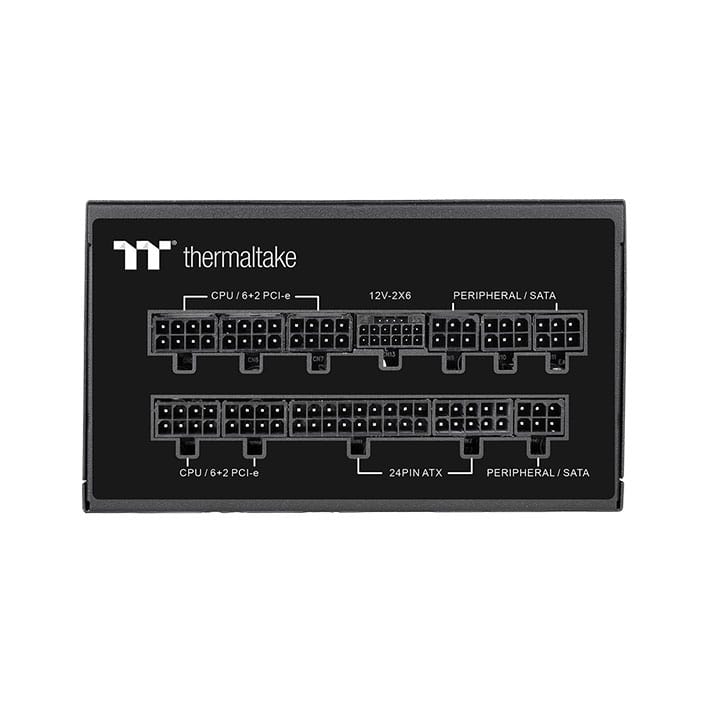

Fully Modular Low-Profile Cables
Offers cable selection for users while powering the system at an advantageous voltage. Low-profile cables make cable management easier, reduces clutter and increases airflow inside the chassis.
| Connector Type | Connector Quantity | Cable Quantity | Cable Length | |
|---|---|---|---|---|
| Main Power (24Pin) | X 1 |  | X 1 | 600mm |
| ATX 12V (4+4Pin) | X 2 |  | X 2 | 650mm |
| PCIe (6+2Pin) | X 5 |  | X 2 | 500mm+150mm |
 | X 1 | 500mm | ||
| PCIe (12+4Pin) 600W | X 1 |  | X 1 | 600mm |
| SATA (5Pin) | X 12 |  | X 3 | 500mm+150mm+ 150mm+150mm |
| Peripheral (4Pin) | X 4 |  | X 1 | 500mm+150mm+ 150mm+150mm |
| FDD Adapter | X 1 |  | X 1 | 150mm |
Intel C6/C7 States Ready
The PF3 series has been optimized to work with all generations of Intel processors to achieve maximum energy saving.
Product Specifications
| P/N | PS-TPD-1200FNFAPJ-L |
|---|---|
| Model | TPD-1200AH2FLP |
| Peak Output Capacity | 1200W |
| Color | Black |
| Dimensions | 150mm(W)x86mm(H)x140mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-150 msec |
| Hold Up Time | > 17msec |
| Input Frequency Range | 50Hz/60Hz |
| Input Voltage | 100-240V～ |
| Operating Temperture | +5°C to +40°C |
| Operating Humidity | 20% to 85%,non-condensing |
| Storage Temperture | -40°C to + 55°C |
| Storage Humidity | 10% to 95%, non-condensing |
| Cooling System | 12cm FDB Fan |
| Efficiency | Meet 80 PLUS® Platinum at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| Safety Approval | FCC/ICES/CB/cTUVus/TUV/LVD/UKCA/BSMI/CCC |
| PCI-E 6+2PIN | 5 |
