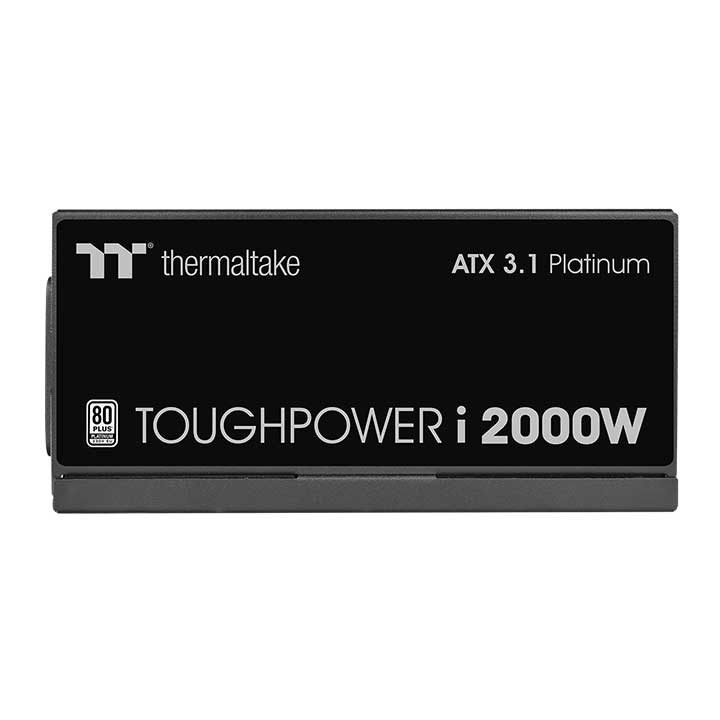

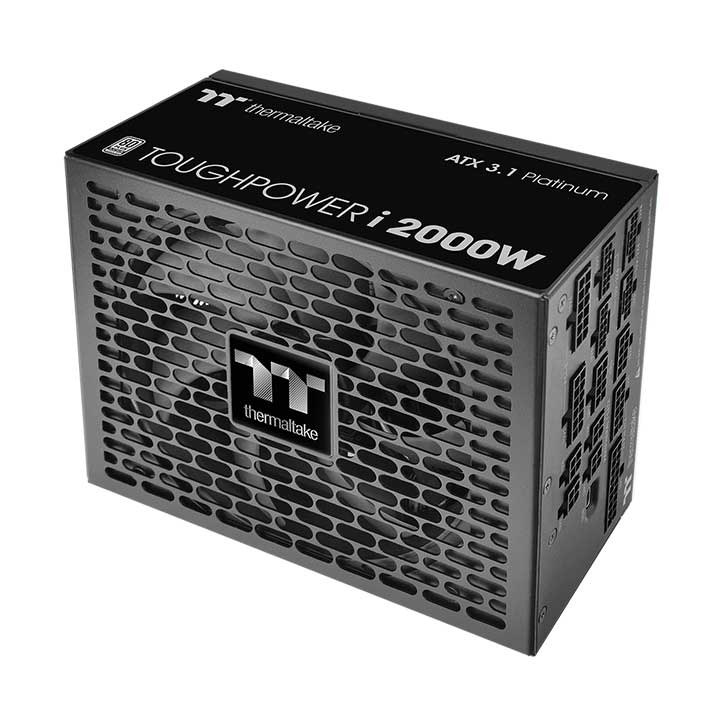

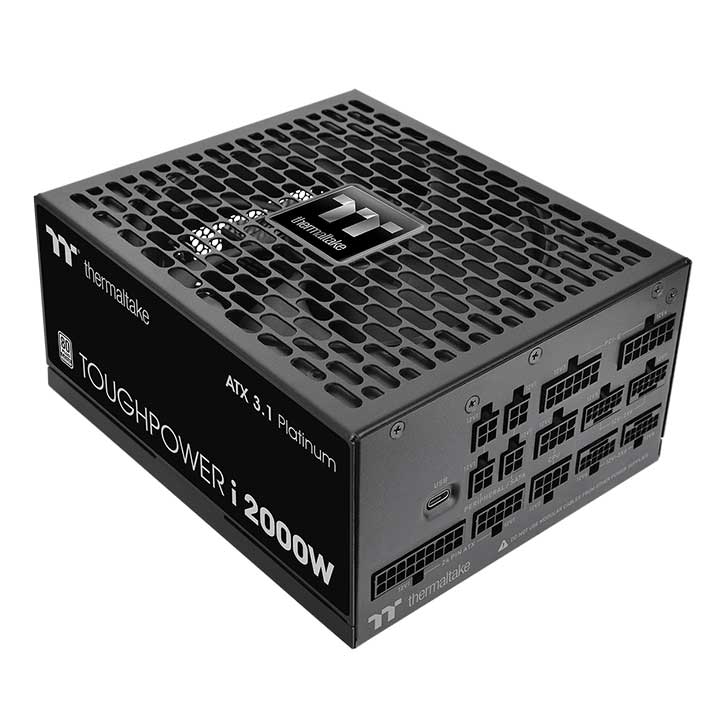

Toughpower i2000W

Toughpower i2000W

PS-TPI-2000FNFDP*-1

Toughpower i2000W is an 80 PLUS Platinum 230V certified digital PSU, fully compatible with ATX 3.1 specifications and built for high-performance workstations supporting up to 2000W and four native PCIe 12V-2x6 connectors.

It offers real-time power monitoring via TT RGB PLUS software and switchable single/multi-rail mode for ultimate stability and control.

View full details

Smart Digital Control

Built on a powerful digital platform, the Toughpower i2000W lets you monitor wattage, voltage, efficiency, and temperature in real time via the TT RGB PLUS software on desktop or mobile. Stay in control. Stay protected.

Smarter Control, Safer Power.

With real-time monitoring, single/ multi rail mode switching, and Smart Zero Fan control via TT RGB PLUS software, you gain full command over performance, efficiency, and protection.

Smart Monitoring, Flexible Protection

Monitor power usage in real time for PCI-E, CPU, and 12V-2x6 outputs via software, while switching between single and multi rail modes to optimize protection for overclocking or multi GPU setups.

ATX 3.1 Ready

Toughpower i2000W is fully compatible with Intel ATX 3.1 specifications, supporting up to 200% power excursion, reaching 60% efficiency at low load, and meeting all required power supply timing standards.

ATX 3.0

ATX 2.0

Total power excursion

2X
1.3X
2X
Total Power Excursion
3X
GPU Power Excursion

PCIe Gen 5.1 Ready

Toughpower i2000W comes with native 12V-2x6 (16 pin) connectors to deliver powerful and stable performance, allowing the PSU to support next-generation GPUs.

The wattage marked on the 12V-2x6 connector follows Intel's recommended design guideline. With four native 16 pin (12V-2x6) PCIe connectors, the i2000W can support multiple high-wattage PCIe 5.1 graphics cards simultaneously.


Note:
1. Recommended wattage is an estimation of system power demand. Actual power demands may vary based on specific components, usage, and many other factors.
2. Please follow the recommended power requirements from the GPU manufactures before using the PCIe 12V-2x6 cable.

16pin Connector

Be Smart, Stay Quiet

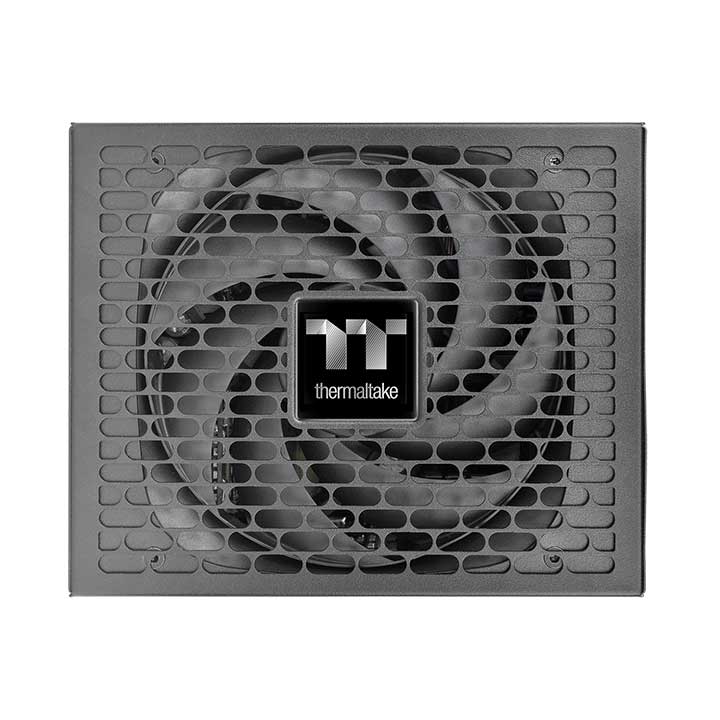

Featuring an ultra-quiet 140mm fan with Smart Zero Fan technology to provide efficient and silent cooling. Fully modular low-profile cables let users to have cleaner builds and optimize airflow.

High Amperage Single +12V Rail & High-Class Technologies

Powerful single +12V rail can deliver the power you need for the best compatibility. The use of LLC and DC to DC circuit design provides extremely stable operation and enhanced voltage regulation.

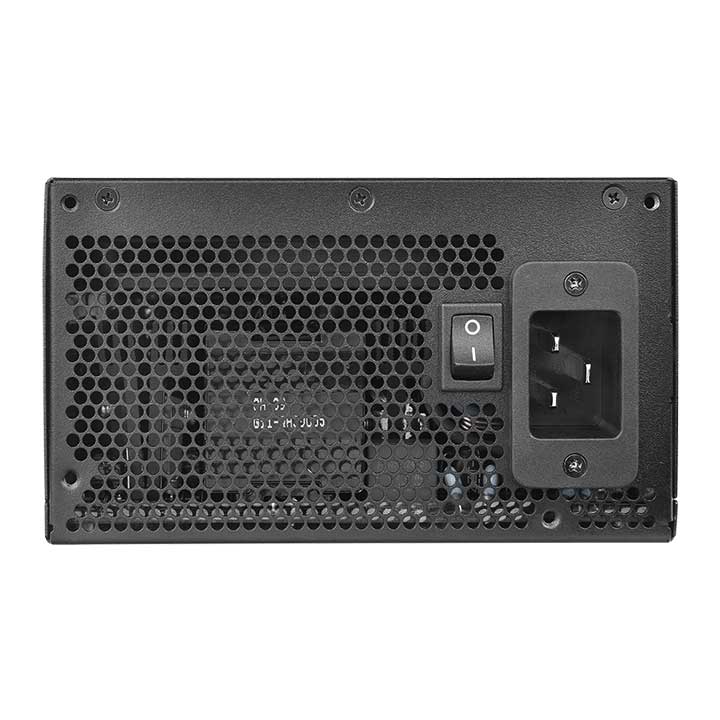

AC INPUT

Input Voltage: 220 - 240V~
Input Current: 15.0A Max.
Frequency: 50 - 60Hz

DC OUTPUT

+3.3V

+5V

+12V

+5VSB

Max Output Current

22.0A

22.0A

166.67A

3.0A

Max Output Power

120W

1999.92W

15W

Total Power

2000W

Smart Power in the Cloud

Monitor and analyze real time power data across devices with DPS G software. Upload key information to the cloud and easily share reports through mobile or social platforms.

Built-in Industrial Grade Protection

To protect your hardware, Toughpower i2000W is built with industry grade protections: OCP (Over Current Protection), OVP (Over Voltage Protection), UVP (Under Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection).

  • OCP

    Over Current Protection

  • OVP

    Over Voltage Protection

  • UVP

    Under Voltage Protection

  • OPP

    Over Power Protection

  • SCP

    Short Circuit Protection

  • OTP

    Over Temperature Protection

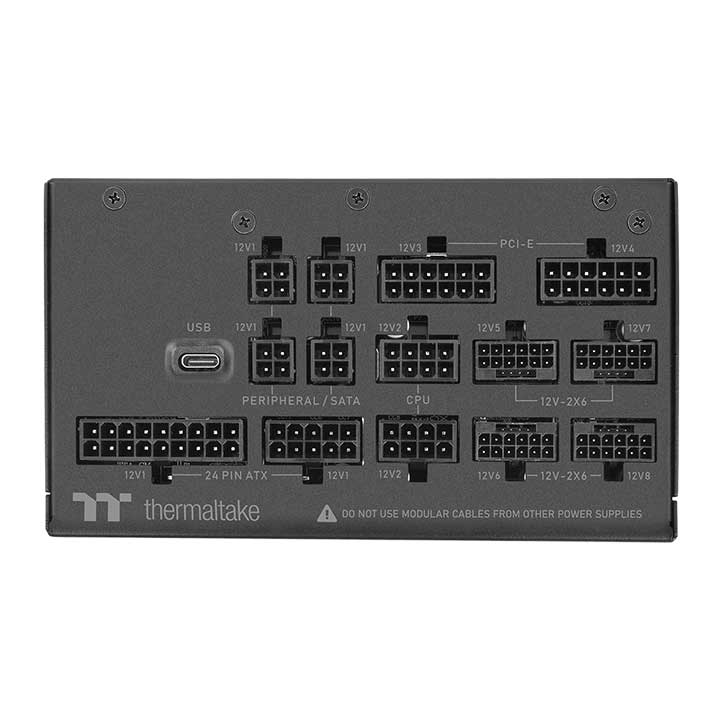

Fully Modular Low-Profile Cables

Offers users more flexibilities for PSU installation. Low-profile black cables make cable management easier, reduces clutter and increases airflow inside the chassis.

Connector Type Connector Quantity Cable Quantity Cable Length
Main Power
(24Pin) 		X 1 X 1600mm
ATX 12V
(4+4Pin) 		X 2 X 2700mm
PCIe
(6+2Pin) 		X 8 X 8500mm
PCIe
(12+4Pin)
600W 		X 4 X 4 600mm
SATA
(5Pin) 		X 12 X 3 500mm+150mm+
150mm+150mm
Peripheral(4Pin) X 8 X 2 500mm+150mm +150mm+150mm

80 PLUS Platinum Certified

80 PLUS Platinum(230V EU) certified, the 2000W model delivers up to 92% energy efficiency, minimizing power loss and heat generation even under full load.

Product Specifications

P/N PS-TPI-2000FNFDP*-1
Model TTI-2000DH3FCP-3
Max Output Capacity 2000W
Color Black
Dimensions 150mm(W)x86mm(H)x180mm(D)
PFC (Power Factor Correction) Active PFC
Power Good Signal 100-150 msec
Hold Up Time > 17msec at 80% load
Input Current 15.0A Max.
Input Frequency Range 50 - 60Hz
Input Voltage 220 - 240V~
Operating Temperture 0°C to +50°C
Operating Humidity 20% to 90%,non-condensing
Storage Temperture -20°C to +70°C
Storage Humidity 5% to 95%, non-condensing
Cooling System 14cm FDB fan
Efficiency 80 PLUS® Titanium & 230V EU Platinum certified
MTBF 100,000 hrs minimum
Safety Approval CE/UKCA/FCC/ICES/CB/TUV/cTUVus/CCC/BSMI/LVD/RCM/BIS/KC/KCC
PCI-E 6+2PIN 8
