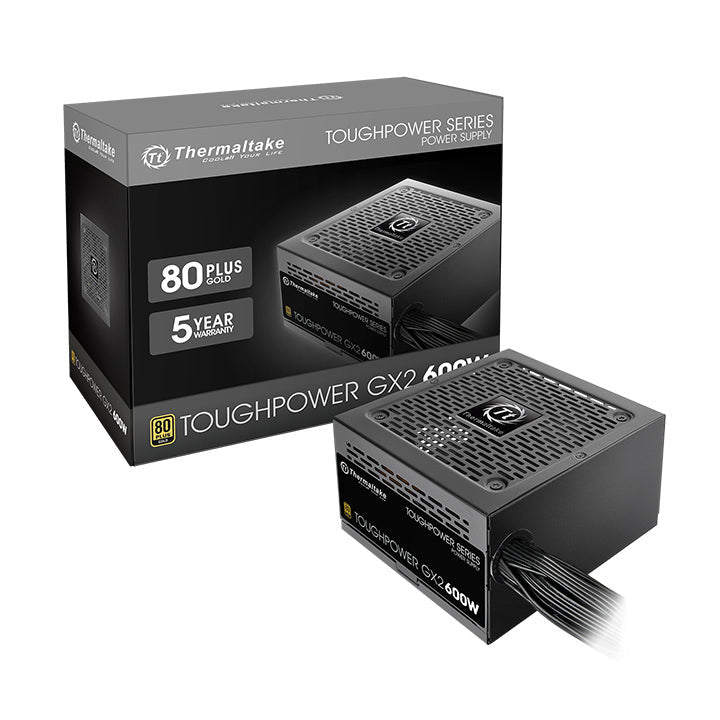

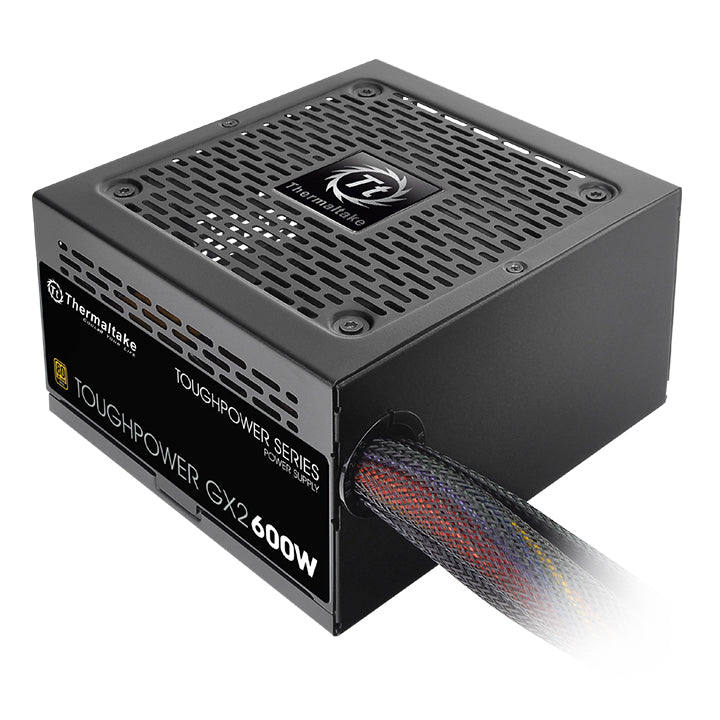

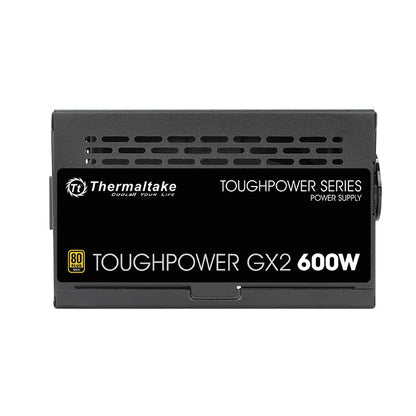

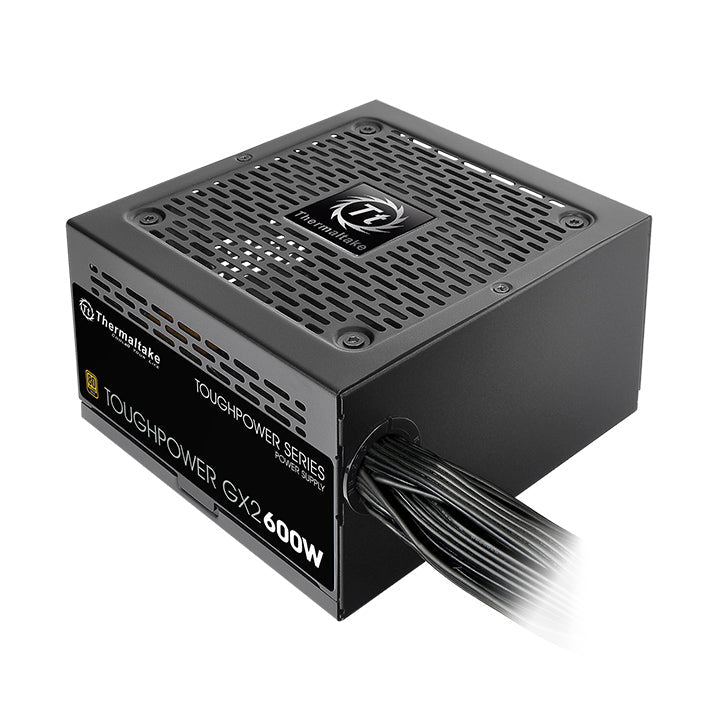

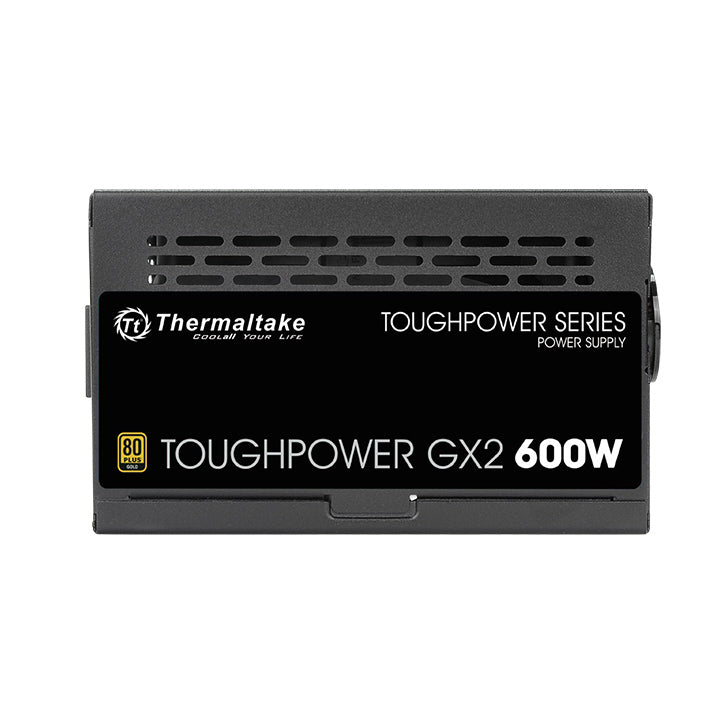

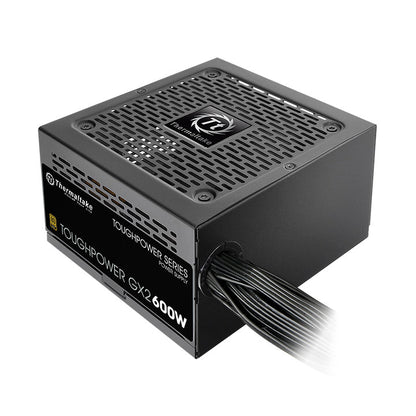

Toughpower GX2 600W
Toughpower GX2 600W
SKU:PS-TPD-0600NNFAGx-2
80 PLUS Gold certified None modular PSU with ultra-quiet 120mm cooling fan
-
Design
-
Specification
-
Download
-
How-to Videos
Toughpower GX2 600W
The Toughpower GX2 is designed to deliver 80 PLUS Gold efficiency. It features a 120mm cooling fan, multiple connectors for powering your build, and high-quality components to provide continuous and stable performance, all while ensuring near-silent operation. Backed by a 5-year warranty, the Toughpower GX2 is well-suited for PC enthusiasts seeking a budget-friendly power supply with essential features.

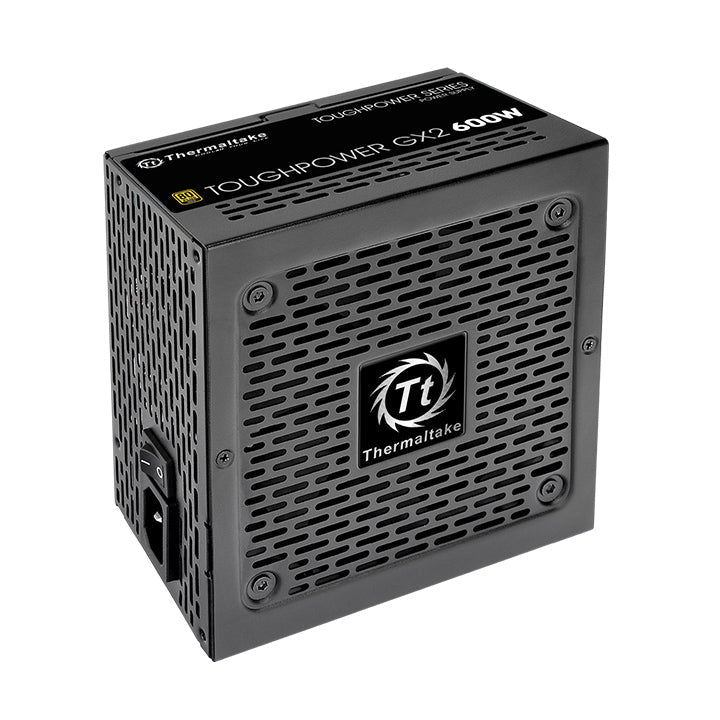

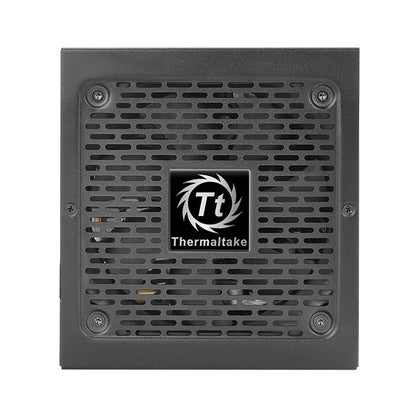

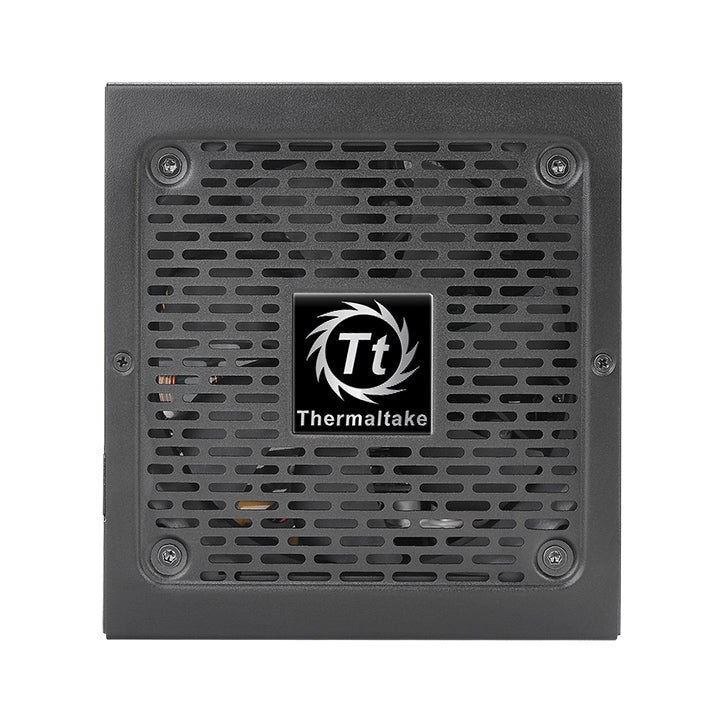

Ultra-Quiet 120mm Cooling Fan
Featuring a 120mm cooling fan, the Toughpower GX2 delievers excellent airflow at an exceptionally low noise level.
Meet Intel Low Ripple Noise
The Toughpower GX2 meets all Intel’s ripple noise requirement on +12V, +5V or +3.3V from 0% to 100% load to ensure a stable operation and keep your performance-critical components to function reliably for longer.
Toughpower GX2 600W
Meet Intel Voltage Regulation
The voltage regulation of Toughpower GX2 meets Intel’s standard ±5% for major rails and ±10% for -12V, ensuring the highest performance.
Toughpower GX2 600W
Fully Modular Low-Profile Flat Cable
Offers cable selection for users while powering the system at an advantageous voltage. Low-profile flat black cable makes cable management easier, reduces clutter and increases airflow inside the chassis.
High Quality Components
High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.
High Amperage Single +12V Rail
Powerful single +12V rail ensures a stable and reliable supply to other PC components.
AC INPUT | Input Voltage: 100 - 240Vac | ||||
DC OUTPUT | +3.3V | +5V | +12V | -12V | +5VSB |
Max Output Current | 20A | 20A | 48A | 0.3A | 2.5A |
Max Output Power | 120W | 576W | 3.6W | 12.5W | |
Total Power | 600W | ||||
Product Specifications
| P/N | PS-TPD-0600NNFAGx-2 |
|---|---|
| Model | TPS-0600AH2NLG |
| Max Output Capacity | 600W |
| Color | Black |
| Dimensions | 150mm(W)x86mm(H)x140mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-500 msec. |
| Hold Up Time | > 16msec at 230Vac/ 60Hz and 100% load |
| Input Current | 12A – 6A |
| Input Frequency Range | 50Hz / 60Hz |
| Input Voltage | 100 – 240Vac |
| Operating Temperture | +5°C to + 40°C |
| Operating Humidity | 20% to 85%, non-condensing |
| Storage Temperture | -40°C to + 55°C |
| Storage Humidity | 10% to 95%, non-condensing |
| Cooling System | 120mm fan |
| Efficiency | Meet 80 PLUS®Gold at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| Safety Approval | CB/cTUVus/TUV/FCC/S-Mark |
| PCI-E 6+2PIN | 2 |
