Toughpower Grand RGB 1200W Platinum
Toughpower Grand RGB 1200W Platinum
SKU:PS-TPG-1200F1FAPx-1
Toughpower Grand Series TPG-1200F1FAP–1200W 80 PLUS® Platinum Certified Fully Modular APFC PSU
-
Design
-
Specification
-
Download
-
How-to Videos
Thermaltake, as the pioneer who incorporates RGB lights into PSU, introduces the Thermaltake Toughpower Grand RGB Series, coming with a pre-installed, patented Riing 14 RGB fan with 5 lighting modes (RGB Cycle Mode, Solid Red, Solid Green, Solid Blue, and Solid White), LEDs Off and a built-in memory function.
Featuring capacities ranging from 850W to 1200W and 80 PLUS Platinum certification, Toughpower Grand RGB Series adopts the highest quality components and fully modular design that always accommodate any mainstream build under any circumstances.
* All images are for reference only; actual specification and lighting effects are based on the real product.
※The photo is for reference.

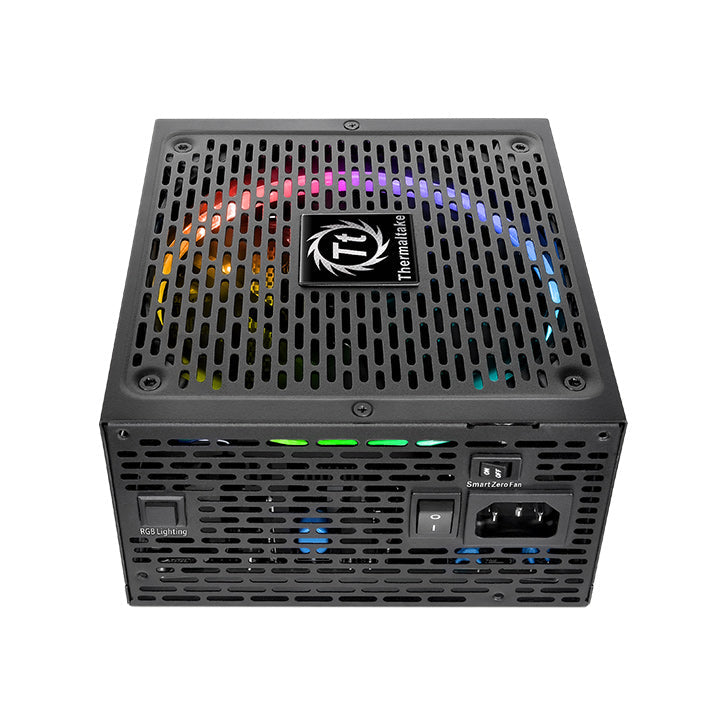

By pressing the RGB lighting button, the fan color can be switched among an RGB Cycle with variants including Solid Red, Green, Blue, White, and a LED Off mode. The fan is also constructed with a built-in memory function, saving the color applied and insuring the same color selection every time you boot your PC.
All new circuit design with PFC & LLC digital controllers efficiently reduces ripple noise and gives steady voltage output.

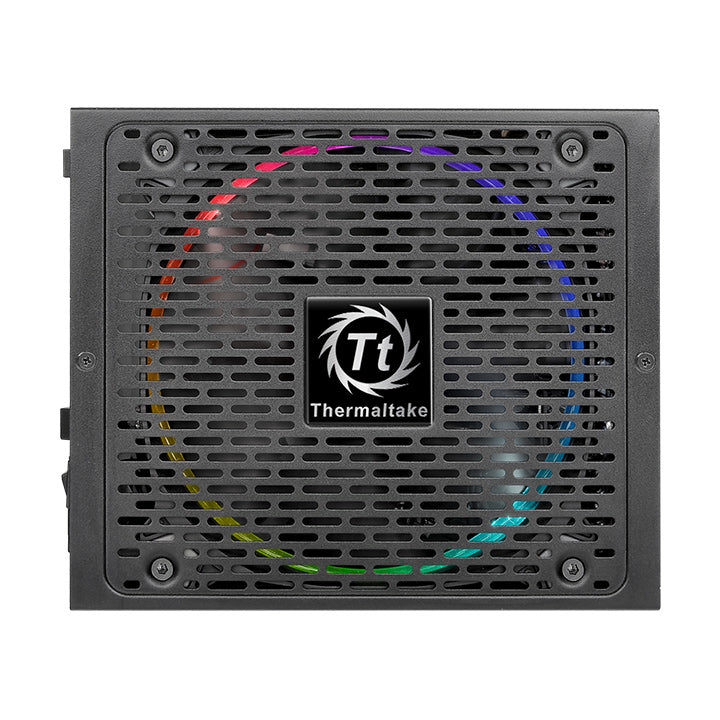

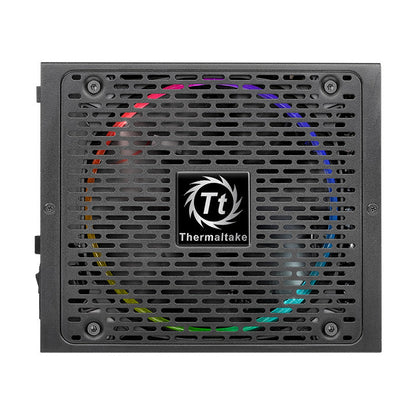

With the face-up placement of the fan, users can freely gaze upon their patented RGB fan and at the same time obtaining additional performance by using the fan as a additional exhaust mechanism, repelling unwanted heat from your chassis. As the thermal image testing shown, the temperature of PSU and computer system will decrease around 3°C (5.4 °F) by placing PSU face-up.
* All images are for reference only; actual specification and lighting effects are based on the real product.
Riing 14 RGB fan blade is designed for high static pressure requirements of demanding applications; the concentrated compression blade is engineered to focus the weaker, inner circle of air outward, allowing the outer section to pressurize the air. The fan blades are optimized to enhance static pressure for an impressive cooling performance. Hydraulic bearings for silent operation guarantee ultra-low noise, and the anti-vibration mounting system strengthens the product’s stability during operation. Moreover, In-mold injection anti-vibration rubber pads provide hassle-free usage for 80% protection coverage, including all four corners.
Smart Zero Fan ensures zero noise when the fan operates below 40% working load to minimize audible noise. The fan will operate when the power supply working load over 40%. A switch is provided for those who prefer the fan to spin constantly.
All ripples are lower than 30mV for high stability on +12V, +5V, or +3.3V from 0% to 100% load to ensure a high quality power supply. Low ripple noise will keep your performance-critical components, such as high-end graphics cards, to operate reliably for longer.
The voltage regulation of the PSU is set to no more than ±2% for major rails to meet the highest performance. The strict voltage regulation of the Toughpower Grand RGB Platinum is better than Intel’s standard ±5% for major rails and ±10% for -12V.
100% high quality 105 °C (221 ° F) Japanese made capacitors which greatly improve the durability and offer the highest stability and reliability.
High Amperage Single +12V Rail & DC to DC Design
Toughpower Grand RGB 1200 Platinum is equipped with a powerful single +12V rail, eliminating the limitations caused by voltage distributions, delivering the power your CPU and VGA demand in any situations. Besides, with DC to DC design, the unit optimizes maximum energy harvest for computer systems, providing the best compatibility, conversion efficiency and stable voltage output.

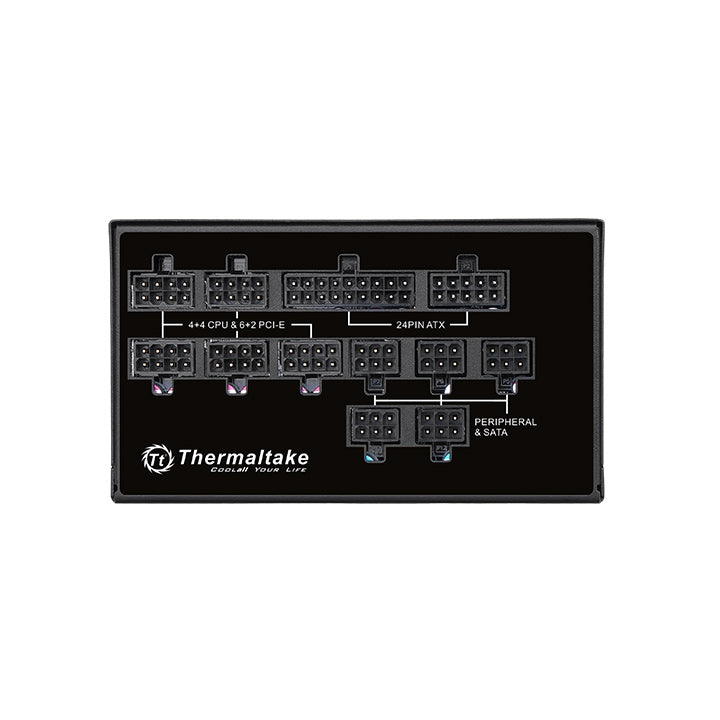

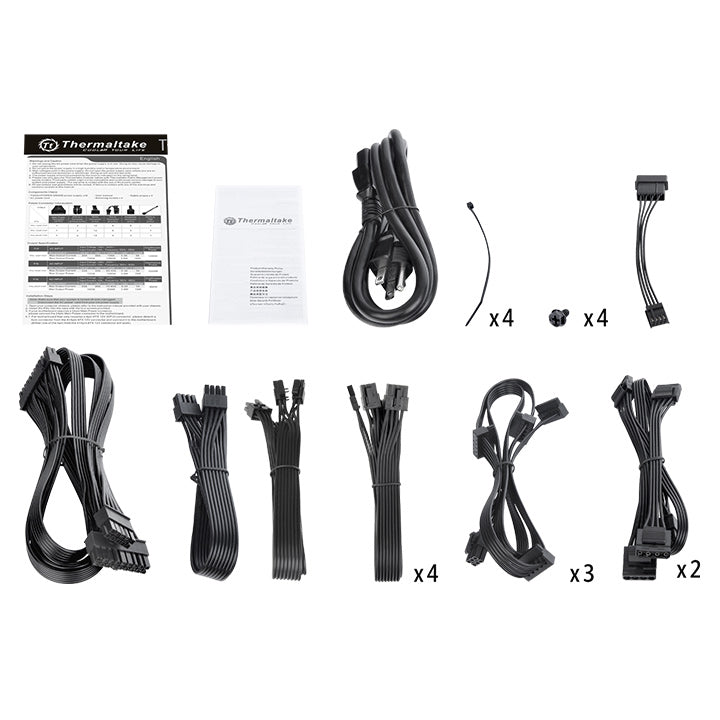

Fully modular Toughpower Grand RGB 1200W Platinum offers cable selection for users while powering the system at an advantageous voltage. Low-profile flat black cable can make cable management easier, reduce clutter and increase airflow inside the chassis.
Deliver up to 92% efficiency under real world load conditions to promise lowest power losses. Additionally, Toughpower Grand RGB Platinum Series has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.
Toughpower Grand RGB Platinum Series is the best idea for users to go with when they are looking for an RGB PSU which permits remarkable functionality and aesthetics in all cases, especially Open Frame or Tower cases.
Product Specifications
| P/N | PS-TPG-1200F1FAPx-1 |
|---|---|
| Form Factor | ATX |
| Max Output Capacity | 1200W |
| Peak Output Capacity | 1440W |
| Color | Black |
| Dimensions | 150mm(W) x 86mm(H) x 180mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-500 msec |
| Hold Up Time | > 16msec at 100% of full load |
| Input Current | 14A |
| Input Frequency Range | 50Hz - 60Hz |
| Input Voltage | 100V – 240V~ |
| Operating Temperture | 0°C to + 50°C |
| Operating Humidity | 20% to 90%,non-condensing |
| Storage Temperture | -20°C to + 70°C |
| Storage Humidity | 5% to 95%, non-condensing |
| Cooling System | 14cm hydraulic bearing fan |
| Efficiency | Meet 80 PLUS®Platinum at 115Vac input. |
| MTBF | 120,000 hrs minimum |
| Safety Approval | CE/cTUVus/TÜV /FCC/CCC/EAC /S-Mark |
| PCI-E 6+2PIN | 8 |
| Protection | OVP, SCP, OPP, UVP, OTP,OCP |
