Toughpower GF1 650W - TT Premium Edition
Toughpower GF1 650W - TT Premium Edition
SKU:PS-TPD-0650FNFAGU-1
80 PLUS Gold certified fully modular PSU with Hydraulic Bearing fan.
-
Design
-
Specification
-
Download
-
How-to Videos

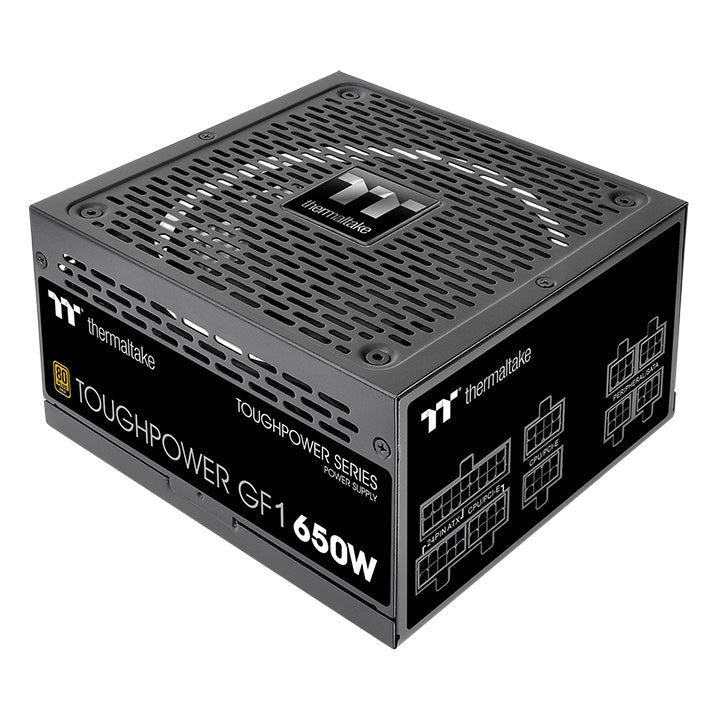

Toughpower GF1 650W - TT Premium Edition
The fully modular Toughpower GF1 series is available in 650W - 850W models and built to deliver 80 PLUS Gold efficiency. The series features a 140mm hydraulic bearing fan, Japanese capacitors and other premium components to help deliver a continuous and stable power with an ambient temperature up to 50°C, while near silent operation and reliable performance are guaranteed. With an ample 10-year warranty, the Toughpower GF1 is able to satisfy the market, where PC enthusiasts are looking for a premium power supply with all the latest features.
※The photo is for reference.
Durable Chassis
Anti-Vibration Mounting System
DC to DC Design
Modular Cable Management

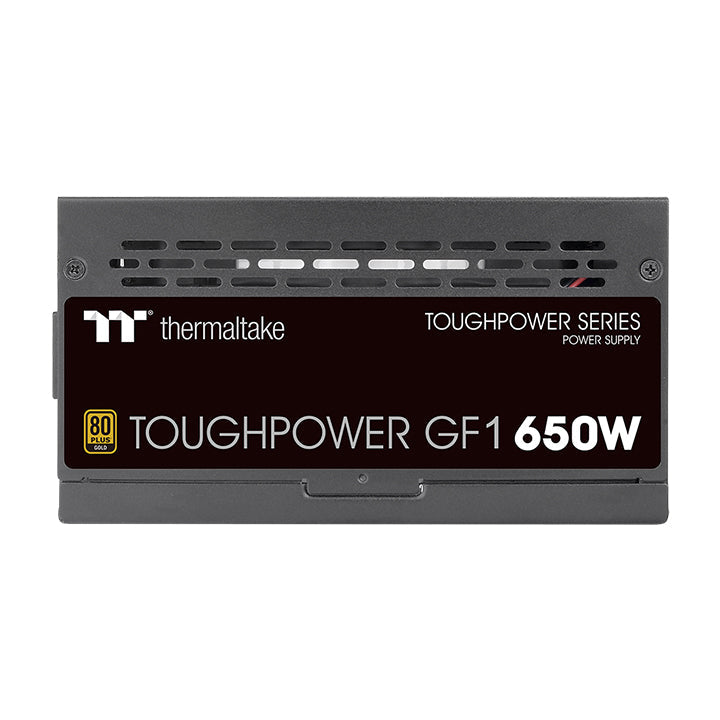

Side Ventilation Design
Concentrated Compression Fan Blade
100% High Quality Japanese 105°C / 221°F Capacitors
Zero Cable Platform
Zero Cable Platform
Farewell to messy cables! We have connected the back panel and the PCB with a copper plate for better heat dissipation and impressive output power quality.

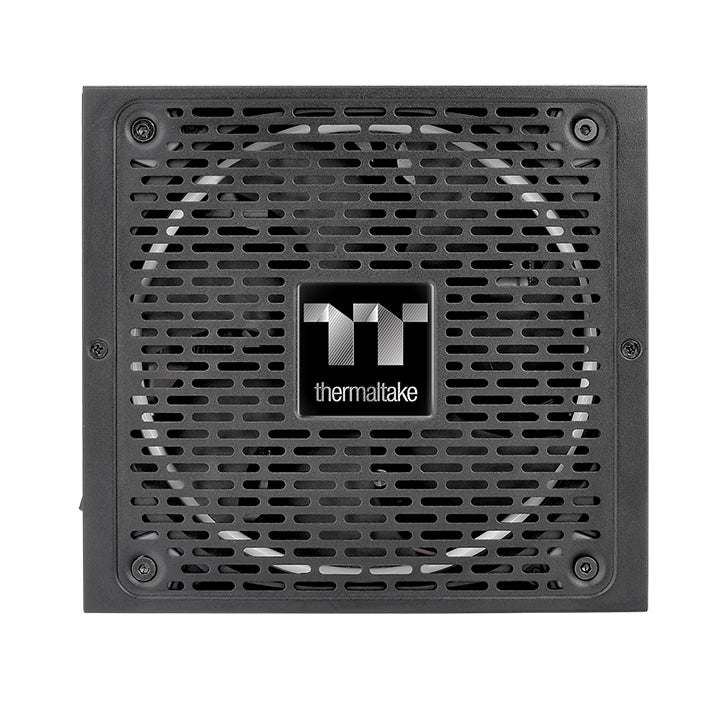

Ultra Quiet 140mm Hydraulic Bearing Fan
Featuring a 140mm hydraulic bearing fan with intelligent RPM controls to help guarantee superior cooling performance and near silent operation.

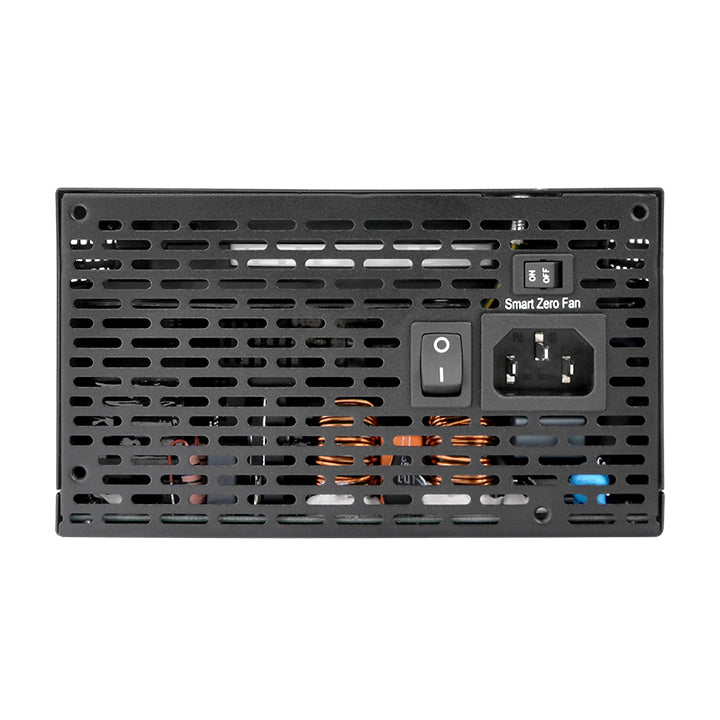

Smart Zero Fan
＜30mV Low Ripple Noise
All ripples are lower than 30mV on +12V, +5V or +3.3V from 0% to 100% load to ensure a stable operation and keep your performance-critical components to function reliably for longer.
Intel SpecificationToughpower GF1 Series
Extremely Strict Voltage Regulation ＜±2%
The voltage regulation, more strict than Intel’s standard ±5% for major rails and ±10% for -12V, is set to no more than ±2% for major rails to meet the highest performance.
Intel SpecificationToughpower GF1 Series

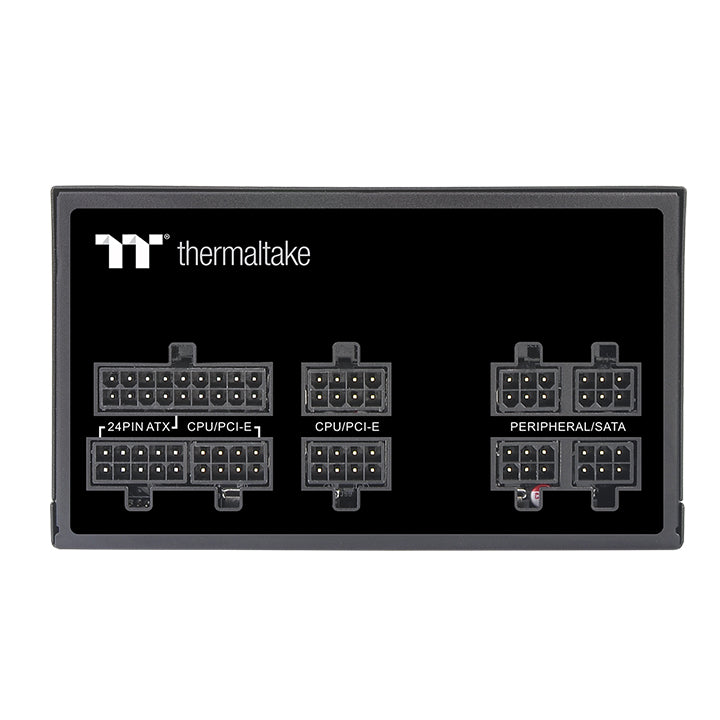

Fully Modular Low-Profile Flat Cable
Offers cable selection for users while powering the system at an advantageous voltage. Low-profile flat black cable makes cable management easier, reduces clutter and increases airflow inside the chassis.
Premium Japanese 105°C/221°F Capacitors
Providing great durability as well as offering the highest stability, while remaining reliable.
High Amperage Single +12V Rail
Powerful single +12V rail ensures a stable and reliable supply to other PC components.
80 PLUS Gold Certified and Intel C6/C7 States Ready
Toughpower GF1 series saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold. The series has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.
Product Specifications
| P/N | PS-TPD-0650FNFAGU-1 |
|---|---|
| Model | PS-TPD-0650FNFAGx-1 |
| Type | TTP-650AH3FCG |
| Max Output Capacity | 650W |
| Peak Output Capacity | 780W |
| Color | Black |
| Dimensions | 150mm(W) x 86mm(H) x 160mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-500 msec |
| Hold Up Time | > 16msec at 100% of full load |
| Input Current | 10A |
| Input Frequency Range | 50Hz - 60Hz |
| Input Voltage | 100V – 240V~ |
| Operating Temperture | 0°C to + 50°C |
| Operating Humidity | 20% to 90%,non-condensing |
| Storage Temperture | -20°C to + 70°C |
| Storage Humidity | 5% to 95%, non-condensing |
| Cooling System | 14cm hydraulic bearing fan |
| Efficiency | Meet 80 PLUS®Gold at 115Vac input. |
| MTBF | 120,000 hrs minimum |
| Safety Approval | CE/cTUVus/TÜV SÜD/FCC/BSMI/EAC |
| PCI-E 6+2PIN | 4 |
| Protection | OCP, OVP, UVP, OPP, SCP, OTP |
