SKU:PS-TPD-1500FNFAPJ-J
80 PLUS Platinum certified fully modular PSU with a ultra-quiet 14cm fan and smart fan control.
-
Design
-
Specification
-
Download
-
How-to Videos

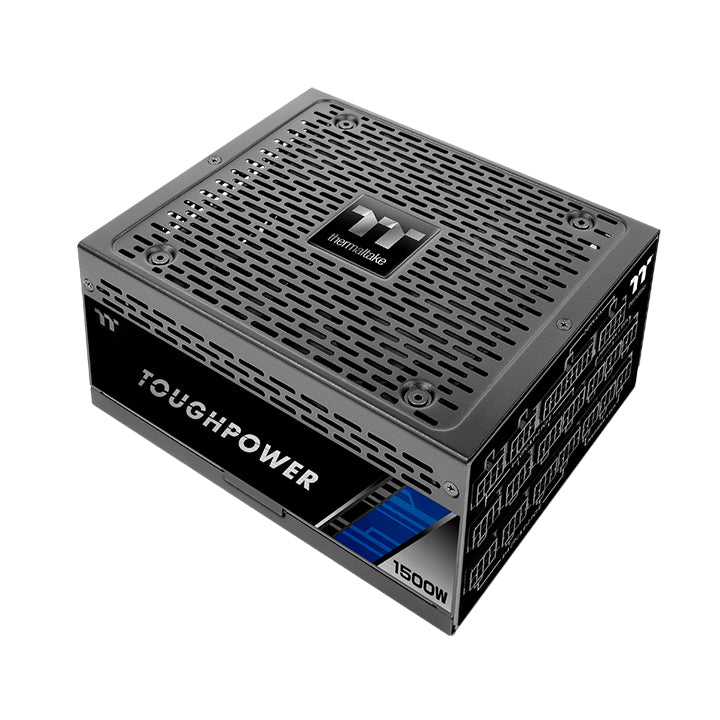

Toughpower 1500W
Adopted with an advanced design for high performance PCs, the Toughpower 1500W is certified with 80 PLUS Platinum and 100% Japanese capacitors to ensure the reliability and stability while powering up the whole system. Thanks to the ultra-quiet 140mm fan with smart fan control, the Toughpower 1500W can operate silently at peak performance. Last but not least, its designed to satisfy the DIY enthusiasts, Toughpower 1500W comes with three changeable side stickers to match your dream PC build.
Durable Chassis
Ultra Quiet 140mm Fan
DC to DC Design
Modular Cable Management
Side Ventilation Design
100% High Quality Japanese 105°C / 221°F Capacitors

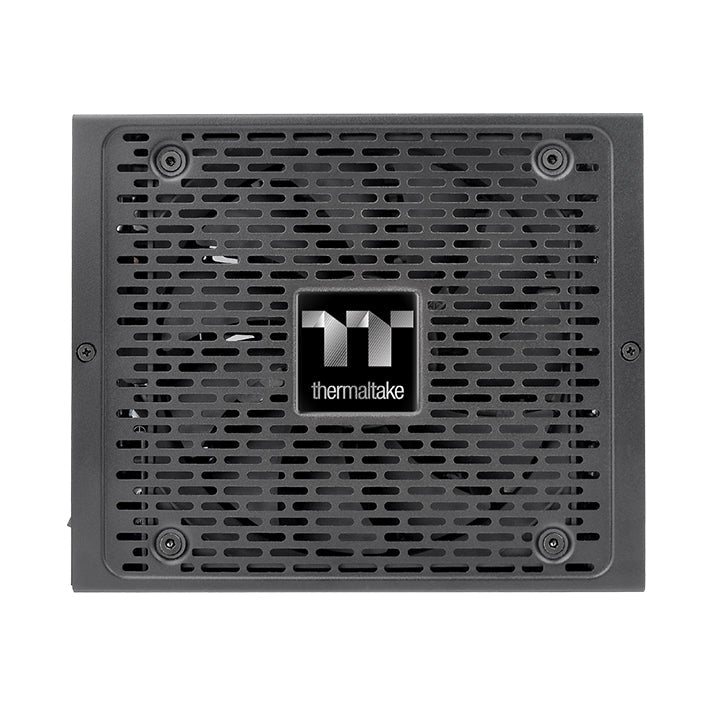

Ultra Quiet 140mm Fan
The Toughpower 1500W adopts a 140mm fan, the larger fan ensuring the overall good cooling performance and silent operation under heavy load.

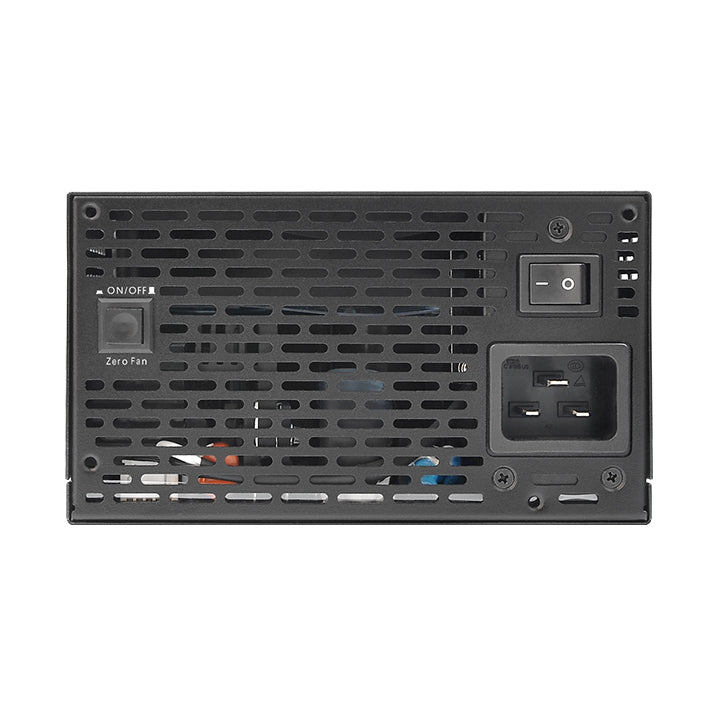

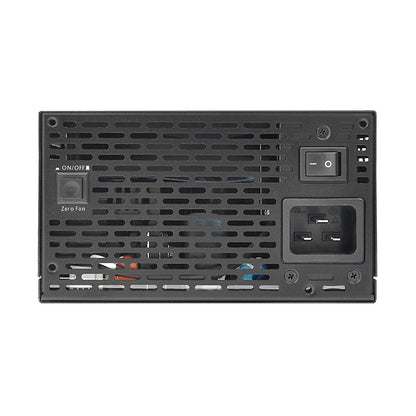

Smart Zero Fan
Designed with our Smart Zero Fan, the fan will not spin until the load exceeds 30% of the power supply, minimizing the fan noise.
＜30mV Low Ripple Noise
All ripples are lower than 30mV on +12V, +5V or +3.3V from 0% to 100% load to ensure a stable operation and keep your performance-critical components to function reliably for longer.
Intel SpecificationToughpower 1500W
Extremely Strict Voltage Regulation ＜±2%
The voltage regulation, more strict than Intel’s standard ±5% for major rails and ±10% for -12V, is set to no more than ±2% for major rails to meet the highest performance.
Intel SpecificationToughpower 1500W

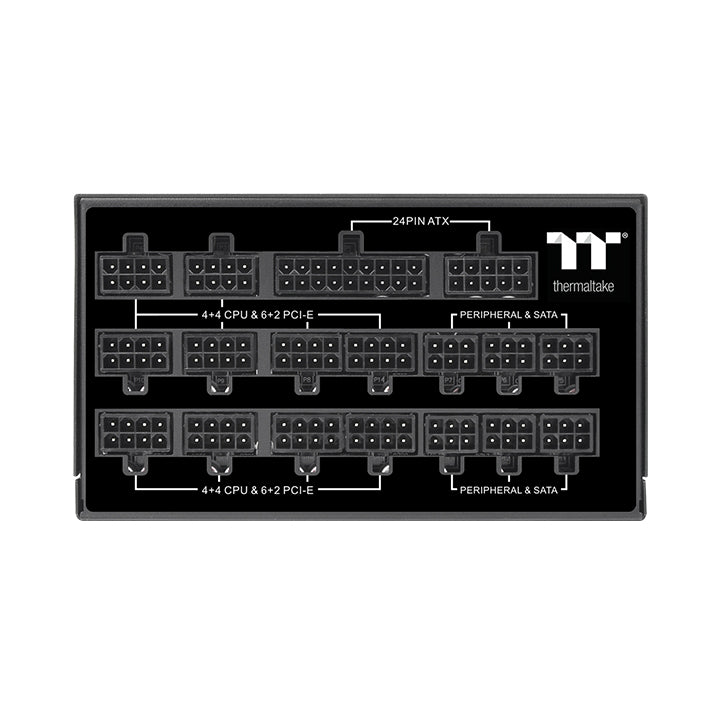

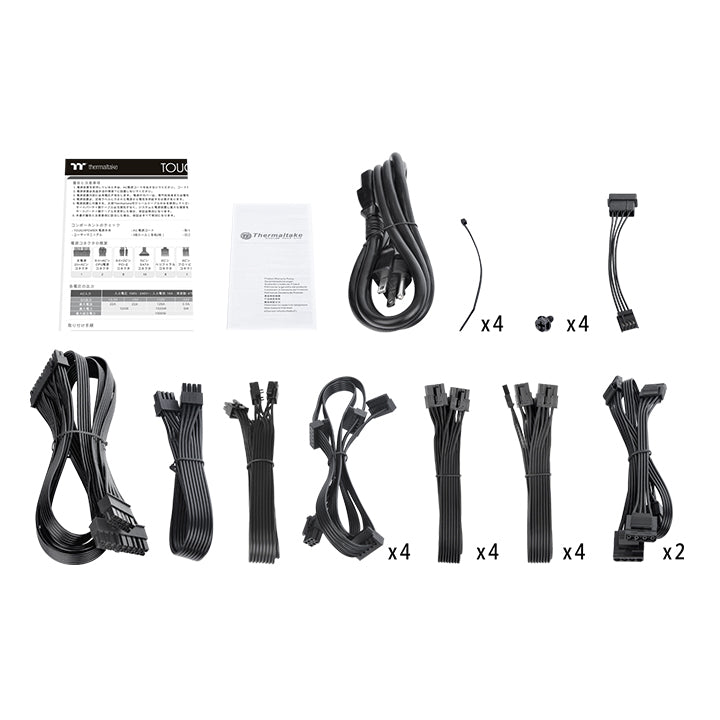

Fully Modular Low-Profile Flat Cable
Offers cable selection for users while powering the system at an advantageous voltage. Low-profile flat black cable makes cable management easier, reduces clutter and increases airflow inside the chassis.
24pin Main connector (600mm) x 1
ATX 12V 4+4pin connector (650mm)
ATX 12V 8pin connector (650mm)
Four sets of SATA connectors (550mm + 150mm + 150mm + 150mm) x 4
Four sets of 1 x PCI-E 8pin connector (600mm) x 1
Four sets of 1 x PCI-E 6+2pin connectors (600mm)
Two sets of Peripheral connectors (550mm + 150mm + 150mm + 150mm) x 4
Peripheral to Floppy adapter cable (150mm) x 1
100% High Quality Japanese 105°C/221°F Capacitors.
Providing great durability as well as offering the highest stability, while remaining reliable.
High Amperage Single +12V Rail
Powerful single +12V rail ensures a stable and reliable supply to other PC components.

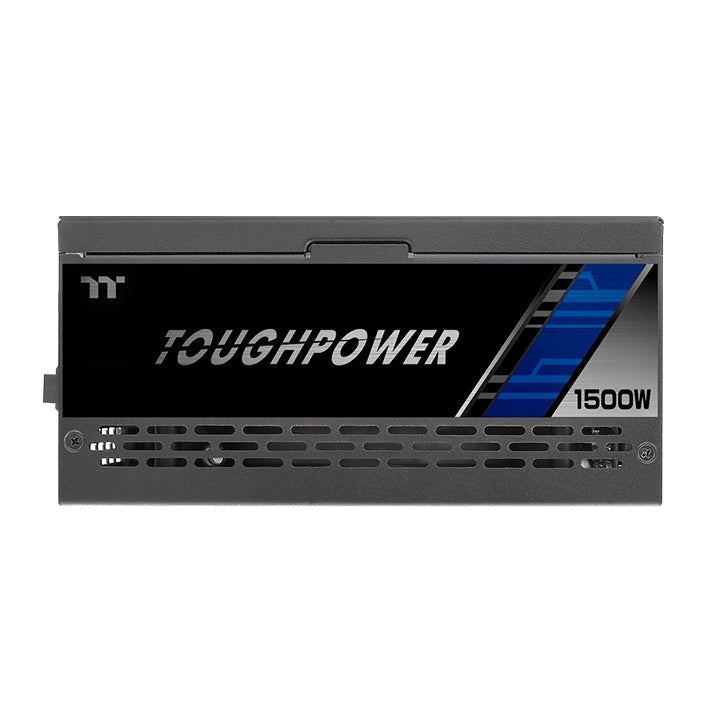

Stylize Sticker to Match Your PC Build
Toughpower 1500W comes with three different stylish side stickers. By simply changing the sticker, you can style your power supply to match your PC build.
80 PLUS Platinum Certified and Intel C6/C7 States Ready
Toughpower 1500W saves energy through its high energy efficiency up to 93% at 50% load, and is certified to 80 PLUS® Platinum. It has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.
CYBENETICS - EFFICIENCY LEVEL CERTIFICATION - PLATINUM
Toughpower 1500W is certified to CYBENETICS PLATINUM in terms of efficiency level. The PLATINUM overall efficiency rating is defined as ≥91% to <93% of 230V input. There are six ETA certifications, covering an efficiency range from 82%. Besides the overall efficiency of a PSU, ETA also takes into account its overall Power Factor readings along with the efficiency of the 5VSB rail and the power that the unit consumes in standby (also called phantom power).
CYBENETICS – NOISE LEVEL CERTIFICATION – STANDARD+ Ready
Toughpower 1500W is certified to CYBENETICS STANDARD+ in terms of noise level. There are seven noise level certifications, covering from dead silent PSUs (<15db[A]) to quiet noisy ones(>40 db[A]). We use a solid methodology and state of the art equipment to measure the noise that a PSU outputs throughout its entire operation range, from almost zero noise output to full load.
Product Specifications
| P/N | PS-TPD-1500FNFAPJ-J |
|---|---|
| Model | TTP-1500AH3FCT |
| RGB Fan | No |
| Watts | 1500W |
| Max Output Capacity | 1500W |
| Peak Output Capacity | 1800W |
| Color | Black |
| Dimensions | 150mm(W) x 86mm(H) x 180mm(D) |
| Weight | 2.4kg |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-500 msec |
| Hold Up Time | > 16msec at 100% of full load |
| Input Current | 18A |
| Input Frequency Range | 47Hz-63Hz |
| Input Voltage | 100V – 240V~ |
| Operating Temperture | 0°C to + 50°C |
| Operating Humidity | 20% to 90%,non-condensing |
| Storage Temperture | -20°C to + 70°C |
| Storage Humidity | 5% to 95%, non-condensing |
| Cooling System | 14cm fan |
| Efficiency | Meet 80 PLUS® Platinum at 230Vac input. |
| MTBF | 120,000 hrs minimum |
| Safety Approval | CB/CE |
| PCI-E Connector | 8 |
| Protection | OCP, OVP, UVP, OPP, SCP, OTP |
