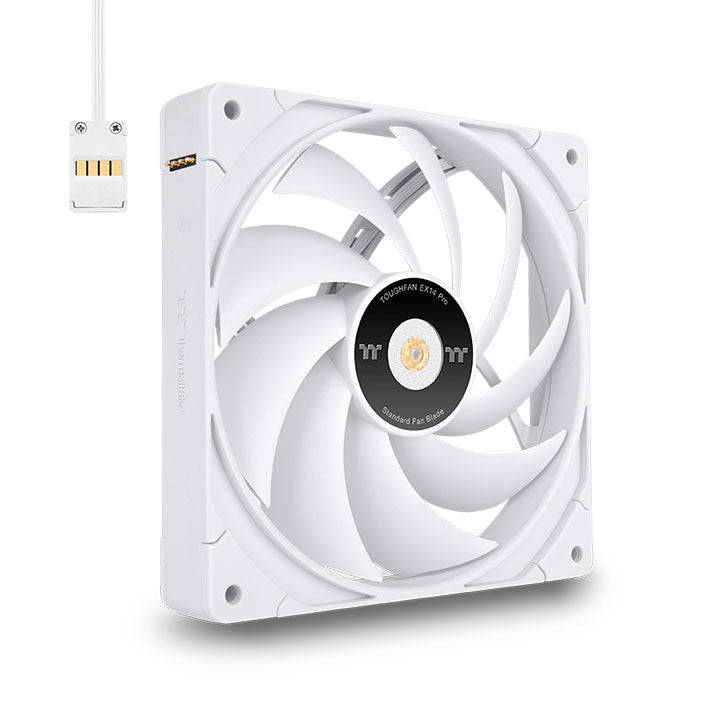

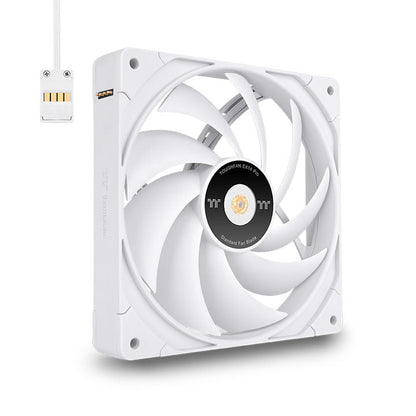

TOUGHFAN EX14 Pro High Static Pressure PC Cooling Fan White – Swappable Edition (3-Fan Pack)

TOUGHFAN EX14 Pro High Static Pressure PC Cooling Fan White – Swappable Edition (3-Fan Pack)

CL-F172-PL14WT-A

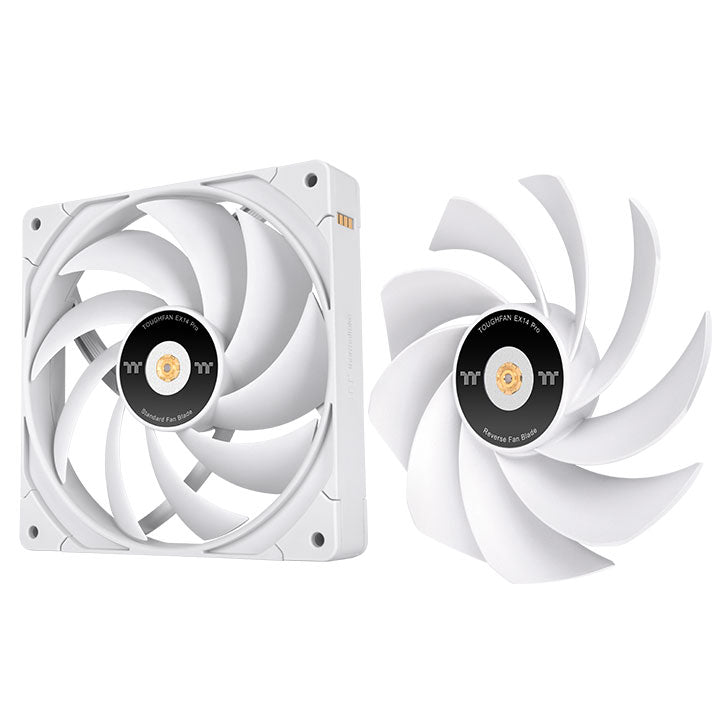

By adding the MagForce 2.0 and swappable fan blade design to the powerful TOUGHFAN Pro, the new TOUGHFAN EX Pro White can provide supreme cooling performance with a quick magnetic connection, allowing you to swap the fan blades to fit installation preferences.


View full details

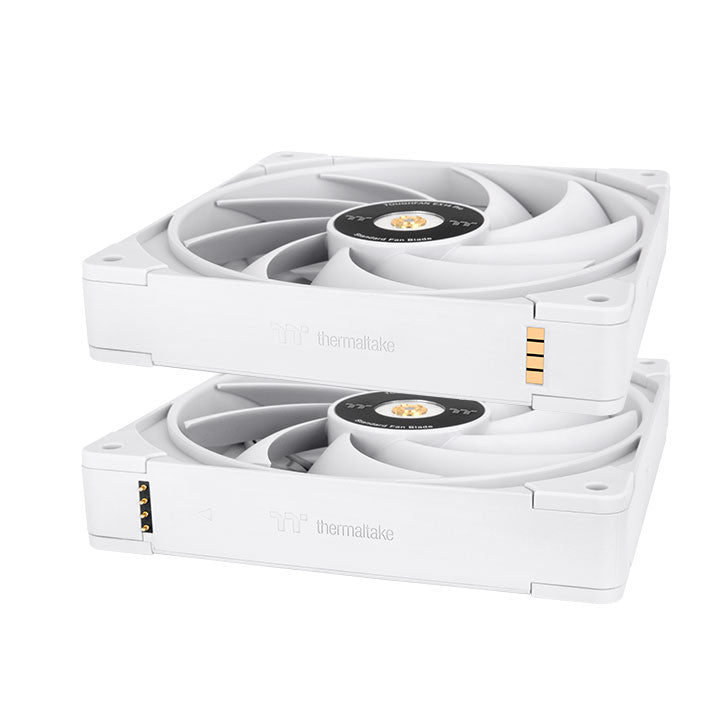

Steady Connection with MagForce 2.0

Evolved from SWAFAN EX’s Magnetic Force Design, the new MagForce 2.0 has the Pogo pin contact pads that are TWO times larger for greater tolerance. This enhancement significantly reduces the potential for faulty alignment, whether you are daisy-chaining fans together or connecting fans with cables, further boosting installation efficiency and streamlining the building experience.

The video showcases a high-performance PC cooling fan with sleek design, smooth rotation, and precision build, highlighting its efficiency, durability, and optimized cooling capabilities.

Caution: Due to safety and motherboard software signal limitations, SWAFAN EX ARGB is only recommended to daisy-chain a maximum of 5 fans per cable.

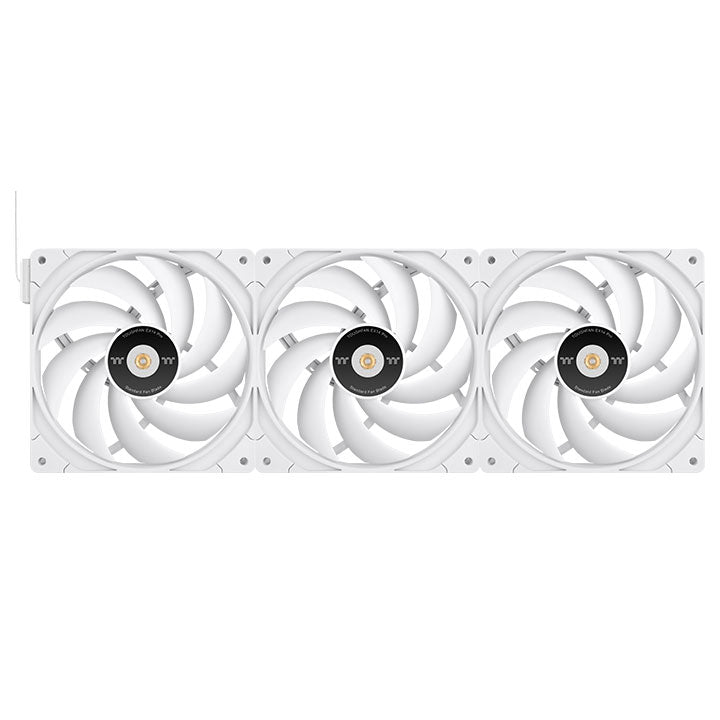

Say Goodbye to Excessive Cables

Connect your fans with TOUGHFAN EX Pro’s MagForce 2.0 Quick Connect Design and be free from messy cables!

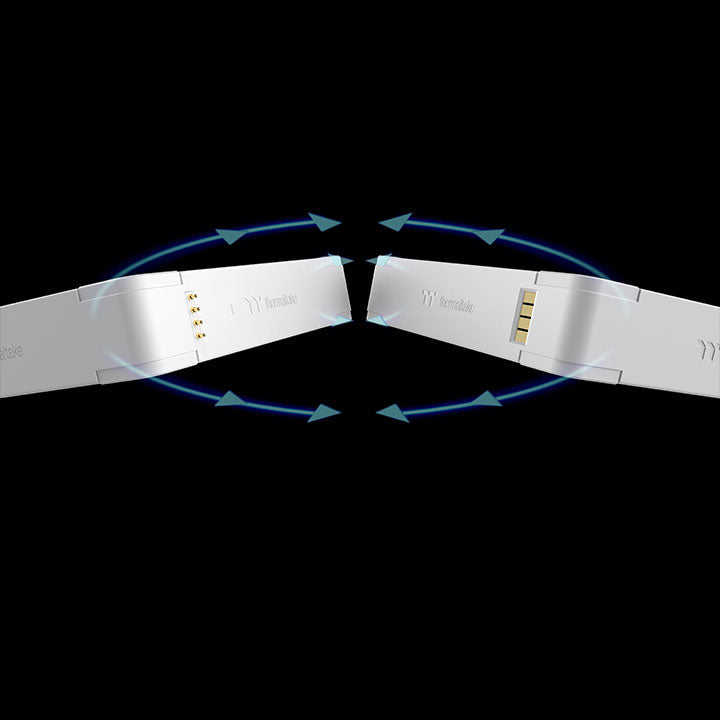

TOUGHFAN EX Pro Quick Connect Design
L
o
a
d
TOUGHFAN EX Pro Quick Connect Design anime

Improved Structure for Superior Performance

The TOUGHFAN EX Pro White is designed with a square fan frame featuring a new outline that prevents air leakage effectively while installed on a chassis or radiator during operation.

Beveled Edge
Beveled Edge IllustrationBeveled Edge Illustration MarkTOUGHFAN EX14 Pro High Static Pressure PC Cooling Fan

Anti-vibration Mounting System

The TOUGHFAN EX Pro White is designed with 80% coverage for all corners, with the in-mold injection anti-vibration rubber pads dampening the fan’s vibration, allowing the fan to spin at a higher level while maintaining a low noise level.

TOUGHFAN EX Pro White with anti-vibration mounting system

Product Specifications

P/N CL-F172-PL14WT-A
Dimension 140 x 140 x 25 mm
Interface 4 Pin - PWM
Started Voltage 6 V
Fan Rated Voltage 12 V
Rated Current 0.3 A
Power Input 3.6 W
Fan Speed PWM 500~2000 R.P.M
Max Air Pressure Standard Fan Blade : 3.57 mm-H2O(one fan)
Reverse Fan Blade : 2.95 mm-H2O(one fan)
Max Air Flow Standard Fan Blade : 119.6 CFM(one fan)
Reverse Fan Blade : 102.3 CFM(one fan)
Noise Standard Fan Blade : 31.6 dB-A(one fan)
Reverse Fan Blade : 34.1 dB-A(one fan)
Bearing Type Hydraulic Bearing
Life Expectation 40,000 hrs,25℃
Included Items Fan Frames x 3
Standard Fan Blade x 3 (Pre-installed)
Reverse Fan Blade x 3
Cable x 3
