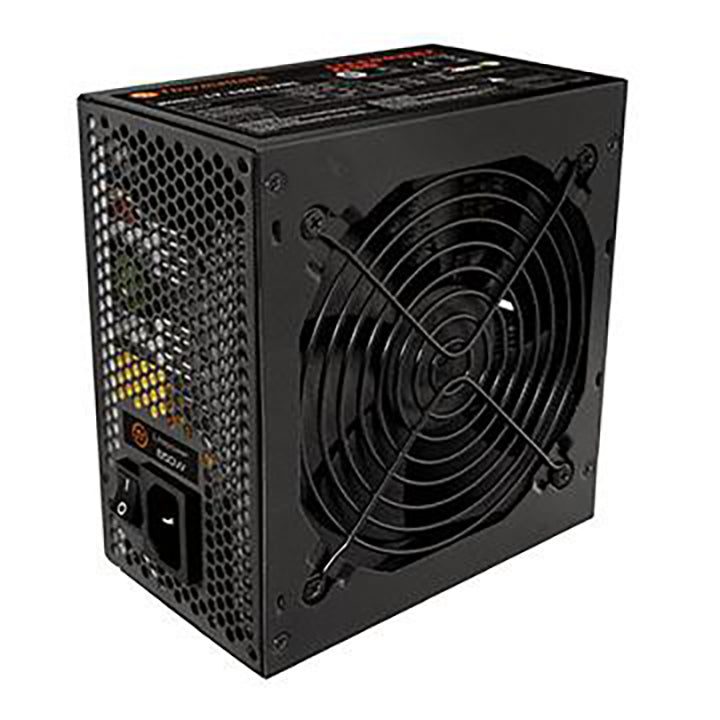

Thermaltake Litepower 650W
The Thermaltake Litepower 550W, 650W and 750W are specifically targeting energy efficient PC systems with lower overall power consumption in application fields, office and entertainment computers. The Litepower Series comply to the latest ATX 12V V2.3 Standard for utmost reliability and compatibility supporting state-of-the-art Intel and AMD processor and graphics technologies. With Over Voltage, Over Power and Short-Circuit protection the Litepower series offers industry grade protection. The Thermaltake Litepower series now offers you all these characteristics.

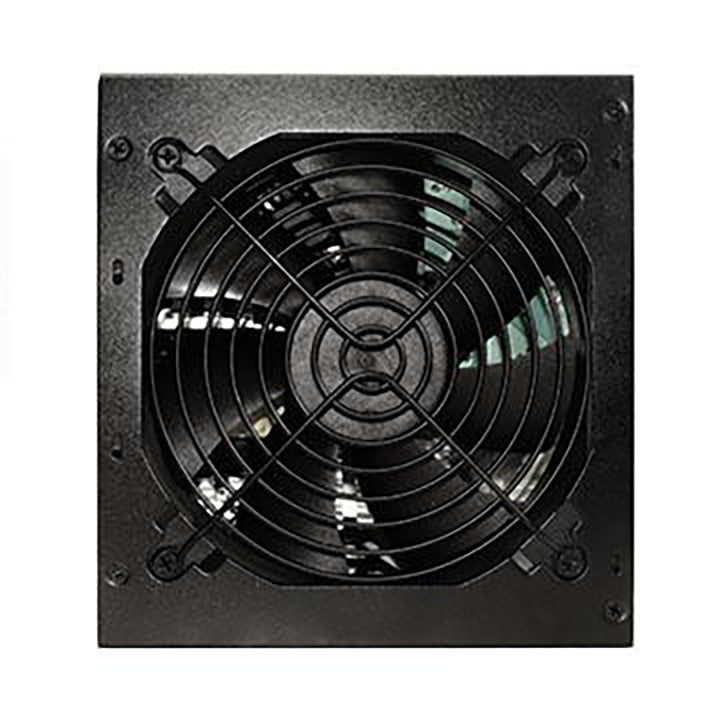

Ultra Quiet Fan
Large 120mm cooling fan delivers cool performance and silent operation.

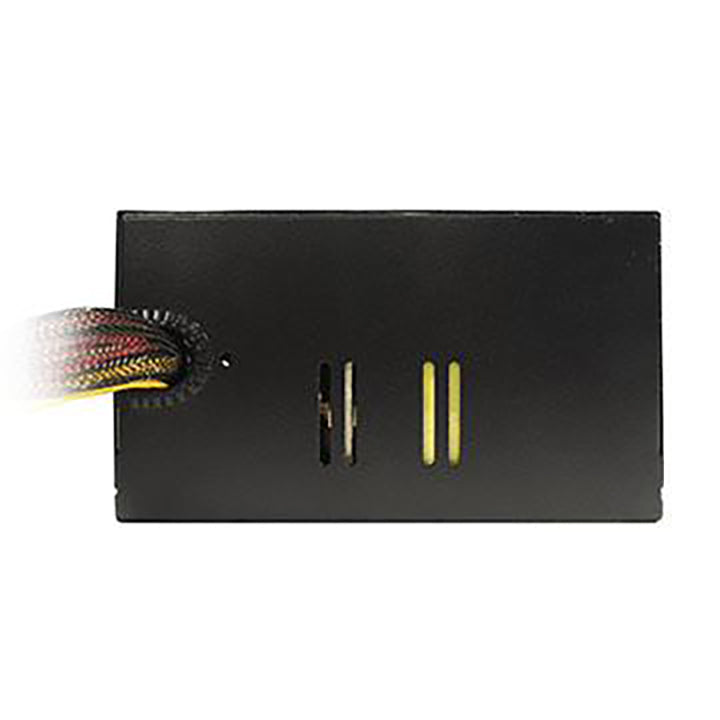

Elongated Cable
The longer cables enable enthusiasts and power users to properly route the cables in optimal location to prevent airflow blockage. Significantly improving computer system’s overall thermal efficiency, as well as the aesthetic.
Utmost Reliability and Compatibility
The Litepower Series comply to the latest ATX 12V V2.3 Standard for utmost reliability and compatibility supporting state-of-the-art Intel and AMD processor and graphics technologies.
Massive and Dedicated +12V Output
Litepower 650W is equipped with a powerful +12V rail, please see the output specification on the left hand side:
| AC INPUT | Input Voltage: 230Vac | |||||
| DC OUTPUT | +3.3V | +5V | +12V | -12v | +5Vsb | |
| Max Output Current | 24A | 30A | 44A | 0.5A | 3A | |
| Max Output Power | 140W | 528W | 6W | 15W | ||
| The +3.3V & +5V & +12V1 & +12V2 ocmbined output power shall not exceed 630W. | ||||||
Product Specifications
| P/N | LT-650P |
|---|---|
| Model | LT-650AL2NL |
| Type | ATX 12V 2.3 |
| Max Output Capacity | 650W |
| Color | Black |
| Dimensions | 150mm x 85.1mm x 141mm |
| PFC (Power Factor Correction) | W/Active PFC |
| Power Good Signal | “Power Good” signal rise time is within 1ms. |
| Hold Up Time | The power supply with 80% of Max. load at 230 Vac, 50 Hz should supply regulated DC outputs for at least 16 ms after the loss of the AC input voltage at zero cross. |
| Input Current | 6A |
| Input Frequency Range | 50Hz |
| Input Voltage | 230Vac |
| Operating Temperture | 10℃~+40℃ |
| Operating Humidity | To 85% relative humidity |
| Storage Temperture | -20℃~+70℃ |
| Storage Humidity | To 95% relative humidity |
| Cooling System | 120mm Fan: 1600-1900 RPM |
| Efficiency | 70% typical at nominal line, maximum load. |
| MTBF | 100,000 hrs minimum |
| Safety Approval | TUV, CE, Gost |
| PCI-E 6+2PIN | 6+2pin PCI-E Connector x 2 |
