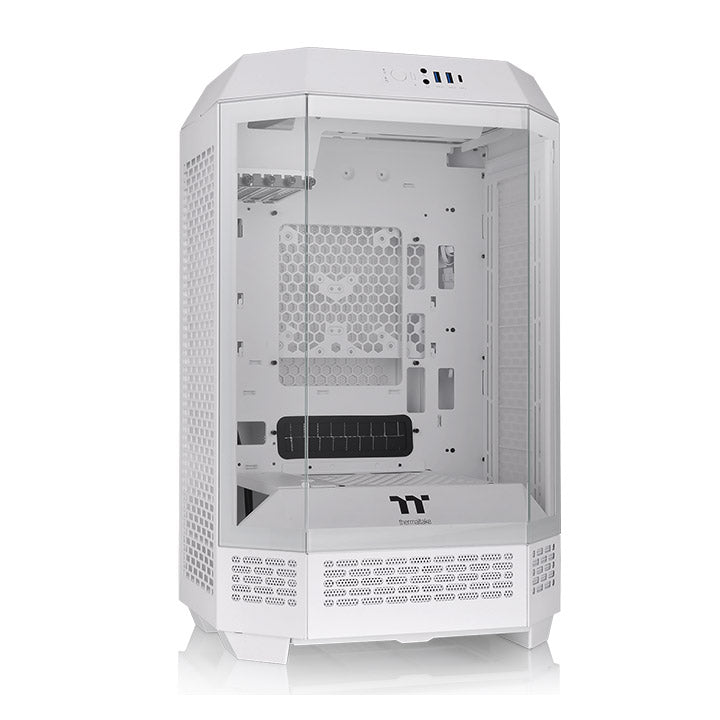

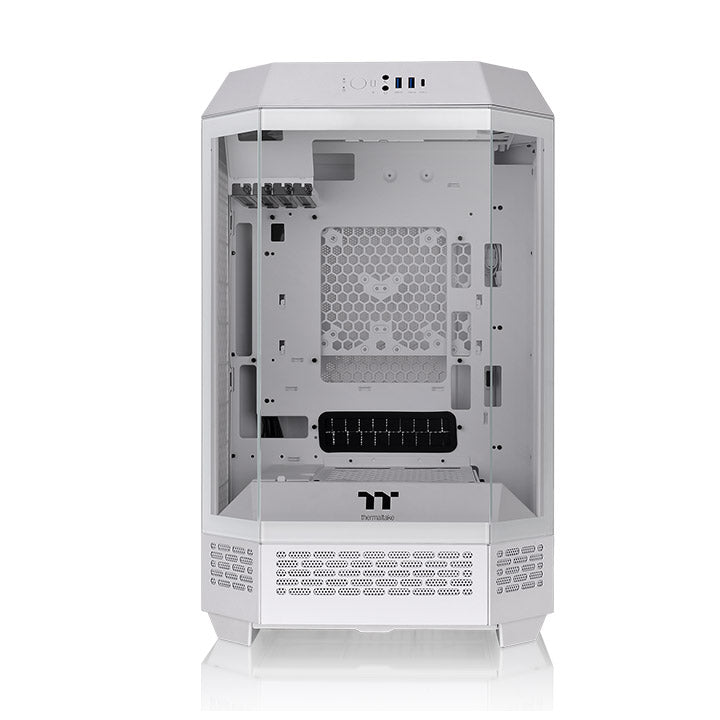

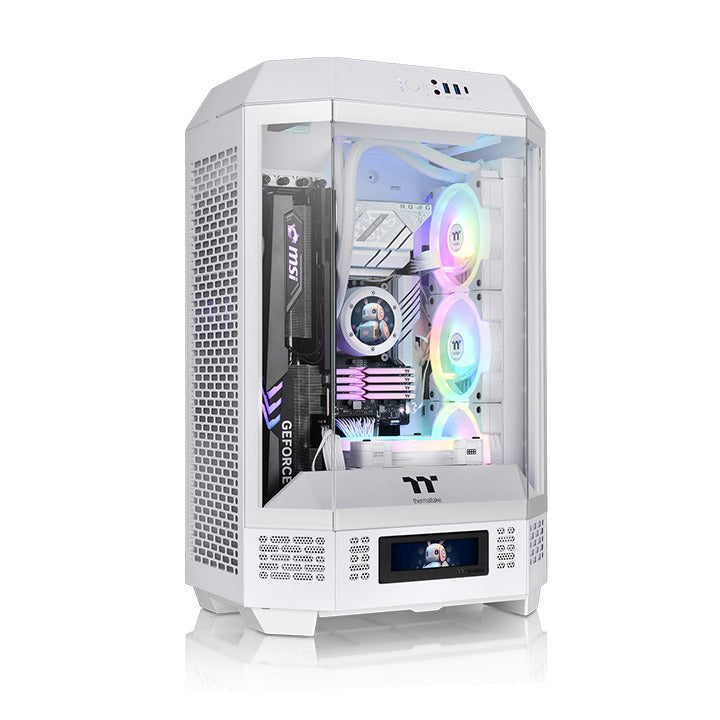

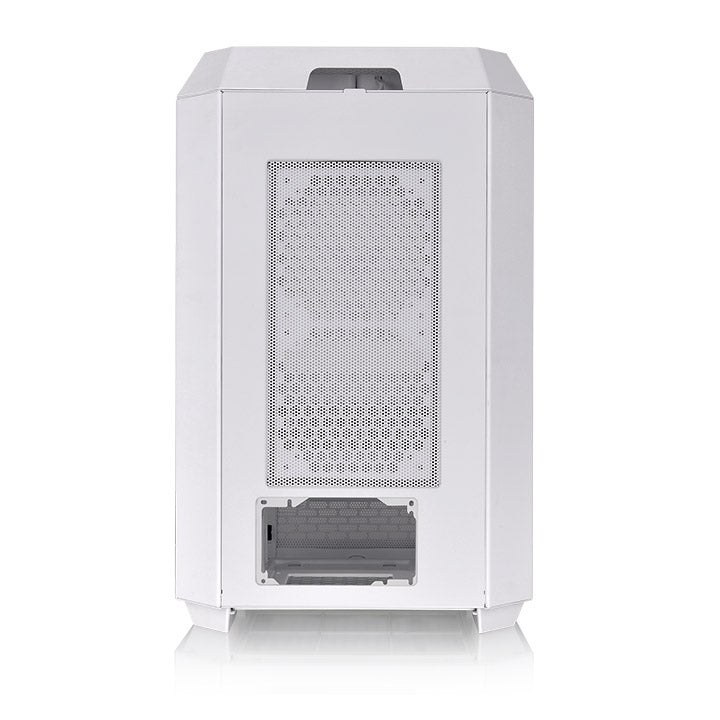

The Tower 345 Mobile Micro Tower Chassis
The Tower 345 Mobile Micro Tower Chassis
SKU:CA-AB2-00A3BC-00
The Tower 345 Mobile is an m-ATX case that tilts at a perfectly calculated 45 degree angle at all times for a tilted viewing experience. Users can balance the chassis on the aluminum mobile part and move the chassis to any preferred location using our latest TT Mob Plus APP.
-
Design
-
Specification
-
Download
-
How-to Videos
The Legacy Continues…
To Move Around.
Groundbreaking. Perception challenging. The Tower 345 Mobile will rock your world, at a 45 degree angle tilt. It comes with a high quality aluminum mobile part that not only holds the chassis, but also– wait for it– moves it around. Summon the Tower 345 Mobile at your finger tip using the specially designed APP, TT Mob Plus. You didn’t know you need The Tower 345 Mobile, but you do.
The image is for reference only.
Product Specifications
| P/N | CA-AB2-00A3BC-00 |
|---|---|
| Case Type | Micro Tower |
| Dimensions | 551 x 342 x 281 mm (22.5 x 14 x 11.5 inch) |
| Weight | 8.3 kg / 18.3 lbs. |
| Side Panel | 3mm Tempered Glass x 3 |
| Color | White |
| Material | SPCC |
| Cooling System | Top(exhaust): 140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 2 |
| Drive Bays | 3 x 3.5” or 3 x 2.5” |
| Expansion Slots | 4 |
| Motherboard | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX) |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support | Top: 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Right Side: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mm Rear: 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Power Cover: 1 x 120mm 1 x 140mm |
| Radiator Support | Right Side(AIO): 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm, 1 x 280mm, 1 x 140mm |
| Clearance | CPU cooler height limitation: 210mm VGA length limitation: 280mm(With power cover) 400mm(Without power cover) PSU length limitation: 220mm |
