TH120 ARGB Sync Snow Edition
TH120 ARGB Sync Snow Edition
SKU:CL-W346-PL12SW-A
TH120 Snow Edition is an all-in-one 120mm liquid cooler that supports 5V RGB compatible motherboards.
-
Design
-
Specification
-
Download
-
How-to Videos

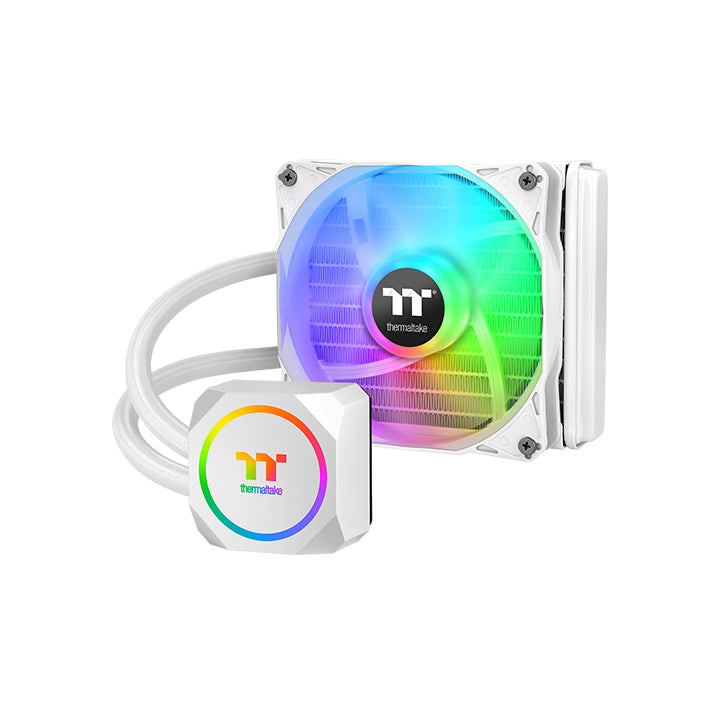

TH120 ARGB Sync Snow Edition AIO Liquid Cooler

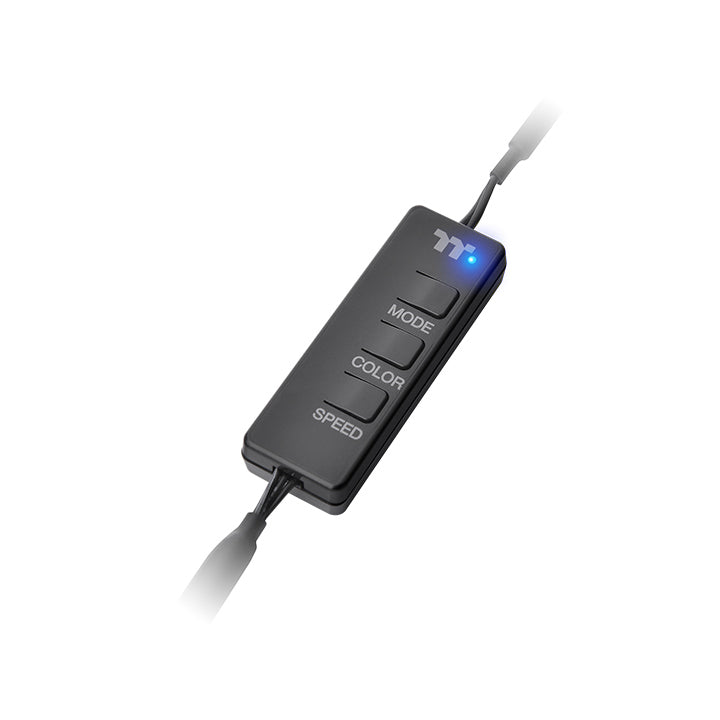

TH120 ARGB Sync Snow Edition is an all-in-one liquid cooler which includes a 120mm powerful high static pressure fan, and a high performance radiator along with a water block, 16.8M RGB color lumination with pre-set lighting modes via the smart fan controller, or synchronize with motherboard RGB software for stunning RGB colors.
Aura Addressable Header
Digital Pin Header
JRAINBOW Header
Addressable RGB LED Header
Addressable RGB LED Header
Addressable RGB LED Header
High-static pressure fan design delivers impressive cooling performance.

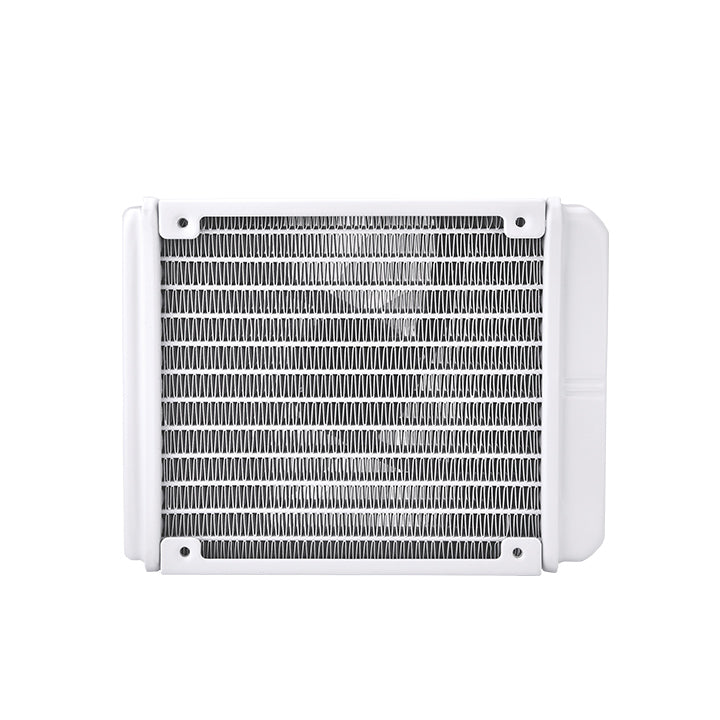

Specially designed 120mm large surface radiator increases surface delivering exceptional heat dissipation.

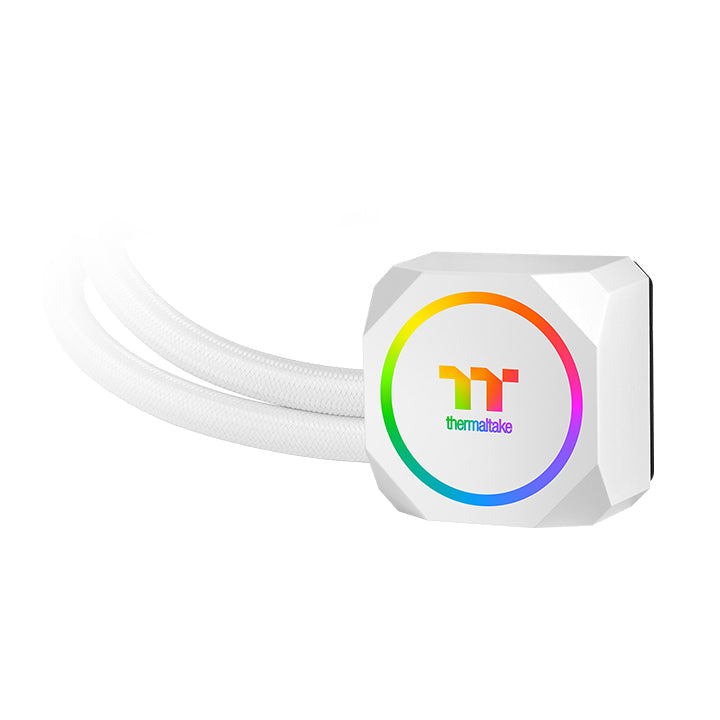

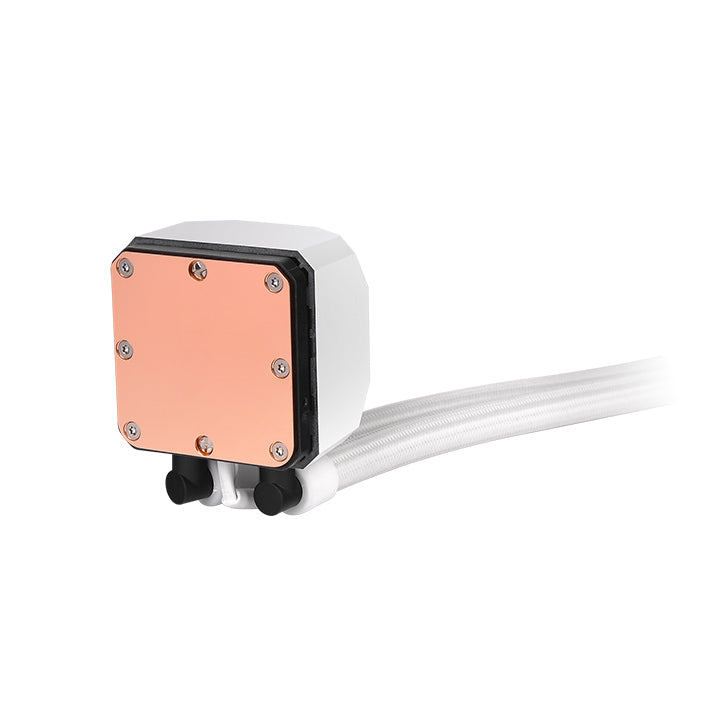

The high performance copper base plate accelerates heat conductivity.
The high quality and reliable pump enables maximum water circulation, keeping the copper plate continuously cool. The low evaporation tube effectively decreases the loss of coolant; therefore no refill is required.
Featuring superb cooling performance, the TH120 ARGB Sync provides an easy installation and maintenance-free operation, requiring only the minimum amount of space in the chassis.
Product Specifications
| P/N | CL-W346-PL12SW-A |
|---|---|
| Pump | Speed : 3300 R.P.M Rated Voltage : 12 V & 5V Rated Current : 0.38A & 0.25A Power Input : 4.56W & 1.25 W |
| Water Block | Material: Copper |
| Fan | Dimension : 120 x 120 x 25 mm Speed : 1500 R.P.M Noise Level : 28.2 dB-A Rated Voltage : 12 V & 5V Rated Current : 0.24A & 0.16 A (one fan) Power Input : 2.88W & 0.8 W (one fan) Max. Air Flow : 59.28 CFM Max. Pressure : 1.31 mm-H2O Connector : 2510 – 3 Pin , 5 V ARGB header – 3 Pin |
| Tube | Length : 400 mm Material : Rubber |
| Radiator | Dimension : 153 x 120 x 27 mm Material : Aluminum |
| Compatibility | Intel: LGA 1851/1700/1200/1156/1155/1151/1150 AMD: FM2/FM1/AM5/AM4/AM3+/AM3/AM2+/AM2 |
