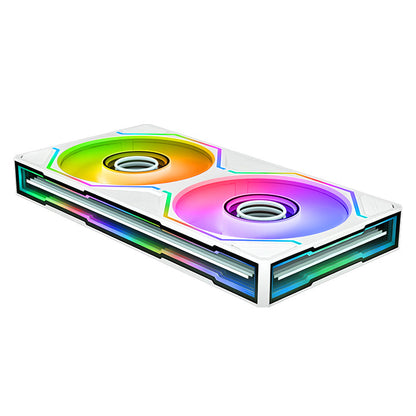

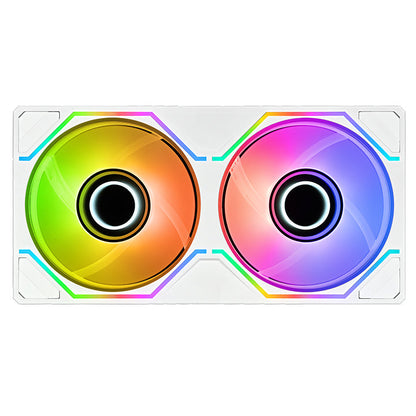

SWAFAN 240 UNIFY ARGB Sync PC Cooling Fan - Snow
SWAFAN 240 UNIFY ARGB Sync PC Cooling Fan - Snow
SKU:CL-F257-PL12SW-A
SWAFAN 240 UNIFY Snow is a single-frame fan designed for effortless installation. It features a Swappable Fan Blade Design that keeps the lighting fully visible in different airflow directions. The Dual Infinity Mirror Lighting on the fan hub and fan frame creates a layered effect with two rings for breathtaking visual effects. Taking the fan’s aesthetic to the next level, the Hidden Screw Design conceals the corner screws, providing a smooth surface that makes the lighting stand out.
-
Design
-
Specification
-
Download
-
How-to Videos
Single-frame Fan for Simplified Installation
Engineered for a faster setup, the single-frame fan Design minimizes the number of cables and mounting points. With just a set of cables and four screws at the corners, the design makes assembly more straightforward while maintaining a neat appearance.
Unlocks the Full Potential of ARGB Lighting

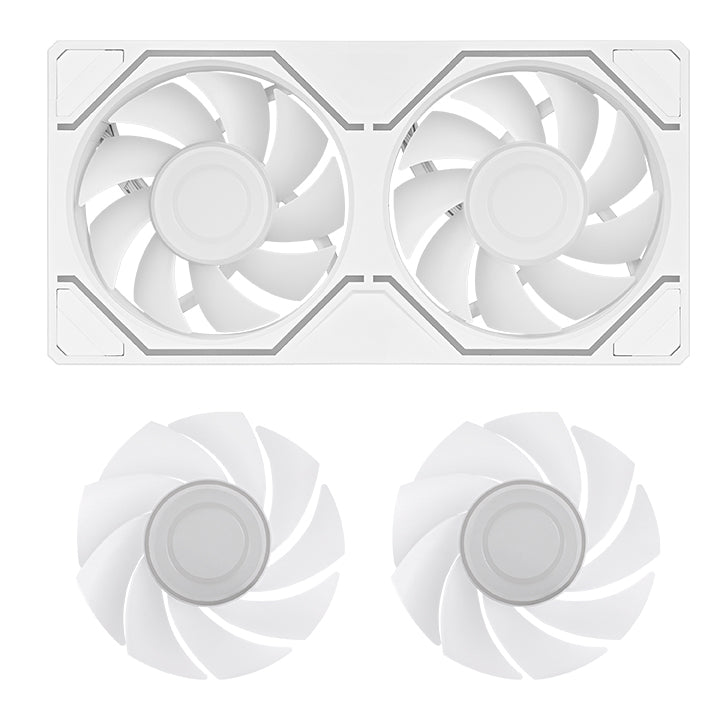

With the Swappable Fan Blade Design, the SWAFAN 240 UNIFY Snow incorporates two standard blades and reversed blades, effortlessly switching between the airflow direction for intake or exhaust while fully showing lighting effects. No more sacrificing aesthetics for your airflow direction!
Standard Blade
Reverse Blade
Swap the Fan Blades as You Like
Simply pop out the fan blades, switch up the blades and press them back in!
The Ultimate Cooling Performance of an ARGB Fan
To achieve optimal cooling efficiency for high-performance systems, the SWAFAN 240 UNIFY Snow has a maximum operating speed of 2000 RPM.
Beyond Ordinary: Dual Infinity Mirror Lighting
The SWAFAN UNIFY Snow showcases innovative Dual Infinity Mirror Lighting, featured on the fan hub and four sides of the frame. Reimagining the infinity mirror, this design combines a fixed white inner ring with a fully customizable ARGB outer ring, delivering richer layers in a single view. Let your build shine with a stylish white core and ARGB lighting in your favorite colors, drawing attention from every angle.
Hidden Screw Design for a Sleek Appearance
Keep your build clean with the Hidden Screw Design. Cleverly hiding the mounting screws with specially designed rubber pads, it creates a smooth surface that enables your ARGB lighting take the spotlight.
28 mm Thickness for Enhanced Cooling
Compared to conventional 25 mm frames, The SWAFAN UNIFY Snow features a 28 mm-thick fan body that improves airflow and static pressure. The added depth also provides more space to highlight the Dual Infinity Mirror Lighting, delivering both stronger cooling performance and a bolder visual presence.
Cleaning Fans are Now Easy and Fun!
Pop and insert, it is that easy.
If you want, you can even rinse the fan blades with water, just make sure you dry them thoroughly and apply the bearing lubricant that is included in the package if needed.
Spectacular Lighting Effects
Light up your system with stunning lighting effects through 5V motherboard sync software, providing great coverage of 16.8 million colors. The SWAFAN UNIFY Snow supports ASUS, MSI, GIGABYTE, BIOSTAR, and ASROCK sync software. Immerse your build in vibrant illumination.
Product Specifications
| P/N | CL-F257-PL12SW-A |
|---|---|
| Dimension | 244 x 124 x 28 mm |
| Interface | 2510-4 Pin / 5V ARGB header-3 Pin |
| Fan Started Voltage | 12 V & 5V |
| Started Voltage | 6 V |
| Rated Current | 12V: 0.7A / 5V: 1.7A (one fan) |
| Power Input | 12V: 8.4 W / 5V: 8.5 W (one fan) |
| Fan Speed | PWM 500 ~ 2000 R.P.M |
| Air Flow | Standard Fan Blade:58.13 CFM (per fan) Reverse Fan Blade:56.15CFM (per fan) |
| Noise | Standard Fan Blade:30 dB-A (per fan) Reverse Fan Blade:32 dB-A (per fan) |
| Bearing Type | Hydraulic Bearing |
| Life Expectation | 40,000 hrs, 25℃ |
| Included Items | Fan x 1,Reverse Fan Blade x2 |
