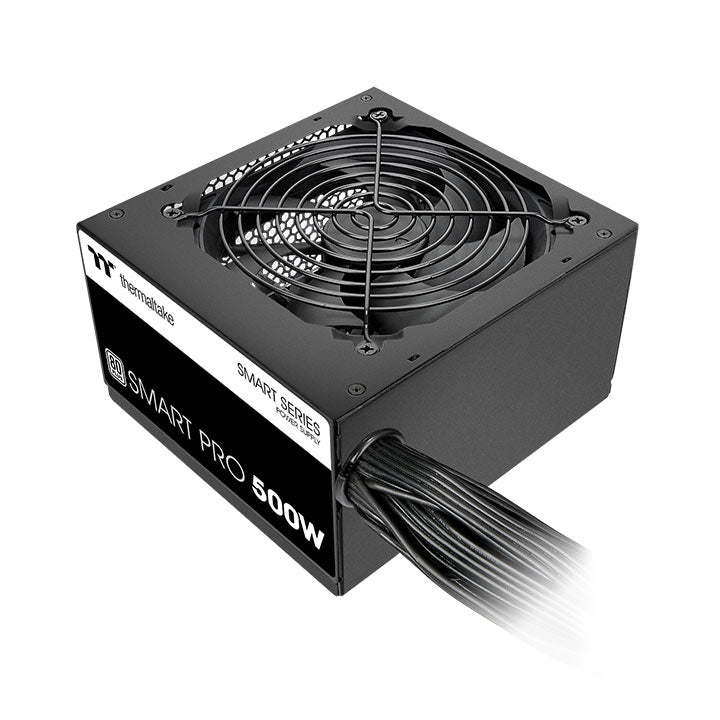

Smart Pro 500W
Smart Pro 500W
SKU:PS-SPD-0500NNFAWJ-1
80 PLUS® Standard Certified APFC PSU
-
Design
-
Specification
-
Download
-
How-to Videos
Thermaltake Smart Pro Series
Incorporating various high-quality components, the Smart Pro series saves energy through its high efficiency of up to 80% and accommodates any mainstream build with the most demanding requirements. An ultra-quiet 120mm cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance.

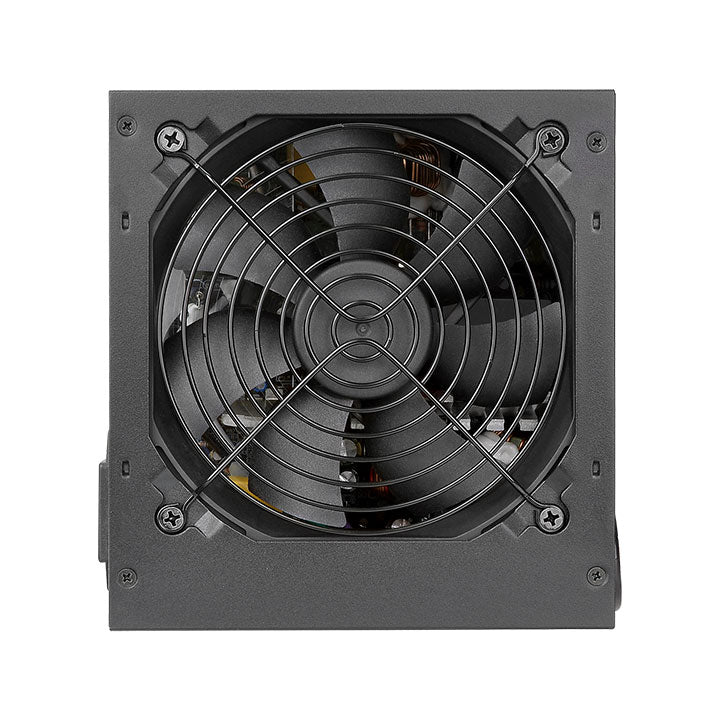

120mm Ultra Quiet Fan
The Smart Pro series adopt 120mm cooling fan delivers excellent airflow at an exceptionally low noise level.
Multiple Connectors

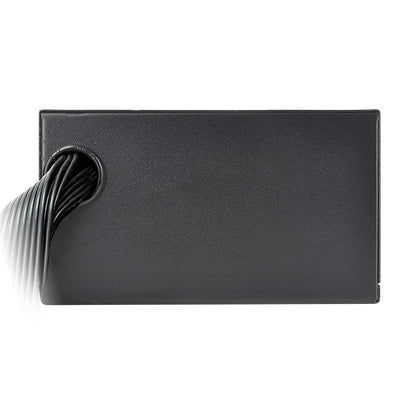

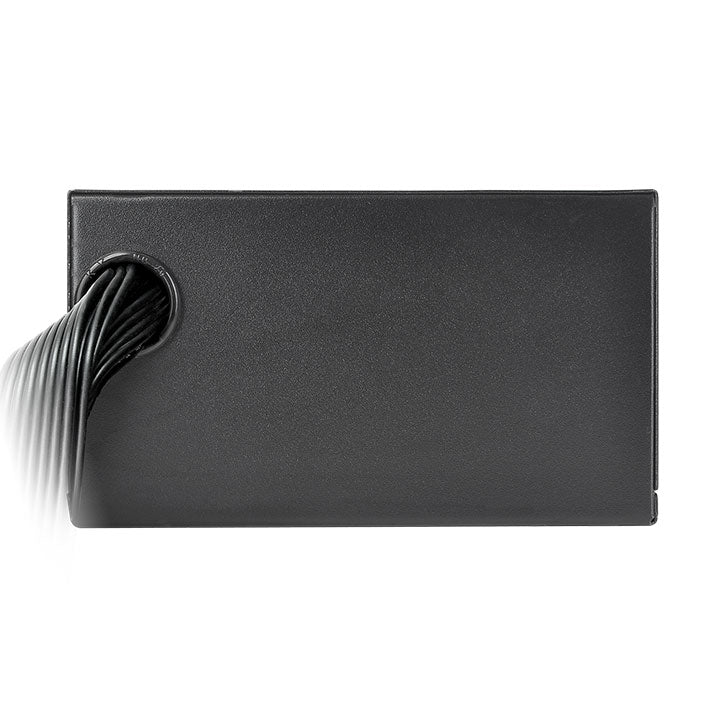

The cables used for Smart Pro Series are black and low-profile, users are able to properly route the cables in optimal location to prevent airflow blockage.
| Connector |  Main Power Connector (20+4Pin) |  ATX 12V (4+4Pin) |  SATA (4Pin) |  PCI-E (6+2Pin) |  Peripheral(4Pin) |
| 500W | 1 | 1 | 4 | 2 | 4 |
80 PLUS Standard Certified and Intel C6/C7 States Ready
The Smart Pro Series saves energy through its high energy efficiency of up to 80% and is 80 PLUS® Standard Certified. It has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.
High-Quality Components
High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.
High Amperage Single +12V Rail Design
The Smart Pro Series is equipped with powerful +12V rails, superior performance under all types of system loading.
| AC INPUT | Input Voltage: 100V-240V | ||||
| DC OUTPUT | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max Output Current | 18A | 18A | 41.6A | 0.3A | 2.5A |
| Max Output Power | 100W | 499.2W | 3.6W | 12.5W | |
| Continuous Power | 500W | ||||
Product Specifications
| P/N | PS-SPD-0500NNFAWJ-1 |
|---|---|
| Model | SPD-500AH2NXW-D |
| Color | Black |
| Dimensions | 150mm(W) x 86mm(H) x 140mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-500 msec |
| Hold Up Time | > 12msec at full load |
| Input Frequency Range | 50 – 60Hz |
| Input Voltage | 100 – 240Vac |
| Operating Temperture | 5°C to + 40°C |
| Operating Humidity | 20% to 85%, non-condensing |
| Storage Temperture | -40°C to + 55°C |
| Storage Humidity | 10% to 95%, non-condensing |
| Cooling System | 12cm sleeve fan |
| Efficiency | Meet 80 PLUS® at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| Safety Approval | cTUVus/FCC/S-Mark |
| PCI-E 6+2PIN | 2 |
