Smart BX1 650W (DC to DC Version)

Smart BX1 650W (DC to DC Version)

PS-SPD-0650NNFAB*-4

80 PLUS Bronze certified non-modular PSU with 120mm Hydraulic Bearing fan.


View full details
SmartBM3

Smart BX1 (DC to DC Version)

Built to deliver 80 PLUS with 85% power efficiency, the Smart BX1 series is available in 550W - 750W models. With an ample 5-year warranty, the Smart BX1 is able to satisfy the market, where value-oriented users are looking for a new power supply with reliable performance.

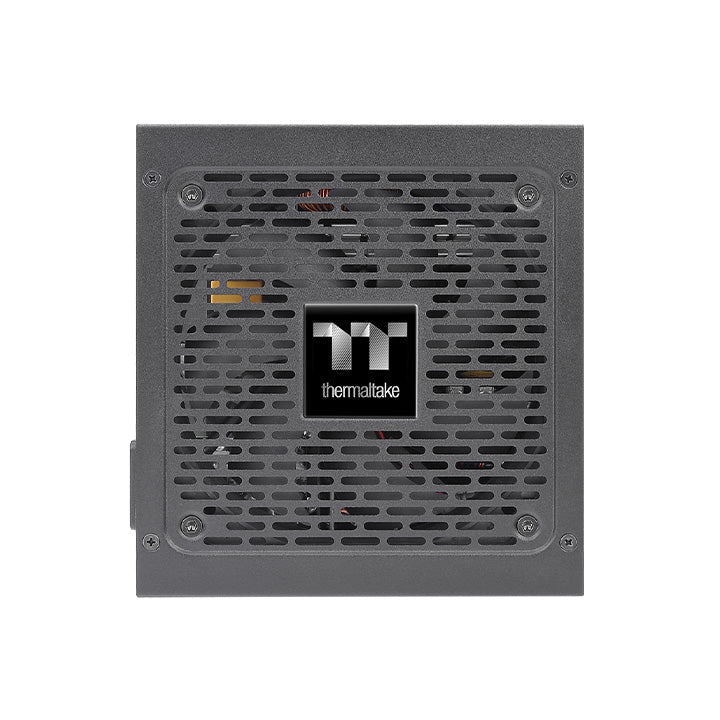

Ultra Quiet 120mm Fan

Equipped with 120mm cooling fan with intelligent RPM control guarantees cool performance and silent operation.

SmartBM3

Multiple Connectors

The cables used for Smart BX1 Series are black and low-profile, users are able to properly route the cables in optimal location to prevent airflow blockage.

Connector Type Connector Quantity Cable Quantity Cable Length
Main Power
(20+4Pin) 		X 1 X 1600mm
ATX 12V
(4+4Pin) 		X 2 X 1650mm+150mm
PCIe
(6+2Pin) 		X 2 X 1500mm+150mm
SATA
(4Pin) 		X 6 X 2500mm+150mm+150mm
Peripheral
(4Pin) 		X 4 X 1500mm+150mm +150mm+150mm
FDD X 1 X 1150mm

High-Quality 105°C/221°F main capacitor.

Providing great durability as well as offering the highest stability, while remaining reliable.

High Amperage Single +12V Rail & DC to DC Design

Smart BX1 Series is equipped with powerful +12V rails, superior performance under all types of system loading. The use of DC to DC circuit design provides very stable operation and enhanced voltage regulation.

AC INPUT

Input Voltage: 100-240Vac
Input Current: 12A Max.
Frequency: 50Hz - 60Hz

DC OUTPUT

+3.3V

+5V

+12V

-12V

+5VSB

Max Output Current

18A

18A

54.1A

0.3A

2.5A

Max Output Power

100W

649.2W

3.6W

12.5W

Total Power

650W

Built-in Industrial Grade Protection

To protect the hardware, Smart BX1 series is built with industry grade protections: OCP(Over Current Protection), OVP (Over Voltage Protection), UVP(Under Voltage Protection), OPP(Over Power Protection), SCP(Short Circuit Protection), OTP(Over Temperature Protection).

  • OCP

    Over Current Protection

  • OVP

    Over Voltage Protection

  • UVP

    Under Voltage Protection

  • OPP

    Over Power Protection

  • SCP

    Short Circuit Protection

  • OTP

    Over Temperature Protection

80 PLUS Bronze Certified and Intel C6/C7 States Ready

Smart BX1 Series saves energy through its high energy efficiency of up to 85% and is 80 PLUS® Bronze certified. It has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.

Product Specifications

P/N PS-SPD-0650NNFAB*-4
Model SPD-650AH2NXB
Dimensions 150mm(W)x86mm(H)x140mm(D)
PFC (Power Factor Correction) Active PFC
Power Good Signal 100-150 msec
Hold Up Time > 17msec at 80% load
Input Current 12A Max.
Input Frequency Range 50Hz - 60Hz
Input Voltage 100-240Vac
Operating Temperture 5°C to + 40°C
Operating Humidity 20% to 85%,non-condensing
Storage Temperture -40°C to + 55°C
Storage Humidity 10% to 95%, non-condensing
Cooling System 120mm Hydraulic Bearing Fan
Efficiency Meet 80 PLUS® Bronze at 115Vac input.
MTBF 100,000 hrs minimum
Safety Approval CE/UKCA/LVD/FCC/ICES/TUV/CB/cTUVus/BSMI
PCI-E 6+2PIN 2
Protection OCP/OVP/OPP/OTP/SCP/UVP
