Smart 750W Bronze

Smart 750W Bronze

SP-750PCBxx

Smart Series SP- 750P – 750W 80 PLUS® Bronze Certified APFC PSU


View full details

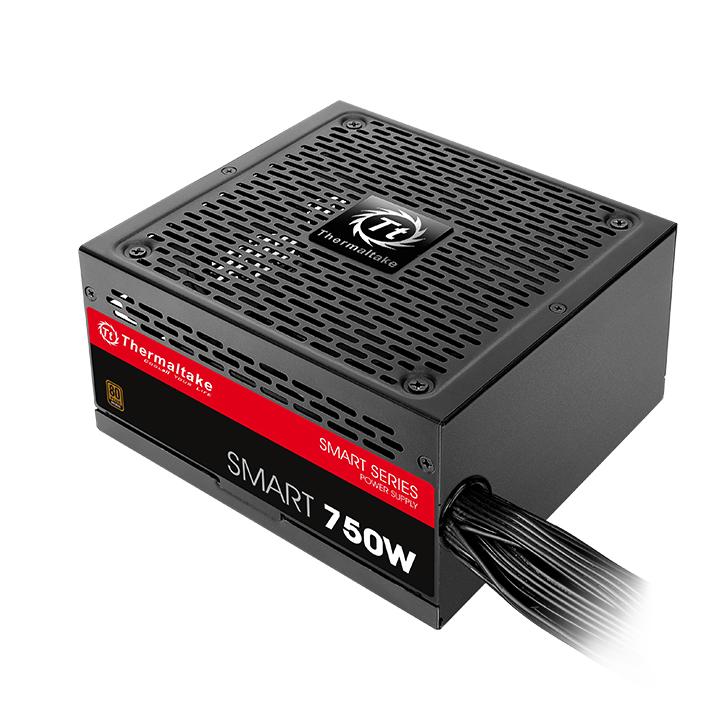

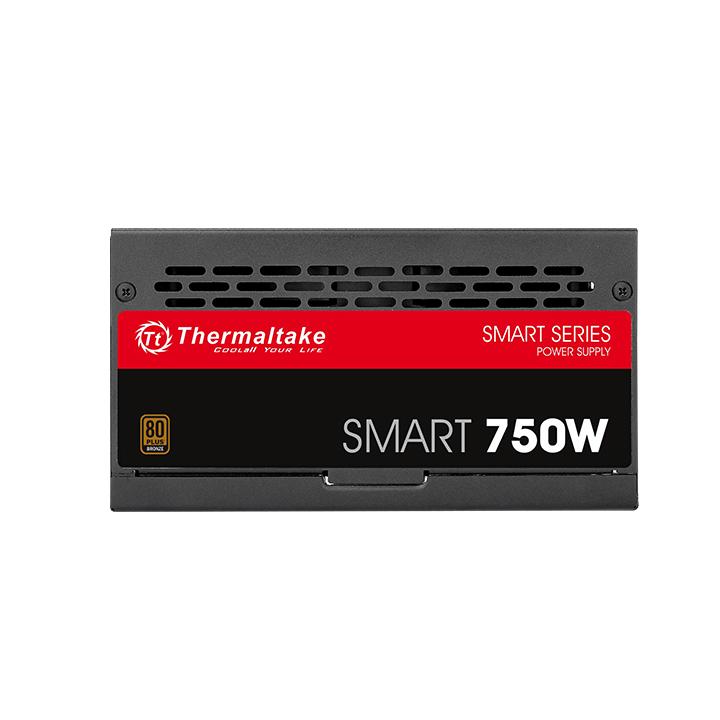

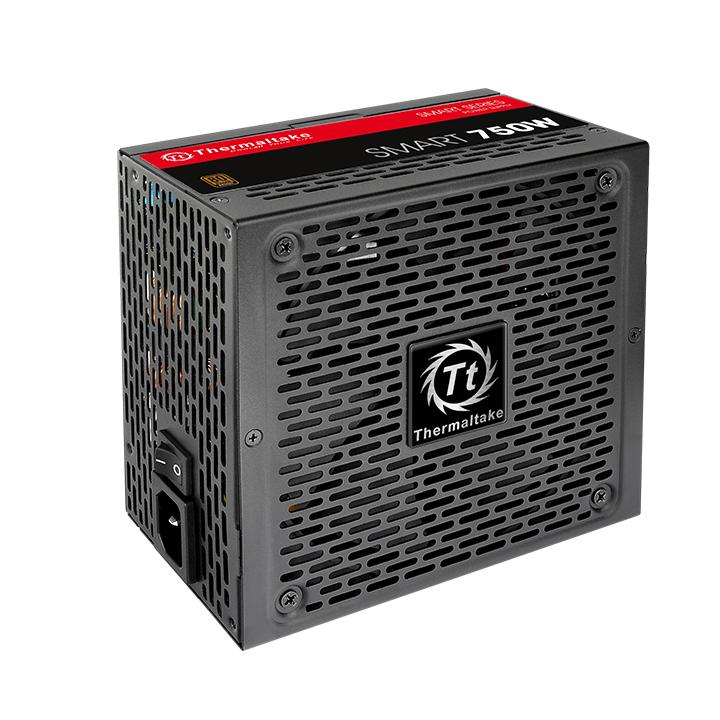

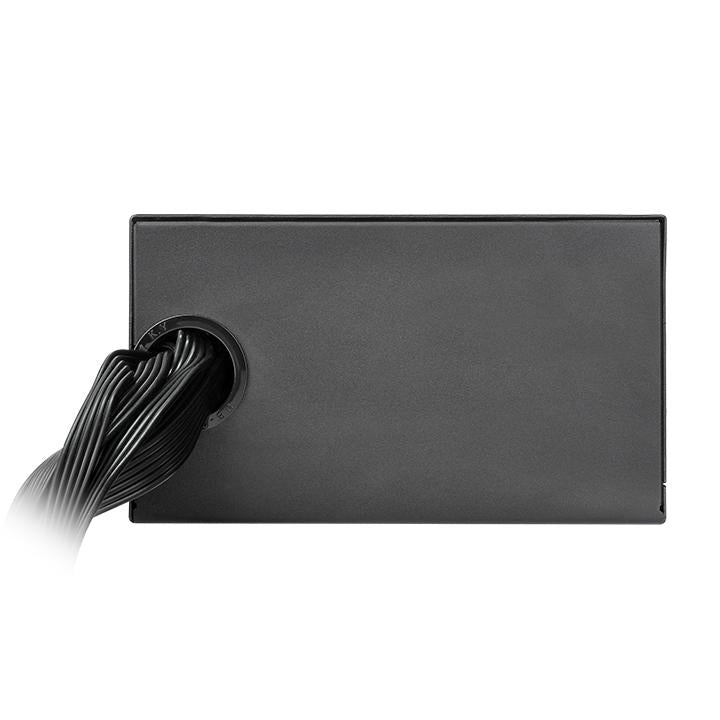

Thermaltake Smart 750W Bronze
Thermaltake introduces the newest in the essence of mainstream systems – the Smart Series Standard PSU, a performance series of power supply units (PSU) that incorporated various PSU high-tech components, leading technology and Eco-friendly credentials, ranged between 550 to 750W that will accommodate any mainstream build under any circumstance. It is ideal for users to build a home or office system for 24/7 fundamental and stable demands.
80% Plus Bronze Certified
80 Plus Bronze certified, offers up to 85% efficiency at 20-100% load under real world load conditions and promise lowest power losses. Saving the unnecessary waste of energy and environmental protection.
Flat & Low Profile Cable
Low-profile flat cables that not only increased the airflow and made chassis thermal performance improved, but also allow for effortless cable routing.

Top Quality Japanese Main Capacitor
High quality of Japanese main capacitor produces supreme performance with low impedance characteristics. The stable operation works for longer time with excellent reliability to enhance the power supply performance.

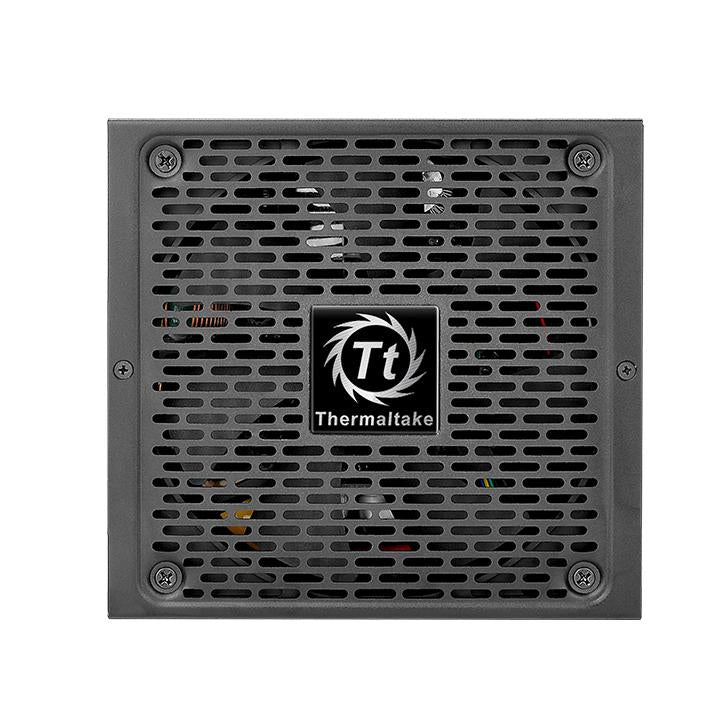

Smart Temperature Control Fan
Large 140mm cooling fan, built-in with intelligent temperature control device can automatically detect the power load for fan speed adjustment and maintain optimal mute performance.
Massive and Dedicated +12V Output
Smart 750W Bronze is equipped with a powerful single +12V rail, please see the output specification below:





AC INPUT

Input Voltage: 100V-240V~
Input Current: 10A
Frequency: 47Hz-63Hz

DC OUTPUT+3.3V+5V+12V-12V+5Vsb
Max Output Current22A

22A

62A

0.3A

2.5A
Max Output Power

120W

744W

3.6W

12.5W

Total Power

750W




Product Specifications

P/N SP-750PCBxx
Model SP-750AH3NCB-A
Type ATX 12V v2.4 and EPS v2.92
Form Factor ATX
Max Output Capacity 750W
Peak Output Capacity 900W
Color Black
Dimensions 150mm(W) x 86mm(H) x 160mm(D)
PFC (Power Factor Correction) Active PFC
Power Good Signal 100-500 msec
Hold Up Time > 16msec at 80% of full load
Input Current 10A
Input Frequency Range 47Hz -63Hz
Input Voltage 100V-240V~
Operating Temperture 0°C to +40°C
Operating Humidity 20% to 90%,non-condensing
Storage Temperture -20 °C to +70 °C
Storage Humidity 5% to 95%, non-condensing
Cooling System 140mm Fan: 1800 R.P.M. ± 10%
Efficiency Meet 80 PLUS®Bronze at 115Vac input.
MTBF 100,000 hrs minimum
Safety Approval UL/CUL/TUV/CE/FCC and BSMI
PCI-E 6+2PIN PCI-E 6+2pin x 4
