Pure Plus 12 RGB Case Fan Hatsune Miku Edition
Pure Plus 12 RGB Case Fan Hatsune Miku Edition
SKU:CL-F099-PL12SW-A
The Pure Plus 12 RGB Hatsune Miku Edition case fan is a limited-edition model in collaboration with the popular Japanese virtual pop-star“Hatsune Miku.”
-
Design
-
Specification
-
Download
-
How-to Videos

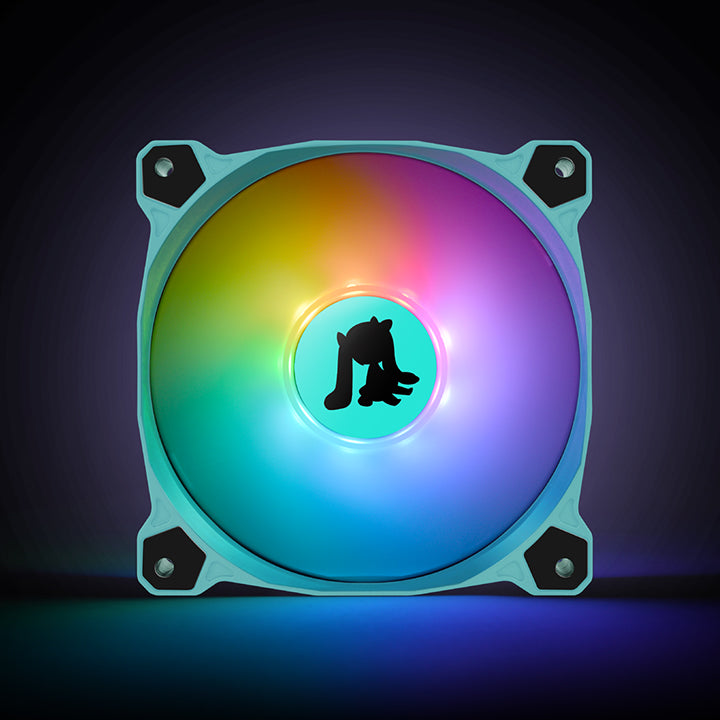

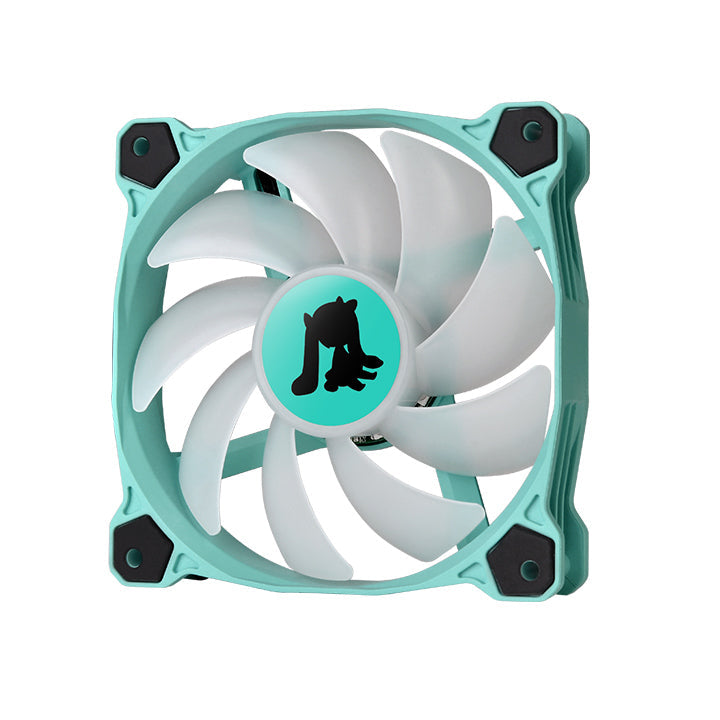

The Pure Plus 12 RGB Hatsune Miku Edition case fan is a limited-edition model in collaboration with the popular Japanese virtual pop-star“Hatsune Miku.”The case fan is built with 9 addressable LEDs and 9 optimized fan blades and designed with a built-in Hatsune Miku logo plate visible on the fan hub.
The Pure Plus 12 RGB Hatsune Miku edition not only guarantees effective cooling performance but also delivers 16.8 million colors of stunning RGB lighting. In addition, Thermaltake Pure Plus 12 RGB features compression fan blades, hydraulic bearings, and supports the TT RGB PLUS Software and AI interactive voice control, the Pure Plus 12 Hatsune Miku edition lights up your system without sacrificing performance!

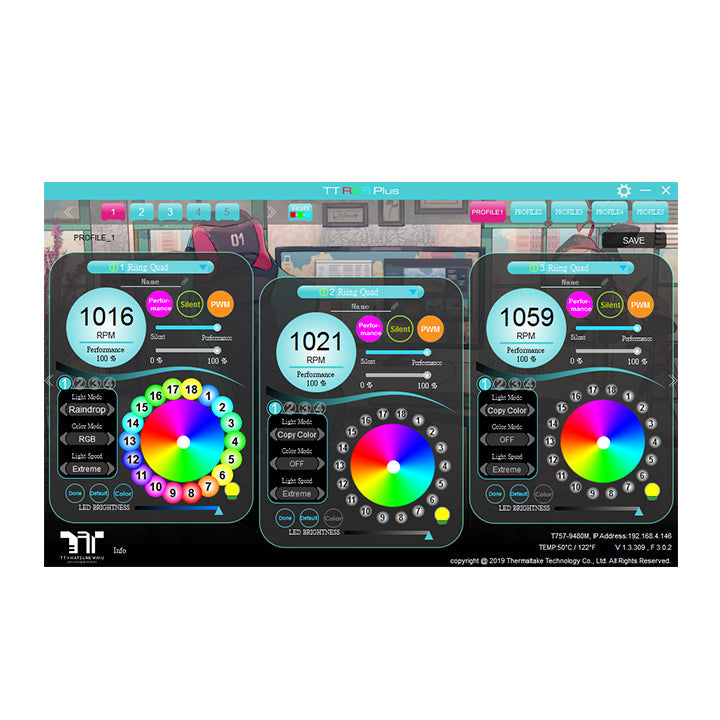

Patented TT RGB PLUS Software & App with an Specially-Designed Hatsune Miku Interface
Patented TT RGB PLUS Software & App with an Specially-Designed Hatsune Miku Interface Not only can you monitor the fan performance, adjust the fan speeds, but also customize the lighting effects for the Pure Plus 12 RGB and other Thermaltake liquid cooling products. Users can easily switch between different interfaces from Miku-style* to Thermaltake’s modern UI design. Enjoy your exclusive Hatsume Miku edition theme.
*Users MUST redeem the code inside the package.
*Miku interface does not support the TT RGB Plus App.
How to Redeem the Hatsune Miku Interface?
Step 1: Select "Theme" from options.
Step 2: Enter the code from the gift card inside the package.
Step 3: You'll get the "Hatsune Miku" interface.
All-around COOL with MIKU

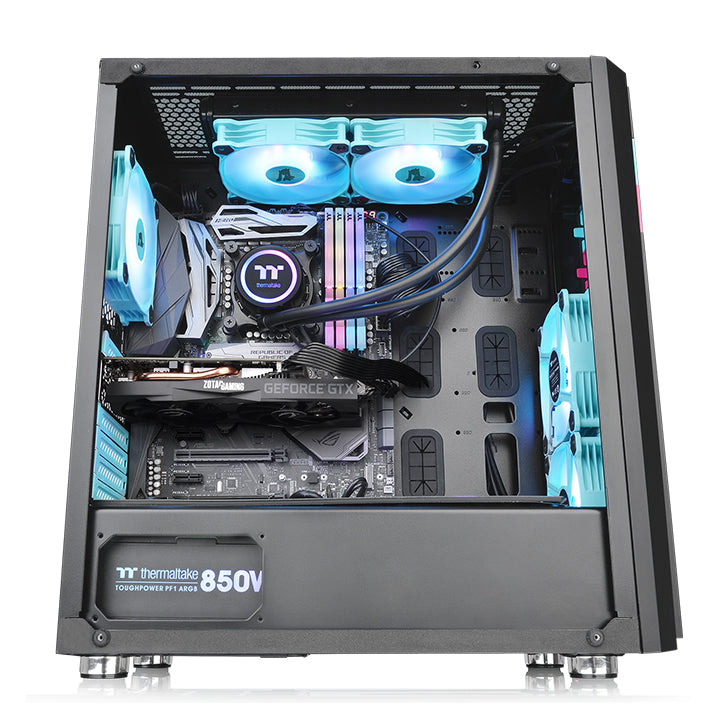

Pure Plus fan produces a large amount of airflow, which lowers your system temperature effectively allowing better heat dissipation. It can either be installed on the front or back panel to create superior ventilation.
Digital Lighting Controller

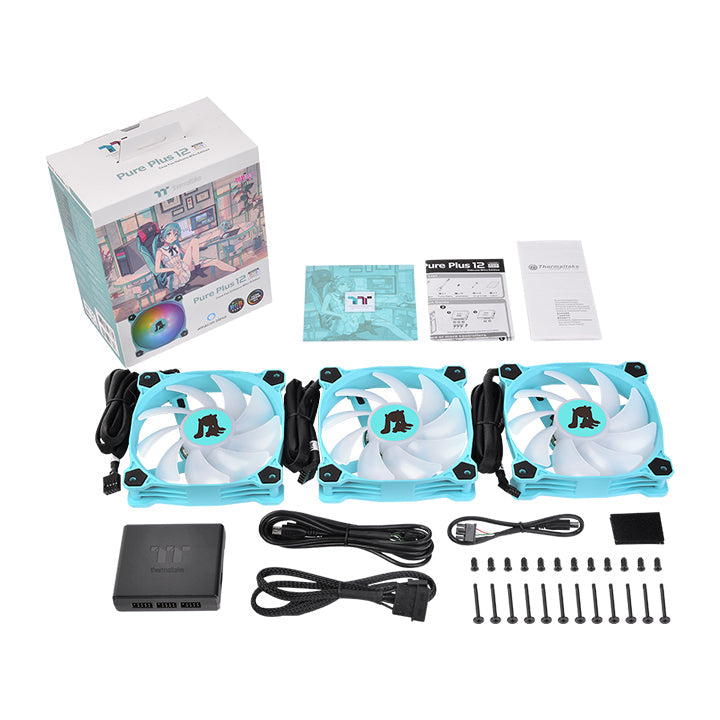

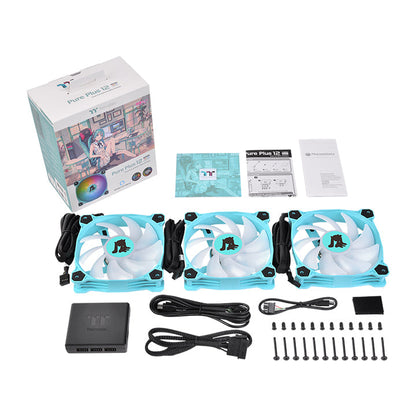

The controller is designed with a DIP switch on the back. You can set a number for each controller easily and you can add up to 5 devices to one lighting controller and up to 16 controllers to the software. The controller and the coding guide are included in all packs.
*It is recommended to only connect up to 3 controllers on one peripheral cable (Molex).
Hydraulic Bearings with Low-Noise Design
The hydraulic bearing self-lubricates with a high-quality, friction-reducing substance, which lowers operation noise while improving thermal efficiency. The seal cap prevents lubricant leakage and extends the lifespan of the unit.
Anti-Vibration Mounting System
The In-mold injection anti-vibration rubber pads allow the fan to spin at higher levels without compromising noise levels. The fan is designed with 80% coverage for all corners, maintaining low noise levels when in operation.
TT RGB PLUS Software
Thermaltake’s patented software to synchronize TT RGB PLUS products with addressable LEDs.
TT AI Voice Control
Give you full control over the TT RGB PLUS products with your voice. “SyncALL, Say”Hello TT”.
Works with Amazon Alexa
All Thermaltake TT RGB PLUS products support Amazon Alexa Voice Service, allowing you to give voice commands to the Alexa-enabled devices.
Learn more
Sync with Razer Chroma Lighting
All Thermaltake TT RGB PLUS products are able to connect into the Razer Chroma ecosystem, Razer Synapse 3. Users can experience synchronized gaming and RGB lighting effects on their TT RGB PLUS liquid cooling system and Razer gaming gear!
Learn more
Note: TT AI Voice control, Razer Chroma and Amazon Alexa requires use of TT RGB PLUS software to function.
TT RGB PLUS Software
2.0 - New version of Thermaltake’s TT RGB PLUS patented software, providing more lighting effects and PC monitoring functions.
1.0 - Thermaltake’s patented software to synchronize TT RGB PLUS products with addressable LEDs.
Caution: TT RGB PLUS 2.0 and TT RGB PLUS 1.0 will overwrite one another; users can only install one version of TT RGB PLUS.
2.0 DOWNLOAD NOW
2.0 USER MANUAL
1.0 DOWNLOAD NOW
1.0 LEARN MORE
Sync with Razer Chroma Lighting
All Thermaltake TT RGB PLUS products are able to connect into the Razer Chroma ecosystem, Razer Synapse 3. Users can experience synchronized gaming and RGB lighting effects on their TT RGB PLUS liquid cooling system and Razer gaming gear!
Works with Amazon Alexa
All Thermaltake TT RGB PLUS products support Amazon Alexa Voice Service, allowing you to give voice commands to the Alexa-enabled devices.
TT AI Voice Control
Give you full control over the TT RGB PLUS
products with your voice. “SyncALL, Say”Hello TT”.
Note: TT AI Voice control, Razer Chroma and Amazon Alexa requires the use of at least one TT RGB PLUS software-enabled product to function.
Product Specifications
| P/N | CL-F099-PL12SW-A |
|---|---|
| Dimension | 120 x 120 x 25 mm |
| Weight | 164g |
| Interface | USB 2.0 connectors (9 Pin) |
| System Compatibility | Windows 7 / 8 / 8.1 / 10 |
| Fan Started Voltage | 9.0 V |
| Fan Rated Voltage | 12V & 5V |
| Rated Current | Fan 0.44 A (one fan, fan + LED) |
| Power Input | 12V – 4.32 W , 5V – 4.8W (Fan*3) |
| Fan Speed | 500 ~ 1500 R.P.M |
| Max Air Pressure | 1.59mm-H2O |
| Max Air Flow | 56.45 CFM |
| Noise | 25.8 dB-A |
| Bearing Type | Hydraulic Bearing |
| Life Expectation | 40,000 hrs, 25℃ |
