OB360 AIO Liquid Cooler

OB360 AIO Liquid Cooler

CL-W512-PL12BL-A

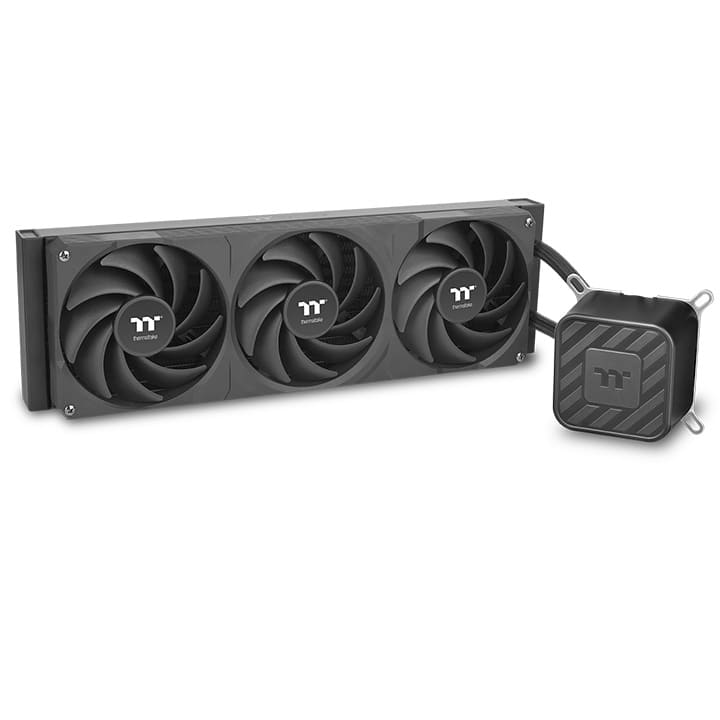

The OB360 AIO Liquid Cooler combines powerful cooling performance with a refined industrial aesthetic. Featuring a 360mm single-frame fan design equipped with high static pressure fans, it delivers efficient heat dissipation for demanding systems with support for up to 360W TDP. Diagonal textured grooves and embossed detailing define its distinctive industrial look.


View full details

Industrial Textured Aesthetics

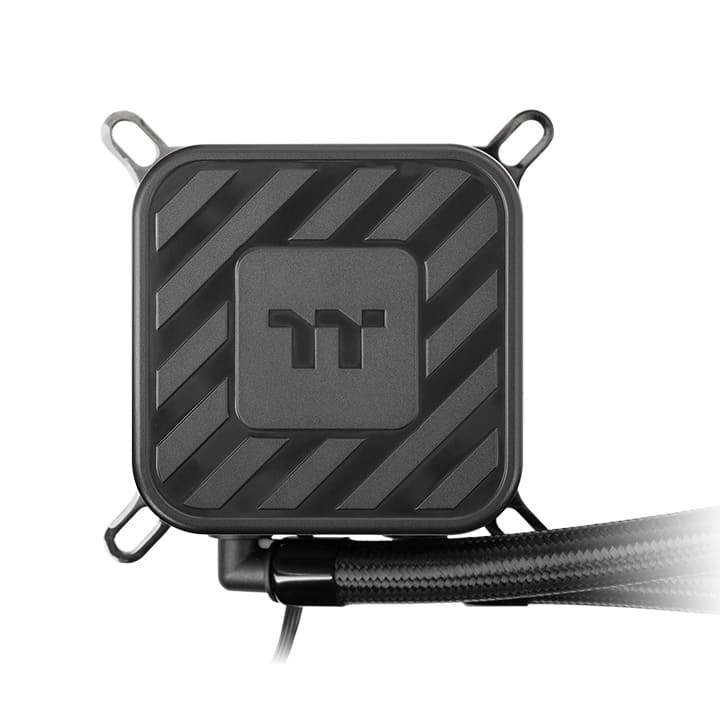

The water block features a refined black finish with diagonal textured grooves that add depth and character to its understated design. Subtle embossed detailing on the fan frame further enhances its industrial aesthetic, creating a distinctive look with bold, refined character.

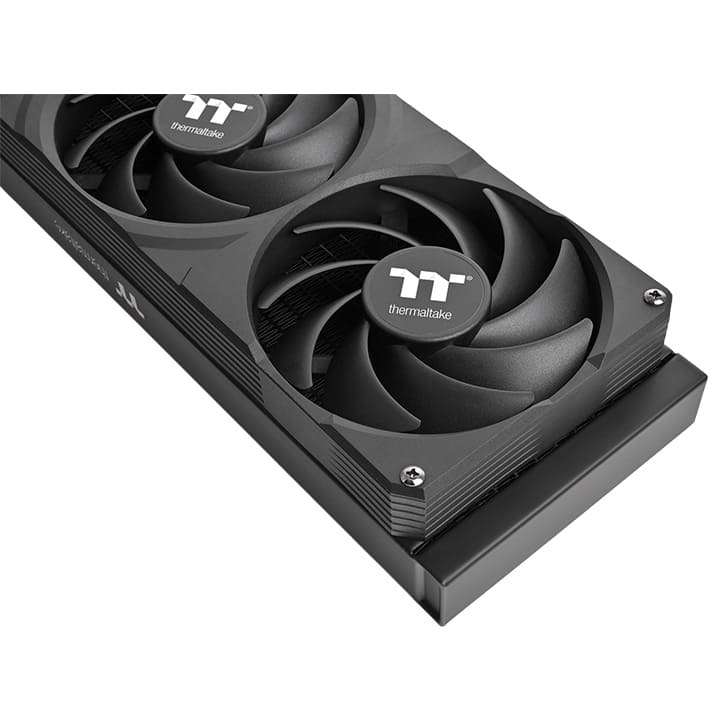

Single-frame Fan Design

Engineered for optimized cable management, the single-frame fan design minimizes cable clutter, making installation faster and easier. It ensures a neat and sleek appearance, keeping your AIO liquid cooler looking professional.

Powerful Cooling Performance

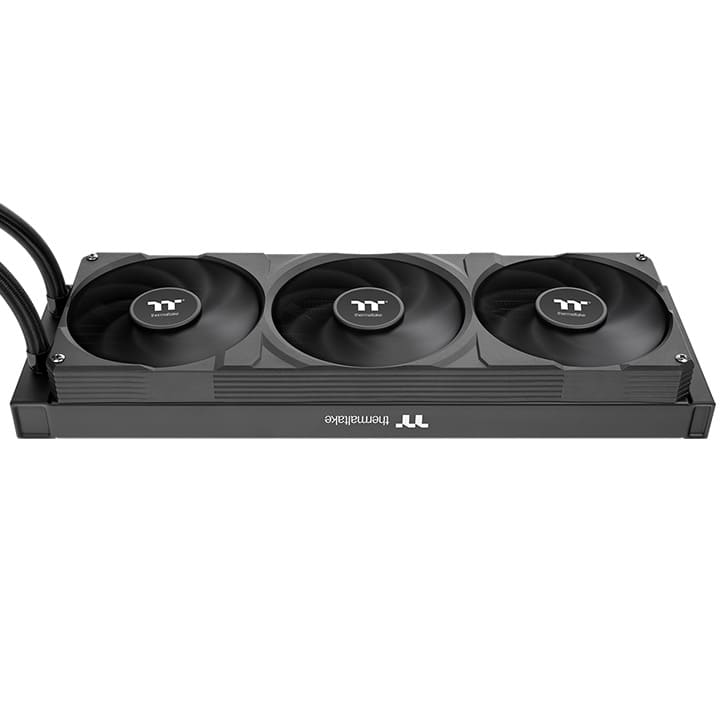

OB360 AIO Liquid Cooler has a powerful 360mm PWM fan module, a single-frame unit combining three 120 mm fans. Each fan provides an airflow of 53.9 CFM with 2.36 mm-H2O static pressure while maintaining a low noise level of 32.3 dB-A, offering exceptional cooling performance for your system.

Enhanced Radiator with a Compact Design

The OB360 AIO Liquid Cooler Series has a 27mm slim radiator with a thickened 20mm copper chamber, ensuring the same easy installation but with even better cooling performance.

Powerful Cooling with Advanced Pump

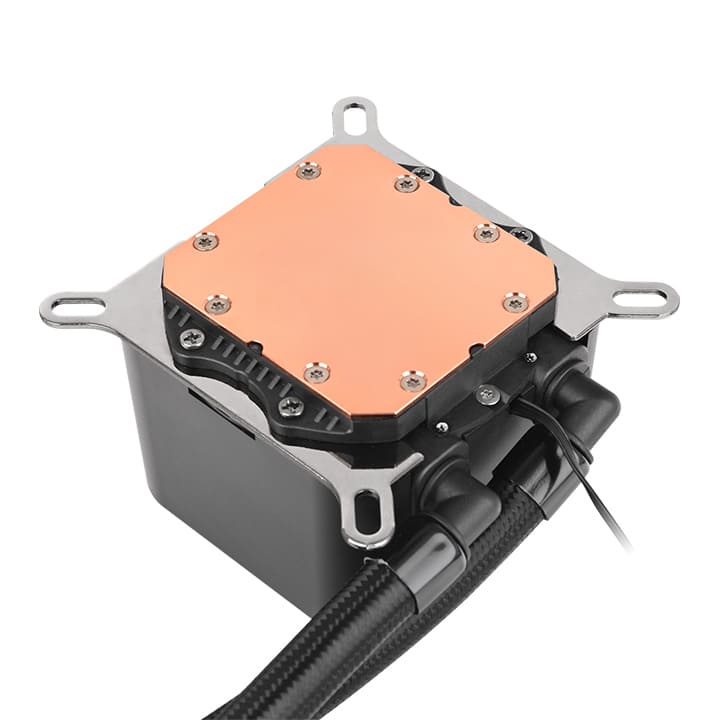

The high-quality pump enables maximum water circulation, keeping the copper plate consistently cool. Combined with a high-performance copper base plate, this design accelerates thermal conductivity and rapidly transfers heat away from your CPU.

Black Minimalism

The OB360 brings a clean, refined look to any build with its dark, minimalist design. Seamlessly blending into the system, it keeps the visual focus clean while putting the emphasis on cooling performance.

Product Specifications

P/N CL-W512-PL12BL-A
Pump Motor Speed : PWM 1500~2500 RPM
Rated Voltage : 12V
Rated Current : 0.35A
Power Input : 4.2W
Connector : 2510 – 4 Pin
Water Block Material : Copper
Fan Dimension : 360 x 120 x 25.4 mm
Fan Speed : PWM 500~2000 R.P.M
Rated Voltage : 12V
Rated Current : 0.35 A
Power Input : 4.2 W
Air Flow : 53.9 CFM (per fan)
Static Pressure : 2.36 mm-H2O (per fan)
Noise Level : 32.3 dB-A (per fan)
Connector : 2510 – 4 Pin
Tube Length : 460mm
Material : Rubber
Radiator Dimension : 397 x 120 x 27 mm
Material : Aluminum
Compatibility CPU Socket : Intel LGA 1851/1700/1200/1156/1155/1151/1150 AMD AM5/AM4
