Litepower RGB 450W (230V)
Litepower RGB 450W (230V)
SKU:PS-LTP-0450NHSANx-1
Non-modular PSU with RGB hydraulic bearing fan.
-
Design
-
Specification
-
Download
-
How-to Videos
Available in 450W - 650W models, the Litepower RGB series features black coated finish for a stylish statement and 10 RGB LEDs to give illumination options of 7 colors and an RGB cycle. Its hydraulic bearing fan helps ensure excellent airlow and silent operation. The included EPS/ATX 12V 4+4pin CPU cables are sufficient for compatibility with full tower chassis and better cable routing. With a 2-year warranty, the Litepower RGB series satisfies the users, who are looking for a power supply with excellent performance and aesthetics.

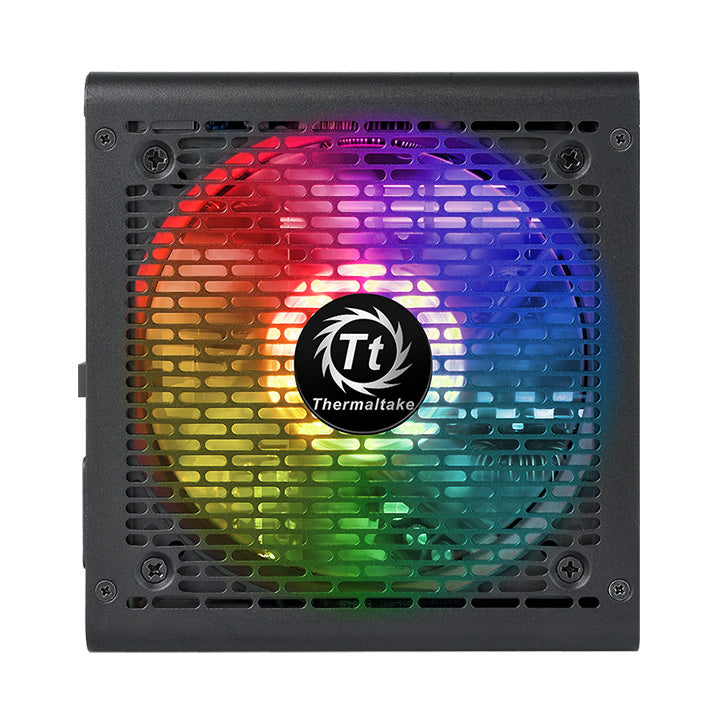

The 10 RGB LEDs come preinstalled on the 120mm fan. Capable of displaying 7 colors(Red, Green, Blue, Yellow, Purple, Light Blue, and White), 3 illumination modes including Pulse, Full-lighted and RGB Cycle, and an LED Off mode.
* All images are for reference only; actual specification and lighting effects are based on the real product.

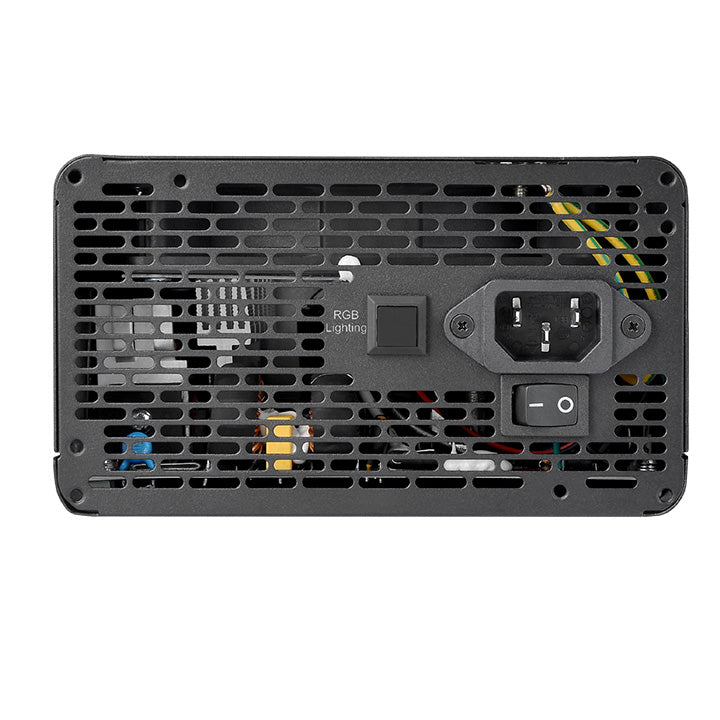

Adding personal appeal to your build has never been so easy by just pressing one RGB lighting button! There is also a built-in memory function to save the color applied and insure the same color selection every time you boot your PC.
Featuring an 120mm Hydraulic Bearing Fan with intelligent RPM control to help guarantee superior cooling performance and silent operation.
Avoids harmonic distortion while saves more energy and gives more stability to meet higher environment standards.
Sufficient EPS/ATX 12V 4+4pin CPU Cables for Enhanced Compatibility
The cables are designed to elevate the look of your build while power the system at an advantageous voltage, make cable management easier, reduce clutter and increase airflow inside the chassis. The EPS/ATX 12V 4+4pin CPU cables are sufficient for compatibility with full tower cases.
Powerful single +12V rail helps ensure a stable and reliable supply to other PC components.
The Litepower RGB series has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.
Product Specifications
| P/N | PS-LTP-0450NHSANx-1 |
|---|---|
| Model | LTP-450AL2NK |
| Type | ATX 12V 2.3 |
| Form Factor | ATX |
| Max Output Capacity | 550W |
| Color | Black |
| Dimensions | 150mm x 86mm x 140mm |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-500 msec. |
| Hold Up Time | >16msec |
| Input Current | 5A |
| Input Frequency Range | 50Hz - 60Hz |
| Input Voltage | 230V |
| Operating Temperture | +5℃ to +35℃ |
| Operating Humidity | 20% to 85%,non-condensing |
| Storage Temperture | -40℃ to +55℃ |
| Storage Humidity | 10% to 95%, non-condensing |
| Cooling System | 120mm Fan: 2000±10% RPM |
| MTBF | 100,000 hrs minimum |
| Safety Approval | CE, TUV SUD, CB, EAC and RCM certified. |
| PCI-E 6+2PIN | 6+2pin PCI-E Connector x 2 |
