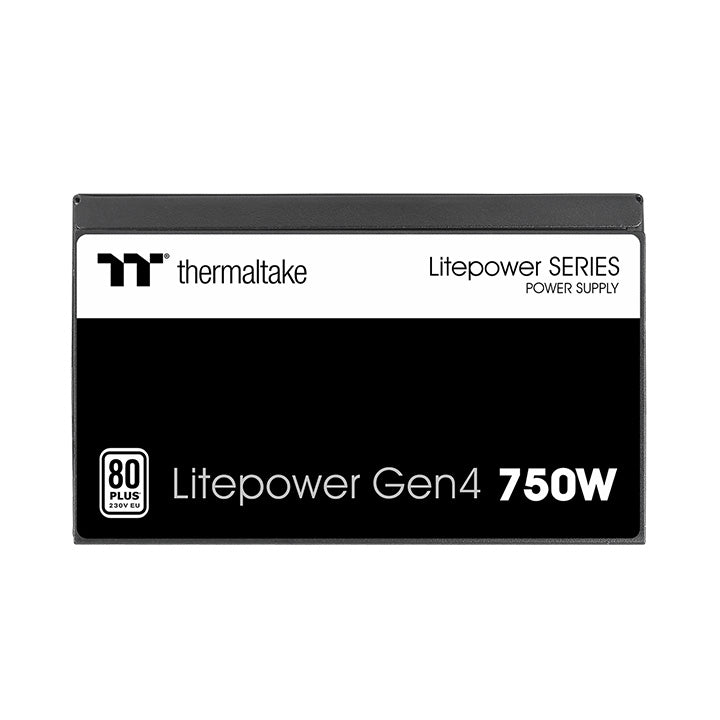

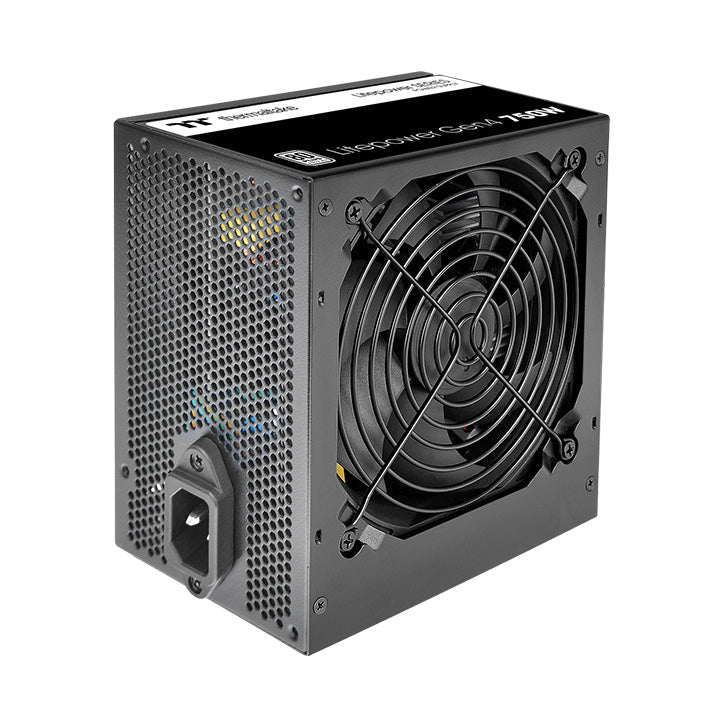

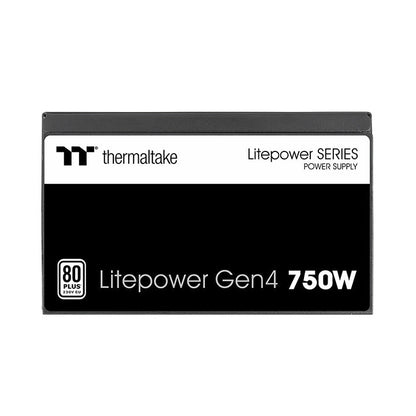

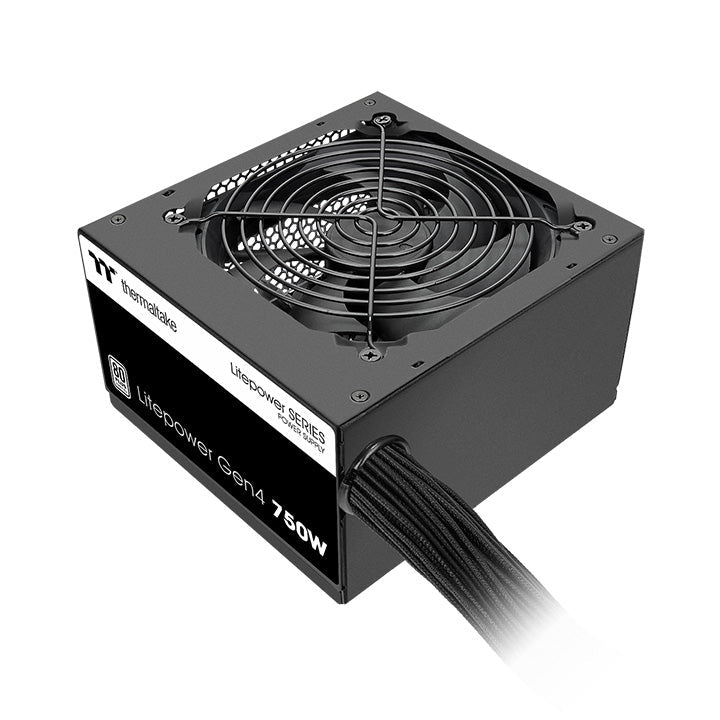

Litepower Gen4 750W

Litepower Gen4 750W

PS-TRS-0750NNSAWA-H

Delivering reliable 750W power with 80 PLUS® 230V EU Internal certified efficiency, the Litepower Gen4 750W is designed for everyday PC builds. Featuring an ultra-quiet 120mm cooling fan, a high-amperage single +12V rail, low-profile etched black cables, and a compact 140mm depth, it provides reliable power delivery, efficient cooling, and easy installation for your system.


View full details
Litepower Gen4

Reliable Power for Everyday PC Builds

Designed for everyday PC systems, the Litepower Gen4 750W delivers reliable power with 80 PLUS® 230V EU Internal certified efficiency. Featuring a high-amperage single +12V rail, an ultra-quiet 120mm cooling fan, and low-profile etched black cables, it provides stable power delivery and practical features for everyday PC builds.

Long-Term Durability with Premium Components

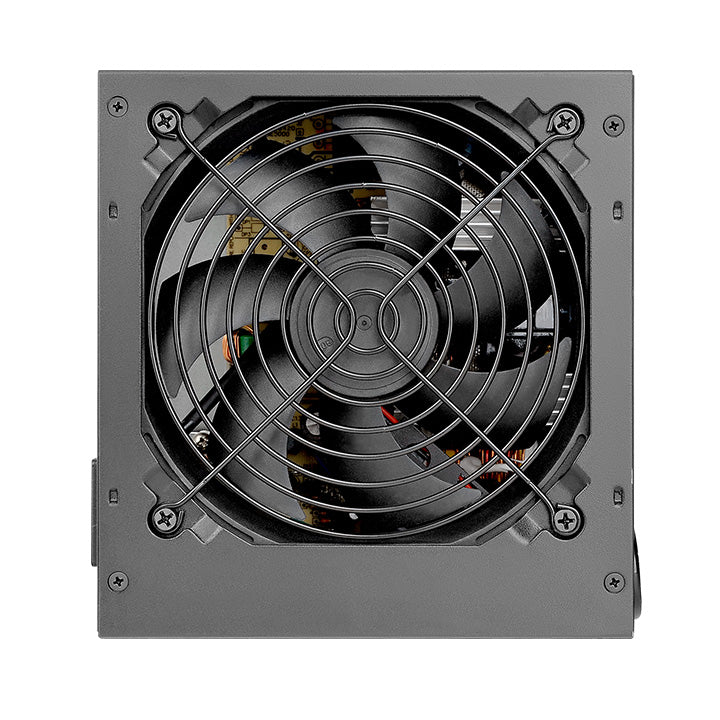

Ultra-Quiet 120mm Fan

Equipped with a 120mm hydraulic bearing cooling fan with intelligent RPM control, the Litepower Gen4 750W delivers excellent airflow while maintaining quiet operation for a comfortable computing experience.

Next-Gen Ready Power

Energy Efficiency & Environmental Compliance

The Litepower Gen4 Series supports Intel C6/C7 states and Intel Deep Power Down for improved energy efficiency. It also supports the Energy Star 5.0 energy standard and complies with EU WEEE and RoHS directives, reflecting Thermaltake's commitment to environmentally responsible product design and manufacturing.

Long-Term Durability with Premium Components

Industry-Grade Safety Protections

Built-in protections including Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Power Protection (OPP), and Short Circuit Protection (SCP) help safeguard your system against electrical faults for reliable everyday operation.

  • OVP

    Over Voltage Protection

  • UVP

    Under Voltage Protection

  • OPP

    Over Power Protection

  • SCP

    Short Circuit Protection

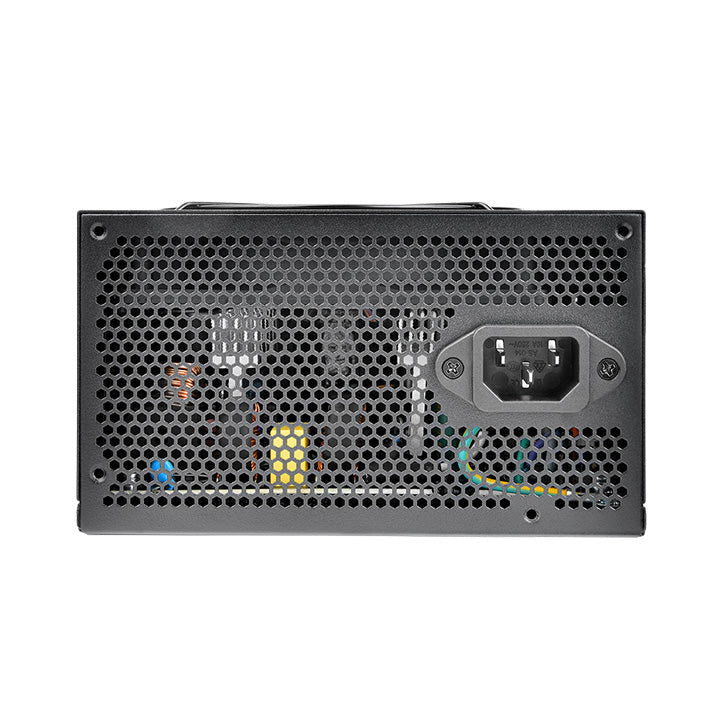

AC INPUT

Input Voltage: 100-240V~
Input Current: 10A Max.
Frequency: 50Hz - 60Hz

DC OUTPUT +3.3V +5V +12V -12V +5VSB
Max Output Current 24A 18A 58A 0.5A 2.5A
Max Output Power 120W 696W 6.0W 12.5W
Total Power 750W

High-Amperage Single +12V Rail

Featuring a high-amperage single +12V rail design, the Litepower Gen4 750W delivers stable power to system components for reliable everyday operation.

Space-Saving Etched Cable Design

Low-Profile Etched Black Cables

The Litepower Gen4 750W features low-profile etched black cables that simplify cable management, reduce cable clutter, and improve airflow inside the chassis. The flexible cable design also helps create a cleaner and more organized system build.

Space-Saving Etched Cable Design
Connector Type Connector Quantity Cable Quantity Cable Length
Main Power
(24Pin) 		X 1 Main Power (20+4Pin) cable illustration X 1 550mm
ATX 12V
(4+4Pin) 		X 2 ATX 12V (4+4/8Pin) cable illustration X 1 600mm
+150mm
PCIe
(6+2Pin) 		X 2 PCIe (6+2Pin) cable illustration X 1 450mm
+150mm
SATA
(4Pin) 		X 4 SATA cable illustration X 2 450mm
+150mm
+150mm
Peripheral
(4Pin) 		X 2

80 PLUS® 230V EU Internal Certified

The Litepower Gen4 750W is 80 PLUS® 230V EU Internal certified, delivering reliable efficiency under real-world load conditions. Improved power efficiency helps reduce unnecessary energy loss and heat generation while providing dependable power for your system.

80 PLUS Platinum Certified

Compact 140mm Design

With dimensions of 150mm (W) x 86mm (H) x 140mm (D), the Litepower Gen4 750W features a compact design that provides greater flexibility during installation and makes it suitable for a wide range of PC builds.

Next-Gen Ready Power

Product Specifications

P/N PS-TRS-0750NNSAWA-H
Model TRS-750AH2NXW-M
Max Output Capacity 750W
Color Black
Dimensions 150mm(W)x86mm(H)x140mm(D)
PFC (Power Factor Correction) Active PFC
Power Good Signal 100-500 msec
Hold Up Time T5 > 16msec at 50% load
T6 > 1msec at 75% load
Input Current 10A Max.
Input Frequency Range 50Hz - 60Hz
Input Voltage 200-240V～
Operating Temperture 0°C to + 25°C
Operating Humidity 10% to 90%,non-condensing
Storage Temperture -40°C to + 70°C
Storage Humidity 10% to 95%, non-condensing
Cooling System 12cm Hydraulic Bearing Fan
Efficiency 80 PLUS® 230V EU Internal Certified
MTBF 100,000 hrs minimum
Safety Approval CE(UKCA)/CB/TUV/LVD/RCM
PCI-E 6+2PIN 2
Protection OVP/OPP/UVP/SCP
