Level 20 VT
Level 20 VT
SKU:CA-1L2-00S1WN-00

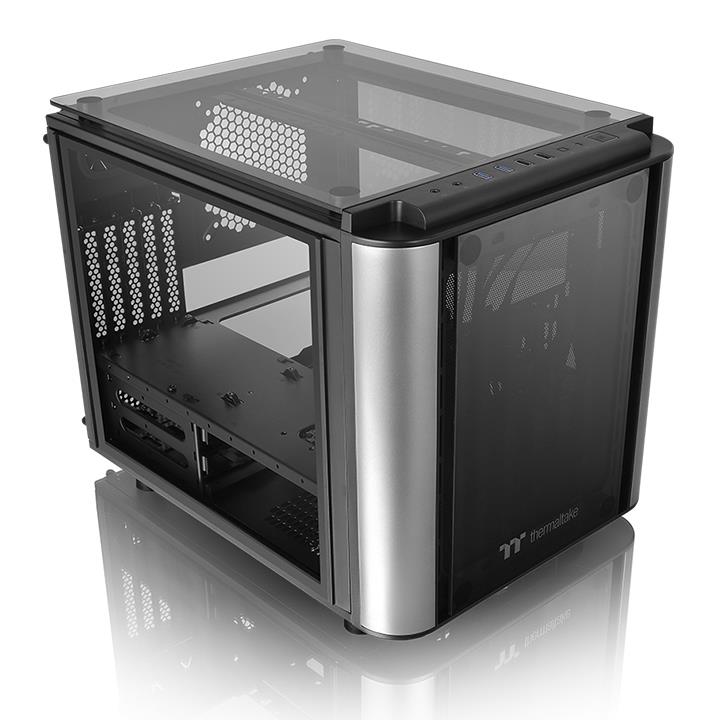

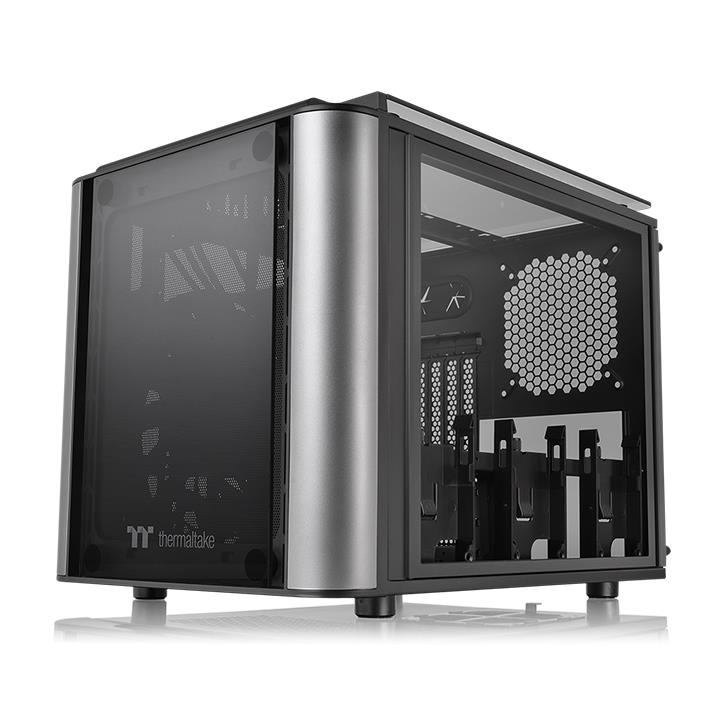

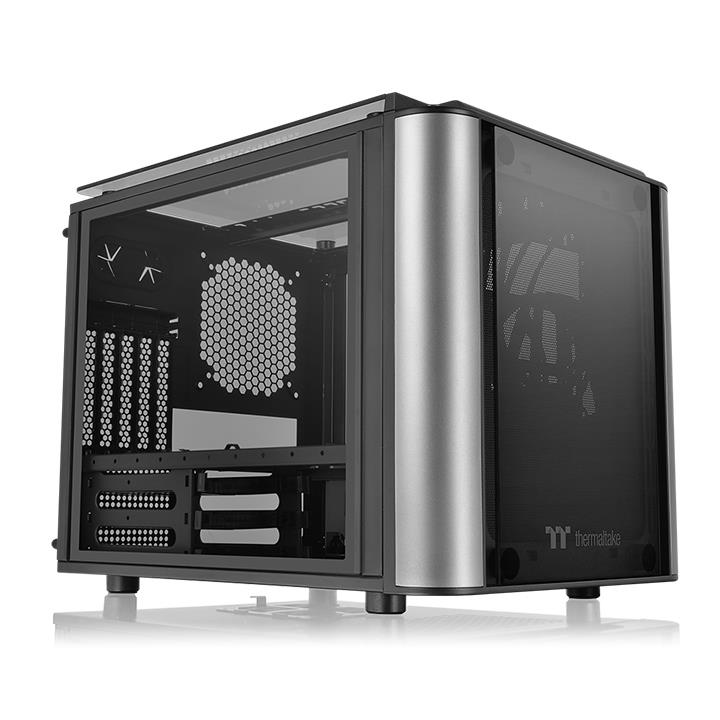

M-ATX micro chassis with four 4mm thick tempered glass panels and one preinstalled 200mm front fan.
-
Design
-
Specification
-
Download
-
How-to Videos
Thermaltake is thrilled to show the latest TT Premium product line – the Level 20 Series
which commemorates 20 years of
dedication to the PC industry. The Level 20 VT is the pocket rocket of the Level 20
series, offering massive support inside
an M-ATX footprint.
The Level 20 VT is designed to prove that micro cases don’t have to be small on
power. It boasts a 200mm fan preinstalled
at the front as well as great liquid cooling support, four 4mm tempered glass panels and
interchangeable panels with filters.
The VT also has a chamber design with a flat motherboard tray that lets you hide away
cables, while showing off liquid
cooling hardware at the top.
The Level 20 VT takes our latest case innovations and wraps them in an
ultra-modern, space-conscious style that’s utterly
unique in the case market today.
*The image is for reference only.
*One 200mm fan is included.
To continue achieving the corporate mission of delivering the perfect user experience, Thermaltake developed “TT Premium” with the essence of combining supreme quality products with a new logo design. TT Premium is far more than just a guarantee of quality. Behind the name, it represents the passion in DIY, Modding and Thermaltake’s desire to be the most innovative brand in the PC hardware market. To satisfy the demand of the high-end PC users, TT Premium follows its core values of Excellent Quality, Unique Design, Diverse Combinations and Boundless Creativity to provide a high performance PC product for every enthusiast.
Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.

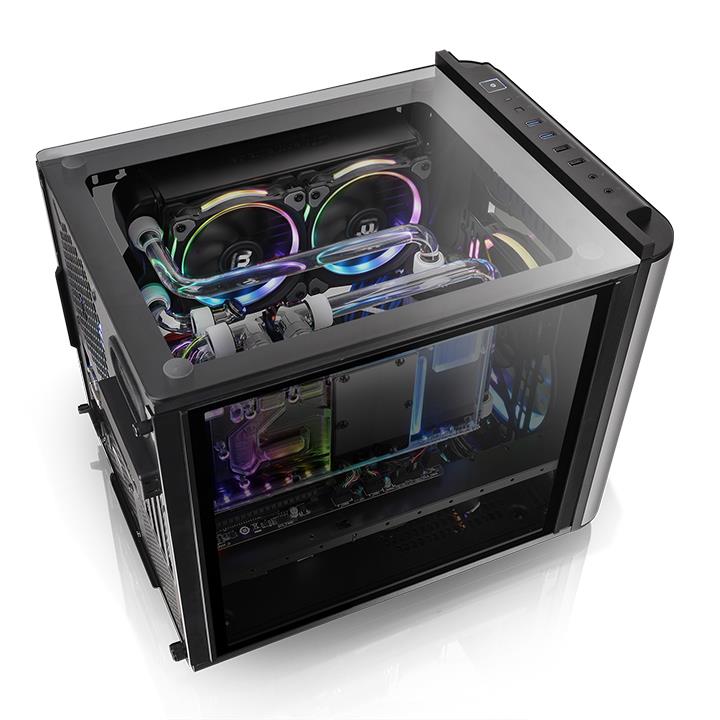

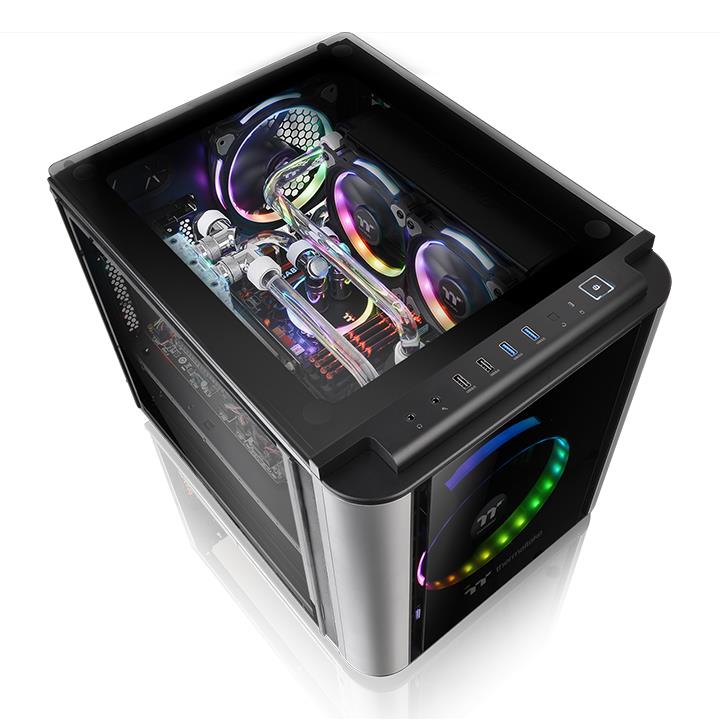

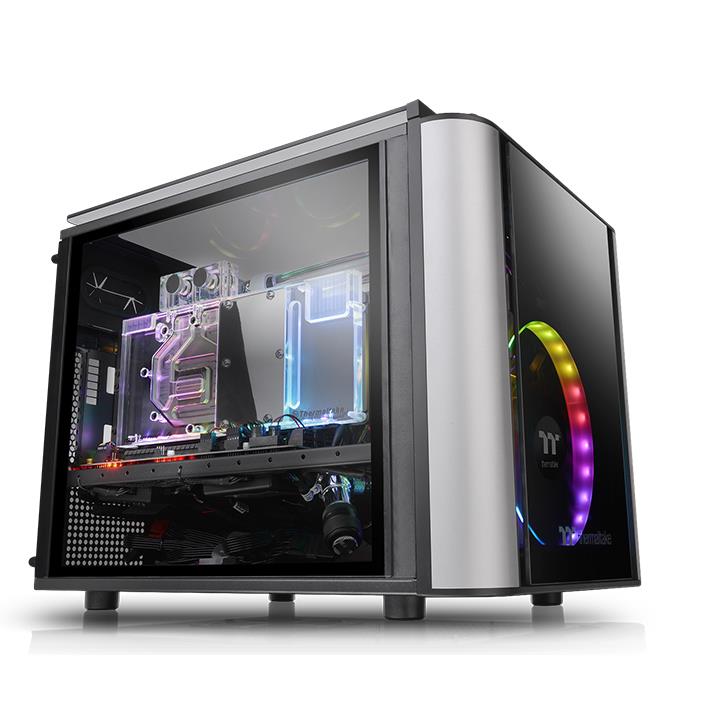

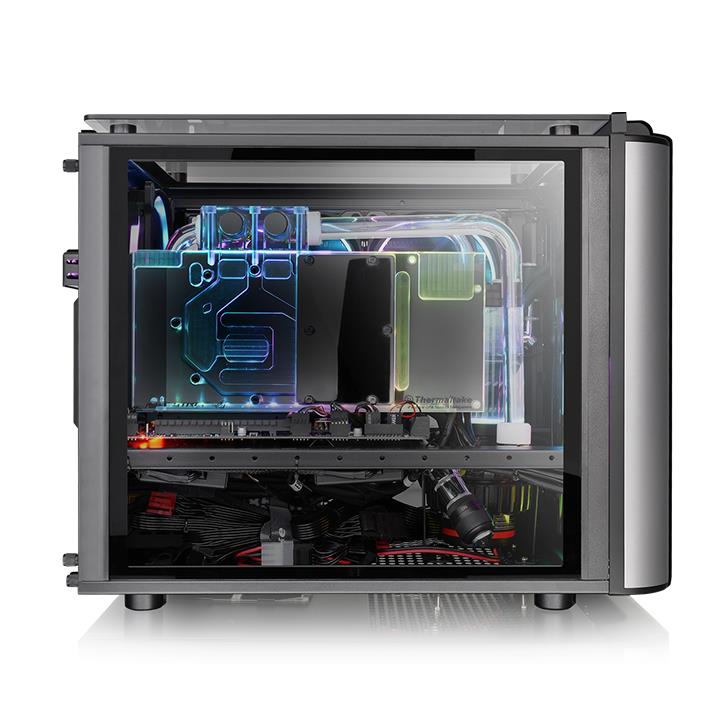

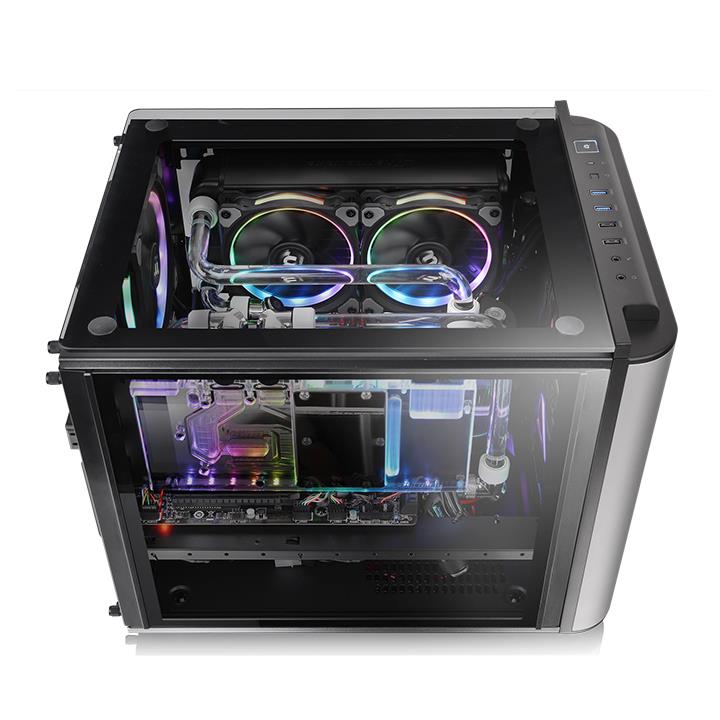

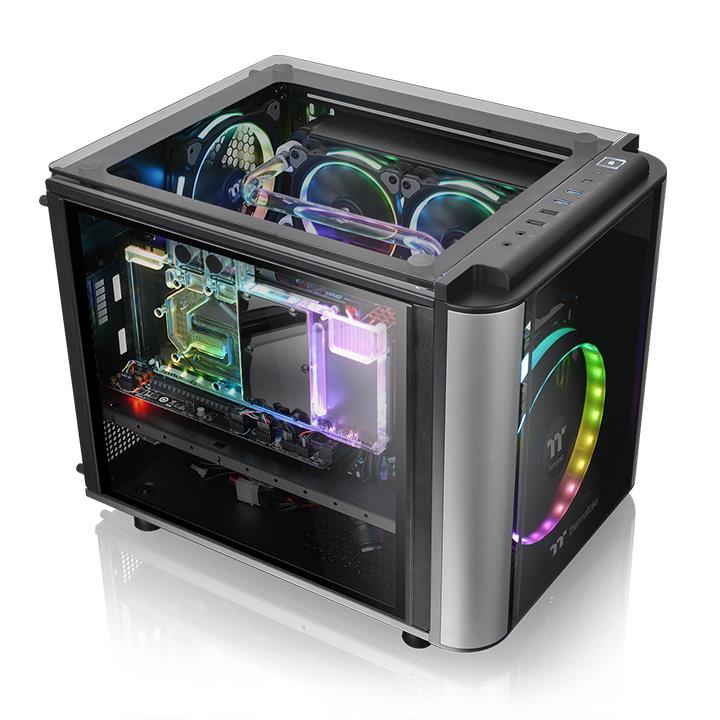

The Level 20 VT is all about big things coming in small packages. The VT supports M-ATX motherboards, as well as CPU coolers up to 185mm in height, VGA lengths up to 350mm and PSU sizes up to 200mm in length. It also supports up to two 240mm radiators side-by-side in the top panel, or one 280mm at the top or along the side. Meaning you can fit plenty of top-end hardware in this little case.
*The image is for reference only.
*One 200mm fan is included.

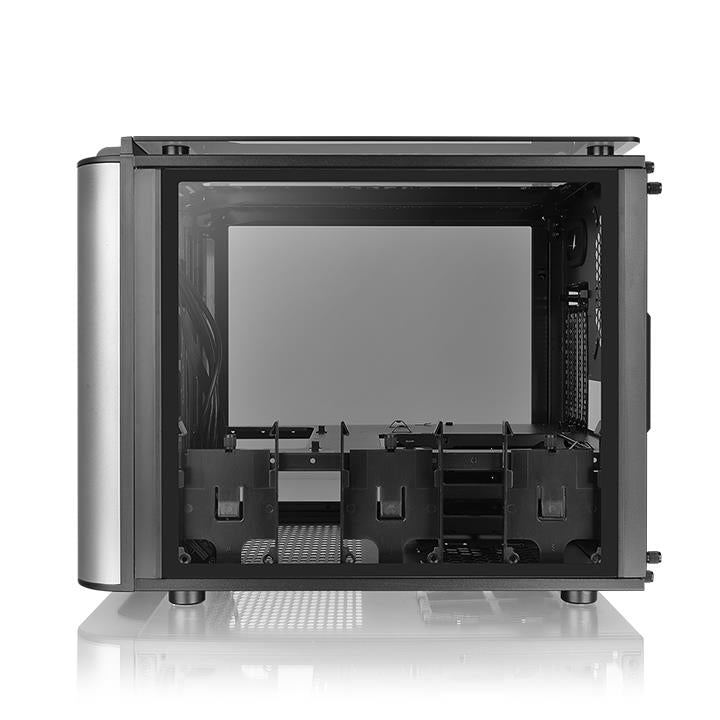

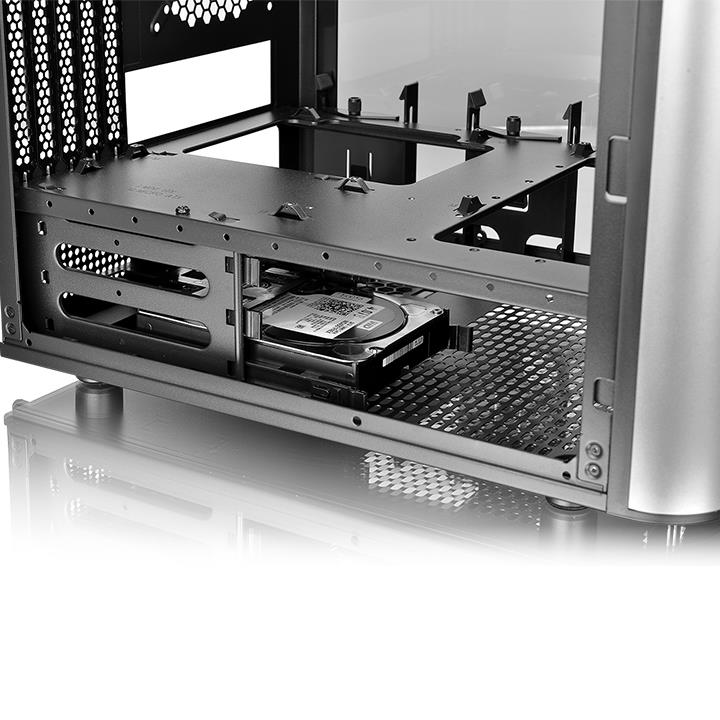

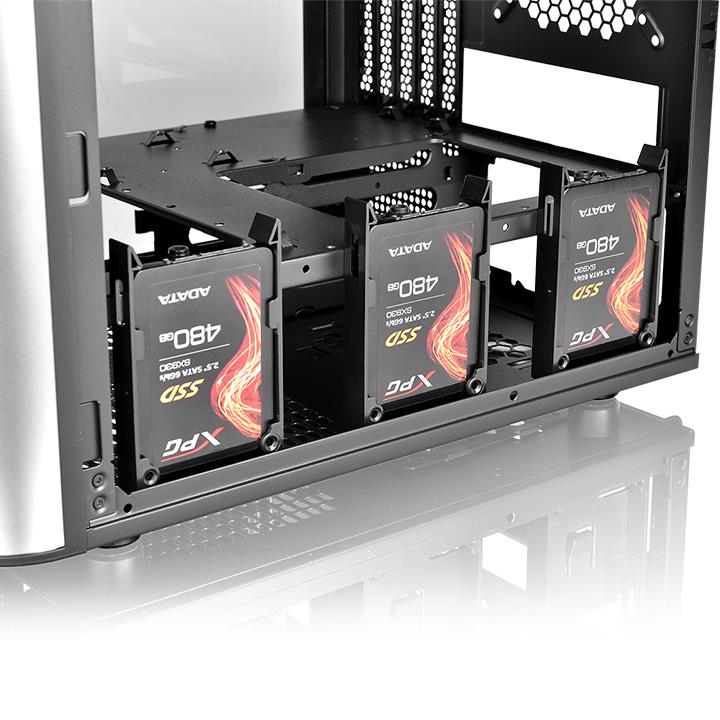

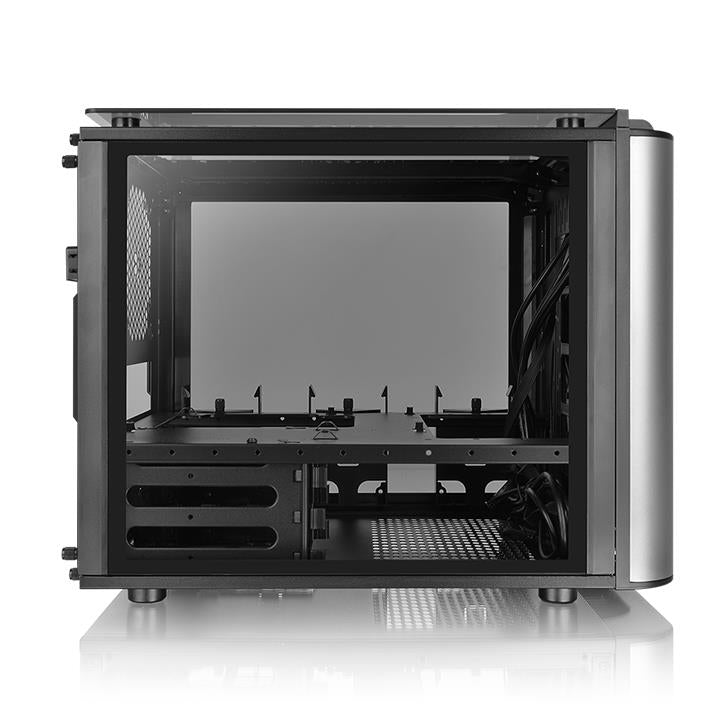

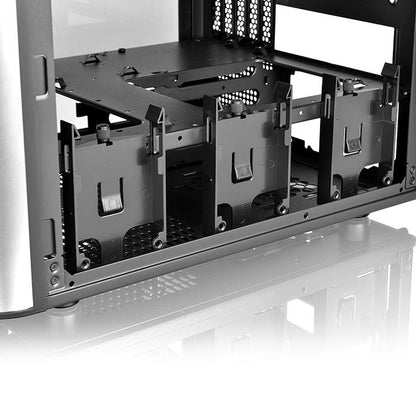

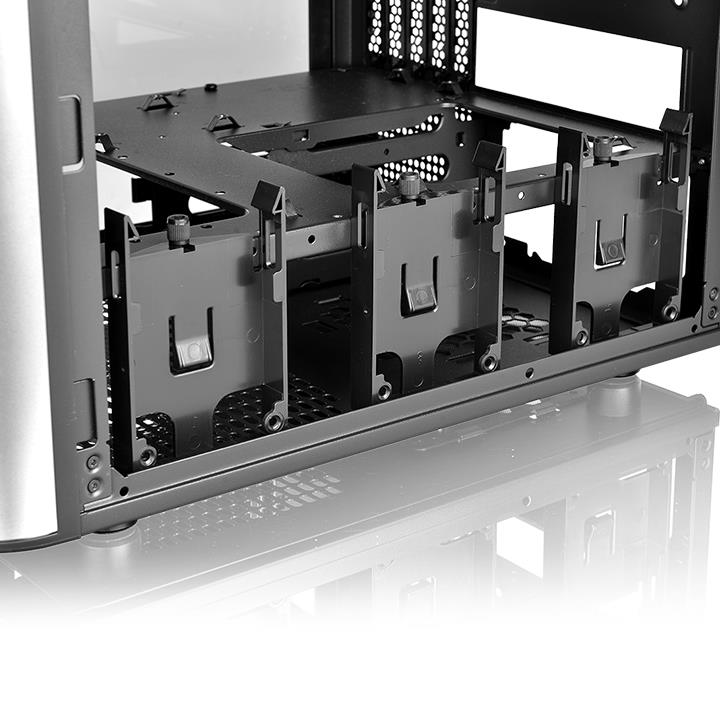

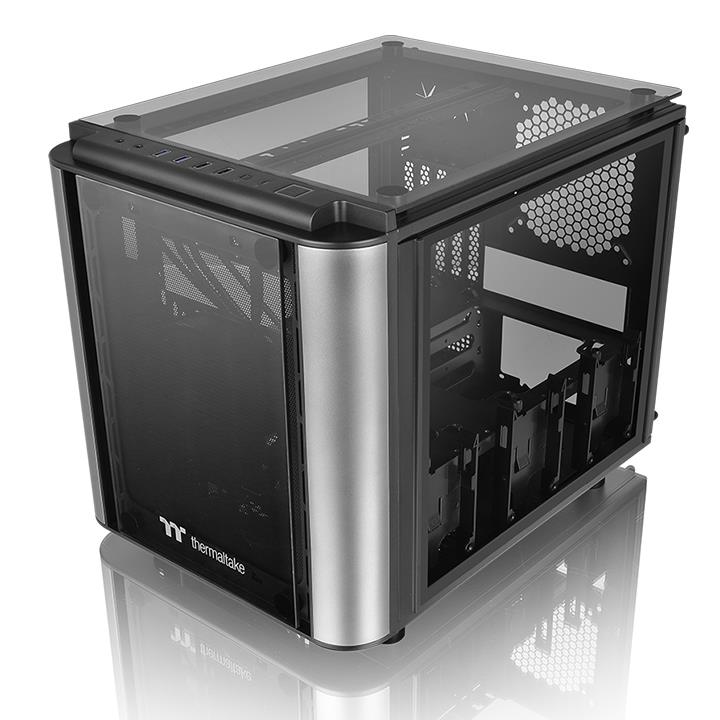

The Level 20 VT is optimized for space management. It’s divided into two main chambers: the upper chamber is made to house the motherboard and PCI-E components, while the lower one is made for the PSU and drive bays. Thanks to the removable 2.5”/3.5” drive device racks, there is plenty of flexibility to fit larger components or build a custom liquid cooling loop.
*The image is for reference only.
*One 200mm fan is included.

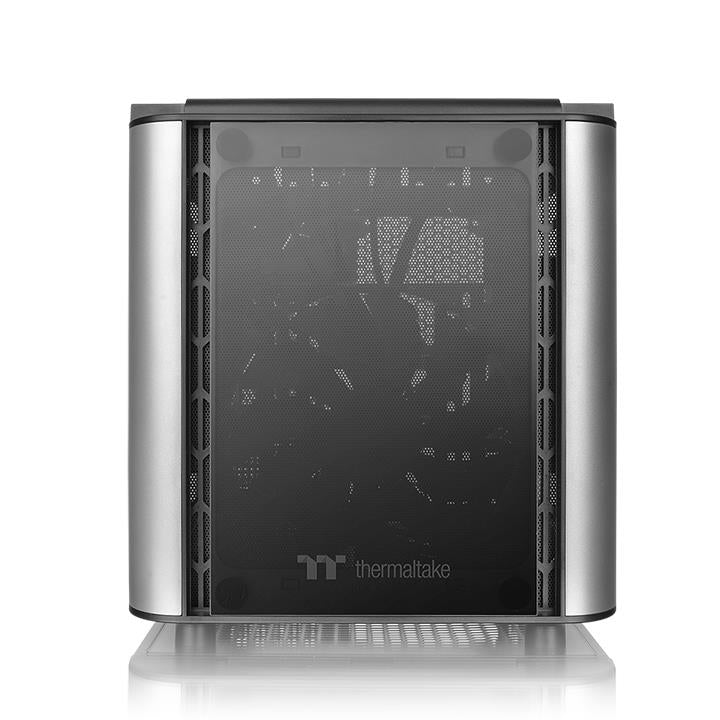

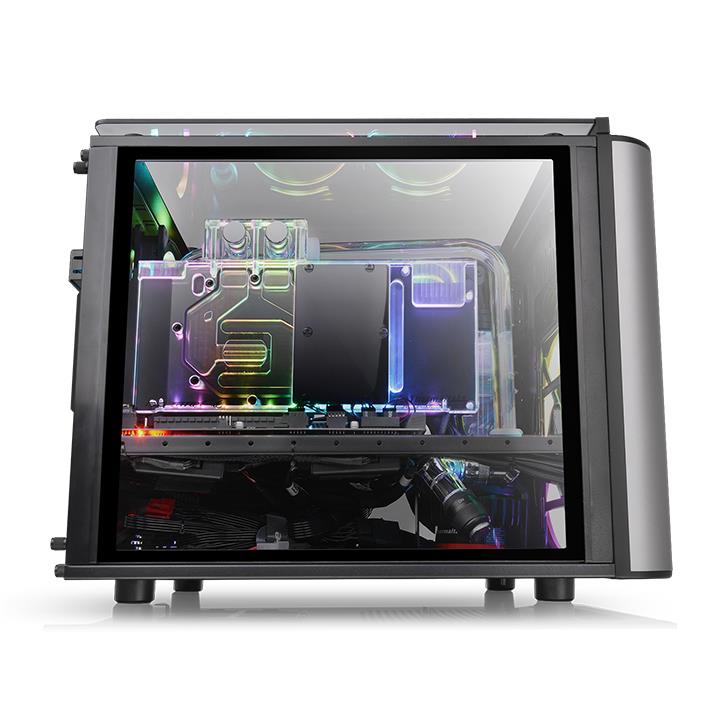

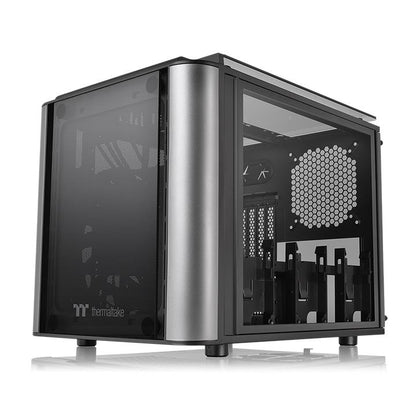

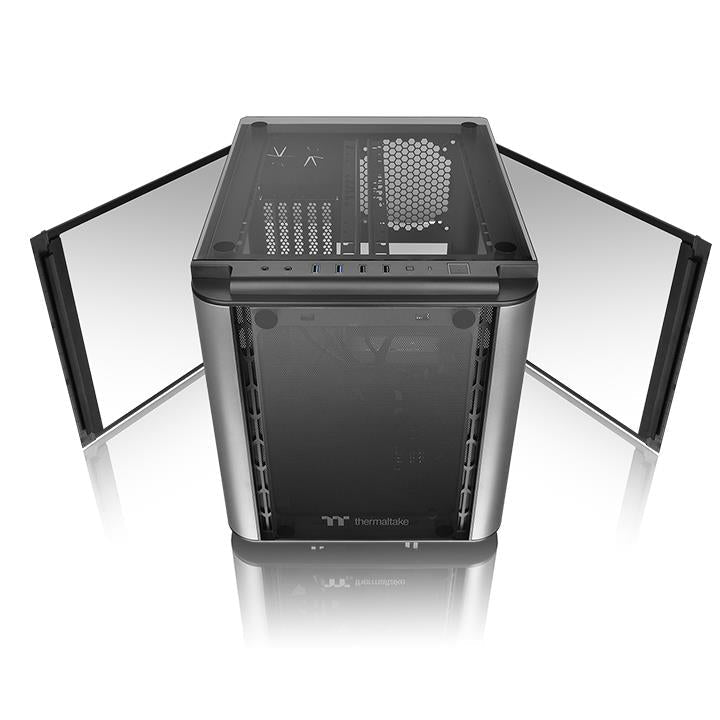

The front, top and side panels are all built from our ultra-durable 4mm tempered glass. This means the panels are more resistant to dust and scratches than acrylic and provide a clearer view of internal components.
*The image is for reference only.
*One 200mm front fan is included.

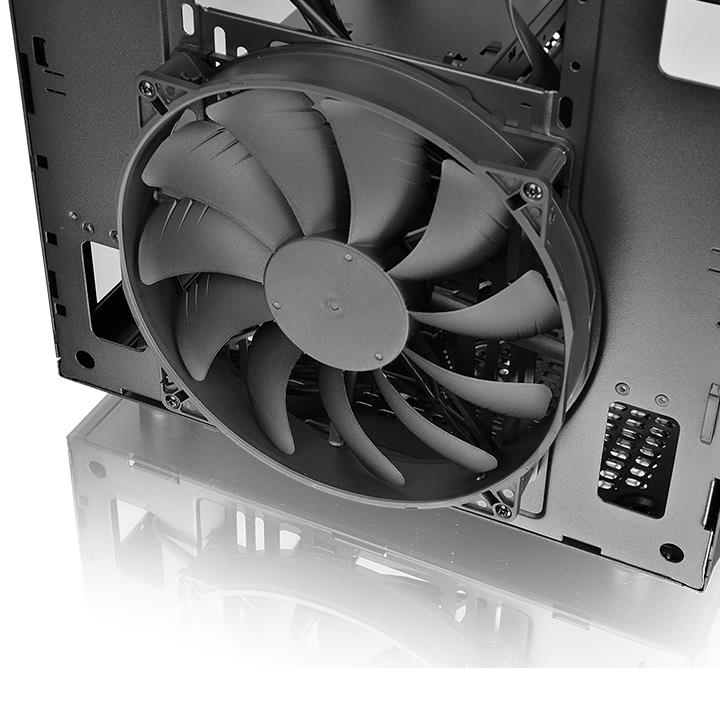

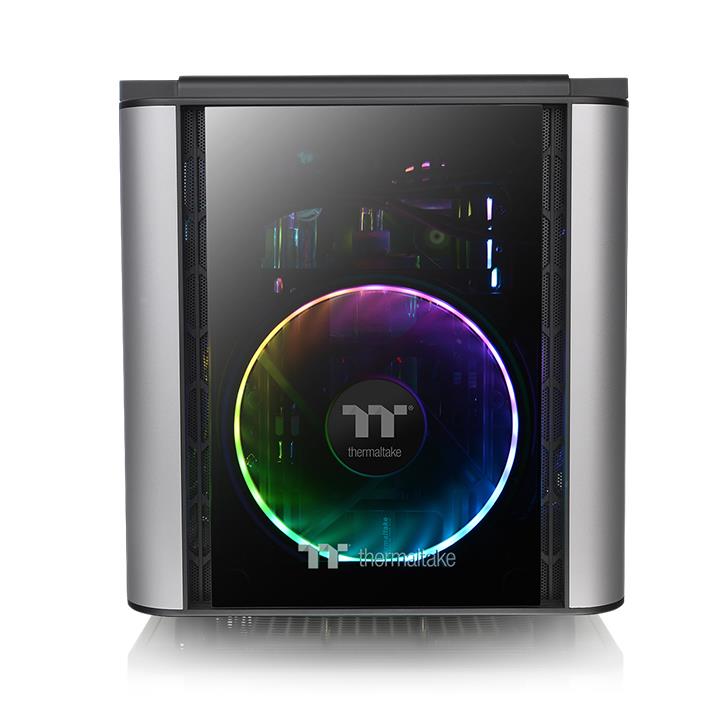

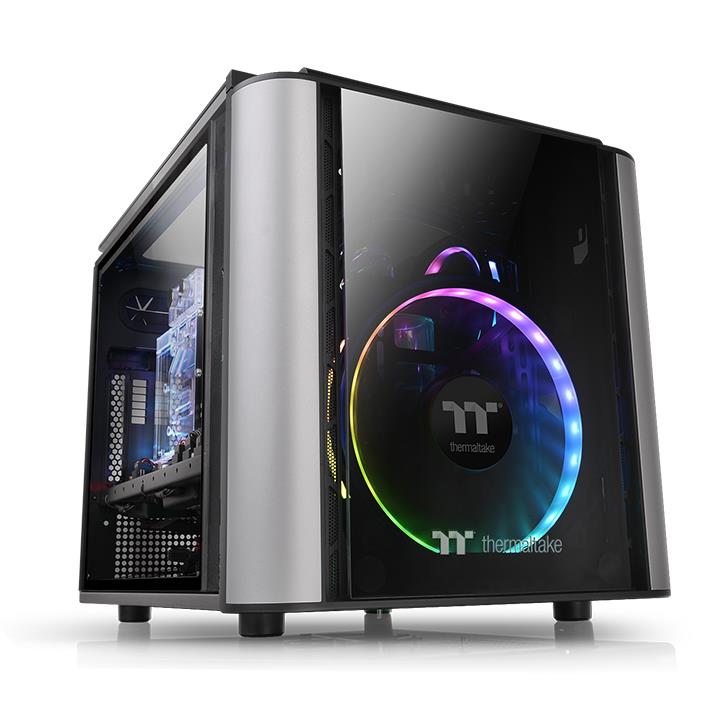

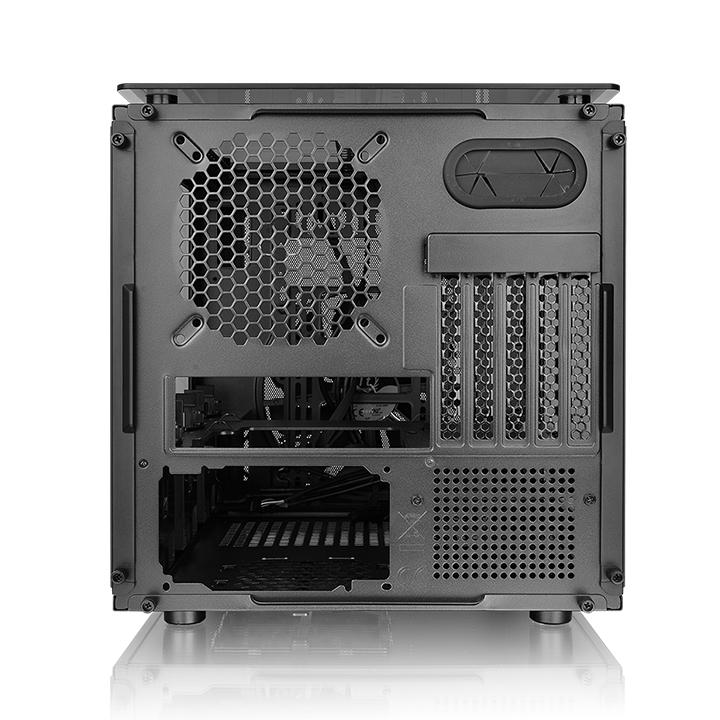

The Level 20 VT comes preinstalled with one 200mm front fan and boasts space for up to
two front
140mm fans, one 140mm rear fan and two 140mm fans on the top. If you’re building a
liquid cooling
system, it can also handle 280mm, 240mm, 140mm and 120mm radiators.

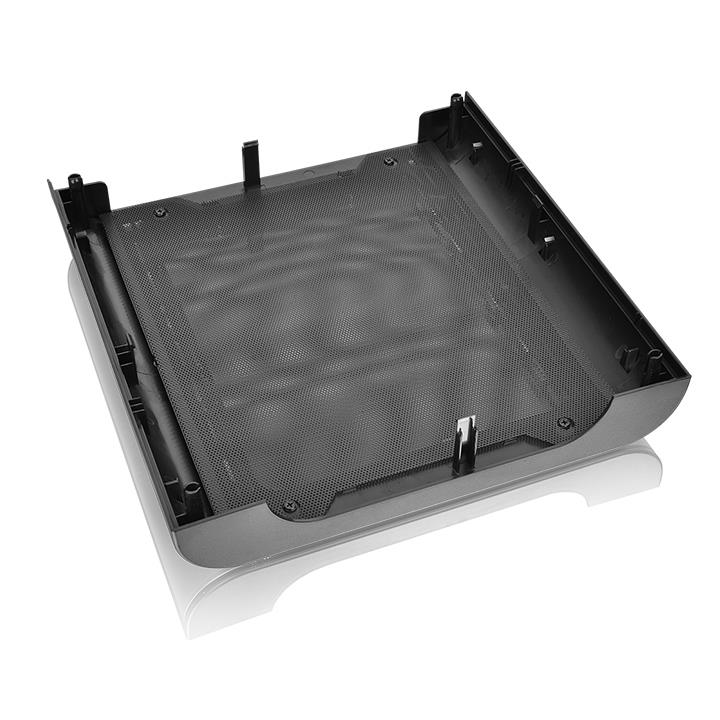

Intake areas are also protected by removable dust filters, installed in the front,
top and bottom
of the case to shield your hardware from particles in the air.
*The image is for reference only.
*One 200mm fan is included.

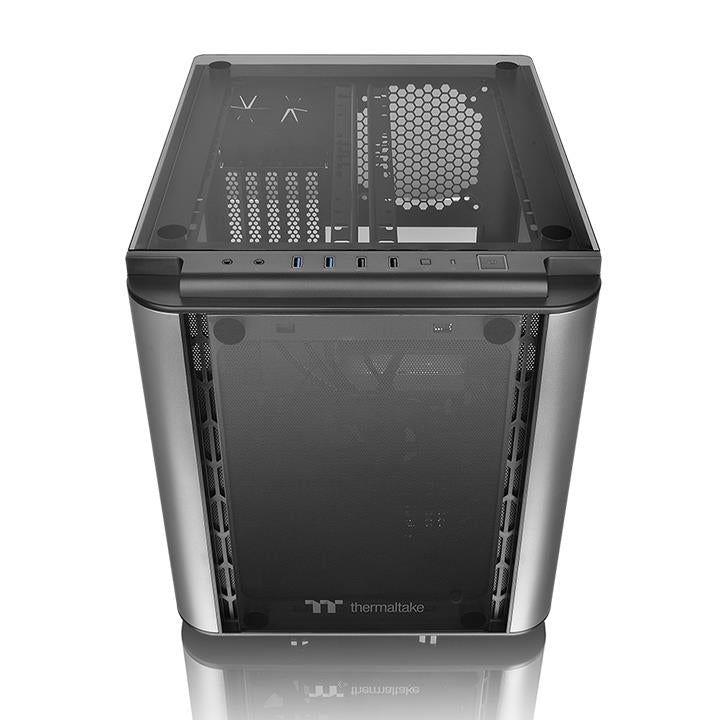

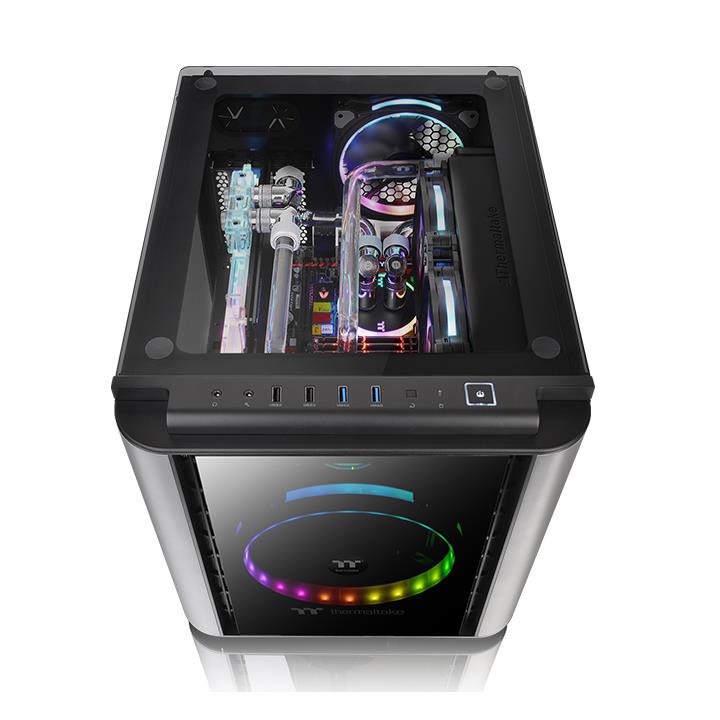

The side I/O ports features two USB 3.0 and two USB 2.0 to grant users easy access for speedy transmission.
Level 20 VT Radiator Supporting List
|
|||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||
|
||||||||||||||||||||
Product Specifications
| P/N | CA-1L2-00S1WN-00 |
|---|---|
| Model | Level 20 VT |
| Case Type | Micro Case |
| Dimensions | 348 x 330 x 430 mm (13.7 x 13 x 16.9 inch) |
| Weight | 8.66 kg / 19.09 lb |
| Side Panel | 4mm Tempered Glass x 4(Left & Right & Front & Top) |
| Color | Exterior & Interior : Black |
| Material | SPCC |
| Cooling System | Front (intake) : 200 x 200 x 30 mm fan (800rpm, 13dBA) |
| Expansion Slots | 5 |
| Motherboard | 6.7” x 6.7” (Mini ITX) , 9.6” x 9.6” (Micro ATX) |
| I/O Port | USB 3.0 x 2,USB 2.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support | Front: 2 x 120mm, 2 x 140mm, 1 x 200mm Top: 4 x 120mm, 2 x 140mm Rear: 1 x 120mm, 1 x 140mm Bottom: 2 x 120mm |
| Radiator Support | Front: 1 x 240mm, 1 x 140mm, 1 x 180mm(200mm series) Top: 2 x 240mm, 1 x 280mm, 1 x 180mm(200mm series) Rear: 1 x 120mm |
| Clearance | CPU cooler height limitation: 185mm VGA length limitation: 350mm PSU length limitation: 200mm (With Bottom Fan) |
