H700 TG Series Snow
H700 TG Series Snow
SKU:CA-1Y1-00M6WN-00
Thermaltake H700 TG Snow Series E-ATX Mid Tower Chassis are designed with the concept of clean, simple, and sleek look which can fulfill basic but important needs from PC builders.
-
Design
-
Specification
-
Download
-
How-to Videos
Thermaltake

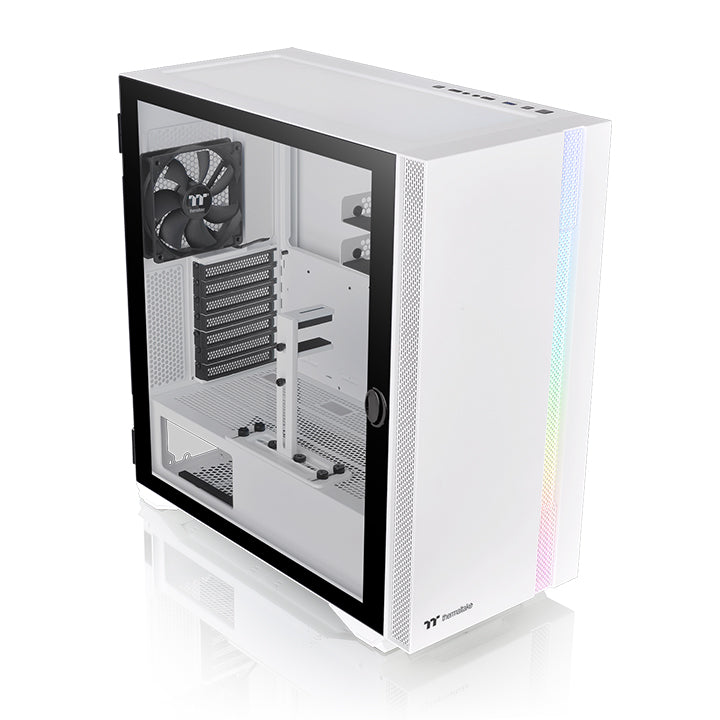

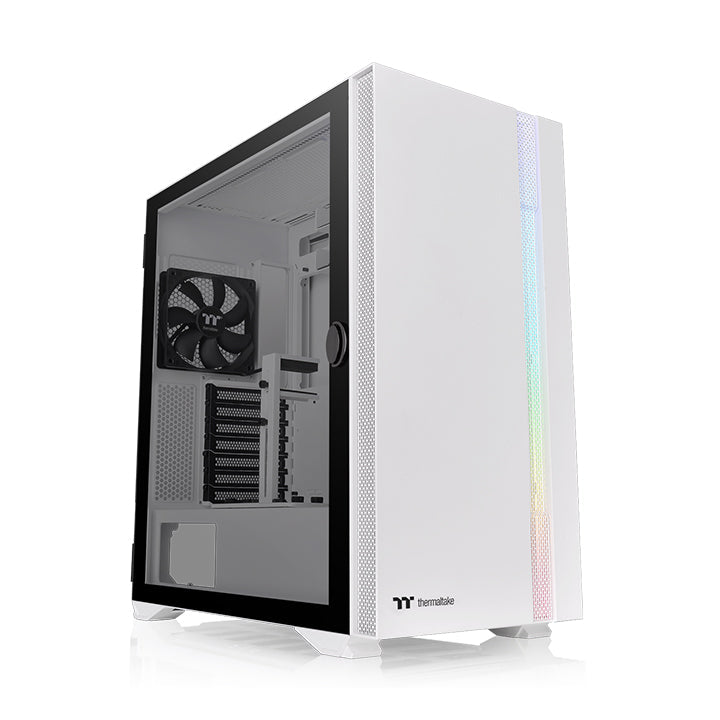

Thermaltake H700 TG Snow Series
E-ATX Mid Tower Chassis
*The image is for reference only.

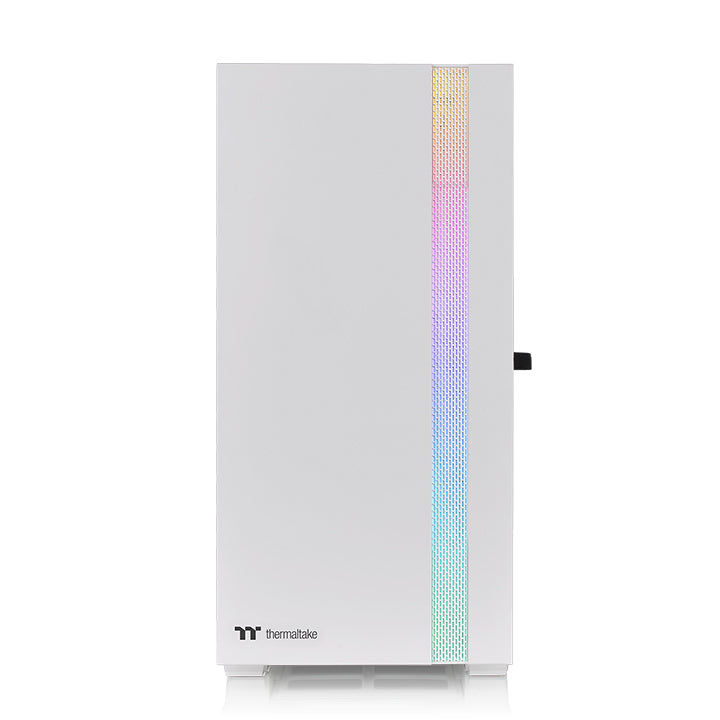

With an unique RGB light bar, the front panel of H700 TG Snow Series reveal smooth and elegant style.

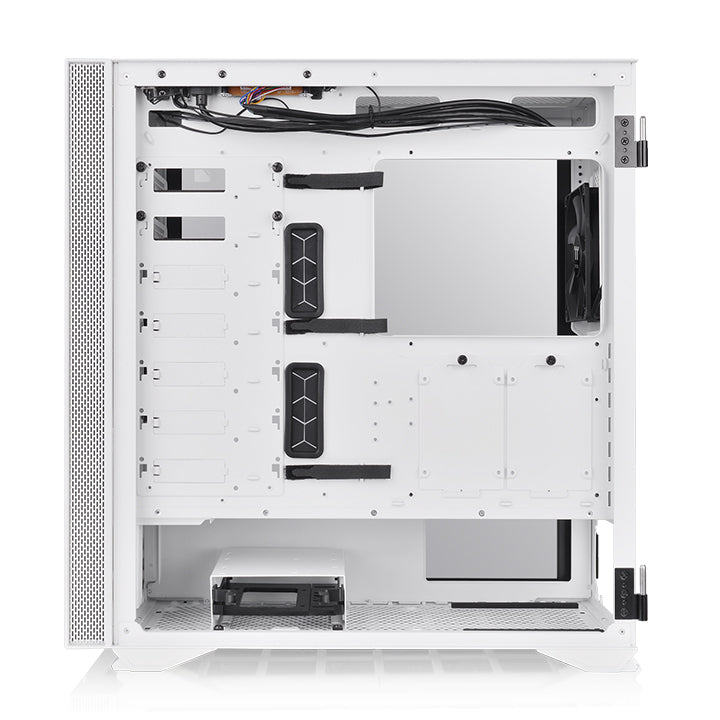

Come with a full-length PSU cover with a ventilated design to enhance the airflow and hide those unsightly cables.

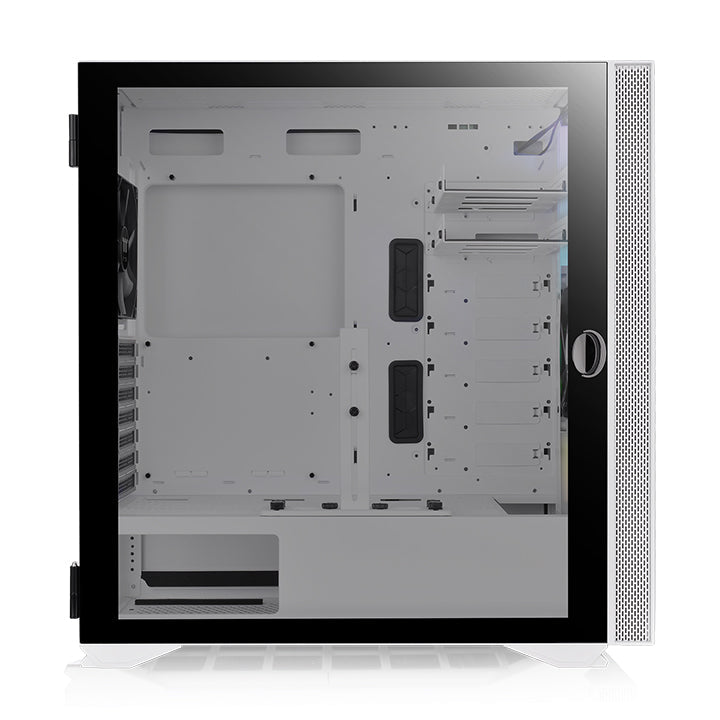

Tempered Glass Window
The H700 TG Snow Series have outstanding expandability with support for a tower CPU cooler with maximum height 180mm, a dual expansion slot VGA of up to 395mm (without radiator) in length, and a power supply with length of up to 180mm (with 3.5” HDD Drive installed) and up to 220mm otherwise.
Optimized for excellent cooling capability with 120mm fans with one at the front and one at the rear preinstalled. The case is able to house up to three 140mm front fans, up to 2x 140mm fans on top, and a radiator size up to 360mm on top to allow users to build a desired high-end system.
Handy I/O Ports
| 120mm | 240mm | 360mm | 140mm | 280mm | 420mm | |
|---|---|---|---|---|---|---|
| Front | ● | ● | ● | ● | ● | - |
| Top | ● | ● | ● | ● | ● | - |
| Rear | ● | - | - | - | - | - |
| 120mm | 140mm | 200mm | |
|---|---|---|---|
| Front | 3 | 3 | - |
| Top | 3 | 2 | - |
| Rear | 1 | 1 | - |
Product Specifications
| P/N | CA-1Y1-00M6WN-00 |
|---|---|
| Case Type | Mid Tower |
| Dimensions | 493 x 233 x 466 mm (19.4 x 9.2 x 18.3 inch) |
| Weight | 9.6 kg / 21.16 lbs. |
| Side Panel | Tempered Glass x 1 |
| Color | White |
| Material | SPCC |
| Cooling System | Front(intake): 120 x 120 x 25 mm standard fan (1100rpm, 22.5 dBA) x 1 Rear(exhaust): 120 x 120 x 25 mm standard fan (1100rpm, 22.5 dBA) x 1 |
| Expansion Slots | 7 |
| Motherboard | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13”(E-ATX) |
| I/O Port | USB 3.0 x 1, USB 2.0 x 2, HD Audio x 1, LED button x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support | Front: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mm Top: 3 x 120mm, 2 x 120mm, 1 x 120mm, 2 x 140mm, 1 x 140mm Rear: 1 x 120mm, 1 x 140mm |
| Radiator Support | Front: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Top: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Rear: 1 x 120mm |
| Clearance | CPU cooler height limitation: 180mm VGA length limitation: 340mm(With radiator) 395mm(Without radiator) PSU length limitation: 180mm(With HDD Cage) 220mm(Without HDD Cage) |
