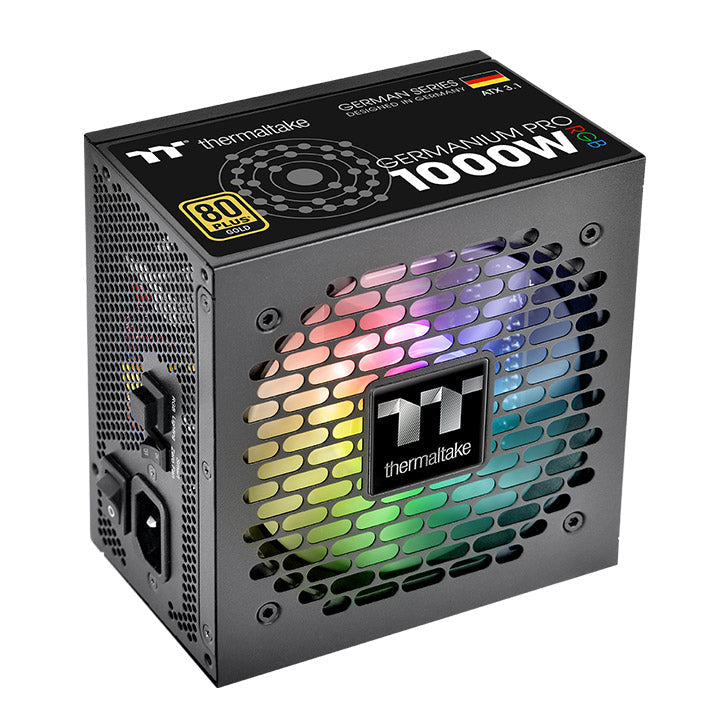

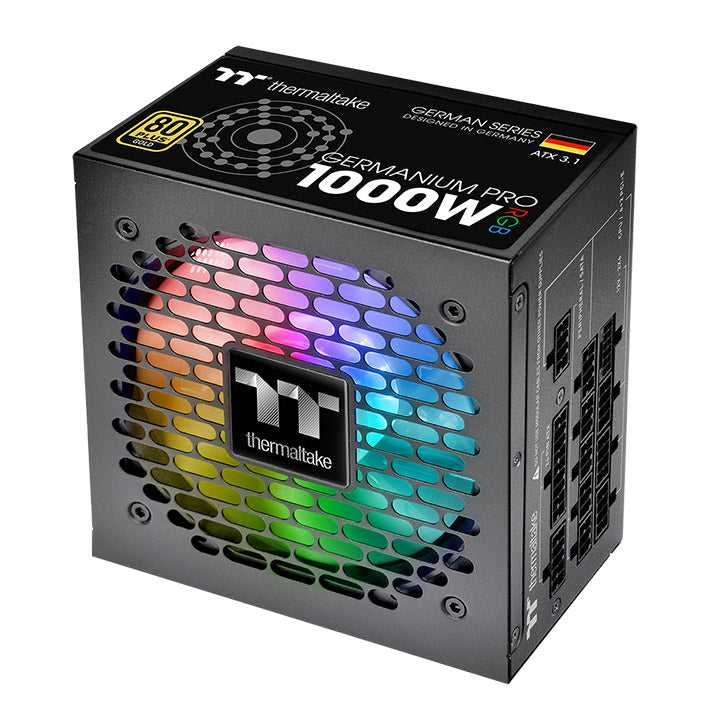

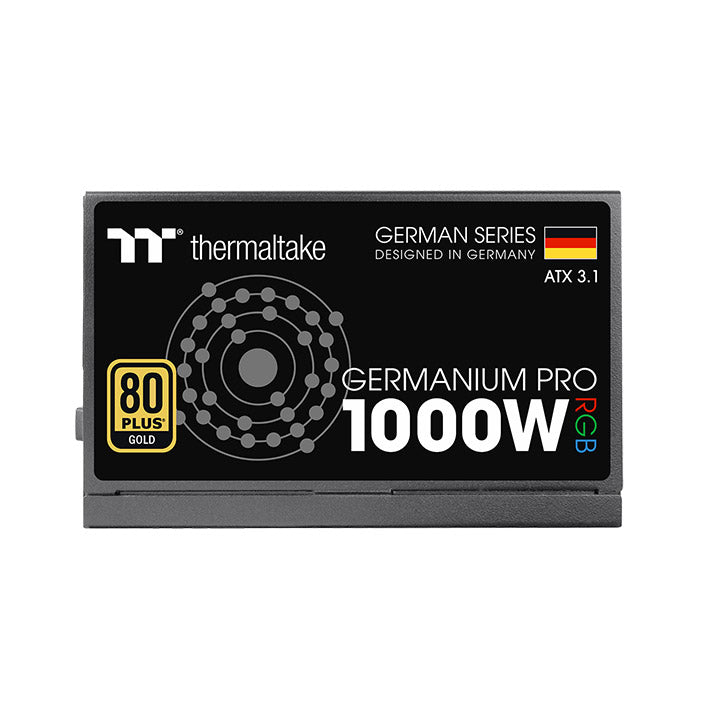

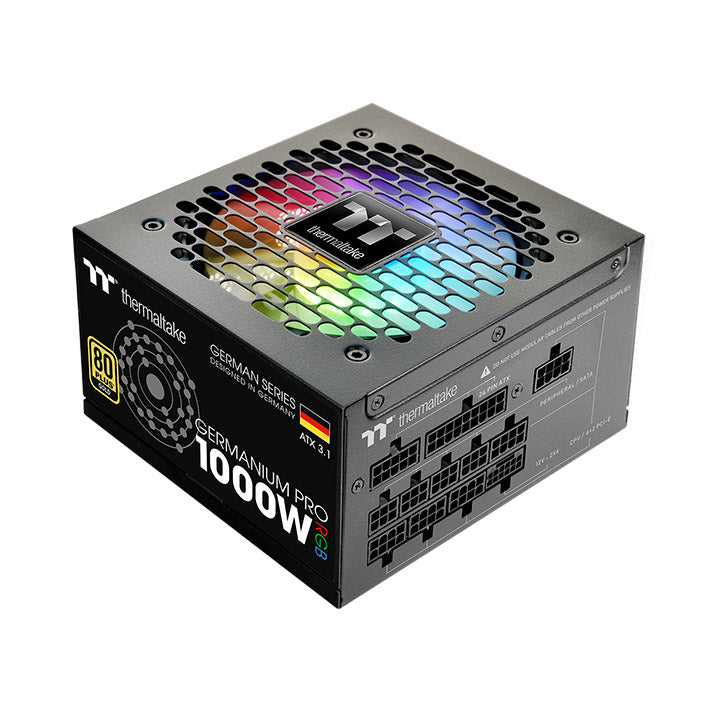

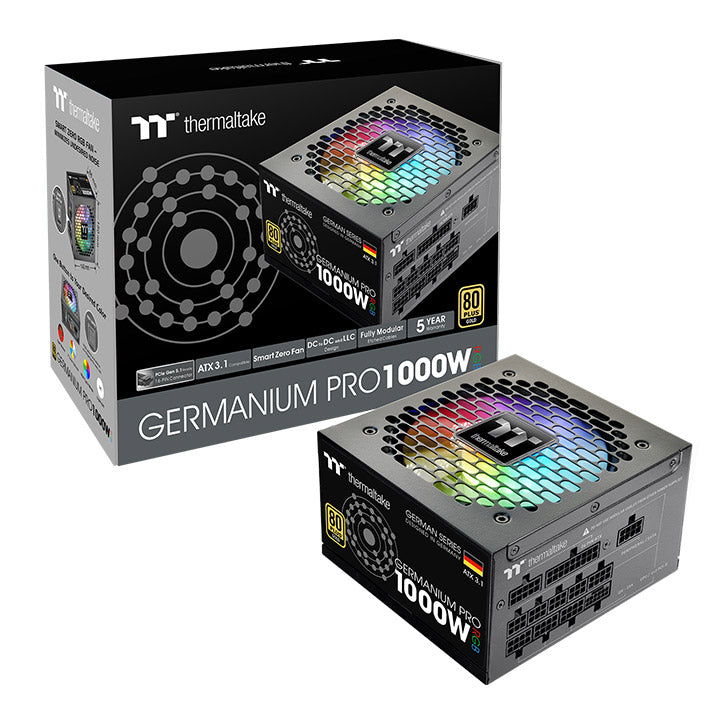

Germanium Pro RGB 1000W

Germanium Pro RGB 1000W

WG1000RE

Germanium Pro RGB 1000W is an 80 PLUS Gold certified PSU, fully compatible with ATX 3.1 specifications and designed with a native PCIe Gen 5.1 12+4pin connector to ensure powerful and stable performance with next-generation graphics cards.


View full details
en-GF1_snow_850

Germanium Pro RGB 1000W Gold Fully Modular

The Germanium Pro RGB Gold Series features a high airflow patented RGB fan with seven color options, a 256 color cycle, and a memory function. With 1000W output, 80 PLUS Gold certification, and fully modular low profile cables, it provides stable and efficient power while offering customizable aesthetics for any build.

Germanium Pro RGB 1000W Gold Fully Modular

Ultra Quiet Smart Zero Fan

Equipped with Smart Zero Fan technology and an ultra quiet 120mm hydraulic bearing fan, the Germanium Pro RGB 1000W delivers excellent cooling performance while minimizing unwanted noise. Enjoy stable power with silent operation.

Ultra Quiet Smart Zero Fan

Color at Your Fingertips

Germanium Pro RGB comes with multiple lighting effects with 7 color options: Red, Green, Blue, Yellow, Purple, Light Blue, White, and 256 colors RGB cycle. (LED off mode available)

Smart BM3 Bronze Power Supply featuring Smart Zero Fan function Color at Your Fingertips

ATX 3.1 Ready

Germanium Pro RGB 1000W is fully compatible with Intel ATX 3.1 specifications, supporting up to 200% power excursion, reaching 60% efficiency at low load, and meeting all required power supply timing standards.

ATX 3.1

ATX 2.0

Total power excursion

2X
1.3X
2X
Total Power Excursion
3X
GPU Power Excursion
ATX 3.1 Ready

PCIe Gen 5.1 Ready

Germanium Pro RGB 1000W comes with a native 12+4pin (12V-2x6) connector to deliver powerful and stable performance, enabling full support for the latest PCIe Gen 5.1 graphics cards.
The wattage marked on the 12V-2x6 connector follows Intel’s recommended design guideline. With the included PCIe Gen 5 cable, the Germanium Pro RGB 1000W ensures seamless compatibility with next-generation GPUs.

PCIe 12V-2x6 connector illustration

Note:
1. Recommended wattage is an estimation of system power demand. Actual power demands may vary based on specific components, usage, and many other factors.
2. Please follow the recommended power requirements from the GPU manufactures before using the PCIe 12V-2x6 cable.

16pin Connector

PCIe Gen 5.1 Ready

Be Smart, Stay Quiet

Featuring an ultra-quiet 120mm hydraulic bearing fan with Smart Zero Fan technology, the Germanium Pro RGB PSU delivers efficient and silent cooling. Fully modular low-profile etched black cables allow users to achieve cleaner builds and optimize airflow inside the chassis.

Be Smart, Stay Quiet

High Amperage Single +12V Rail & High-Class Technologies

The powerful single +12V rail design delivers stable and reliable power for maximum compatibility. Combined with advanced LLC and DC to DC circuit design, it ensures precise electrical output, stable operation, and enhanced voltage regulation.

AC INPUT

Input Voltage: 100-240V～
Input Current: 15 - 10A
Frequency: 50Hz/60Hz

DC OUTPUT+3.3V+5V+12V-12V+5VSB
Max Output Current20A20A83.3A0.3A3A
Max Output Power100W999.6W 3.6W15W
Total Power1000W
High Amperage Single +12V Rail & High-Class Technologies

Built-in industrial grade protection

To protect your hardware, Germanium Pro RGB 1000W is built with industry grade protections: OCP (Over Current Protection), OVP (Over Voltage Protection), UVP (Under Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection).

  • OCP

    Over Current Protection

  • OVP

    Over Voltage Protection

  • UVP

    Under Voltage Protection

  • OPP

    Over Power Protection

  • SCP

    Short Circuit Protection

  • OTP

    Over Temperature Protection

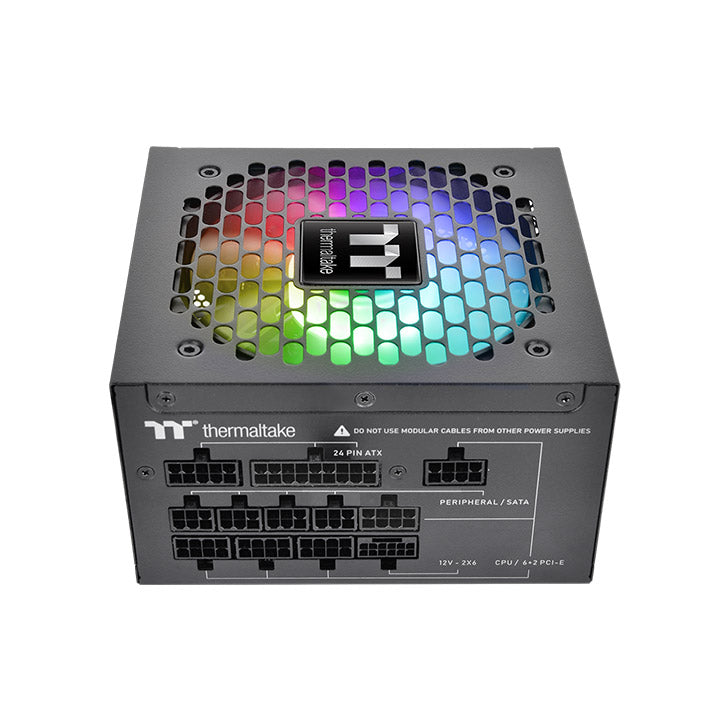

Fully Modular Low-Profile Cables

Fully modular low-profile etched black cables offer users greater flexibility during PSU installation. They help simplify cable management, reduce clutter, and improve airflow inside the chassis.

Connector TypeConnector QuantityCable QuantityCable Length
Main Power
(20+4Pin)		X 1Main Power (20+4Pin) cable illustrationX 1550mm
ATX 12V
(4+4Pin)		X 2ATX 12V (4+4Pin) cable illustrationX 2700mm
PCIe
(6+2Pin)		X 5PCIe (6+2Pin) cable illustration (single)X 1600mm
PCIe (6+2Pin) cable illustration (daisy chain)X 2600mm+150mm
PCIe
(12+4Pin)
600W		X 1PCIe (12+4Pin) 600W cable illustrationX 1600mm
SATA
(5Pin)		X 6SATA (5Pin) cable illustrationX 2450mm+150mm+150mm
Peripheral
(4Pin)		X 4Peripheral (4Pin) cable illustrationX 1450mm+150mm+150mm+150mm

80 PLUS Gold Certified

80 PLUS Gold certified, the 1000W model delivers up to 90% energy efficiency, minimizing power loss and heat generation even under full load.

80 PLUS Gold Certified

Product Specifications

P/N WG1000RE
Model TPD-1000AH2FXG-3
Max Output Capacity 1000W
Color Black
Dimensions 150mm(W)x86mm(H)x140mm(D)
PFC (Power Factor Correction) Active PFC
Power Good Signal 100-250 msec
Hold Up Time > 17msec at 80% load
Input Current 15 - 10A
Input Frequency Range 50Hz-60Hz
Input Voltage 100-240Vac
Operating Temperture 0°C to + 40°C
Operating Humidity 5% to 85%,non-condensing
Storage Temperture -40°C to + 70°C
Storage Humidity 5% to 95%, non-condensing
Cooling System 12cm Hydraulic bearing fan
Efficiency Meet 80 PLUS® Gold at 115Vac input.
MTBF 100,000 hrs minimum
Safety Approval CE/UKCA/ICES/TUV/LVD/RCM/CB/FCC/cTUVus/BSMI/CCC/BIS/S-MARK/EAC
PCI-E 6+2PIN 5
