Frio Silent 12
Frio Silent 12
SKU:CL-P001-AL12BL-B
- Non-Interference Cooling design
- 120mm fan enhance air pressure with low noise level
- 3 x Ø8 mm U-shape copper heat pipes support up to 150W
-
Design
-
Specification
-
Download
-
How-to Videos

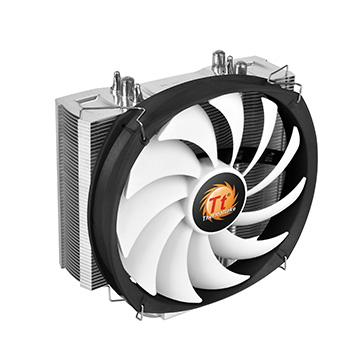

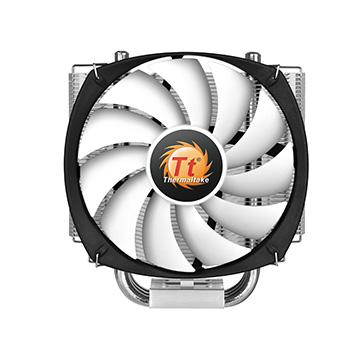

Frio Silent 12
Thermaltake new Frio Silent Series - Frio Silent 12, another CPU cooler with non-interference cooling design for the use of high performance RAM and motherboards, special designed 120mm fan silently enhance air flow to aid in performance. Fully compatible with RAM of all kinds, ideally for power users to fill their RAM slots with high-end overclocked RAM.
Non-Interference Cooling Design
Frio Slient 12 solves the co-existing problem on high performance RAM and CPU coolers, it achieves the best RAM clearance allowing user to easily install high-end overclock RAM with CPU coolers.
Performance Optimized Design

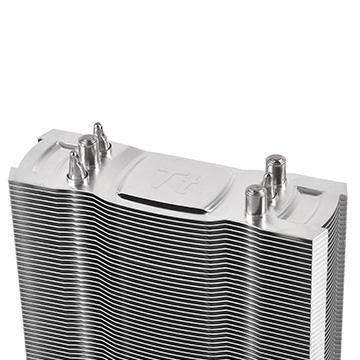

Optimized 0.4mm aluminum fins are designed not only for distinctive looks but also for rapid heat dissipation. Tower side flow design optimizes the cooling performance.

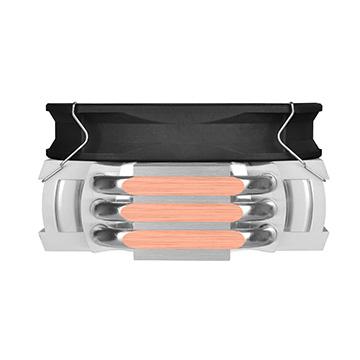

Heat Conductivity

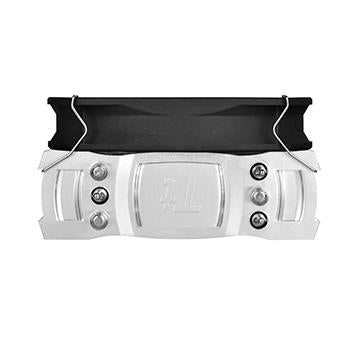

3 x Φ8mm solid cooper heat-pipes dissipate heat effectively allowing maximum heat conductivity. Heat-pipes are in Direct Contact with the CPU to ensure fast and efficient heat dissipation.
PWM and LNC in One
A 120mm PWM fan is fitted to enhance air flow to produce impressive cooling performance up to 1400RPM. LNC (Low Noise Cable) can reduce 38% noise level from 19.2 dBA to 12 dBA.

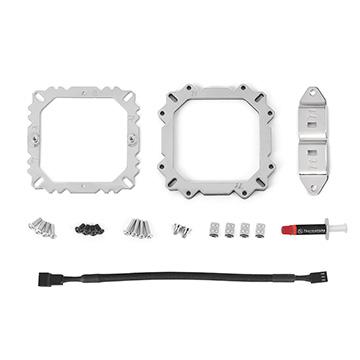

Universal Socket Compatibility
Support all latest Intel and AMD platform, including Haswell LGA1150
Product Specifications
| P/N | CL-P001-AL12BL-B |
|---|---|
| Compatibility | Intel LGA 2066/2011/1366/1200/1156/1155/1151/1150/775 AMD AM4/FM2/FM1/AM3+/AM3/AM2+/AM2 |
| Heatsink Material | Aluminum Fins Copper Heatpipes |
| Heatpipe | Φ8mm x 3 pcs |
| Fan Dimensions | 120 x 120 x 25 mm(L xW x H) |
| Fan Speed | 500~1400 RPM 300~700 RPM (with LNC ) |
| Started Voltage | 7.0 V |
| Rated Voltage | 12V |
| Rated Current | 0.2 A |
| Power Input | 2.88 W |
| Air Flow | 55.88 CFM |
| Static Pressure | 1.25 mm-H2O |
| Noise | 19.2 dBA 12 dBA |
| Life Expectation | 50,000 hours |
| Pin Connect | 4 pin PWM |
| Cooling Power | 150 W |
| Noise | 19.2 dBA 12 dBA |
| Weight | 530g |
