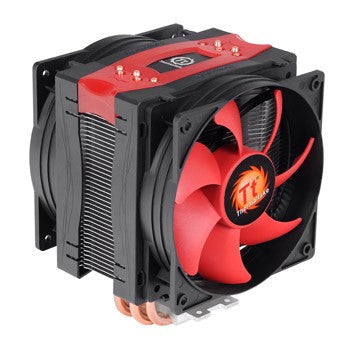

Frio Advanced
Frio Advanced
SKU:CLP0596
Heat-pipe Direct Touch Technology, Supports 230W Cooling Performance
-
Design
-
Specification
-
Download
-
How-to Videos
Features
- Heat-pipe Direct Touch Technology, Supports 230W Cooling Performance
- Dual 13cm Over-clocking Fan, PWM controllable with 800~2,000 RPM Speed
- Universal Socket Compatibility & Accessory Package
Detailed Feature
Heat-pipe Direct Touch Technology, Supports 230W Cooling Performance

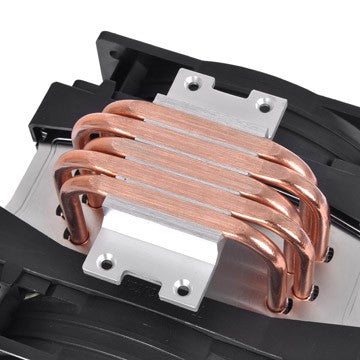

- 5 x Ø6 mm heat-pipes direct touch CPU surface increasing heat conductivity.

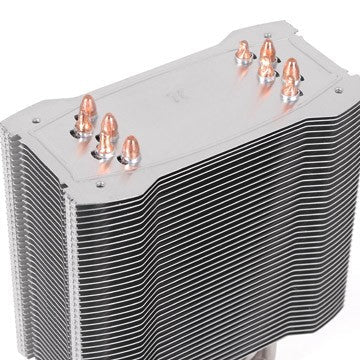

- High density Aluminum fins allow larger surface area to quick dissipate heat.
- Premium thermal grease maximizes heat transfer from the CPU into the cooler base for rapid dissipation.

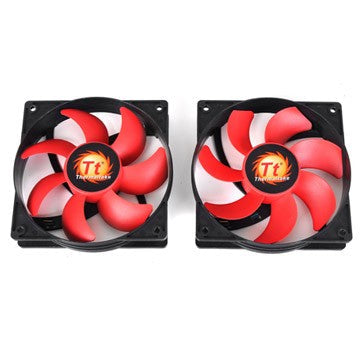

Dual 13cm Over-clocking Fan, PWM function with 800~2,100 RPM Speed
- A pair of high performance red bladed fans generate excellent cooling power.

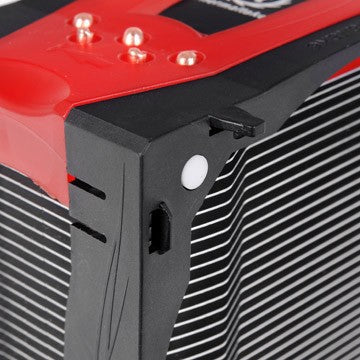

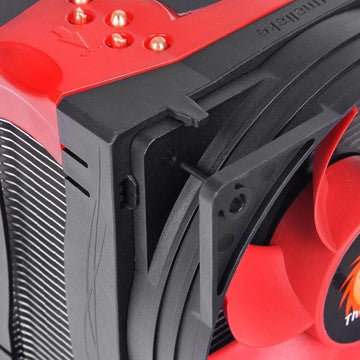

- Tool-less fan installation provides great convenience for users.
- Vibration-absorbent gaskets decrease noise during operation.
- Fan speed at the lowest RPM provides good performance and very low noise.

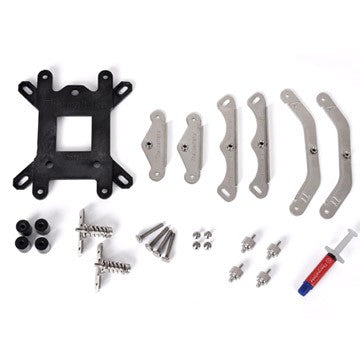

Universal Socket Compatibility & Accessory Package
- All-in-one back-plate design, offers support for all Intel and AMD platforms
- Universal socket support : Intel: LGA 2011, LGA1366, LGA1156, LGA1155, LGA775AMD: FM1, AM3+, AM3, AM2+, AM2
Dimension
Intel Motherboard Installation
| Step 1 | Step 2 |
 |  |
Step One: Insert the four long screws through the back-plate into the four holes on the motherboard and secure them with the four plastic spacers. | Step Two: Put the two Intel mounting bars along the four long screws and secure them with four nuts. |
| Step 3 | Step 4 |
 |  |
Step Three: Remove two fans from the cooler before installation. | Step Four: Securing the two T-mounting bars to the base of cooler by short screws. |
| Step 5 | Step 6 |
 |  |
Step Five: Applying a thin layer of thermal grease | Step Six: Place the assembled heat-sink onto the CPU and tighten each fixing bolts evenly. |
| Step 7 | Step 8 |
 |  |
Step Seven: Place a fan to the fan duct at a slanted angle and push the top of fan until hearing a “click” sound. Repeat steps for the other fan. | Step Eight: Connect the 4-pin wire to the motherboard’s CPU fan connector. Installation is done. |
AMD Motherboard Installation
| Step 1 | Step 2 |
 |  |
Step One: Insert the four long screws through the back-plate into the four holes on the motherboard and secure them with the four plastic spacers. | Step Two: Put the two AMD mounting bars along the four long screws and secure them with the four nuts. |
| Step 3 | Step 4 |
 |  |
Step Three: Remove two fans from the cooler before installation. | Step Four: Securing the two T-mounting bars to the base of cooler by short screws. |
| Step 5 | Step 6 |
 |  |
Step Five: Applying a thin layer of thermal grease | Step Six: Place the assembled heat-sink onto the CPU and tighten each fixing bolts evenly. |
| Step 7 | Step 8 |
 |  |
Step Seven: Place a fan to the fan duct at a slanted angle and push the top of fan until hearing a “click” sound. Repeat steps for the other fan. | Step Eight: Connect the 4-pin wire to the motherboard’s CPU fan connector. Installation is done. |
Airflow Chart
Product Specifications
| P/N | CLP0596 |
|---|---|
| Compatibility | Intel LGA 2011 LGA 1366 Core i7 LGA 1155/1156/1151/1150 Core i7 / Core i5 / Corei3 LGA 775 Core 2 Extreme / Core 2 Quad / Core 2 Duo / Pentium D / Pentium 4/Pentium / Celeron D / Celeron AMD FM1 A-series AM3+ / AM3 Phenom II / Athlon II / Athlon / Sempron series AM2+ / AM2 Phenom II / Phenom / Athlon / Sempron series |
| Dimensions | 130.6(L) X 122(W) x 159.2(H) mm |
| Heatpipe | 6mm x 5PCS |
| Connector | 4 |
| Fan Speed | 800~2000RPM |
| Started Voltage | 6V |
| Rated Voltage | 12V |
| Rated Current | 0.5A |
| Max Air Flow | 88.77CFM |
| Static Pressure | 2.7 mmH2O |
| Noise | 21~44 dBA |
| Life Expectation | 50,000 Hours |
| Noise | 21~44 dBA |
| Weight | 954g |
