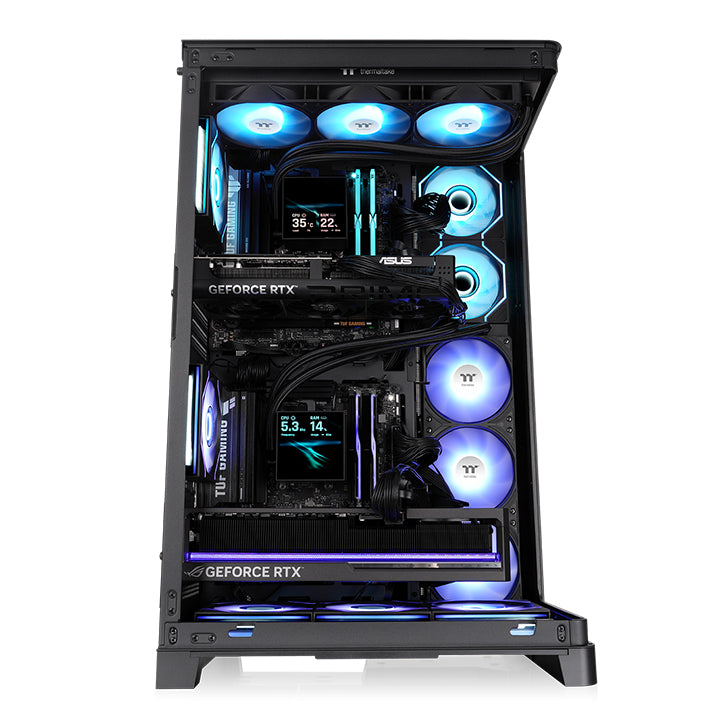

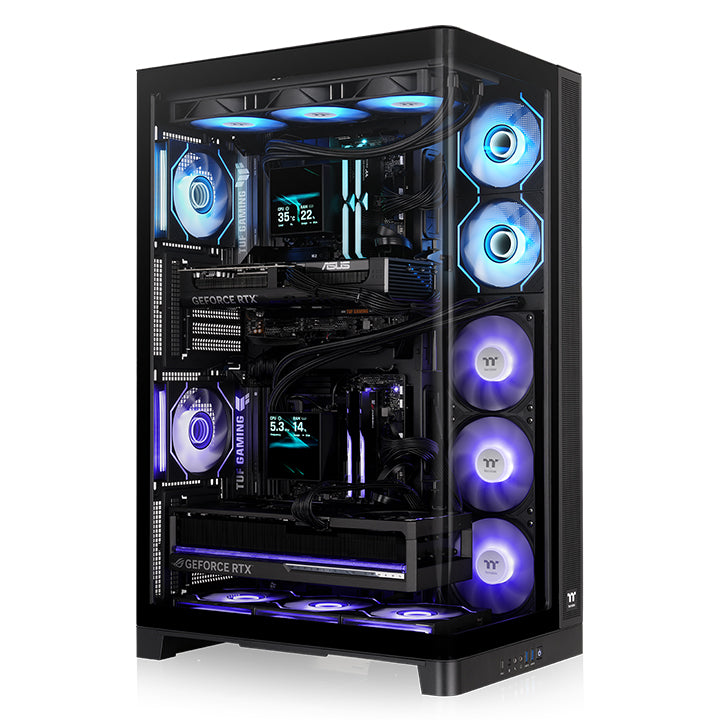

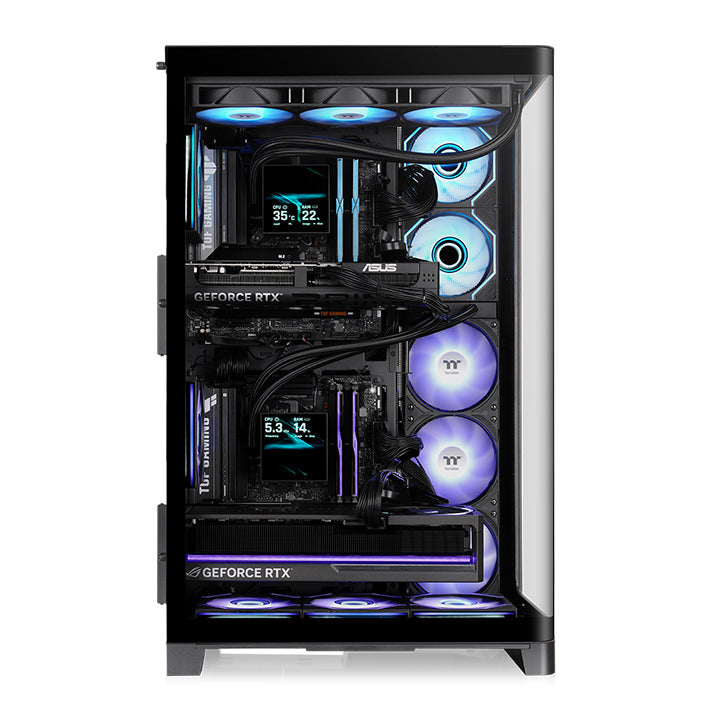

The CAPO X Dual AI Gaming PC houses two independent systems in a single chassis, giving users the flexibility to divide AI, gaming, and streaming workloads. The AI system features an AMD Ryzen™ 9 9950X processor, a GeForce RTX™ 5090 32GB GPU, and 64GB of DDR5 memory. The second system features an Intel® Core™ Ultra 9 285K processor, a GeForce RTX™ 5070 12GB GPU, and 32GB of DDR5 memory. Each system has its own 2TB PCIe Gen4 NVMe SSD, along with dedicated computing resources, allowing users to assign AI applications, gaming, streaming, and everyday tasks to separate systems for work, creativity, and entertainment.
The Thermaltake CAPO X Dual AI Gaming PC redefines what a single PC can be by uniting two complete, high-performance systems in one striking chassis.
Each system runs independently with its own components, so one can game while the other streams, or one serves as an AI Agent while the other as the everyday PC.
The image is for reference only.
Multimedia System (Top)
GeForce RTX™ 5070 12GB
GPU
Intel® Core™ Ultra 9 285K
Processor
32 GB (2 x 16GB)
DDR5 Memory
2TB PCIe Gen4 NVMe SSD
Storage
AI Gaming System (Bottom)
GeForce RTX™ 5090 32GB
GPU
AMD Ryzen™ 9 9950X
Processor
Total 64 GB (2 x 32GB)
DDR5 Memory
2TB PCIe Gen4 NVMe SSD
Storage
AI Agent
The image is for reference only.
01 / 02
AI Workstation Main Strength
Expandability
Built to grow with your models. There is room for more drives bays. Expansion cases are also available to scale up without replacing the platform.
Data Privacy & Security
All AI processing stays on-premises, and the system can run fully offline.
Premium Hardware Manufacturer
Thermaltake is a globally renowned premium hardware manufacturer, delivering high-performance solutions for enthusiasts and professionals.
The image is for reference only.
Multimedia System (Top System)
GeForce RTX™ 5070
NVIDIA Blackwell architecture is elevated by enhanced cooling and power delivery, fortified with rugged reinforcements for exceptional durability. Lock, load and dominate with the GeForce RTX™ 5070, designed to withstand the harshest conditions and deliver unparalleled performance.
6,144
CUDA Parallel Processing Cores
94TFLOPS
Ray Tracing Cores (4th Generation)
988AI TOPS
Tensor Cores (AI)
AI Gaming System (Bottom)
GeForce RTX™ 5090
Built on the NVIDIA Blackwell architecture, GeForce RTX™ 50 Series GPUs deliver a major leap in AI performance, enabling faster rendering, smarter creative tools, and stunning visual quality for both gamers and creators.
With NVIDIA® GeForce RTX™ GPUs, accelerate your gaming, creating, productivity, and development. Thanks to built-in AI processors, you get world-leading AI technology powering your Windows PC.
21,760
CUDA Parallel Processing Cores
318TFLOPS
Ray Tracing Cores (4th Generation)
3,352AI TOPS
Tensor Cores (AI)
The image is for reference only.
NVIDIA Blackwell Architecture
The Ultimate Platform for Gamers and Creators
Fifth-Gen Tensor Cores
Max AI performance with FP4 and NVIDIA DLSS
New Streaming Multiprocessors
Optimized for neural shaders
Fourth-Gen Ray Tracing Cores
Built for Mega Geometry
AI-Enhanced Graphics and Performance
NVIDIA DLSS
Game-Winning Responsiveness
NVIDIA Reflex
True-to-Life Graphics
Path tracing with neural rendering
Digital Humans and AI Assistants
NVIDIA ACE
Accelerate Your Creativity
NVIDIA Studio creator tools and technology
Enhance Any Video with AI
NVIDIA Broadcast and ninth-gen NVIDIA Encoder
Performance and Reliability
NVIDIA app with Game Ready and Studio Drivers
The Ultimate Gaming Display Technologies
NVIDIA G-SYNC
The image is for reference only.
01PROCESSOR / AI GAMING SYSTEM
AMD Ryzen™ 9 9950X
Built on AMD Zen 5
Powered by AMD's Zen 5 architecture, this system delivers strong single-threaded and multi-threaded performance for various types of applications.
Up to16Cores
Up to32Threads
The image is for reference only.
02PROCESSOR / MULTIMEDIA SYSTEM
Intel® Core™ Ultra 9 285K
Uncompromised Multicore Performance for Professionals
Powered by the Intel® Core™ Ultra 9 285K processor. Whether you're gaming, streaming your gameplay to the world, editing video, or doing it all at once, this powerhouse processor handles every task with ease.
Up to5.7GHzClock Speed
The image is for reference only.
03POWER / MULTIMEDIA SYSTEM (TOP)
TOUGHPOWER PT1000W
Thermaltake Power Supply Unit
The Thermaltake TOUGHPOWER PT1000W is an 80 PLUS Platinum certified digital power supply built for high-performance PCs. Built with 100% Japanese 105°C electrolytic capacitors for long-term durability.
It delivers up to 1000W at up to 92% efficiency, which reduces power loss and heat even at full load. The unit is fully compliant with Intel ATX 3.1 specifications and provides comprehensive protections, including OCP, OVP, UVP, OPP, SCP and OTP, to safeguard the entire system.
The image is for reference only.
04POWER / AI GAMING SYSTEM (BOTTOM)
TOUGHPOWER TF3 1650W
Thermaltake Power Supply Unit
The Thermaltake TOUGHPOWER TF3 1650W is an 80 PLUS Titanium-certified power supply designed for high-end gaming rigs and workstations, delivering 1650W of continuous power at 50°C with up to 94% efficiency.
Fully complies with Intel ATX 3.1 and is ready for next-generation hardware. The TOUGHPOWER TF3 uses 100% Japanese 105°C electrolytic capacitors for long-term durability, and is also built with industrial-grade protections (OCP, OVP, UVP, OPP, OTP and SCP).

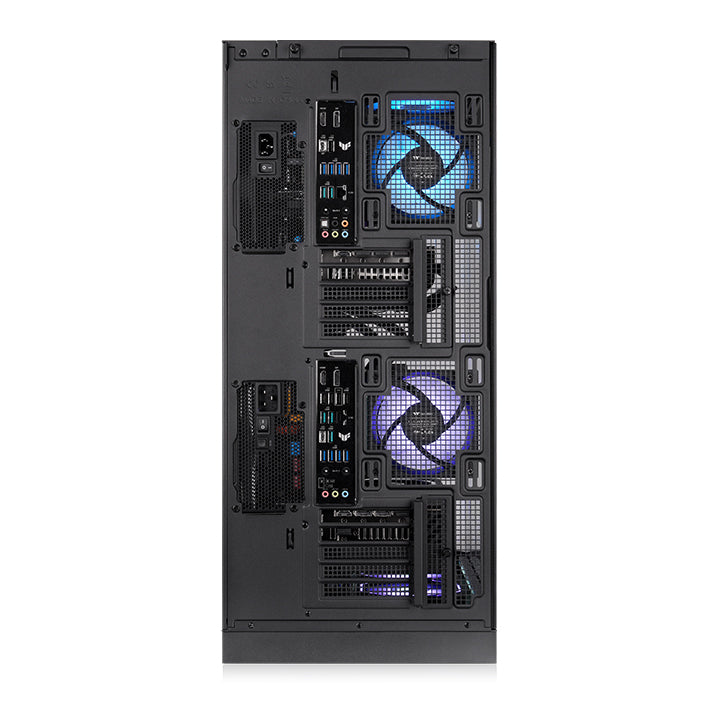

Multimedia System (Top System)
The image is for reference only.
Rear I/O
1 x HDMI™ port1 x DisplayPort1 x USB 20Gbps Type-C1 x USB 2.0 Type-A4 x USB 5Gbps Type-A2 x USB 10Gbps Type-A1 x Realtek® 2.5Gb Ethernet port1 x Wi-Fi module1 x Optical S/PDIF out port5 x Audio jacks
Top I/O
2 x USB 3.0 Type-A
1 x HD Audio
1 x USB 3.2 (Gen 2) Type-C
AI Gaming System (Bottom)
The image is for reference only.
Rear I/O
1 x HDMI™ port1 x DisplayPort4 x USB 2.0 Type-A3 x USB 10Gbps Type-A1 x Realtek® 2.5Gb Ethernet port1 x USB 20Gbps Type-C4 x USB 5Gbps Type-A1 x Wi-Fi module1 x Optical S/PDIF out port3 x Audio jacks
Front I/O
1 x USB 3.2 (Gen 2) Type-C
1 x HD Audio
2 x USB 3.0 Type-A
Product Specifications
P/N
Model
CAPO X Dual AI Gaming PC
Tech Specs
AI Gaming System
Multimedia Workstation System
Processor
AMD Ryzen™ 9 9950X
Intel® Core™ Ultra 9 285K
Chipset
AMD B850 Chipset
Intel® B860 Chipset
Graphics
GeForce RTX™ 5090
GeForce RTX™ 5070
Memory
64 GB DDR5 Memory (2 x 32GB)
32 GB DDR5 Memory (2 x 16GB)
Storage
2TB PCIe Gen4 NVMe SSD
2TB PCIe Gen4 NVMe SSD
Cooling Solution
Thermaltake 360 AIO Liquid Cooler
Thermaltake 360 AIO Liquid Cooler
Power Supply
1650W- 80Plus Titanium PSU (ATX 3.1)
1000W- 80Plus Platinum PSU (ATX 3.1)
Front / Top I/O Ports
1 x USB 3.2 (Gen 2) Type-C 2 x USB Gen 3.0 Type-A Power Button Reset Button 1 x HD Audio
1 x USB 3.2 (Gen 2) Type-C 2 x USB Gen 3.0 Type-A Power Button Reset Button 1 x HD Audio
Rear I/O Ports
1 x USB 20Gbps Type-C 3 x USB 10Gbps Type-A 4 x USB 5Gbps Type-A 4 x USB 2.0 Type-A 1 x DisplayPort 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 4 x DisplayPort 2.1b (1 on MB, 3 on GPU) 3 x HDMI™ Port (1 on MB, 2 on GPU)
1 x USB 20Gbps Type-C 2 x USB 10Gbps Type-A 4 x USB 5Gbps Type-A 1 x USB 2.0 Type-A 1 x DisplayPort 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 4 x DisplayPort 2.1b (1 on MB, 3 on GPU) 2 x HDMI™ (1 on MB, 1 on GPU)
Expansion Slots
1 x PCIe 5.0 x16 (Supports x16 mode)* 1 x PCIe 4.0 x1 1 x PCIe 5.0 M.2 Slots 2 x PCIe 4.0 M.2 Slots (Includes used) *Specifications vary by CPU types.
1 x PCIe 5.0 x16 1 x PCIe 4.0 x4 1 x PCIe 5.0 M.2 Slots 2 x PCIe 4.0 M.2 Slots (Includes used)
Networking
1 x Realtek® 2.5Gb Ethernet Wi-Fi 7* Bluetooth®**
1 x Realtek® 2.5Gb Ethernet Wi-Fi 7* Bluetooth®**
*The actual Wi-Fi module that comes with this motherboard may vary, please refer to the label on the product for more details. Wi-Fi features may vary depending on the operating system **The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
*The actual Wi-Fi module that comes with this motherboard may vary, please refer to the label on the product for more details. Wi-Fi features may vary depending on the operating system **The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Audio-output
High Definition Audio
High Definition Audio
Operating System
Windows 11 Pro
Windows 11 Pro
Weight
Dimensions
H691 x W305 x D448 mm
H691 x W305 x D448 mm
AI Gaming System
Processor
AMD Ryzen™ 9 9950X
Chipset
AMD B850 Chipset
Graphics
GeForce RTX™ 5090
Memory
64 GB DDR5 Memory (2 x 32GB)
Storage
2TB PCIe Gen4 NVMe SSD
Cooling Solution
Thermaltake 360 AIO Liquid Cooler
Power Supply
1650W- 80Plus Titanium PSU (ATX 3.1)
Front / Top I/O Ports
1 x USB 3.2 (Gen 2) Type-C 2 x USB Gen 3.0 Type-A Power Button Reset Button 1 x HD Audio
Rear I/O Ports
1 x USB 20Gbps Type-C 3 x USB 10Gbps Type-A 4 x USB 5Gbps Type-A 4 x USB 2.0 Type-A 1 x DisplayPort 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 4 x DisplayPort 2.1b (1 on MB, 3 on GPU) 3 x HDMI™ Port (1 on MB, 2 on GPU)
Expansion Slots
1 x PCIe 5.0 x16 (Supports x16 mode)* 1 x PCIe 4.0 x1 1 x PCIe 5.0 M.2 Slots 2 x PCIe 4.0 M.2 Slots (Includes used) *Specifications vary by CPU types.
Networking
1 x Realtek® 2.5Gb Ethernet Wi-Fi 7* Bluetooth®**
*The actual Wi-Fi module that comes with this motherboard may vary, please refer to the label on the product for more details. Wi-Fi features may vary depending on the operating system **The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Audio-output
High Definition Audio
Operating System
Windows 11 Pro
Weight
Dimensions
H691 x W305 x D448 mm
Multimedia Workstation System
Processor
Intel® Core™ Ultra 9 285K
Chipset
Intel® B860 Chipset
Graphics
GeForce RTX™ 5070
Memory
32 GB DDR5 Memory (2 x 16GB)
Storage
2TB PCIe Gen4 NVMe SSD
Cooling Solution
Thermaltake 360 AIO Liquid Cooler
Power Supply
1000W- 80Plus Platinum PSU (ATX 3.1)
Front / Top I/O Ports
1 x USB 3.2 (Gen 2) Type-C 2 x USB Gen 3.0 Type-A Power Button Reset Button 1 x HD Audio
Rear I/O Ports
1 x USB 20Gbps Type-C 2 x USB 10Gbps Type-A 4 x USB 5Gbps Type-A 1 x USB 2.0 Type-A 1 x DisplayPort 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 4 x DisplayPort 2.1b (1 on MB, 3 on GPU) 2 x HDMI™ (1 on MB, 1 on GPU)
Expansion Slots
1 x PCIe 5.0 x16 1 x PCIe 4.0 x4 1 x PCIe 5.0 M.2 Slots 2 x PCIe 4.0 M.2 Slots (Includes used)
Networking
1 x Realtek® 2.5Gb Ethernet Wi-Fi 7* Bluetooth®**
*The actual Wi-Fi module that comes with this motherboard may vary, please refer to the label on the product for more details. Wi-Fi features may vary depending on the operating system **The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Audio-output
High Definition Audio
Operating System
Windows 11 Pro
Weight
Dimensions
H691 x W305 x D448 mm
