AX 3200W
AX 3200W
SKU:PS-TPA-3200FNSAP*-1
Delivering 3200W continuous power with 80 PLUS® 230V EU Internal Platinum efficiency, the AX 3200W is engineered for AI workstations and multi-GPU systems. Fully compatible with the ATX 3.1 specification, it features four native PCIe Gen 5.1 12V-2×6 connectors, a robust single +12V rail, premium Japanese capacitors, and fully modular low-profile cables to provide exceptional stability, efficiency, and reliability for demanding workloads.
-
Design
-
Specification
-
Download
-
How-to Videos
Built for AI Workstations
Built for the next generation of AI computing, the AX 3200W delivers 3200W continuous power with exceptional stability and efficiency for professional workstation environments. Featuring four native PCIe Gen 5.1 (12V-2×6) connectors, ATX 3.1 compatibility, and a high amperage single +12V rail, it is designed to power multiple high-performance GPUs and meet the demands of AI training, rendering, simulation, and other GPU-intensive workloads.
Fully Compatible With ATX 3.1 Specifications
The AX 3200W fully complies with the latest ATX 3.1 specification, supporting up to 200% power excursion, improved low-load efficiency, and updated power timing requirements. Designed with four native PCIe 12V-2×6 modular interfaces, it provides stable and reliable power for multiple high-performance graphics cards and demanding AI applications.
PCIe Gen 5.1 Ready
Featuring four native PCIe Gen 5.1 (12V-2×6) connectors, the AX 3200W is ready for next-generation graphics cards and multi-GPU AI workstations. The dual-color connector design helps ensure secure installation while reducing the risk of improper cable insertion for safer system operation.
Note:
- Recommended wattage is an estimation of system power demand. Actual power requirements vary depending on hardware configuration and workload.
- Please follow the graphics card manufacturer's recommended power requirements before using the 12V-2×6 cable.

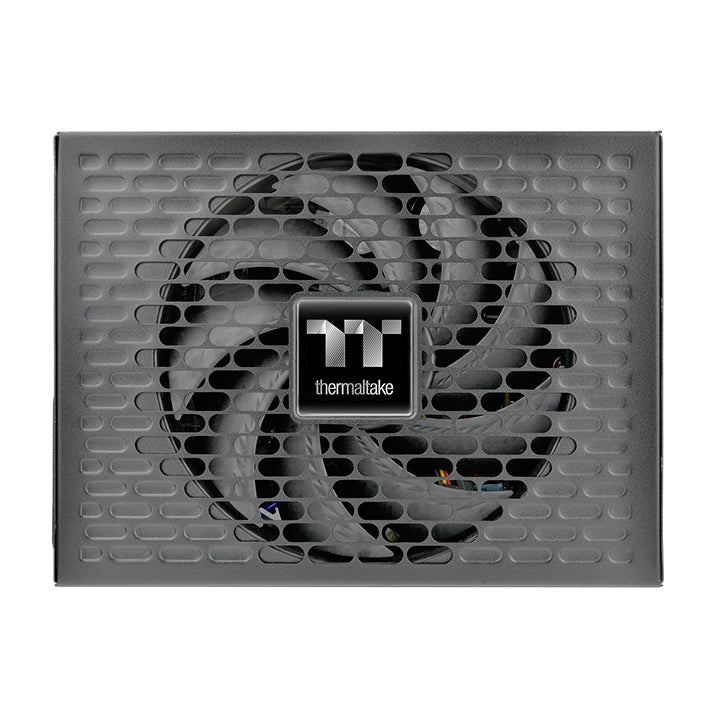

Ultra Quiet 140 mm Dual Ball Bearing Fan
Equipped with a 140 mm dual ball bearing fan, the AX 3200W provides excellent cooling performance and long-term durability. The optimized cooling design maintains stable operation under sustained heavy workloads while minimizing noise for professional computing environments.
High Amperage Single +12V Rail and Advanced Circuit Design
A powerful single +12V rail delivers outstanding compatibility and stable high-current output for demanding computing platforms. Combined with advanced DC-to-DC and LLC circuit design, the AX 3200W provides precise voltage regulation, improved power stability, and exceptional efficiency for AI and workstation applications.

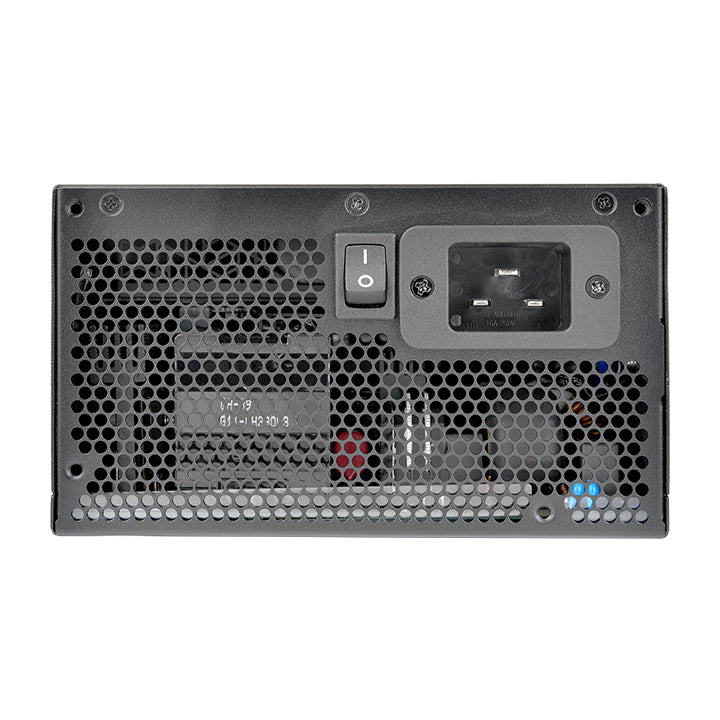

| AC INPUT | Input Voltage: 230-240V~ Input Current: 16A Max. Frequency: 50Hz-60Hz | ||||
|---|---|---|---|---|---|
| DC OUTPUT | +3.3V | +5V | +12V | -12V | +5VSB |
| Max Output Current | 22A | 22A | 266.6A | 0.3A | 4.0A |
| Max Output Power | 120W | 3199.2W | 3.6W | 20W | |
| Total Power | 3200W | ||||

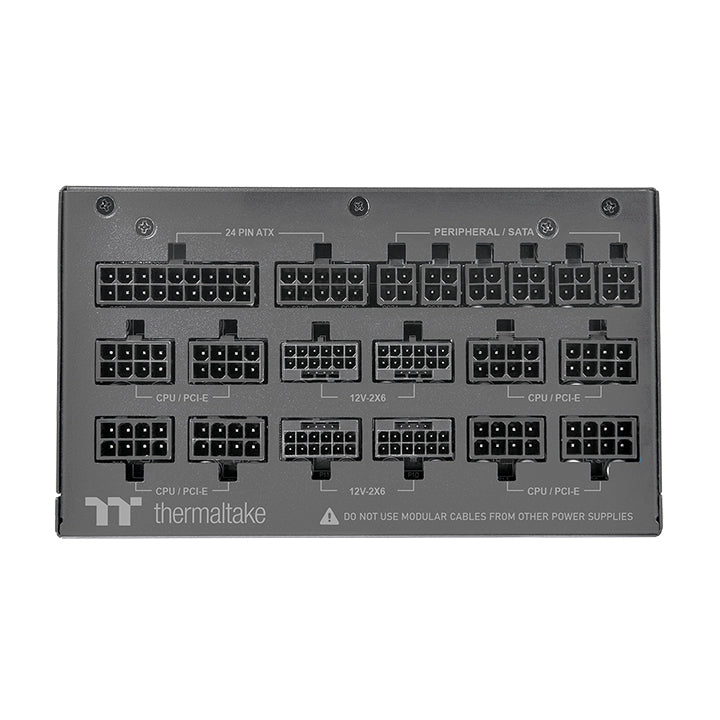

Fully Modular with Flat Black Cables
The AX 3200W features a fully modular Zero Cable Platform with premium low-profile etched black cables, making cable routing easier while reducing cable clutter inside the chassis. The clean layout improves airflow and creates a more organized system for professional builds.
| Connector Type | Connector Quantity | Cable Quantity | Cable Length | |
|---|---|---|---|---|
| Main Power (24Pin) | X 1 |  | X 1 | 600mm |
| ATX 12V (4+4/8Pin) | X 2 |  | X 1 | 750mm |
 | X 1 | |||
| PCIe (6+2Pin) | X 9 |  | X 3 | 600mm |
 | X 3 | 600mm+150mm | ||
| PCIe (12+4Pin) 600W | X 4 |  | X 4 | 600mm |
| SATA (5Pin) | X 16 |  | X 4 | 600mm+150mm +150mm+150mm |
| Peripheral (4Pin) | X 8 |  | X 2 | 600mm+150mm +150mm+150mm |
Industry-Grade Safety Protections
Built-in protections including Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Power Protection (OPP), Over Temperature Protection (OTP), and Short Circuit Protection (SCP) safeguard your system against electrical faults, providing peace of mind and reliable operation.
OCP
Over Current Protection
OVP
Over Voltage Protection
UVP
Under Voltage Protection
OPP
Over Power Protection
SCP
Short Circuit Protection
OTP
Over Temperature Protection
80 PLUS® 230V EU Internal Platinum Certified
The AX Series delivers up to 94% efficiency and is certified to 80 PLUS® 230V EU Internal Platinum, reducing energy consumption, heat generation, and operating costs while maintaining outstanding power delivery under demanding workloads.
Energy Efficiency & Environmental Compliance
The AX Series supports Intel C6/C7 states, Intel Deep Power Down, and Energy Star 5.0 for improved energy efficiency. It also complies with EU WEEE and RoHS directives, reflecting Thermaltake's commitment to environmentally responsible product design and manufacturing.
100% High Quality Japanese 105°C Electrolytic Capacitors
Built with 100% high-quality Japanese 105°C electrolytic capacitors, the AX 3200W delivers superior durability, long-term reliability, and exceptional electrical stability, ensuring consistent performance even under continuous heavy loads.
Product Specifications
| P/N | PS-TPA-3200FNSAP*-1 |
|---|---|
| Model | TTP-3200AH3FCP |
| Max Output Capacity | 3200W |
| Color | Black |
| Dimensions | 150mm(W)x86mm(H)x200mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-150 msec |
| Hold Up Time | > 17msec at 80% load |
| Input Current | 16A Max. |
| Input Frequency Range | 50 - 60Hz |
| Input Voltage | 230-240V~ |
| Operating Temperture | 0°C to + 45°C |
| Operating Humidity | 20% to 90%,non-condensing |
| Storage Temperture | -20°C to + 70°C |
| Storage Humidity | 5% to 95%, non-condensing |
| Cooling System | 140mm 2 ball bearing fan |
| Efficiency | Meet 80 PLUS® Platinum at 230Vac input. |
| MTBF | 100,000 hrs minimum |
| Safety Approval | CE(UKCA)/FCC/ICES/CB/TUV/cTUVus/CCC/BSMI/LVD/RCM |
| PCI-E 6+2PIN | 9 |
