ARMOR REVO GENE Snow Edition
ARMOR REVO GENE Snow Edition
SKU:VO800M6W2N
Wing Shape Aluminum Front Bezel
-
Design
-
Specification
-
Download
-
How-to Videos
- Wing Shape Aluminum Front Bezel
- Breath Lighting effect
- USB3.0 superspeed
- Top-mounted HDD hot swap Docking Station
- VGA TripleMax 31cm

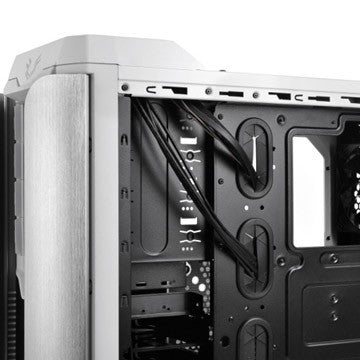

- CableClear cable management
- Liquid cooling ready

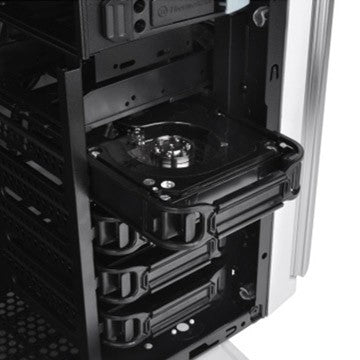

- Innovative 5.25” & 3.5” tool-free design
- Combat Headset Holder
- Heightened footstand enhances intake airflow
Unique Design

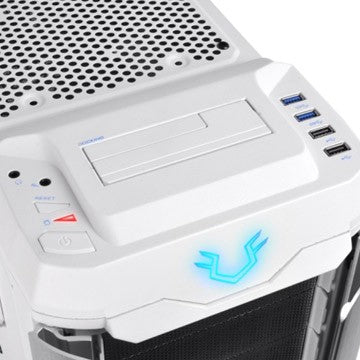

Top HDD Docking Station
Unique Design

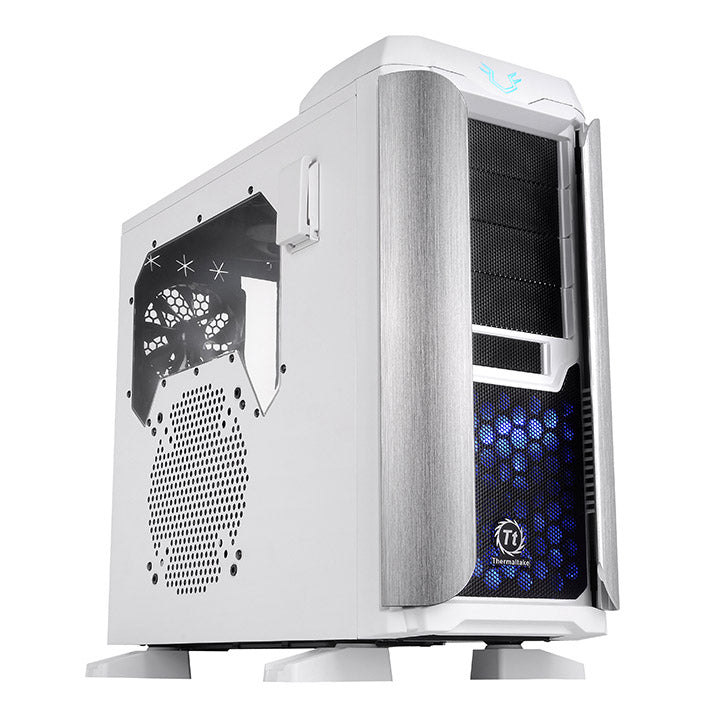

Wing Shape Aluminum Front Bezel
HDD Air Cooling System
1. Front (intake) : 200 x 200 x 20 mm Blue LED fan x 1 (600pm, 13dBA)
CPU Air Cooling System
2. Top (exhaust) : 200 x 200 x 30 mm fan x 1 (600rpm, 13dBA)
3. Rear (exhaust) : 120 x 120 x 25 mm Turbo Fan (1000rpm,16dBA)
VGA Air Cooling System
4. Side (intake) : 200 x 200 x 30 mm fan x 1 or 140 x 140 x 25 mm fan x 1(Optional)
5. Bottom (intake) : 120 x 120 x 25 mm fan (Optional)
HDD Air Cooling System
1. Front (intake) : 200 x 200 x 20 mm Blue LED fan x 1 (600pm, 13dBA)
CPU Air Cooling System
2. Top (exhaust) : 200 x 200 x 30 mm fan x 1 (600rpm, 13dBA)
VGA Air Cooling System
3. Side (intake) : 200 x 200 x 30 mm fan x 1 or 140 x 140 x 25 mm fan x 1(Optional)
4. Bottom (intake) : 120 x 120 x 25 mm fan (Optional)
Product Specifications
| P/N | VO800M6W2N |
|---|---|
| Case Type | Mid Tower |
| Dimensions | 510 x 252 x 550 mm (20 x 9.9 x 21.6 inch) |
| Weight | 7.8 kg/17.2 lb |
| Side Panel | Transparent Window |
| Color | Exterior & Interior : Black & White |
| Material | SECC |
| Cooling System | Front (intake) : 200 x 200 x 20 mm Blue LED fan x 1 (600rpm, 13dBA) Rear (exhaust) : 120 x 120 x 25 mm Turbo fan (1000rpm,16dBA) Top (exhaust) : 200 x 200 x 30 mm fan x 1 (600rpm, 13dBA) Side (intake) : (optional) 200 x 200 x 30 mm fan or 140 x 140 x 25 mm fan x 1 Bottom (Intake) : (optional) 120 x 120 x 25 mm fan |
| Expansion Slots | 7 |
| Motherboard | 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| LCS Upgradable | Supports 1/2”、3/8”、1/4” water tube |
| I/O Port | USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU |
| Other | CPU cooler height limitation: 175mm VGA length limitation: 315mm |
