Fan Compatibility List
| 120mm | 140mm | |
|---|---|---|
| Top | 3 | 2 |
| M/B Side | 2 | - |
| Rear | 1 | 1 |
| Power Cover | 3 | - |
The image is for reference only.
Arcus 290 TG ARGB Mid Tower Chassis
Arcus 290 TG ARGB Mid Tower Chassis
SKU:CA-11R-00M1WN-00

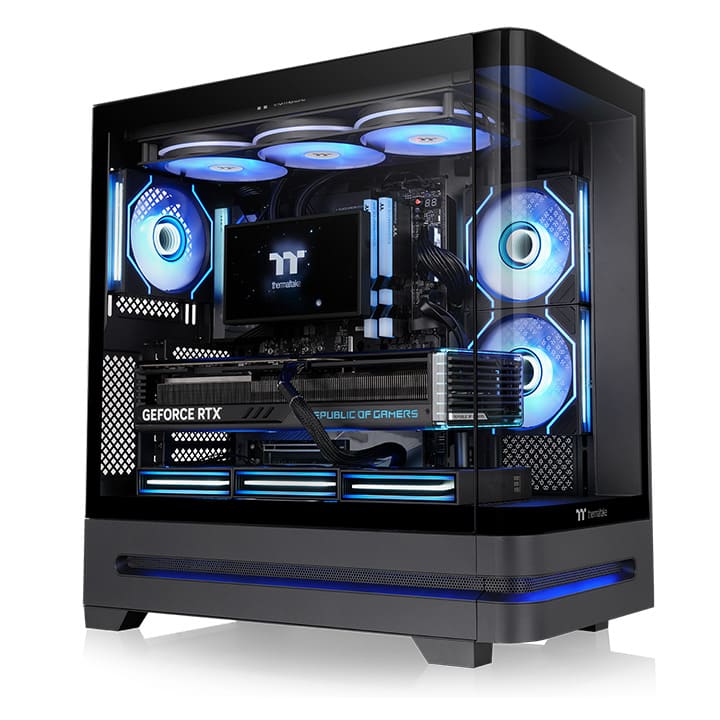

Built for amazing views, the Arcus 290 TG ARGB Mid Tower Chassis
is an ATX case with a curved front tempered glass for panoramic view and LED lighting design, and comes with two 120mm Infinity ARGB Reverse PWM Fans on the MB side, along with one 120mm Infinity ARGB PWM Fan at rear.
-
Design
-
Specification
-
Download
-
How-to Videos
Motherboard
Mini ITX / Micro ATX / ATX
Side Panel
4mm Curved TG Front Panel × 1
3mm Tempered Glass × 1
3mm Tempered Glass × 1
Fan Support
Up to nine 120mm fans
AIO Support
360 / 280 / 240 / 140 / 120mm
Dimensions (H × W × D)
497 × 242 × 477 mm
Clearance (mm)
CPU Cooler: 180
GPU: 450
Power Supply: 252mm (HDD Cage near the front)
237mm (HDD Cage near the rear)
GPU: 450
Power Supply: 252mm (HDD Cage near the front)
237mm (HDD Cage near the rear)
I/O Ports
1 × USB Type-C
2 × USB 3.0
1 × HD-Audio
2 × USB 3.0
1 × HD-Audio
Storage
2 × 3.5" HDD
2 × 2.5" SSD
2 × 2.5" SSD
The image is for reference only.
The image is for reference only.
Compatible with Hidden-Connector Motherboards
Created for next-generation motherboards, the Arcus 290 TG ARGB Mid Tower Chassis features a
special design that support both standard motherboards and hidden-connector motherboards from
ASUS, MSI and GIGABYTE.
*Compatible with hidden-connector motherboards:
ASUS BTF Series
MSI PROJECT ZERO Series
GIGABYTE PROJECT STEALTH Series
Good Radiator Support
Providing good cooling support, users can choose to place a 360mm radiator at the top of the Arcus 290 TG ARGB Mid Tower Chassis.
The image is for reference only.
Pre-installed Fan System

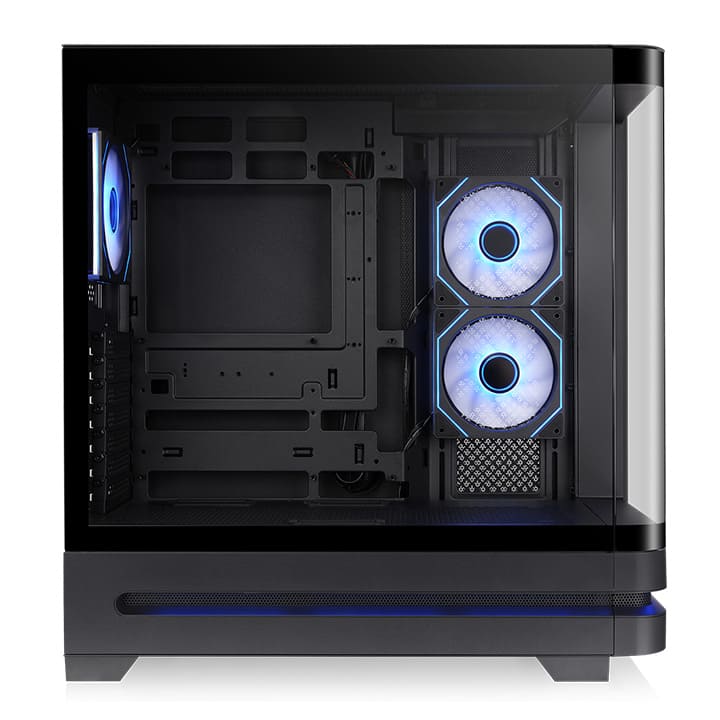

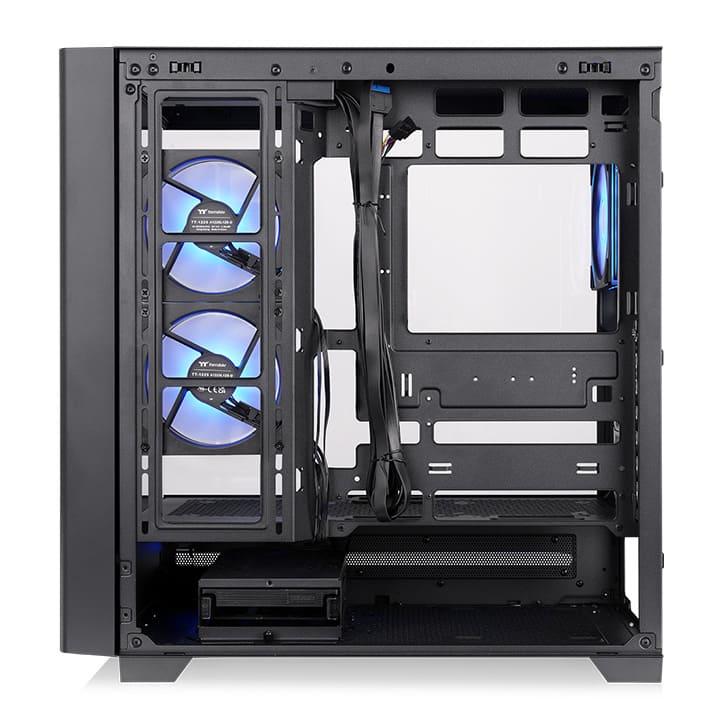

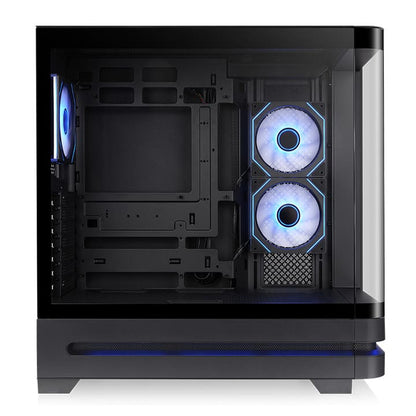

The Arcus 290 TG ARGB comes pre-installed with two 120mm Infinity ARGB Reverse PWM Fans on the motherboard side and one 120mm Infinity ARGB PWM Fan at the rear, delivering brilliant airflow and a refined RGB glow that elevates your build's overall aesthetics.
The image is for reference only.
Good Dust Protection
Removable dust filters help keep your system clean while maintaining optimal airflow.
Top Dust Filter
The image is for reference only.
Storage Support
For storage compatibility, the chassis supports up to two 3.5" HDDs or two 2.5" SSDs for flexible installation options.
The image is for reference only.
Handy I/O Ports
Front-located I/O ports provide quick access to the following functions:
- Power Button with Blue LED
- Reset Button
- HD Audio
- USB 3.0 Type-A × 2
- USB 3.2 Gen 2 Type-C × 1
USB 3.2 Gen 2 Type-C
2 × USB 3.0 Type-A
HD Audio
Reset Button
Power Button
The image is for reference only.
All-in-One Compatibility List
| 120mm | 240mm | 360mm | 140mm | 280mm | 420mm | |
|---|---|---|---|---|---|---|
| Top | - | |||||
| M/B Side | - | - | - | - |
The image is for reference only.
Product Specifications
| P/N | CA-11R-00M1WN-00 |
|---|---|
| Model | Arcus 290 TG ARGB |
| Case Type | Mid Tower |
| Dimensions | 497 x 242 x 477 mm (19.57 x 9.53 x 18.78 inch) |
| Side Panel | 4mm Curved TG Front Panel x 1, 3mm Tempered Glass x 1 |
| Color | Black |
| Material | SPCC |
| Cooling System | Right(intake): 120 x 120 x 25 mm Infinity ARGB Reverse PWM Fan (1500rpm, 24.9 dBA) x 2 Rear(exhaust): 120 x 120 x 25 mm Infinity ARGB PWM Fan (1500rpm, 21.8 dBA) x 1 |
| Drive Bays | 2 x 3.5”or 2 x 2.5” |
| Expansion Slots | 7 (Rotatable Patented Design) |
| Motherboard | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| Hidden-Connector Motherboard | 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support | Top: 3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Right: 2 x 120mm, 1 x 120mm Rear: 1 x 120mm, 1 x 140mm Power Cover: 3 x 120mm, 2 x 120mm, 1 x 120mm |
| Radiator Support | Top: 1 x 360mm, 1 x 240mm, 1 x 120mm , 1 x 280mm, 1 x 140mm Right: 1 x 240mm, 1 x 120mm |
| Clearance | CPU cooler max height: 180mm VGA max length: 450mm PSU max length: 252mm (HDD Cage near the front), 237mm (HDD Cage near the rear) |
