Fan Compatibility List
| 120mm | 140mm | |
|---|---|---|
| M/B Side | 2 | - |
| Top | 3 | 2 |
| Rear | 1 | 1 |
| Power Cover | 3 | - |
The image is for reference only.

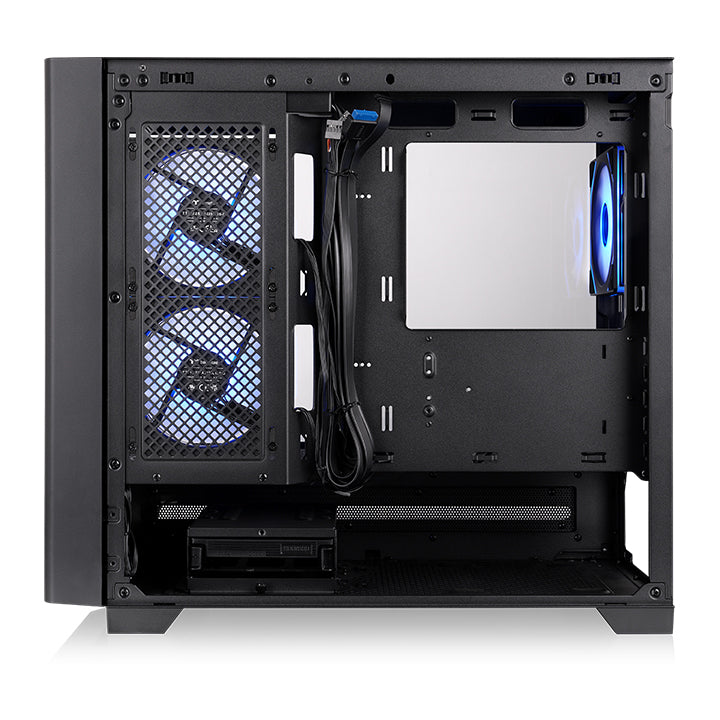

Arcus 190 TG ARGB Micro Tower Chassis
Arcus 190 TG ARGB Micro Tower Chassis
SKU:CA-11S-00S1WN-00
Built for amazing views, the Arcus 190 TG ARGB Micro Tower Chassis
is an Micro-ATX case with a curved front tempered glass for panoramic view and LED lighting design, and comes with two 120mm Infinity ARGB Reverse PWM Fans on the MB side, along with one 120mm Infinity ARGB PWM Fan at rear.
-
Design
-
Specification
-
Download
-
How-to Videos
Motherboard
Mini ITX / Micro ATX
Side Panel
4mm Curved TG Front Panel x 1
3mm Tempered Glass x 1
3mm Tempered Glass x 1
Fan Support
Up to nine 120mm fans
AIO Support
360 / 280 / 240 / 140 / 120mm
Dimensions (H × W × D)
433 × 243 × 476 mm
Clearance (mm)
CPU Cooler: 180mm
GPU: 450mm
Power Supply: 250mm (HDD Cage near the front)
235mm (HDD Cage near the rear)
GPU: 450mm
Power Supply: 250mm (HDD Cage near the front)
235mm (HDD Cage near the rear)
I/O Ports
1 × USB Type-C
2 × USB 3.0
1 × HD-Audio
2 × USB 3.0
1 × HD-Audio
Storage
2 × 3.5" HDD
2 × 2.5" SSD
2 × 2.5" SSD
The image is for reference only.
Good Radiator Support
Providing good cooling support, users can choose to place a 360mm radiator at the top of the Arcus 190 TG ARGB Micro Tower Chassis.
The image is for reference only.
Pre-installed Fan System
The Arcus 190 TG ARGB comes pre-installed with two 120mm Infinity ARGB Reverse PWM Fans on the motherboard side and one 120mm Infinity ARGB PWM Fan at the rear, delivering brilliant airflow and a refined RGB glow that elevates your build's overall aesthetics.
The image is for reference only.
Good Dust Protection
Removable dust filters help keep your system clean while maintaining optimal airflow.
Top Dust Filter
Side Filter
Bottom Dust Filter
The image is for reference only.
Storage Support
For storage compatibility, the chassis supports up to two 3.5" HDD or two 2.5" SSDs for flexible installation options.
HDD
SSD
The image is for reference only.
Handy I/O Ports
- Power Button (Blue LED)
- Reset Button
- HD Audio
- 2 x USB 3.0 Type-A
- 1 x USB 3.2 Gen 2 Type-C
The image is for reference only.
All-in-One Compatibility List
| 120mm | 240mm | 360mm | 140mm | 280mm | 420mm | |
|---|---|---|---|---|---|---|
| Top | - | |||||
| M/B Side | - | - | - | - | - |
The image is for reference only.
Product Specifications
| P/N | CA-11S-00S1WN-00 |
|---|---|
| Model | Arcus 190 TG ARGB |
| Case Type | Micro Tower |
| Dimensions | 433 x 243 x 476 mm (17.05 x 9.57 x 18.74 inch) |
| Side Panel | 433 x 243 x 476 mm (17.05 x 9.57 x 18.74 inch) |
| Color | Black |
| Material | SPCC |
| Cooling System | Right(intake): 120 x 120 x 25 mm Infinity ARGB Reverse PWM Fan (1500rpm, 24.9 dBA) x 2 Rear(exhaust): 120 x 120 x 25 mm Infinity ARGB PWM Fan (1500rpm, 21.8 dBA) x 1 |
| Drive Bays | 2 x 3.5”or 2 x 2.5” |
| Expansion Slots | 5 |
| Motherboard | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX) |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support | Top: 3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Right: 2 x 120mm, 1 x 120mm Rear: 1 x 120mm 1 x 140mm Power Cover: 3 x 120mm, 2 x 120mm, 1 x 120mm |
| Radiator Support | Top: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Right: 1 x 120mm |
| Clearance | CPU cooler max height: 180mm VGA max length: 450mm PSU max length: 250mm (HDD Cage near the front) 235mm (HDD Cage near the rear) |
