  • View 300 MX Snow Mid Tower Chassis
View 300 MX Snow Mid Tower Chassis View 300 MX Snow Mid Tower Chassis View 300 MX Snow Mid Tower Chassis View 300 MX Snow Mid Tower Chassis View 300 MX Snow Mid Tower Chassis View 300 MX Snow Mid Tower Chassis
View 300 MX Snow Mid Tower Chassis

View 300 MX Snow Mid Tower Chassis

In stock
P/N
CA-1P6-00M6WN-00
USD$149.99

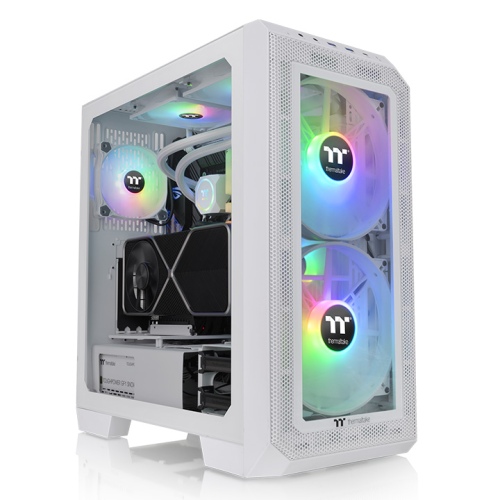

Designed with dual front panels and featuring two pre-installed 200mm ARGB PWM fans at the front and one 120mm ARGB PWM fan at the rear, the View 300 Snow MX Mid-Tower Chassis provides optimal cooling performance while allowing you to choose your own style and front panel design.

View 300 MX Snow

Pre-installed Two 200mm ARGB PWM Fans & One 120mm
ARGB PWM Fan for Massive Airflow

Choose your style with dual front panels!
Designed to push the beloved View Series lineup to another level, the View 300 MX Snow Mid-Tower Chassis features two pre-installed 200mm ARGB PWM fans in the front and one 120mm ARGB PWM fan at the rear to provide optimal cooling performance. Noteworthy, the View 300 MX Snow series is the first chassis of the Thermaltake collection that comes with dual front panels, including a tempered glass panel and a perforated metal panel featuring the TT Logo, allowing users to choose their own style. Moreover, the View 300 MX features rotational PCI-E Slots, removable filters, a removable PSU cover, and supports up to E-ATX motherboards (12” x 13”), up to a 360mm Radiator on the front, top and M/B side. These merits make the View 300 MX Snow an eye-catching chassis that is ideal for you to make your next build epic, high-performing, and one of a kind.

  • The image is for reference only.
    •


  • The image is for reference only.
    •

  • The image is for reference only.
    •


  • The image is for reference only.
    •


Air Intake and Exhaust

The cooling performance of the View 300 MX Snow is fabulous thanks to two 200mm ARGB PWM fans and one 120mm ARGB PWM fan pre-installed. The Perforated TT logo Steel Panel allows optimal air intake, while the tempered glass mesh panel also provides sufficient air-intake through its mesh edge.


  • The image is for reference only.
    •
Massive Airflow & Amazing Performance

Thermal images were taken during thermal testing. Thanks to two pre-installed 200mm ARGB PWM fans in the front and one pre-installed 120mm ARGB PWM fan at the rear, we were able to ensure that the View 300 MX comes with massive airflow, which guarantees an amazing cooling performance that the interior temperature stays low and stable at all times.

  • Idle
    Full-load

Test System

Motherboard ASUS ROG MAXIMUS Z690 HERO
CPU Intel Core i9 12900K (TDP 125W/OC 241 W)
GPU GIGABYTE AORUS GeForce RTX™ 3090 XTREME
RAM TOUGHRAM XG DDR5 32G (16G x 2)
SSD Plextor PX-128M6V
PSU Toughpower TF1 1550W-TT Premium Edition
CPU Cooler TOUGHLIQUID ARGB 360 All-In-One Liquid Cooler
Fans Front: Pre-installed 200mm ARGB PWM Fans x 2
Rear: Pre-installed 120mm ARGB PWM Fan x 1
AIO TOUGHFAN 120mm x 3
Front panel a perforated TT logo steel front panel

Hardware Compatibility
View 300 MX Snow has exceptional expandability. It can support E-ATX motherboards (12”x13”), a CPU cooler with a maximum height of 175mm, VGA clearance up to 400mm in length without a reservoir, and a power supply with a length of up to 200mm. Optimized for excellent cooling capabilities, the View 300 MX Snow can house up to three 140mm or two 200mm front fans, up to three 120mm fans on top, and a radiator of up to 360mm at the front, top and MB side to allow users to build their desired high-end system.
  • 120mm
  • 140mm
  • 200mm
  • 120mm
  • 140mm
  • 240mm
  • 280mm
  • 360mm






Sync with Motherboard RGB Software

Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.

Category Caution
Chassis, ARGB Fan, ARGB AIO
  • The motherboard signal connector only supports a 5V header.
  • Make sure your motherboard software is the latest version.
RGB Memory, VGA Waterblock, Distro Plate
  • This product can only be used with either the TT RGB PLUS software or the dedicated motherboard software. Having more than two applications open may cause conflicts.
  • The motherboard signal connector only supports a 5V header.
  • Make sure your motherboard software is the latest version.
More Information
P/N CA-1P6-00M6WN-00
Series View
Model View 300 MX Snow
CASE TYPE Mid Tower
Dimension (H x W x D) 505 x 230 x 506 mm
(19.9 x 9.1 x 19.9 inch)
NET WEIGHT 10.4 kg / 22.9 lbs.
PANEL 4mm Tempered Glass x 1
Color Black
MATERIAL SPCC + ABS
COOLING SYSTEM Front(intake): 200 x 200 x 30 mm ARGB PWM fan (1000rpm, 35.5 dBA) x 2
Rear(exhaust): 120 x 120 x 25 mm ARGB PWM fan (1500rpm, 27.2 dBA) x 1
Drive Bays 2 x 3.5”, 4 x 2.5” or 6 x 2.5”
EXPANSION SLOTS 7 (Rotatable Patented Design)
MOTHERBOARDS 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),
12” x 9.6” (ATX), 12” x 13” (E-ATX)
I/O Port USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
PSU Standard PS2 PSU (optional)
FAN SUPPORT Front: 3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm, 2 x 140mm, 1 x 140mm
2 x 200mm, 1 x 200mm
Top: 3 x 120mm, 2 x 120mm, 1 x 120mm,
2 x 140mm, 1 x 140mm
1 x 200mm
Right(M/B Side): 3 x 120mm, 2 x 120mm, 1 x 120mm (Without HDD Rack)
Rear: 1 x 120mm
RADIATOR SUPPORT Front: 1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Top: 1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Right(M/B Side): 1 x 360mm, 1 x 240mm, 1 x 120mm(Without HDD Rack)
Rear: 1 x 120mm
CLEARANCE CPU cooler height limitation: 175mm VGA length limitation: 280mm(With reservoir)
400mm(Without reservoir)
PSU length limitation: 200mm
