TT Sync Controller TT Premium Edition
TT Sync Controller TT Premium Edition by Thermaltake is a 9 port LED hub for synchronizing Thermaltake addressable LED products with ASUS, GIGABYTE and MSI motherboards. Once you have connected the products with the controller and downloaded ASUS Aura Sync, GIGABYTE RGB Fusion or MSI Mystic Light Sync on your PC, you can control the lights directly from the software without installing Riing Plus RGB software and any extra lighting controllers. Unlock your imagination, and brighten up your watercooled RGB system through TT Sync Controller TT Premium Edition.
Add up to 9 Thermaltake Addressable LED Products
TT Sync Controller is capable of handling up to 9
Thermaltake addressable
LED products. Connect the products of your choice to it, and set the lights conveniently via
ASUS Aura Sync,
GIGABYTE RGB Fusion and MSI Mystic Light Sync. Please check below for the supported product
list:
| Case Fan |
SWAFAN EX RGB (CL-F143/F144/F161/F162) SWAFAN RGB (CL-F137/F138/F145/F146) TOUGHFAN RGB (CL-F135/F136) Riing Quad RGB (CL-F088/F089/F100/F101) Riing Trio RGB (CL-F072/F077/F083/F126) Riing Duo RGB (CL-F073/F078) Riing Plus RGB (CL-F053/F054/F056/F057/F059/F076) Pure Plus RGB (CL-F063/F064) |
| Liquid Cooling |
Pacific MX1 CPU Water Block (CL-W299) Pacific W7 Plus CPU Water Block (CL-W279) Pacific PR32-D5 Plus Pump and Reservoir Combo (CL-W280) Pacific PR22-D5 Plus Pump and Reservoir Combo (CL-W187) Pacific PR12-D5 Plus Pump and Reservoir Combo (CL-W338) Pacific CL360 Plus Radiator (CL-W231) Pacific V-RTX 3080/3090 Plus (CL-W311) Pacific V-RTX 3070 Plus (CL-W312) TOUGHLIQUID Ultra 280/420 RGB AIO (CL-W370/W371) Floe Ultra 240/360 RGB AIO (CL-W349/W350) Floe DX RGB 240/360/280 AIO (CL-W255/W256/W257) Floe Riing RGB 240/360/280 AIO (CL-W157/W158/W167) |
| Accessory |
Pacific Lumi Plus LED Strip (CL-O014)
|
*Caution: The maximum rated current of the SATA port is 5A (±5%). To avoid damage to the SATA port, we strongly recommend not connecting more than a specific number of products below:
1) Up to 5 Riing Quad RGB or Riing Trio RGB fans
2) Up to 6 SWAFAN EX RGB fans (in 2 groups of 3)
3) Up to 5 SWAFAN RGB fans
4) Up to 5 TOUGHFAN RGB fans
Convenient SATA Power Input
Manufactured with a stable SATA power input in mind, TT Sync Controller safely and reliably powers up to 9 addressable LED products. Direct power from PSU prevents stray current when the controller is in use.
Easy Application
TT Sync Controller supports a wide range of Thermaltake addressable LED products, providing a convenient way to control the lights directly from ASUS Aura Sync, GIGABYTE RGB Fusion and MSI Mystic Light Sync without the need of extra lighting controllers and software. 3 PWM signal cables and 2 mainboard signal bridge cables are included in the pack.
TT Sync Controller TT Premium Edition Installation Notice
Connect with Tt Addressable LED Products
- Please plug the component cables in numerical order into
the controller.
- Please start from Port 1 (the dot is Port 1).
Connect with Pacific Lumi Plus LED Strip
- Please add the other products first.
- Please connect with Pacific Lumi Plus LED strips at last.

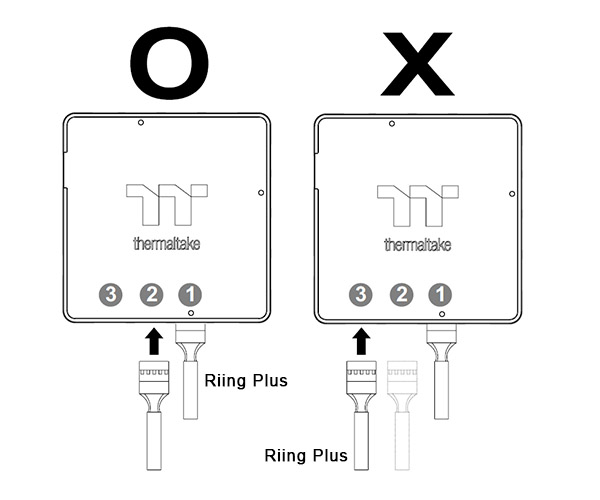

Connect with Riing Plus RGB Fan
- Please connect with Riing Plus fisrt before adding the other prodcuts.
TT Sync Controller TT Premium Edition Installation Video
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.
-
Aura Addressable Header
ASUS -
Digital Pin Header
GIGABYTE -
JRAINBOW Header
MSI -
Addressable RGB LED Header
ASRock
| Category | Caution |
|---|---|
| Chassis, ARGB Fan, ARGB AIO |
|
| RGB Memory, VGA Waterblock, Distro Plate |
|
| P/N |
CL-O015-PL00BL-A |
|---|---|
| Fan Dimension |
90 x 90 x 7.5 mm |
| Rated Voltage | 12 V & 5V |
| Weight | 85 g |
