Toughpower PF1 850W - TT Premium Edition
In stock
P/N
PS-TPD-0850FNFAPU-1
USD$139.99
80 PLUS Platinum certified fully modular PSU with Hydraulic Bearing fan.
PF1

Toughpower PF1 850W - TT Premium Edition

The Toughpower PF1 Platinum Series comes in 850W/750W/650W and delivers 80 PLUS Platinum efficiency. Besides the fundamental features listed below, The PF1 Platinum Series has two other critical characteristics – compact size and our new board technology. With the small footprint of 140mm (D) x 86mm (H) x 150mm (L), the PF1 prides its ample space for cable management. The new board technology offers single sided SMD which all IC chips are set to only one side, allowing the heat to only be accumulated on one side so the entire board can be covered and cooled down by the 120mm ultra quiet Hydraulic Bearing Fan.

  • Durable Chassis

  • Concentrated Compression Fan Blade

  • DC to DC Design

  • Modular Cable Management

  • Side Ventilation Design

  • Anti-Vibration Mounting System

  • 100% High Quality Japanese 105°C / 221°F Capacitors

  • Single Side SMD and Zero Cable Platform

New Board Technology Offering Single Side SMD

The new design of the PCB allows all SMDs to sit on the top side of the PSUs PCB. This design not only prevents heat accumulation at the bottom of the PSU but also allows cold air to pass through with the 120mm Hydraulic Bearing Fan covering the entire set of components, keeping the PSU’s temperature low.

Compact Design with 140mm Depth

The Toughower PF1 Plainum Series is designed to be compact with size of 140mm (D) x 86mm (H) x 150mm (L) which provides ample space for cable management.

Ultra Quiet 120mm Hydraulic Bearing Fan

Featuring a 120mm hydraulic bearing fan with intelligent RPM controls to help guarantee superior cooling performance and near silent operation.

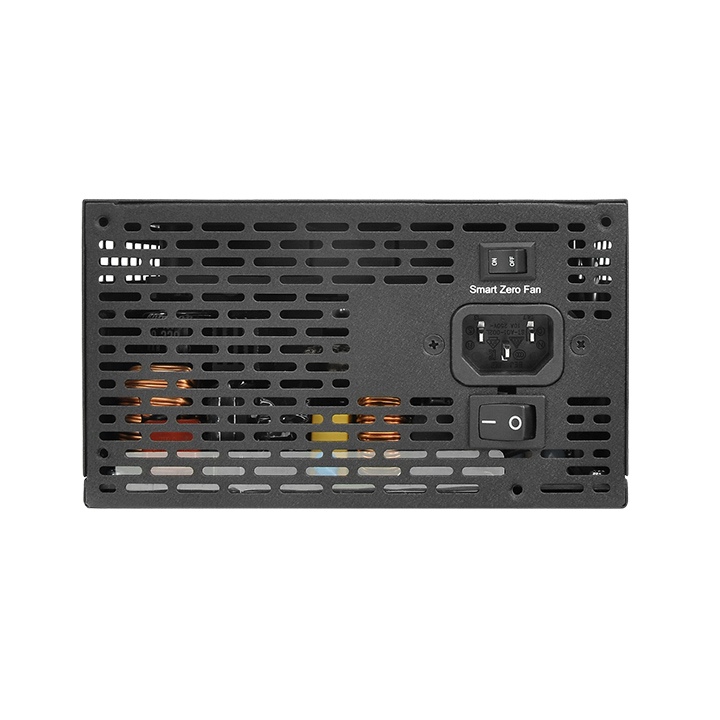

Smart Zero Fan

Designed with our Smart Zero Fan, the fan will not spin until the load exceeds 30% of the power supply, minimizing the fan noise.

<30mV Low Ripple Noise

All ripples are lower than 30mV on +12V, +5V or +3.3V from 0% to 100% load to ensure a stable operation and keep your performance-critical components to function reliably for longer.

+12V Rail
120 mV
30 mV
+5V Rail
50 mV
30 mV
+3.3V Rail
50 mV
30 mV


Intel Specification Toughpower PF1 Series

Extremely Strict Voltage Regulation <±2%

The voltage regulation, more strict than Intel’s standard ±5% for major rails and ±10% for -12V, is set to no more than ±2% for major rails to meet the highest performance.

+12V, +5V, +3.3V Voltage Regulation
±5 %
±2 %


Intel Specification Toughpower PF1 Series

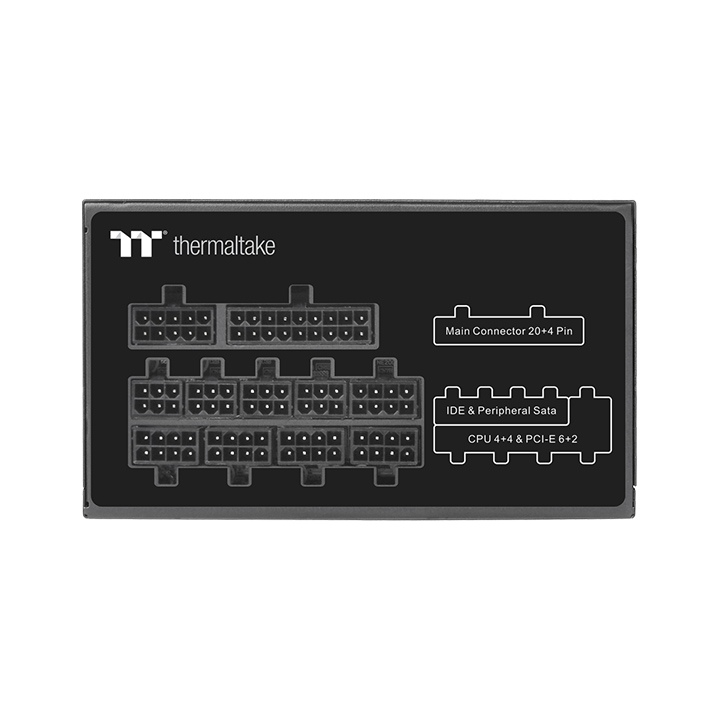

Fully Modular Low-Profile Flat Cable

Offers cable selection for users while powering the system at an advantageous voltage. Low-profile flat black cable makes cable management easier, reduces clutter and increases airflow inside the chassis.

Main Power Connector (24pin)
24pin Main connector (600mm) x 1
ATX 12V (4+4pin)
ATX 12V 4+4pin connector (650mm) x 1
ATX 12V 4+4pin connector (650mm) x 1
SATA (5pin)
SATA connectors (500mm + 150mm + 150mm) x 4
SATA connectors (500mm + 150mm + 150mm) x 4
SATA connectors (500mm + 150mm + 150mm) x 4
PCI-E (6+2pin)
PCI-E 6+2pin connectors (500mm + 150mm) x 2
PCI-E 6+2pin connectors (500mm + 150mm) x 2
PCI-E 6+2pin connectors (500mm + 150mm) x 2
Peripheral (4pin)
Peripheral connectors (500mm + 150mm + 150mm + 150mm) x 4
Floppy Adapter
Peripheral to Floppy adapter cable (150mm) x 1

Premium Japanese 105°C/221°F Capacitors

Providing great durability as well as offering the highest stability, while remaining reliable.

High Amperage Single +12V Rail

Powerful single +12V rail ensures a stable and reliable supply to other PC components.

80 PLUS Platinum Certified and Intel C6/C7 States Ready

Toughpower PF1 Platinum series saves energy through its high energy efficiency up to 92% and is certified to 80 PLUS® Platinum. The series has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.

More Information
P/N PS-TPD-0850FNFAPU-1
watts 850W
Model TTP-850AH2FKP
Max. Output Capacity 850W
Peak Output Capacity 1020W
Color Black
Dimension ( W / H / D ) 150mm(W) x 86mm(H) x 140mm(D)
PFC (Power Factor Correction) Active PFC
Power Good Signal 100-500 msec
Hold Up Time > 16msec at 100% of full load
Input Current 10A
Input Frequency Range 50Hz - 60Hz
Input Voltage 100V – 240V
OPERATING TEMPERATURE 5°C to + 50°C
Operating Humidity 20% to 85%,non-condensing
Storage Temperature -40°C to + 55°C
Storage Humidity 10% to 95%, non-condensing
COOLING SYSTEM 12cm hydraulic bearing fan
Efficiency Meet 80PLUS®Platinum at 115Vac input.
MTBF 120,000 hrs minimum
Safety Approval CE/UL/TÜV/FCC/BSMI/CCC/ EAC
PCI-E 6+2pin 4
PROTECTION OCP, OVP, UVP, OPP, SCP, OTP
