The latest presentation from Thermaltake in the essence of mainstream systems – the SMART SE2 Series PSU, a performance series of power supply units (PSU) that incorporated various PSU high-tech components, leading technology and Eco-friendly credentials, ranged between 500W to 700W with semi-modular that will accommodate any mainstream build under any circumstance. It is ideal for users to build a home or office system for 24/7 stable demands.
Deliver up to 87% efficiency at 20-100% load under real world load conditions to cut down electric cost and promise lowest power losses. Saving the unnecessary waste of energy and environmental protection.
High-Quality components and single +12V rails design enable non-stop usage with stable and reliable performance.
The semi modular cabling design allows use of cables users need resulting in improved optimal airflow and reduced system cutter.
All low-profile flat modular cables that not only increased the airflow and made chassis thermal performance improved, but also allow for effortless cable routing
Customizing concept of Smart SE2 500/600/700W enables user to maximize available power and make set-up easy. It is a semi-modular power supply that offered cable selection for users while powering system at a healthy voltage
High quality capacitor produces supreme performance with low impedance characteristics. The stable operation works for longer time with excellent reliability to enhance the power supply performance.

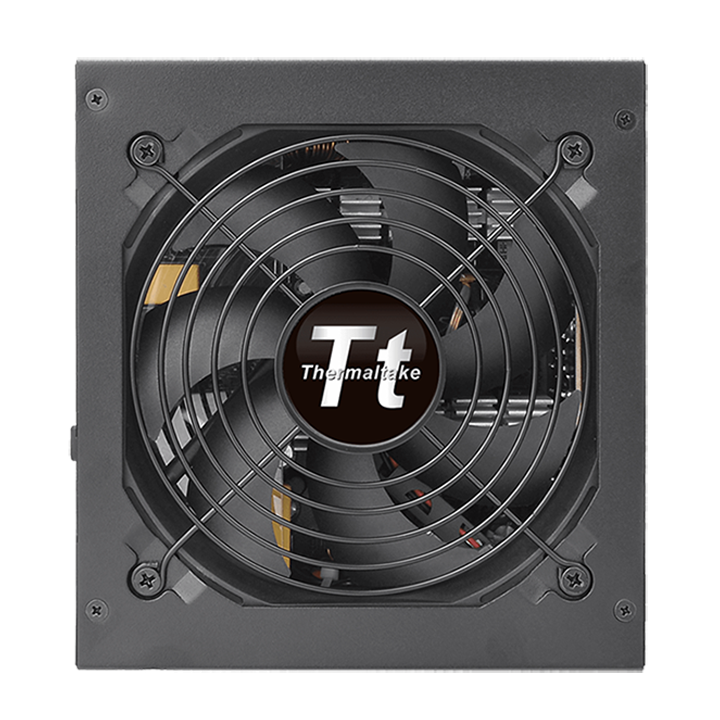

Large 140mm cooling fan, built-in with intelligent temperature control device can automatically detect the power load for fan speed adjustment and maintain optimal mute performance.
Since all components are top of the line, we are proudly to provide our best 3 years warranty.
| P/N |
PS-SPS-0500MNSAW*-1 |
|---|---|
| watts | 500W |
| Form Factor | ATX |
| Model | SPS-0500AH3CKW |
| Type | Intel ATX 12V 2.3 |
| Max. Output Capacity | 500W |
| Color | Black |
| Dimension ( W / H / D ) | 86mm x 150mm x 140mm |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-500 msec |
| Hold Up Time | 16msec (minimum) within 80% load |
| Input Current | 5A |
| Input Frequency Range | 50 Hz |
| Input Voltage | 230 Vac |
| OPERATING TEMPERATURE | 5℃ to +40℃ |
| Operating Humidity | 20% to 85%,non-condensing |
| Storage Temperature | -40 ℃ to +55 ℃ |
| Storage Humidity | 10% to 95%, non-condensing |
| COOLING SYSTEM | 120mm Fan: 1800 R.P.M. ± 10% |
| Efficiency | 82-86% efficiency @ 20-100% load |
| MTBF | 100,000 hrs minimum |
| Safety Approval | CE/CB/TUV |
| PCI-E 6+2pin | 500W |
| Connector | CPU: 4+4 Pin/PCI-e: 6+2 Pin/SATA |
| Input current | 5A |
