Pure Plus 12 LED RGB Radiator Fan TT Premium Edition(3-Fan Pack)
Specially designed for mainstream market,Thermaltake Pure Plus 12 RGB features compression blades,hydraulic bearing,and a 16.8 million colors LED ring with 9 addressable LEDs.Supporting Thermaltake’s patented TT RGB PLUS Software and AI interactive voice control,the Pure Plus 12 RGB lights up your system without sacrificing performance!
TT RGB PLUS
TT RGB PLUS Ecosystem is the intelligent lighting system for PCs that combines the most advanced addressable LED lighting with Thermaltake’s patented TT RGB PLUS Software.TT RGB PLUS ecosystem provides nearly unlimited possibilities for playing with colors,synchronizing lights to games,music,CPU temperatures or other TT RGB PLUS products,including case fans,CPU/VGA waterblocks,AIO CPU coolers,PSUs,LED strips and peripherals.The patented software allows users to change the light modes,colors,speeds,brightness,fan speeds,and even supports AI voice control in iOS and Android devices.
Learn More
Patented TT RGB PLUS Software&App
Monitor the fan performance,adjust the fan speeds,and customize the lighting effects for Thermaltake Plus RGB liquid cooling products with the patented TT RGB PLUS Software and an exclusively designed mobile app.Choose a function from below and scroll down to read the details.
Taiwan Patent:105216989
Learn MoreDownload TT RGB Plus Software
*Compatibility:
-For desktop:Requires TT RGB PLUS Software 1.1.5 version or later.
-For iOS:Requires iOS 10.0 or later.
-For Android:Requires Android 6.0.0 or later with screen resolution 1920 x 1080.
SyncALL,Say“Hello TT”Thermaltake AI Voice Control
Talking to TT RGB PLUS App is an easier,faster way to set lights for your systems.You can ask it to turn the lights on or off,switch lights modes,dim the lights,change light colors,or adjust lights speeds or fan speeds.
Download Voice Input Command
-For desktop:Requires TT RGB PLUS Software 1.1.5 version or later.
-For iOS:Requires iOS 10.0 or later.
-For Android:Requires Android 6.0.0 or later with screen resolution 1920 x 1080.
Profiles
Conveniently control all devices and customize the lights at the same time by setting up to five profiles for each controller.Each controller your system connected is displayed at the top left of the interface for you to quickly access.Within each profile,you can check which device is set to what operating mode and lighting effect.You can even“SAVE”and apply the settings to other controllers your system is running.
Fan Speeds
Simply drag the slider bar to adjust your fan speed RPM on a dedicated control panel.The software is also included a number of preset fan modes that allow you to set the fans to‘Silent Mode’where the RPM performs between a 500–1500 RPM range,or‘Performance Mode’which operates and dynamically adjusts all the way up to 1500 RPM.Besides running at the optimal RPM range,you can customize the speed by disabling PWM.
Fan Alert
The software offers real-time fan warning alerts when performance operating issues have emerged.The control panel of the failed fan will be grey out,so you can quickly identify which fan is causing issues.
Color Palette
Immediately personalize your lighting with the recommended color palette.You can change colors and brigthness for the LED ring which featrues 16.8 million colors,or 12 single LEDs where the lights can be adjusted individually.You also can let each LED display a specific color.Press”Color”,enter the decimal color coded,and then save it.
Light Modes
Light Modes Apply one of the present light modes that allow you to switch between different lighting schemes along with three“Color modes”(RGB,Single and Off)and four“Light Speeds”(Slow,Normal,Fast and Extreme).
Copy Color–Seamlessly transfer lighting effects of the first fan across to other fans.
Light Modes
Light Modes Apply one of the present light modes that allow you to switch between different lighting schemes along with three“Color modes”(RGB,Single and Off)and four“Light Speeds”(Slow,Normal,Fast and Extreme).
Full Lighted–A static lighting with your color choice,including RGB colors and single color.
Light Modes
Light Modes Apply one of the present light modes that allow you to switch between different lighting schemes along with three“Color modes”(RGB,Single and Off)and four“Light Speeds”(Slow,Normal,Fast and Extreme).
Sound Control–Sync lights with your favorite music that is imported from your PC,and see how they react to the beat.
Light Modes
Light Modes Apply one of the present light modes that allow you to switch between different lighting schemes along with three“Color modes”(RGB,Single and Off)and four“Light Speeds”(Slow,Normal,Fast and Extreme).
Flow–Directional RGB colored flow across the individual LED of the ring.
Light Modes
Light Modes Apply one of the present light modes that allow you to switch between different lighting schemes along with three“Color modes”(RGB,Single and Off)and four“Light Speeds”(Slow,Normal,Fast and Extreme).
RGB Spectrum–A seamless transition through the entire 16.8 million RGB color spectrum.
Light Modes
Light Modes Apply one of the present light modes that allow you to switch between different lighting schemes along with three“Color modes”(RGB,Single and Off)and four“Light Speeds”(Slow,Normal,Fast and Extreme).
Ripple–Lights ripple out across the entire fan with your choice of 16.8 million colors.
Light Modes
Light Modes Apply one of the present light modes that allow you to switch between different lighting schemes along with three“Color modes”(RGB,Single and Off)and four“Light Speeds”(Slow,Normal,Fast and Extreme).
Blink–Lights keep flashing on and off with single color or RGB colors.
Light Modes
Light Modes Apply one of the present light modes that allow you to switch between different lighting schemes along with three“Color modes”(RGB,Single and Off)and four“Light Speeds”(Slow,Normal,Fast and Extreme).
Pulse–A slow fade in and fade out with your color choice.
Light Modes
Light Modes Apply one of the present light modes that allow you to switch between different lighting schemes along with three“Color modes”(RGB,Single and Off)and four“Light Speeds”(Slow,Normal,Fast and Extreme).
Wave–A RGB wave flows across the entire fan.
Light Modes
Light Modes Apply one of the present light modes that allow you to switch between different lighting schemes along with three“Color modes”(RGB,Single and Off)and four“Light Speeds”(Slow,Normal,Fast and Extreme).
Cross–Lights flow in opposite directions with single color or RGB colors.
Thermal
Make your CPU temperature visible,and track it easily.The software has a built-in temperature sensor that detects and displays changes in CPU temperature in real-time.The LED ring offers an additional visual cue.The color corresponds to the temperature,ranging from blue(CPU temperaure≦40℃)to Red(CPU temperature≧65℃).
Thermal
Make your CPU temperature visible,and track it easily.The software has a built-in temperature sensor that detects and displays changes in CPU temperature in real-time.The LED ring offers an additional visual cue.The color corresponds to the temperature,ranging from blue(CPU temperaure≦40℃)to Red(CPU temperature≧65℃).
16.8 Million Colors LED Design
Featuring 9 addressable LEDs,great light coverage,and uniform color and brightness,the built-in LED ring can paint your build with 16.8 million colors.

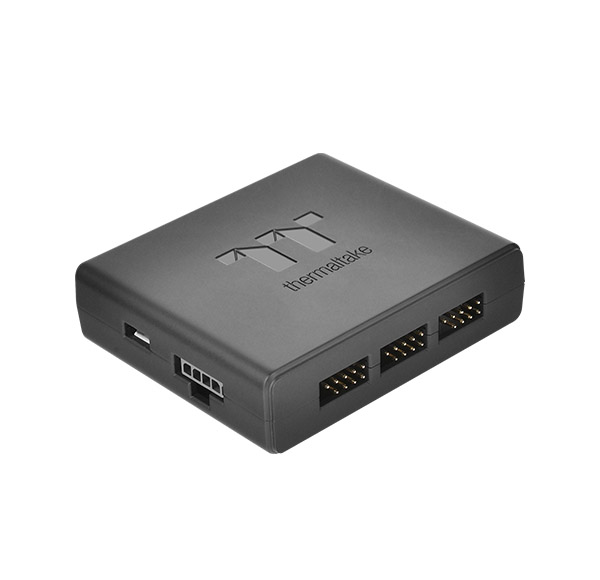

Digital Lighting Controller
The controller is designed with a DIP switch on the back.Hence,you can set a number for each controller easily.You can add up to 5 devices to one lighting controller and up to 16 controllers to the software.The controller and the coding guide are included in all packs.
*It is recommended to connect up to 3 controllers on one peripheral cable(Molex)only.
9 Fan Blade Design
120mm fan with unique 9 blades design is engineered to generate higher airflow without compromising on ultra-silent operation.
Hydraulic Bearing with Low-Noise Design
The hydraulic bearing self-lubricates with a high-quality,friction-reducing substance,which lowers operation noise while improving thermal efficiency.The seal cap prevents lubricant leakage and extends the lifespan of the unit.
Anti-Vibration Mounting System
In-mold injection anti-vibration rubber pads provide a hassle-free usage with 80%protection coverage for all corners.
TT RGB PLUS Software
2.0 - New version of Thermaltake’s TT RGB PLUS patented software, providing more lighting effects and PC monitoring functions.
1.0 - Thermaltake’s patented software to synchronize TT RGB PLUS products with addressable LEDs.
Caution: TT RGB PLUS 2.0 and TT RGB PLUS 1.0 will overwrite one another; users can only install one version of TT RGB PLUS.
2.0 DOWNLOAD NOW
2.0 USER MANUAL
1.0 DOWNLOAD NOW
LEARN MORE
Sync with Razer Chroma Lighting
All Thermaltake TT RGB PLUS products are able to connect into the Razer Chroma ecosystem, Razer Synapse 3. Users can experience synchronized gaming and RGB lighting effects on their TT RGB PLUS liquid cooling system and Razer gaming gear!
Works with Amazon Alexa
All Thermaltake TT RGB PLUS products support Amazon Alexa Voice Service, allowing you to give voice commands to Alexa-enabled devices.
TT AI Voice Control
Give you full control over the TT RGB PLUS products with your voice. “SyncALL, Say ‘Hello TT”.
Note: TT AI Voice control and Amazon Alexa requires the use of at least one TT RGB PLUS software-enabled product to function.
| P/N | CL-F063-PL12SW-A |
|---|---|
| Fan Dimension | 120 x 120 x 25 mm |
| INTERFACE | USB 2.0 connectors (9 Pin) |
| System compatibility | Windows 7 / 8 / 8.1 / 10 |
| Fan Started Voltage | 9.0 V |
| Fan Rated Voltage | 12 V & 5V |
| Rated Current | Fan 0.44 A (one fan, fan + LED) |
| Power Input | 12V – 4.32 W , 5V – 4.8W (Fan*3) |
| Fan Speed | 500 ~ 1500 R.P.M |
| Max. Air Pressure | 1.59mm-H2O |
| Max Air Flow | 56.45 CFM |
| NOISE LEVEL | 25.8 dB-A |
| Bearing Type |
Hydraulic Bearing |
| Life Expectation | 40,000 hrs,25℃ |
| Weight | 164 g |
User Manual
- File Name
- Description
- Size
- Version
- Release Date
-
Voice Input Command List
- en
- 2018-01-29
-
Manual
- Multi-language
- 1.3 MB
- 2018-03-15
-
TT RGB PLUS Alexa Skill Settings SOP
- English
- 2019-07-09
-
TT RGB Plus x Razer Chroma Synchronization Guide
- English
- 864.9 KB
- 2019-05-14
Drivers & Software
- File Name
- Description
- Size
- Version
- Release Date
-
TT RGB PLUS Software
-
1.Optimized RGB SYNC. (MSI motherboard)
2.Update HAL.
3.Minor bug fixes and system performance. - V 1.4.3
- 2021-08-03
