Engine 17 1U Low-Profile CPU Cooler
Thermaltake Engine 17 is a low-profile air
cooling solution for Intel
socket LGA 1150/1151/1155/1156 type CPU. Featuring 17mm height with a compact
size 60mm PWM fan, it is also
a great choice for any small form factor applications. The unique metallic
structure (metallic blades and
fins) with copper base guarantees extremely quiet, yet powerful operation. The
Engine 17 is the new
standard in CPU air cooling technology, and it is exclusive to Thermaltake.
Low-Profile 17mm Height
Designed with 17mm height, the Engine 17 is the ideal CPU cooling solution for slim and small form factor applications, such as 1U server, HTPC, AIO/PIO PC, POS terminal and Booksize/Mini PC.
Unique Metallic (Alumium Alloy) Structure with Superb Heat Dissipation
Unlike traditional CPU coolers, the Engine 17
features a metallic
structure and copper base that provides more fortified and efficient thermal
paths for CPU. The metallic
fan is designed to directly pull heat from CPU. Especially, the metallic fan
base is engineered with small
radial gaps that allow heat to be transferred rapidly to the rotating metallic
fan. When the metallic fan
blades generate cooling airflow, heat will also be transferred to the flowing
air by both rotating fan and
stationary fan base at the same time.

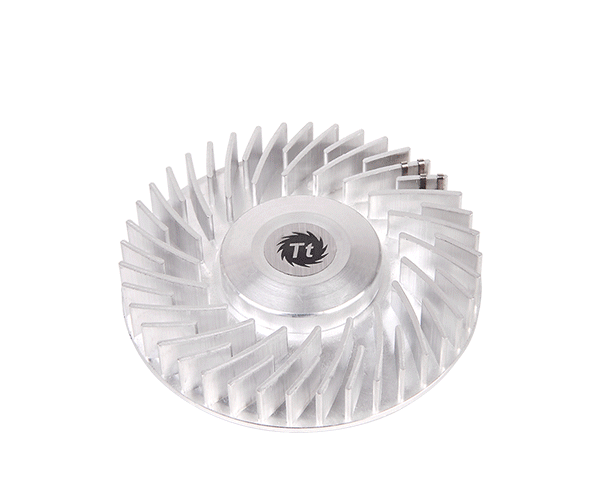

40 Fan Blade Design for Excellent Cooling Performance
Metallic fan with unique 40 blades design is engineered to generate higher airflow passing through the heatsink without sacrificing ultra-silent operation. The metallic blade rotation will create a centrifugal force on ambient air. In the meanwhile, the centrifugal forces will expel hot air so that heat can easily be taken away from the fan blades. Most importantly, this cooling technique can reduce the blade’s noise and vibration because hot air expelled will create a vacuum, and then fresh cooling air will be drawn in the heatsink.
Radial Fin Arrangement
The Engine 17 is specially designed with metallic radial fins to accelerate the thermal transfer process. Especially, the radial arrangement with 119 fin design can minimize the gap between the fan and the fins, thus, hot air can be exhausted more rapidly and efficiently.
Low Noise PWM Fan
The PWM function enables the motherboard to run the fan precisely at its
necessary speed. The noise level can
reduce to 11dBA. This guarantees ultra-quiet noise level without compromising on
the cooling
performance.
*Due to Engine 17 is using 8-pole motor, the RPM read by Bios is twice of the
real RPM.
Non-Interference Cooling Design
The Engine 17 perfectly solves the co-existing problem of high performance RAM and CPU coolers, achieving the best RAM clearance.
| P/N | CL-P051-AL06SL-A |
|---|---|
| COMPATIBILITY |
Intel LGA 1200/1156/1155/1151/1150/775 (CPU Socket) |
| Dimensions | 17 ± 1(H)*91.5(L)*91.5(W) mm |
| Heatsink Material | Aluminum/Copper |
| Fan Dimension | 12.6(H) x 60(L) x 60(W) mm |
| Fan Speed | 1500~2500 RPM |
| Rated Voltage | 12V |
| Start Voltage | 9.0 V |
| Rated Current | 0.25 A |
| Power Input | 3W |
| Air Flow | 8.9 CFM |
| Static Pressure | 2.4 mm-H2O |
| Acoustical Noise | 11~23 dBA |
| Life time/Fan Life time | 50,000 hours |
| pin connect | 4 pin PWM |
| Cooling Power | 35 W |
| Weight | 205 g |
